Product Overview

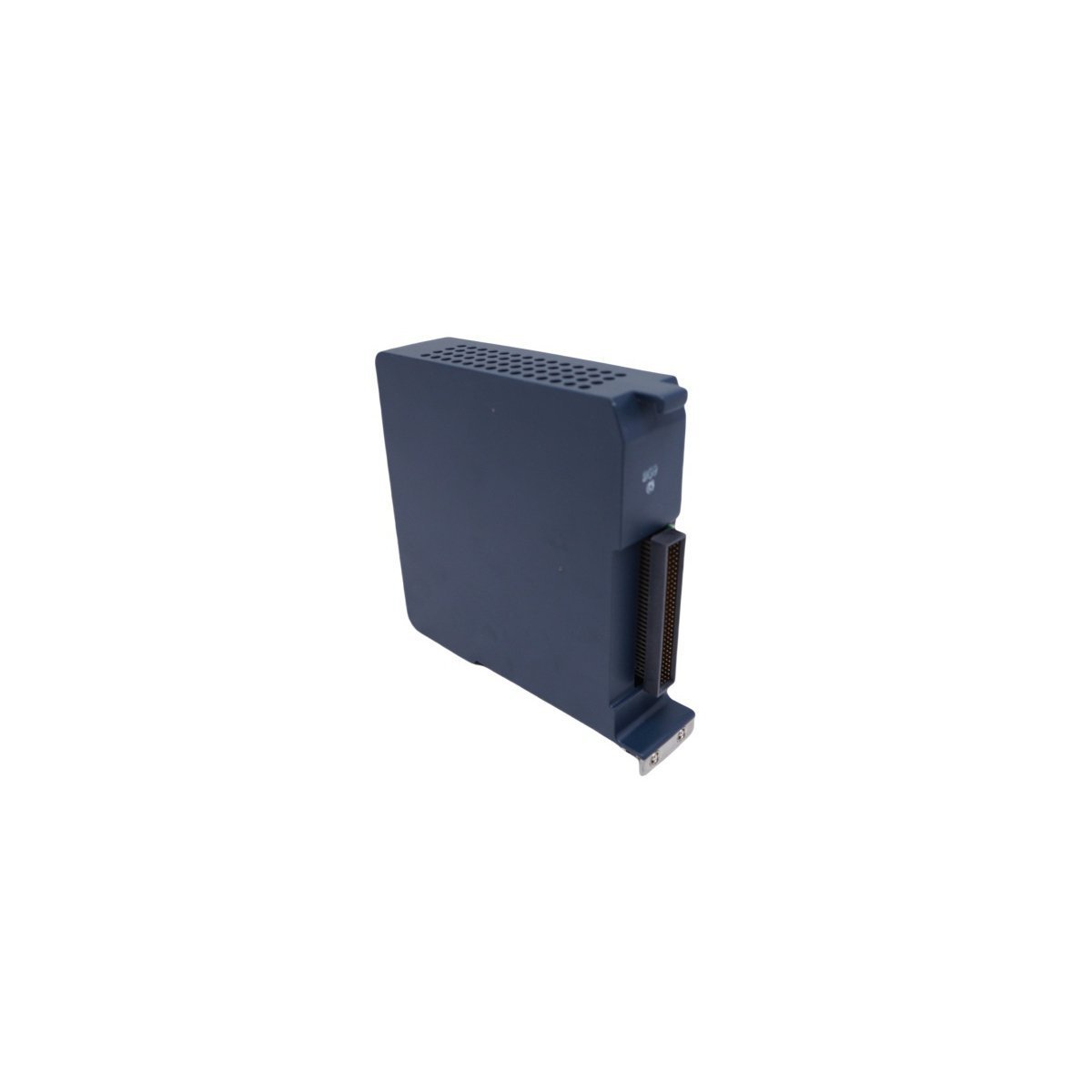

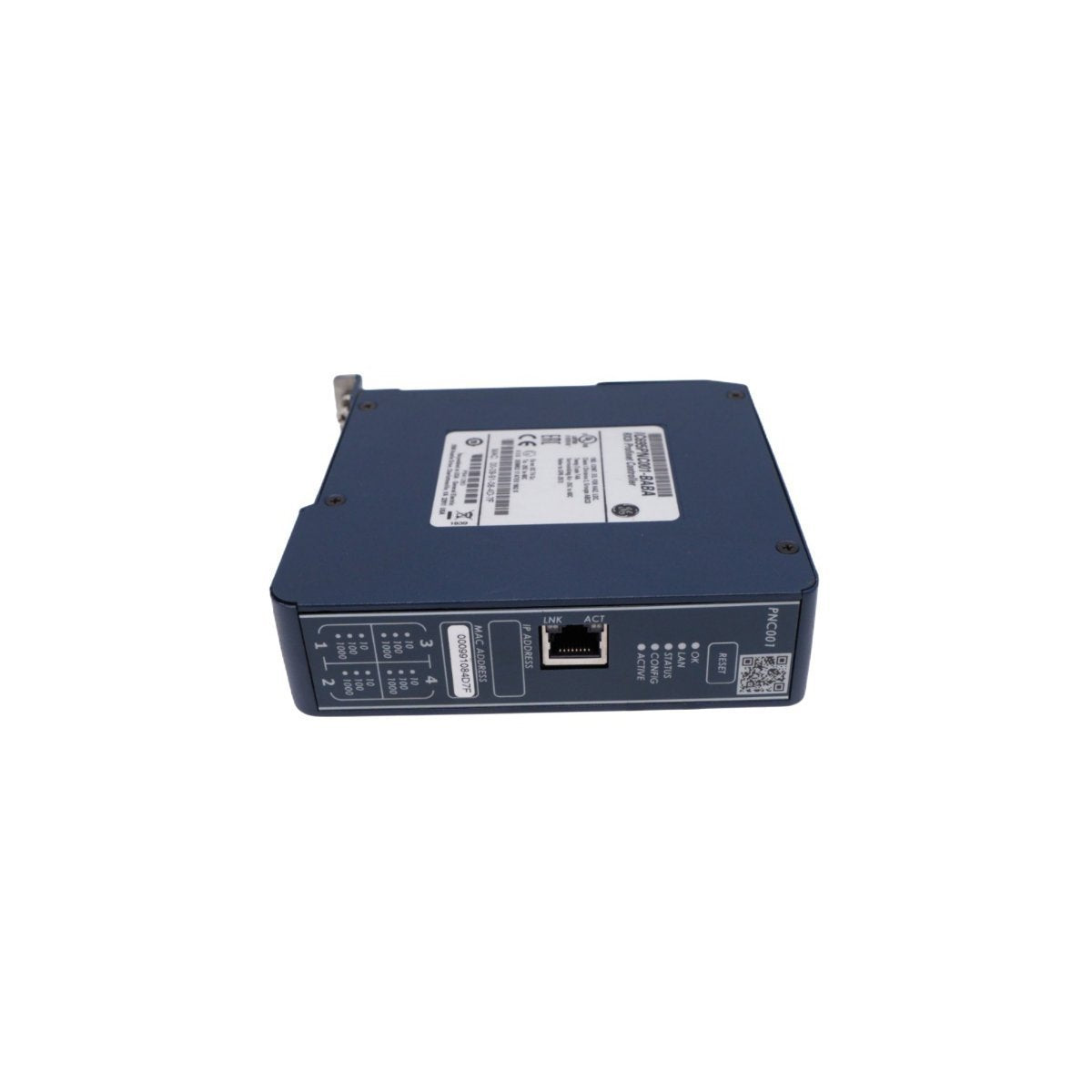

The GE Fanuc IC695PNC001 is a PROFINET IO-Controller module for PACSystems RX3i systems, used to connect an RX3i rack to PROFINET networks for cyclic I/O exchange and device diagnostics. It integrates with compatible RX3i CPUs and supports common industrial Ethernet topologies for scalable remote I/O architectures.

Interface & Performance Highlights

• Model Number: IC695PNC001

• Platform: PACSystems RX3i

• Module Function: PROFINET Controller (IO-Controller)

• Network Interfaces: 2 × RJ-45 Ethernet ports, 2 × SFP slots (SFPs ordered separately)

• IP Addressing: Single IP used across onboard ports

• Device Capacity: Up to 64 PROFINET I/O devices per controller (application-dependent)

• Update Time: Configurable 1 ms to 512 ms

• Service Port: Micro USB for setup/diagnostics (CLI)

• RIUP: Supports insertion/removal under power (system dependent)

• Power Requirements: 5 VDC backplane; higher draw when SFPs installed

• Operating Temperature: 0 to 60°C

• Condition: Brand New

• Lead Time: In Stock

• Weight: 0.64 kg

• Dimensions: 4 × 21.7 × 29.1 cm

• Origin: USA

• HS Code: 8537101190

• System: PLC

• Product Status: Active

Common Automation Scenarios

• RX3i as a PROFINET controller for distributed I/O islands

• Networked machine skids using star, line (daisy-chain), or ring layouts

• High-speed cyclic data exchange for motion coordination, packaging, conveying, and assembly cells

• Integration of PROFINET diagnostics into PLC/HMI maintenance workflows
