Product Overview

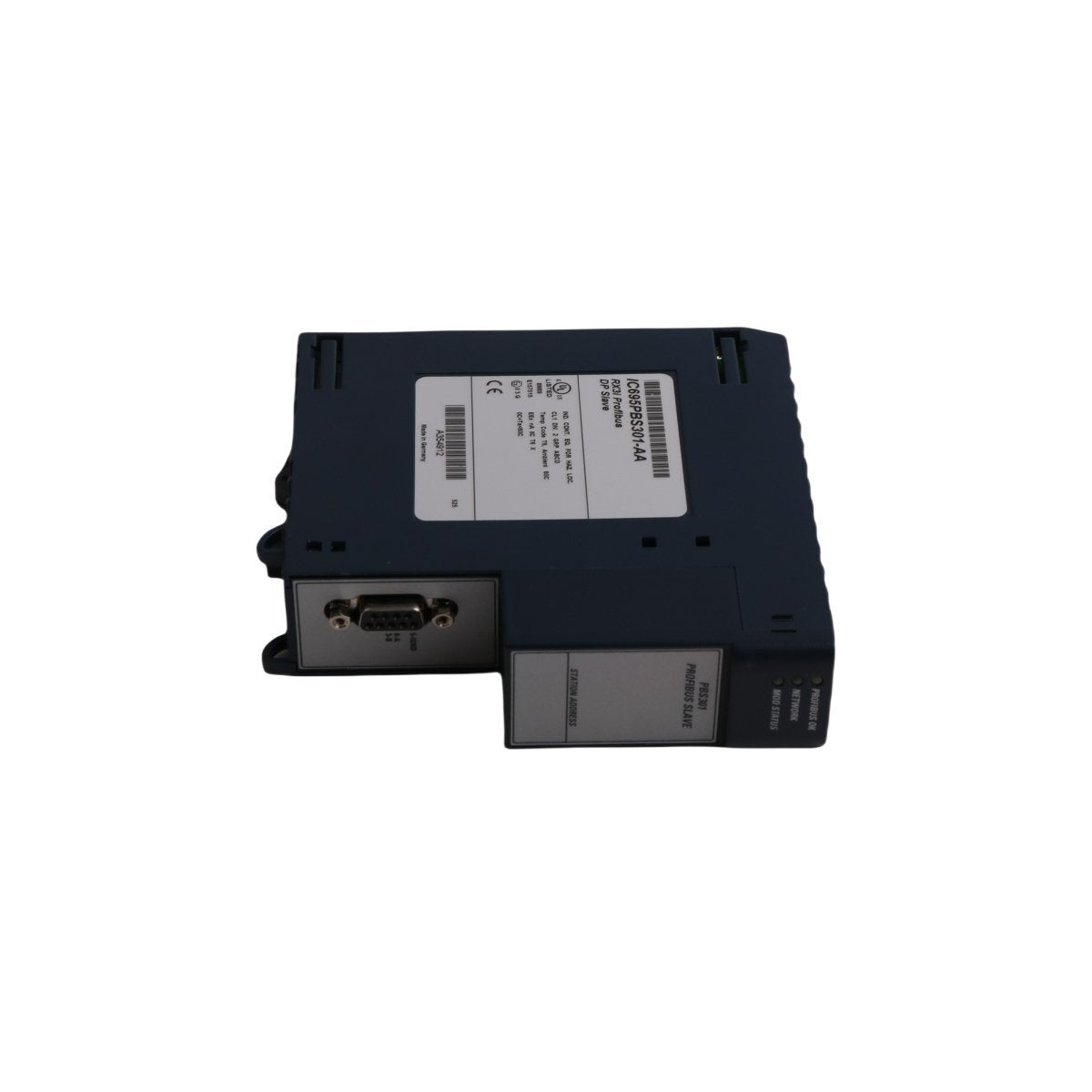

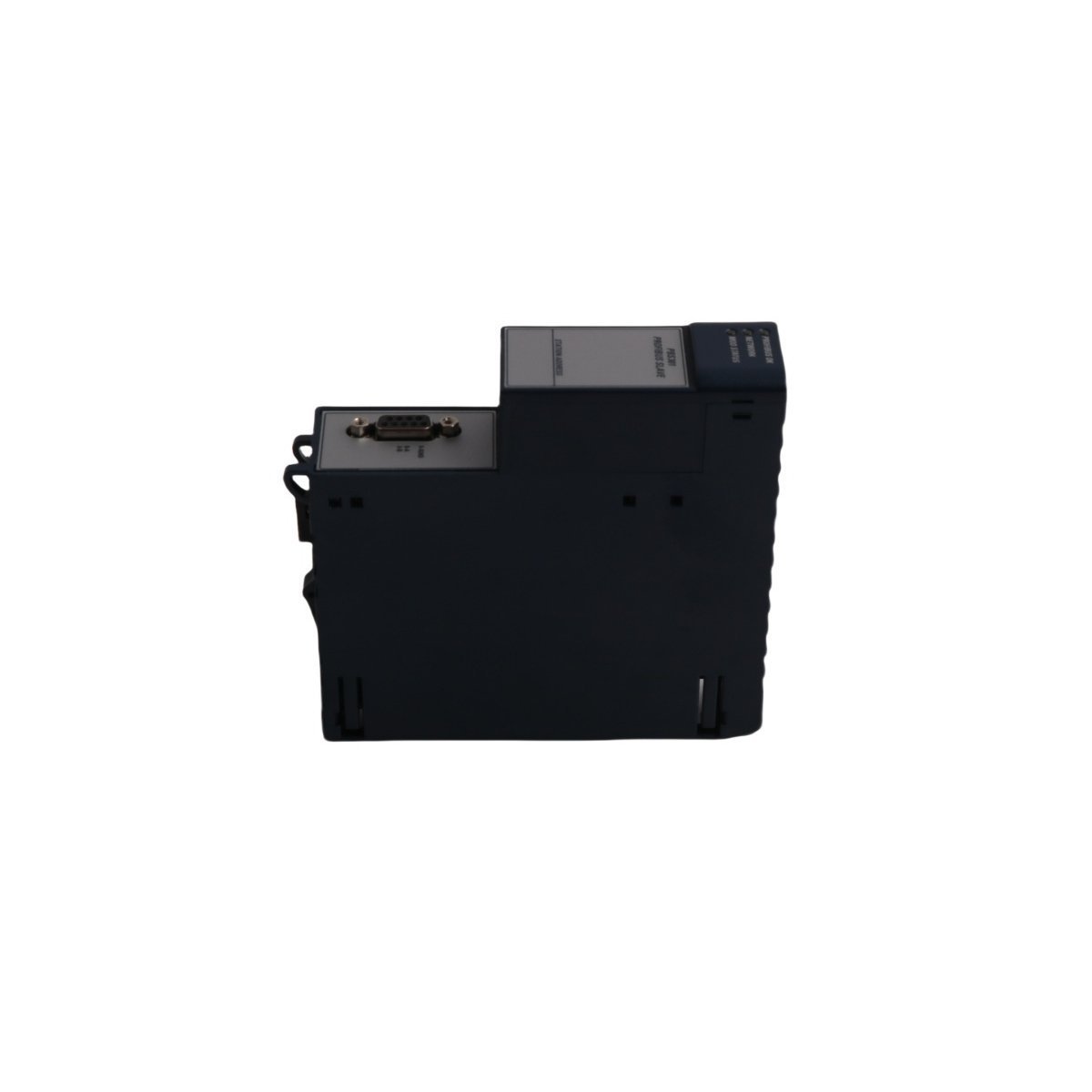

The GE Fanuc IC695PBS301 is a PROFIBUS-DP slave communication module for PACSystems RX3i PLC racks. It allows an RX3i system to appear as a slave node on a PROFIBUS network, enabling cyclic I/O exchange and acyclic services with a PROFIBUS master. The module is used to integrate RX3i control hardware into existing PROFIBUS architectures without redesigning the fieldbus layer.

Communication Specifications

• Model Number: IC695PBS301

• Product Type: PROFIBUS Slave Module

• Product Family: PACSystems RX3i

• Network: PROFIBUS DP (supports standard DP baud rates)

• Connector: 9-pin D-sub

• Data Size (max): 244 bytes input, 244 bytes output

• DP-V1 Support: Read/Write services and Alarm messaging

• Slot Usage: Single-slot module

• Backplane Power: 3.3 VDC, 440 mA (typical)

• Indicators: PROFIBUS OK, Network (bi-color), Module Status (bi-color)

• Operating Temperature: 0 to 60 °C

• Storage Temperature: -40 to 85 °C

• Firmware Update Method: Via host CPU using WinLoader

• Condition: Brand new

• Weight: Approx. 0.16 kg

• Dimensions: Approx. 3.5 × 13.5 × 13.6 cm

• System: PLC

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Typical Integration Scenarios

The IC695PBS301 is commonly used when an RX3i rack must interface with PROFIBUS-controlled lines, such as packaging systems, conveyor zones, OEM skids, and legacy process panels. It is also applied in retrofit projects where PROFIBUS masters remain in service and the control platform is upgraded while keeping the existing network and cabling.
