Product Overview

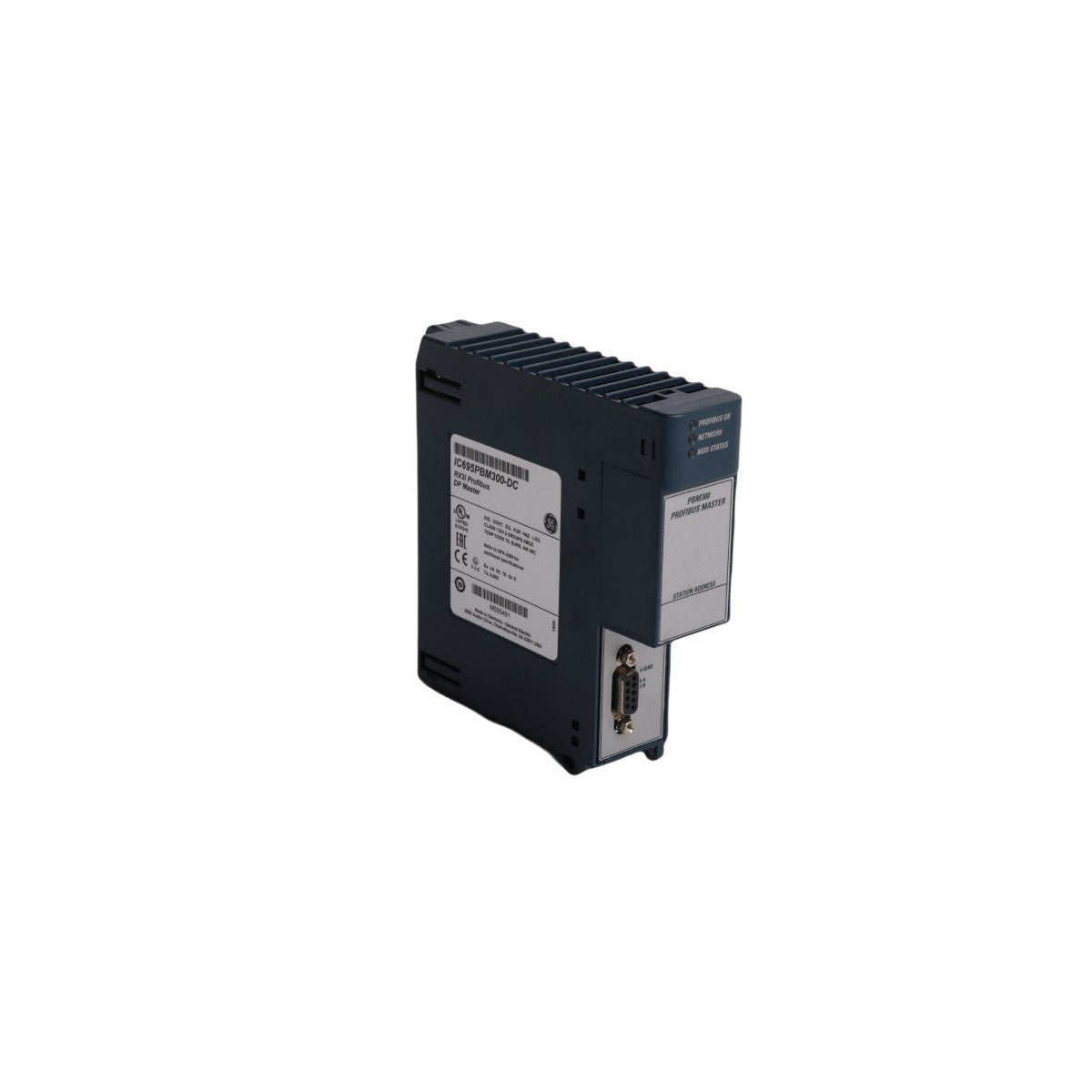

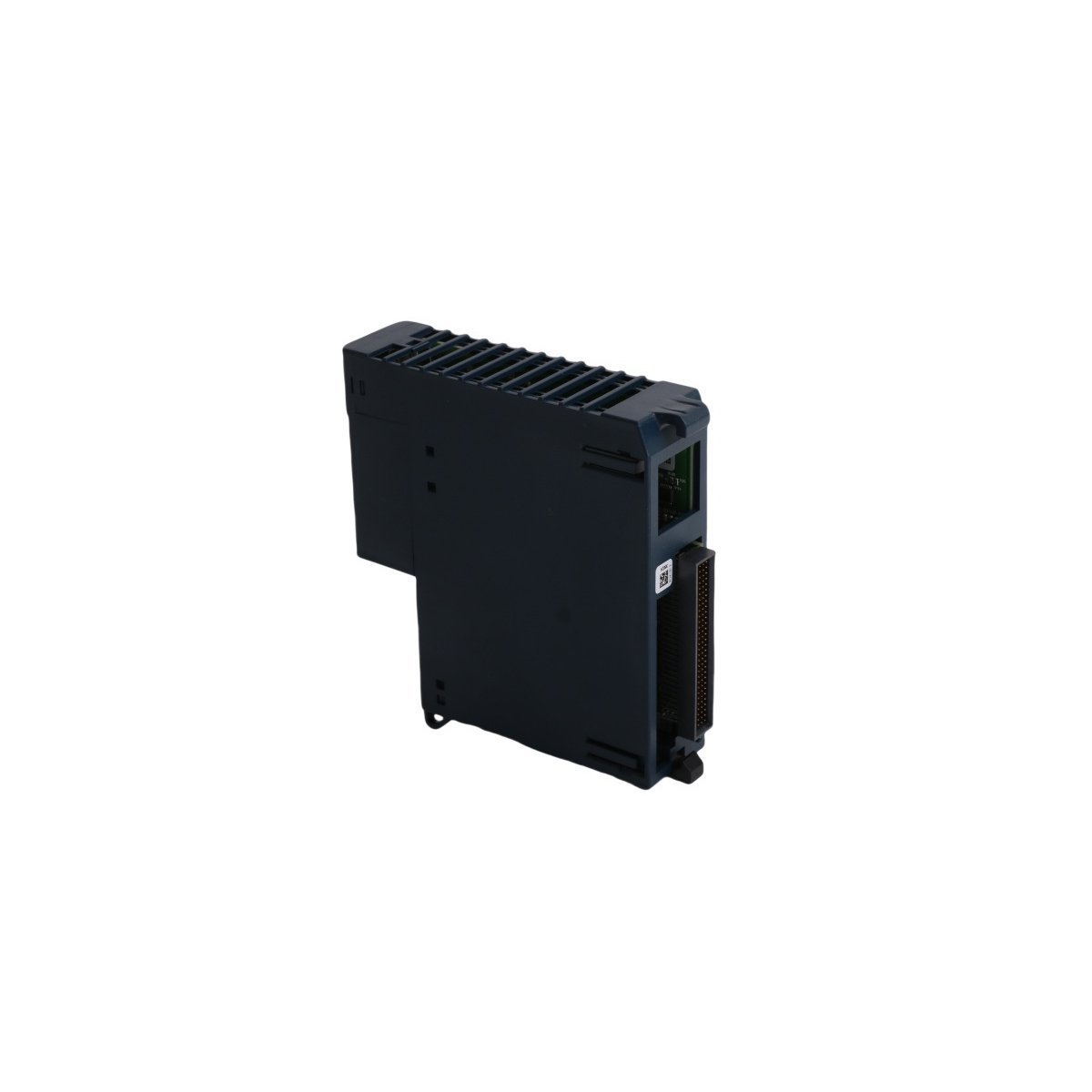

The GE Fanuc IC695PBM300 is a PROFIBUS-DP master module for PACSystems RX3i controllers, used to manage cyclic I/O exchange between an RX3i rack and PROFIBUS-DP field devices. It enables integration of distributed I/O, drives, valve terminals, and other DP slave equipment under deterministic network timing. The module installs on the RX3i backplane and provides network status reporting for commissioning and ongoing maintenance.

Hardware Parameters

• Model / Order Number: IC695PBM300

• Product Family: PACSystems RX3i

• Product Type: PROFIBUS-DP Master Module

• Network Role: DP Master

• DP Slave Capacity: Up to 125 slaves (network dependent)

• Data Capacity: Up to 3584 bytes input and 3584 bytes output (configuration dependent)

• Per-Slave Data Limit: Up to 244 bytes input and 244 bytes output (device dependent)

• Supported Baud Rates: 9.6 kbit/s to 12 Mbit/s

• DP Functions: Sync, Freeze, DP-V1 acyclic services (Read, Write, Alarm)

• Diagnostics: Slave status bit array, network and master diagnostic counters, diagnostic addressing, module revision reporting

• Connector: 9-pin Sub-D PROFIBUS interface

• Indicators: PROFIBUS-compliant LEDs for module and network state

• Firmware Handling: Upgradable via host controller using WinLoader

• Backplane Power: 440 mA at 3.3 VDC

• Operating Temperature: 0 to 60 °C

• Storage Temperature: -40 to 85 °C

• Configuration Software: Proficy Machine Edition, commonly requiring SP2 or later for configuration

• Controller Compatibility: Typically requires RX3i CPU firmware v2.9 or later

• Condition: Brand New, In Stock, Active

• Origin: USA, Weight 0.16 kg, Size 3.5 × 13.5 × 13.6 cm, HS Code 8537101190, MOQ 1

Industrial Applications

• PROFIBUS-DP master control for distributed I/O islands and remote panels

• Drive and motion system integration using DP slave devices

• Process skids and packaging lines requiring deterministic fieldbus data exchange

• Modernization projects adding PROFIBUS connectivity to RX3i-based control systems

• Maintenance replacement for installed RX3i PROFIBUS master modules
