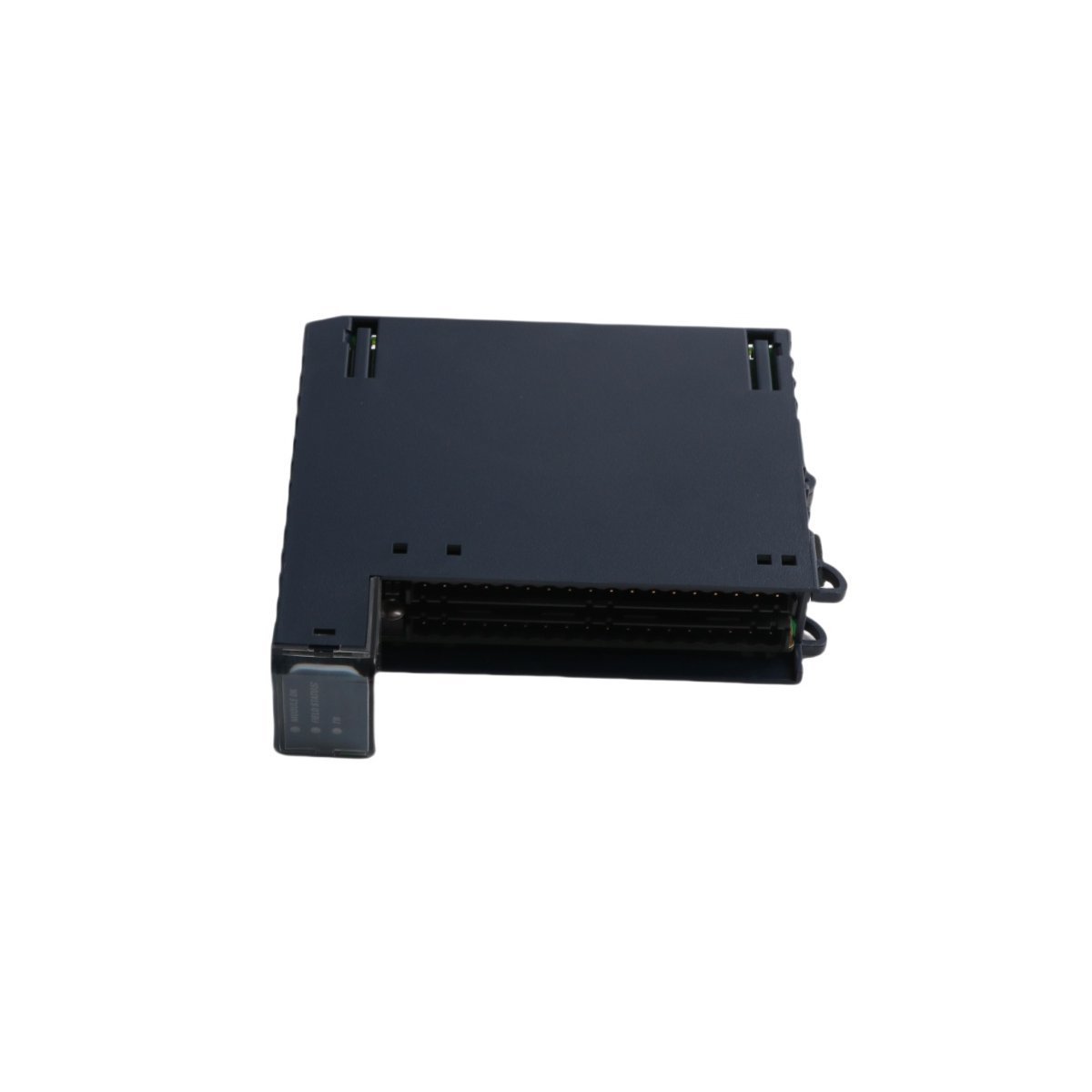

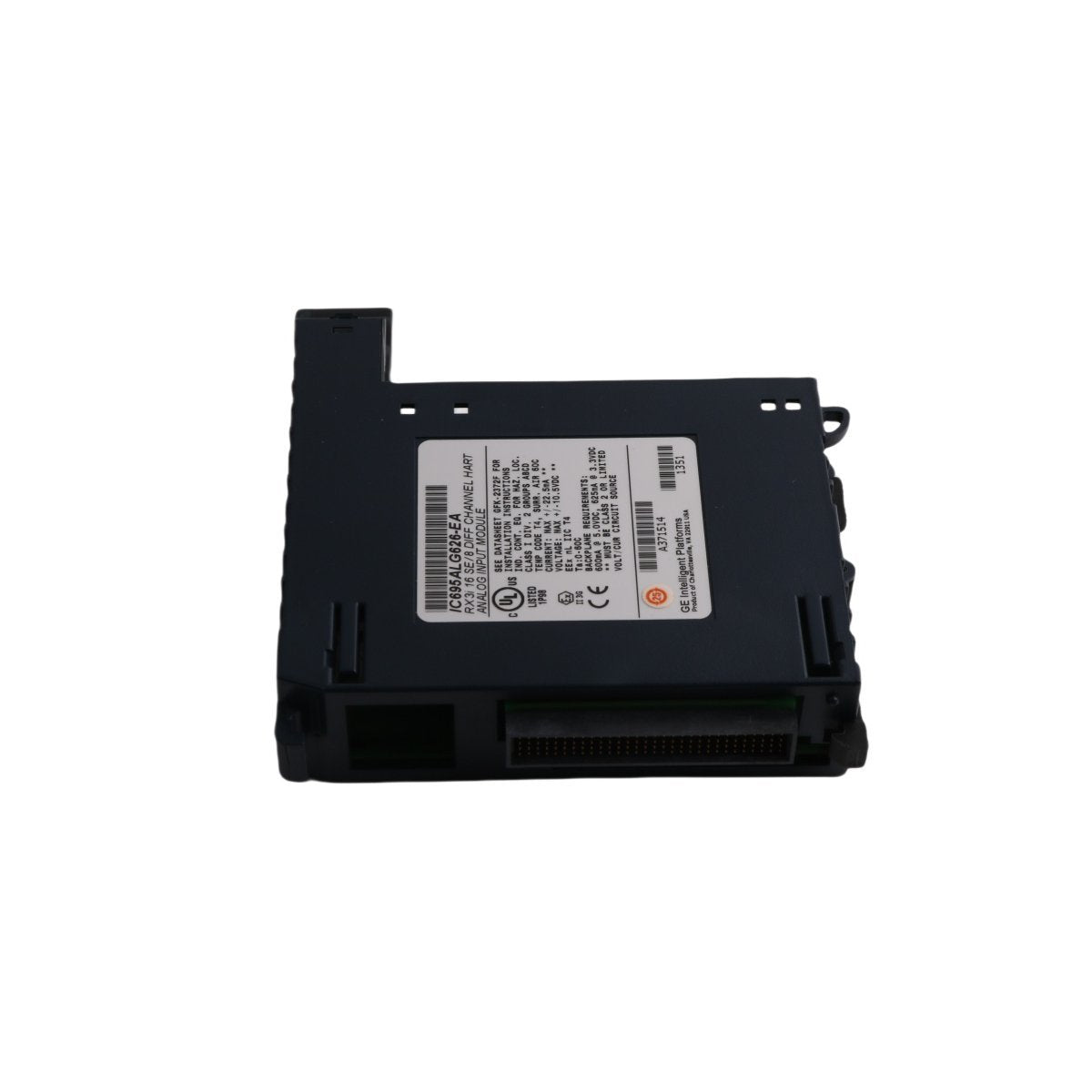

IC695ALG626 General Electric PACSystems RX3i Analog Input Hart Module
-
Dimensions: 16 x 13 x 2.8 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The IC695ALG626 is a PACSystems RX3i analog input module with HART capability available on each channel. It is used to acquire process measurements from common field instruments and to access HART device data for configuration and diagnostics through the control system. The module supports both current and voltage input ranges, enabling flexible integration for mixed-instrument installations.
Designed for RX3i universal backplanes, the IC695ALG626 supports hot insertion/removal (with system procedures applied) and does not require hardware jumpers for typical signal range selection, simplifying commissioning and module replacement.
Hardware Parameters
| Item | Specification |
|---|---|
| Platform | PACSystems RX3i (IC695 series) |
| Module type | Analog Input HART Module |
| HART support | HART 5.0 on each channel |
| Channel count | 16 single-ended or 8 differential |
| Current inputs | 0–20 mA, 4–20 mA, ±20 mA |
| Voltage inputs | 0–10 V, ±10 V, 0–5 V, ±5 V, 1–5 V |
| Backplane | RX3i universal backplane compatible |
| Indicators | Module status, field status, terminal block status LEDs |
| Operating temperature | 0°C to 60°C (32°F to 140°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Approx. weight | 0.24 kg |
Additional diagnostic and maintenance functions may include:
-
Auto-calibration routines
-
Open-circuit detection (signal-dependent)
-
Configurable alarms such as high/low limits and rate-of-change monitoring
-
Flash-based firmware upgrade capability (platform dependent)
Industrial Applications
-
Process analog input acquisition for transmitters and analog sensors in RX3i PLC/PAC systems
-
HART-enabled device integration for instrument diagnostics and secondary variable access
-
Mixed-signal installations requiring both mA and voltage measurement ranges on one module
-
Retrofit projects upgrading I/O while retaining HART field instruments
-
Plants needing hot-swap maintainability and clear front-panel status indication for troubleshooting
