Product Overview

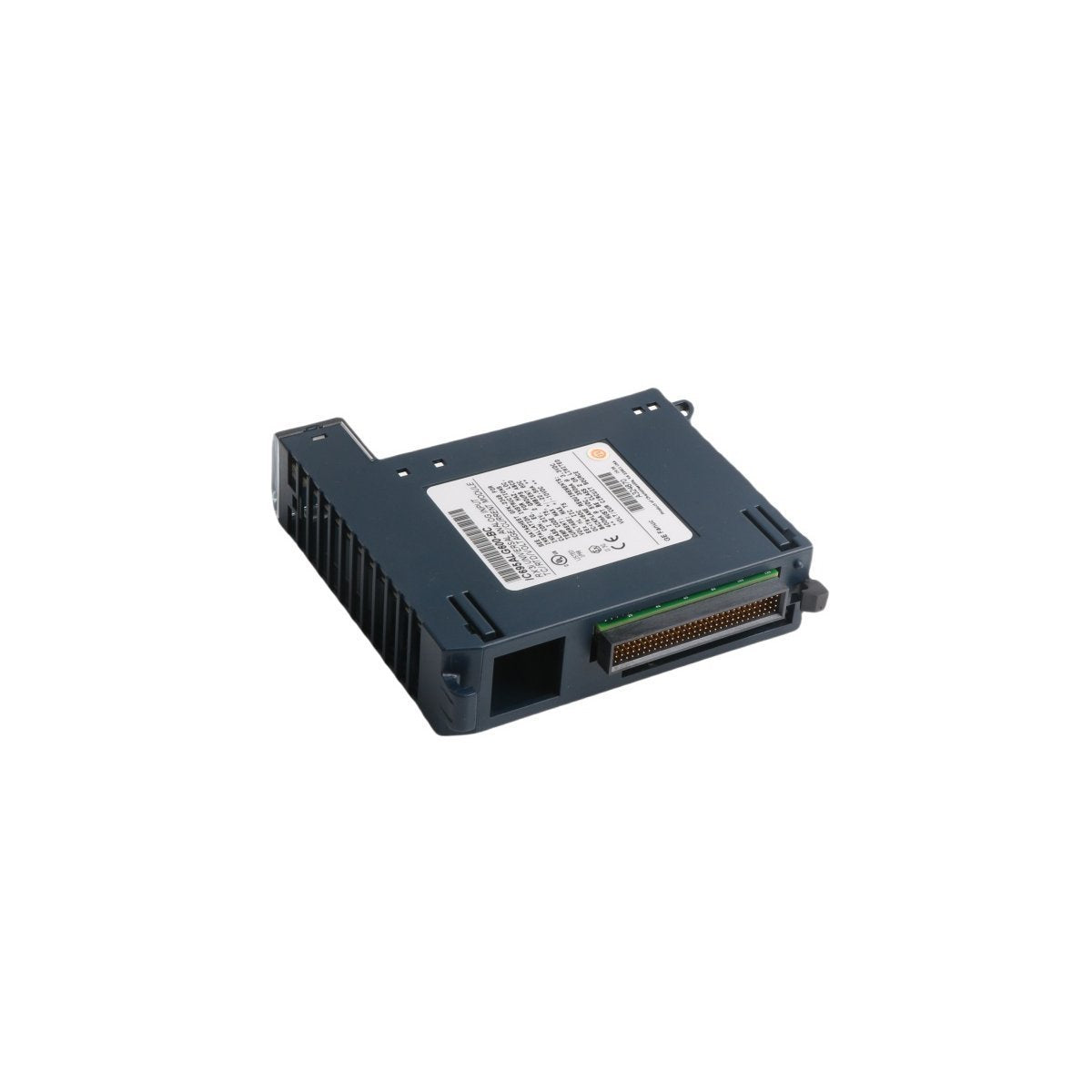

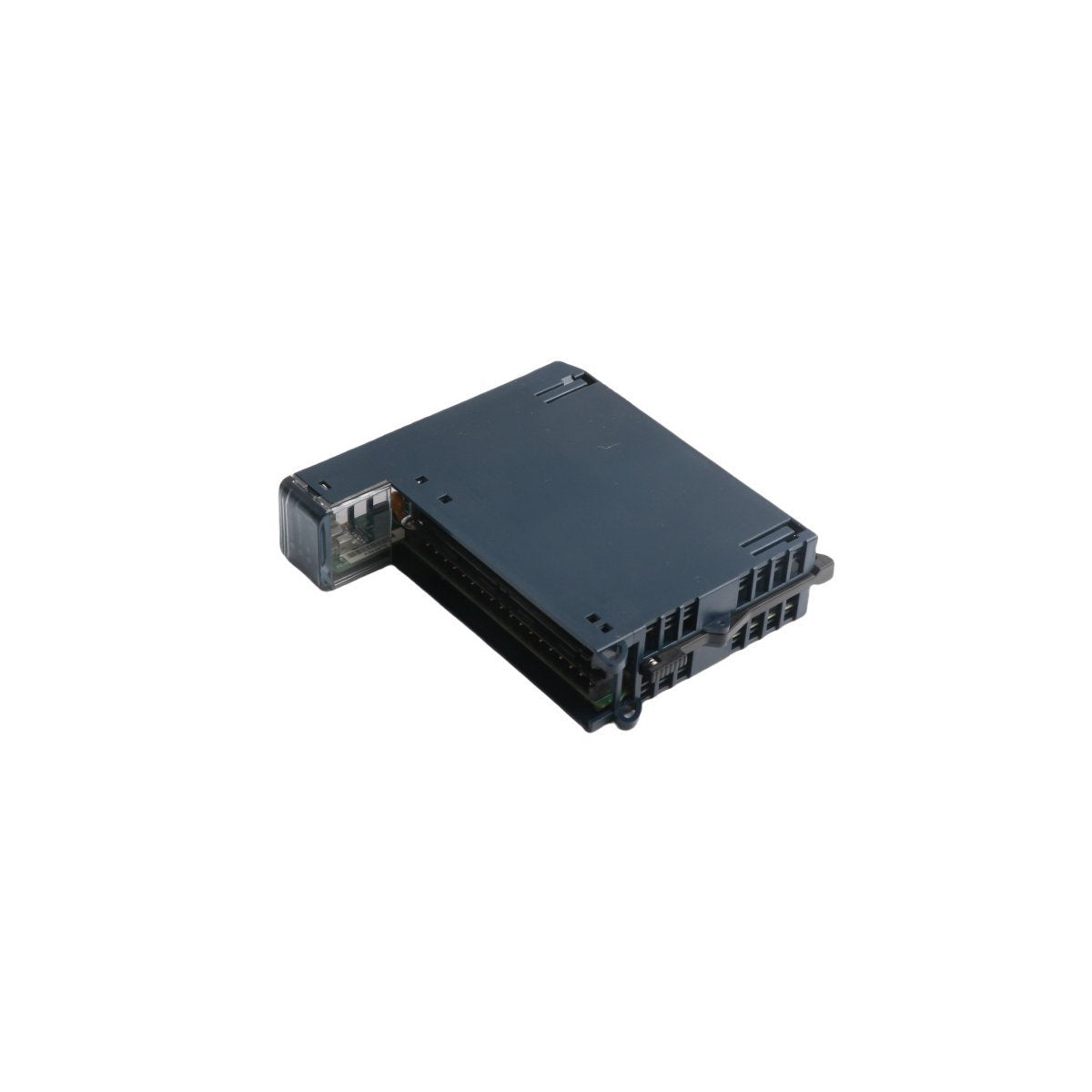

The GE Fanuc IC695ALG600 is a universal analog input module for PACSystems RX3i PLC/PAC systems. It is used to acquire multiple types of field signals in a single module, including voltage and current transmitters, resistance-based measurements, and temperature sensors such as thermocouples and RTDs.

The module provides two independent channel groups, allowing mixed signal types within the same unit when configured in the controller project. This makes it suitable for skids and process panels where different sensor technologies must be connected to one RX3i backplane while maintaining clear channel-level configuration and diagnostics.

Signal and Hardware Parameters

• Model / Order Number: IC695ALG600

• Product Family: PACSystems RX3i

• Product Type: Universal Analog Input Module

• Channel Count: 8 inputs total, arranged as two groups of 4 channels

• Supported Input Types:

• Current 0–20 mA, 4–20 mA, ±20 mA

• Voltage ranges commonly used in control systems such as 0–10 V and 1–5 V, plus additional selectable voltage modes by configuration

• Resistance measurement modes and RTD sensor inputs

• Thermocouple temperature inputs (type availability depends on configuration and firmware support)

• Terminal Block Requirement: Compatible RX3i terminal blocks such as IC694TBB032 (box-style) or IC694TBB132 (extended box-style)

• Diagnostics and Indication: Module Status, Field Status, and Terminal Block LEDs

• Software Compatibility: Proficy Machine Edition (PME) v5.0 SP1A or later

• Backplane and Firmware Notes: Designed for RX3i universal backplane, firmware revision requirements depend on system release level (commonly referenced as v2.80 or higher)

• Firmware Maintenance: Flash-based design supports field firmware updates

• Operating Temperature: 0 to 60 °C

• Power Dissipation: Up to 5.4 W

• Condition: Brand New

• Availability: In Stock

• Country of Origin: USA

• Weight: 0.24 kg

• Dimensions: 3.5 × 13.5 × 13.5 cm

• HS Code: 8537101190

• MOQ: 1

• Lifecycle Status: Active

Industrial Application Scenarios

• Process instrumentation acquisition including pressure, flow, and level transmitters using 4–20 mA

• Temperature measurement using thermocouples and RTDs in furnaces, reactors, or utility systems

• Mixed-signal skid panels where voltage, current, and temperature inputs must coexist in one rack

• Retrofit and expansion of PACSystems RX3i systems requiring flexible analog input capability

• OEM machine builds that standardize on a universal analog module to reduce spare parts complexity
