Product Overview

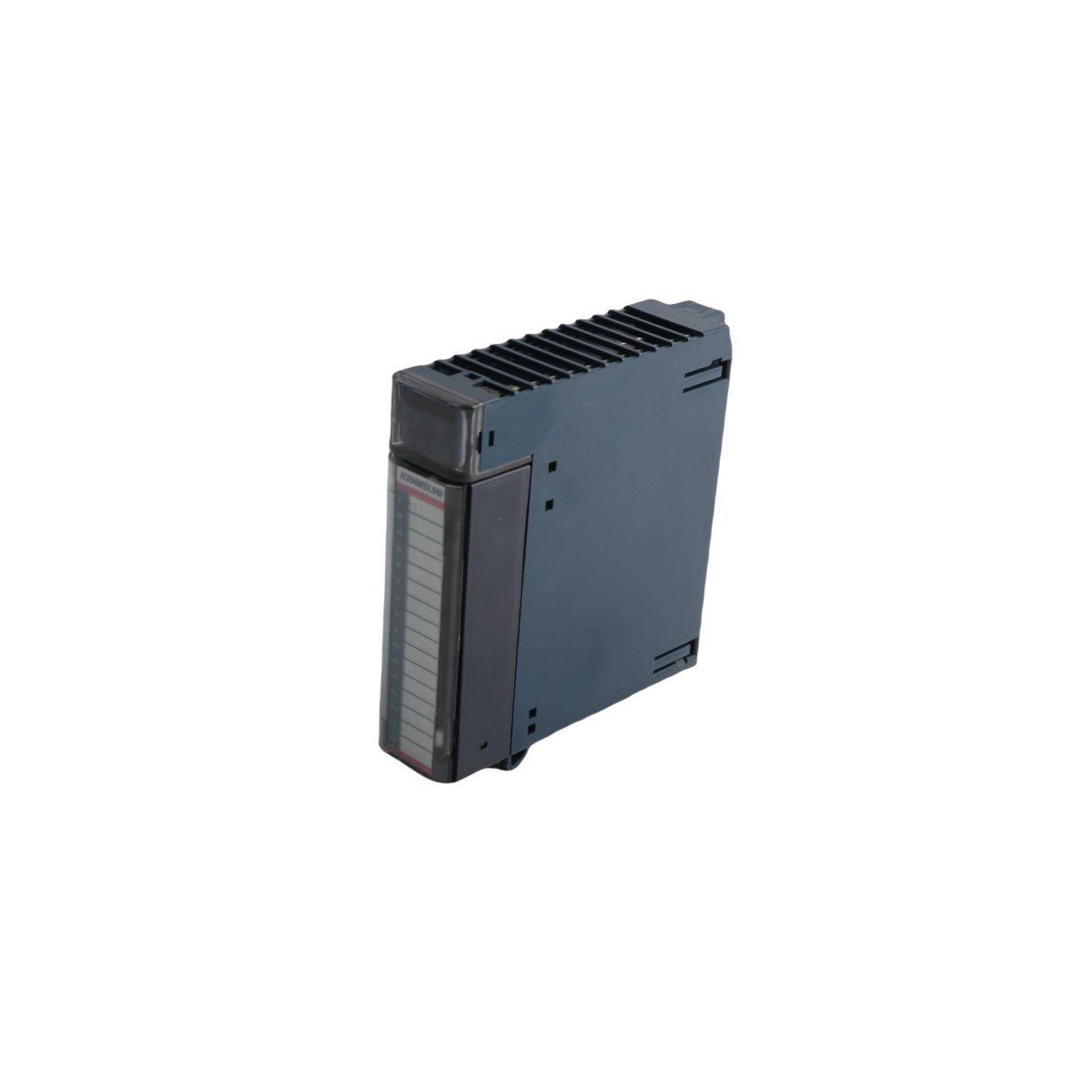

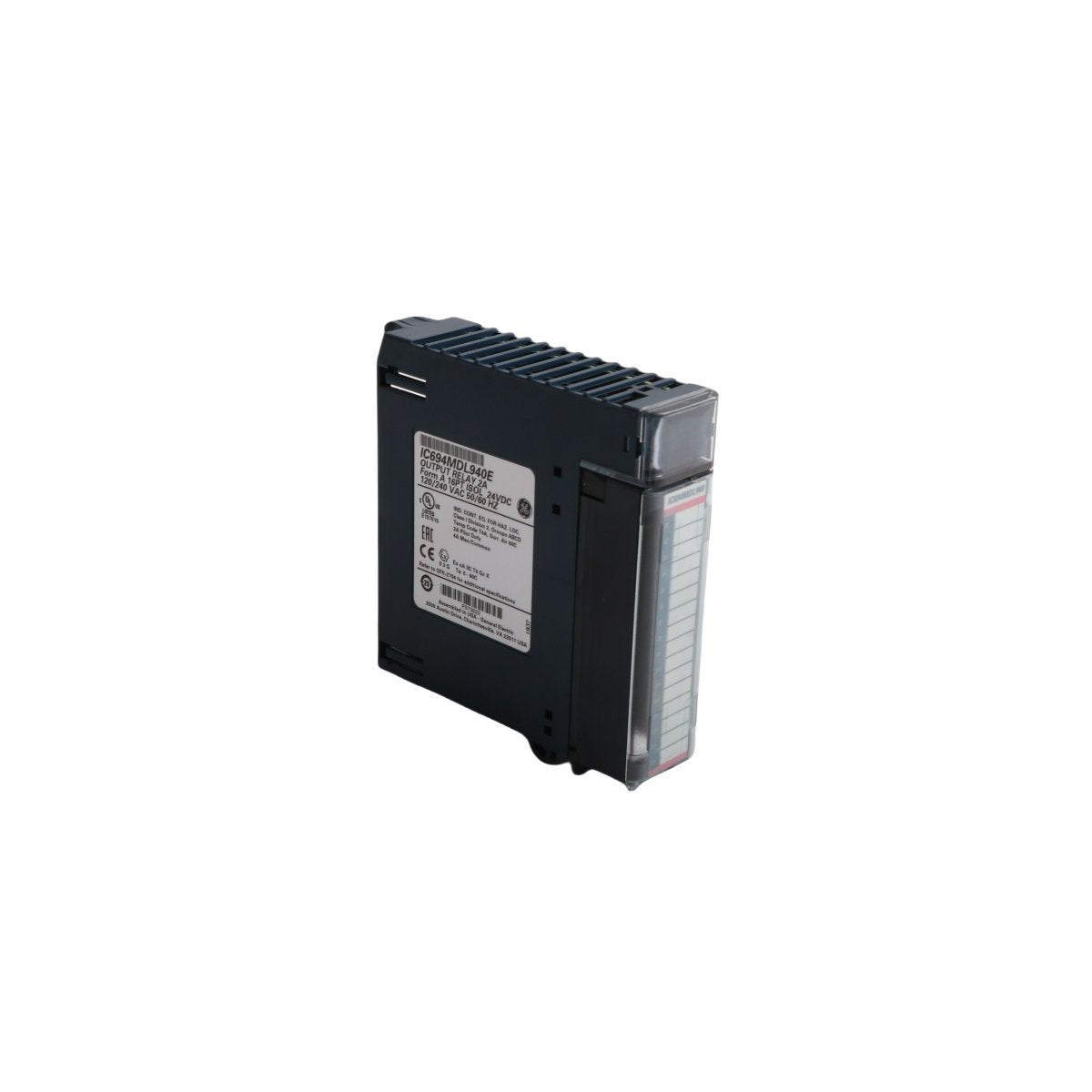

The GE Fanuc IC694MDL940 is a 16-channel relay output module for PACSystems RX3i PLC racks. It provides dry-contact switching for common industrial loads and is suitable for interfacing a controller to contactors, solenoids, pilot lights, and auxiliary relays. Outputs are arranged in four output groups, supporting flexible field wiring and straightforward diagnostics through per-point status indication.

Electrical & Hardware Parameters

• Model Number: IC694MDL940

• Product Type: Relay Output Module (Voltage Output / Discrete Relay Output)

• Output Quantity: 16 points (4 groups × 4 points)

• Contact Form: N.O. (Form A)

• Rated Load: 2 A per point, 4 A per group

• Minimum Load: 10 mA

• Inrush Capability: up to 5 A

• Switching Response: typical 15 ms

• Backplane Consumption: 135 mA max @ 24 V relay bus; 7 mA @ 5 V bus

• Isolation: 250 VAC continuous / 1500 VAC 1 min field-to-backplane; 250 VAC continuous channel-to-channel

• Protection: no internal fusing (use external fuses per application)

• Installation: 1-slot, fits RX3i IC694 backplanes

• Condition: Brand New

• Weight: 0.52 kg

• Dimensions: 13 × 6.8 × 13.1 cm

• HS Code: 8537101190

• Origin: USA

• Status: Active

Industrial Applications

• Switching AC/DC control circuits for starters, coils, and annunciators

• Output expansion for RX3i discrete control where relay isolation is required

• Electrical interfacing between PLC logic and mixed-voltage field devices
