Product Overview

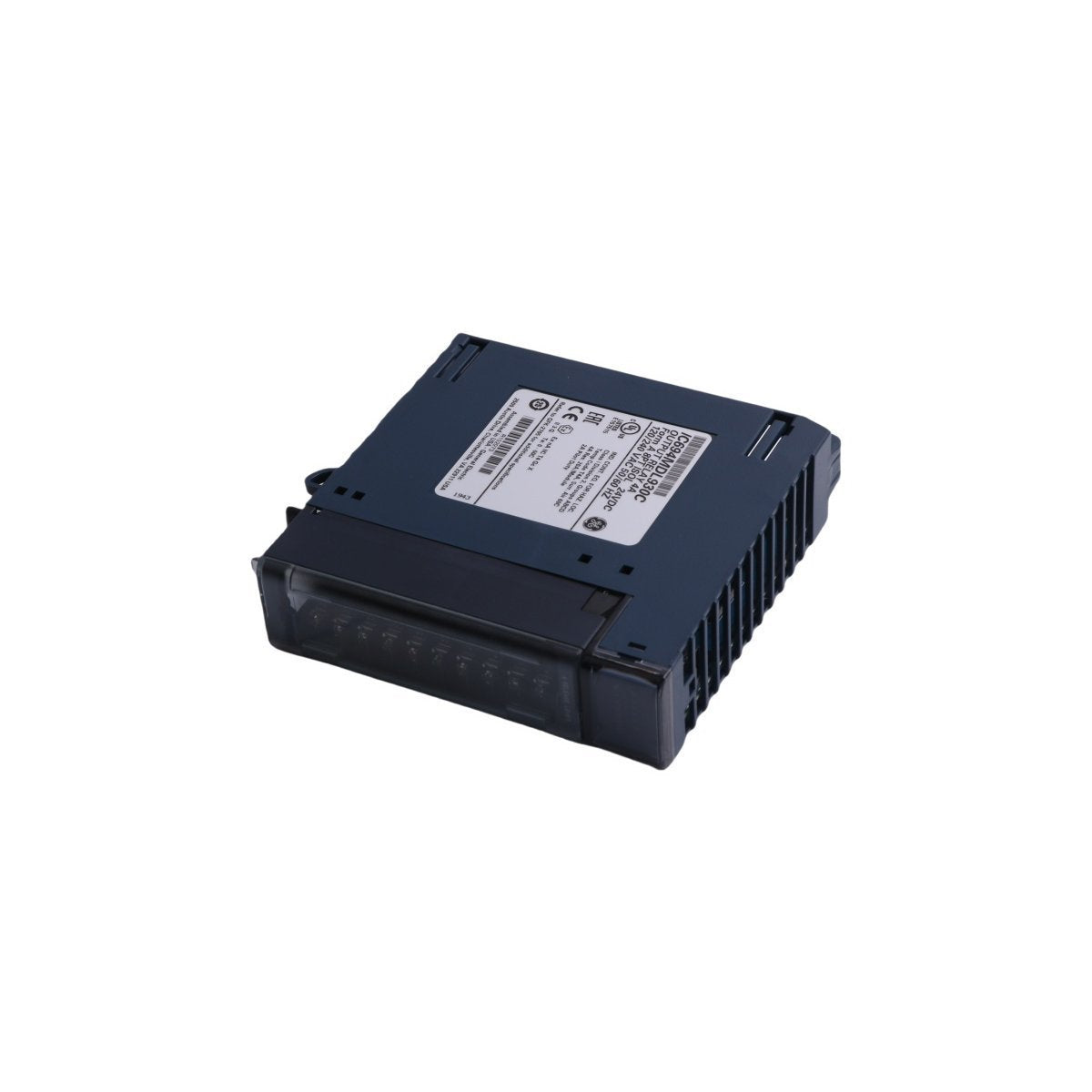

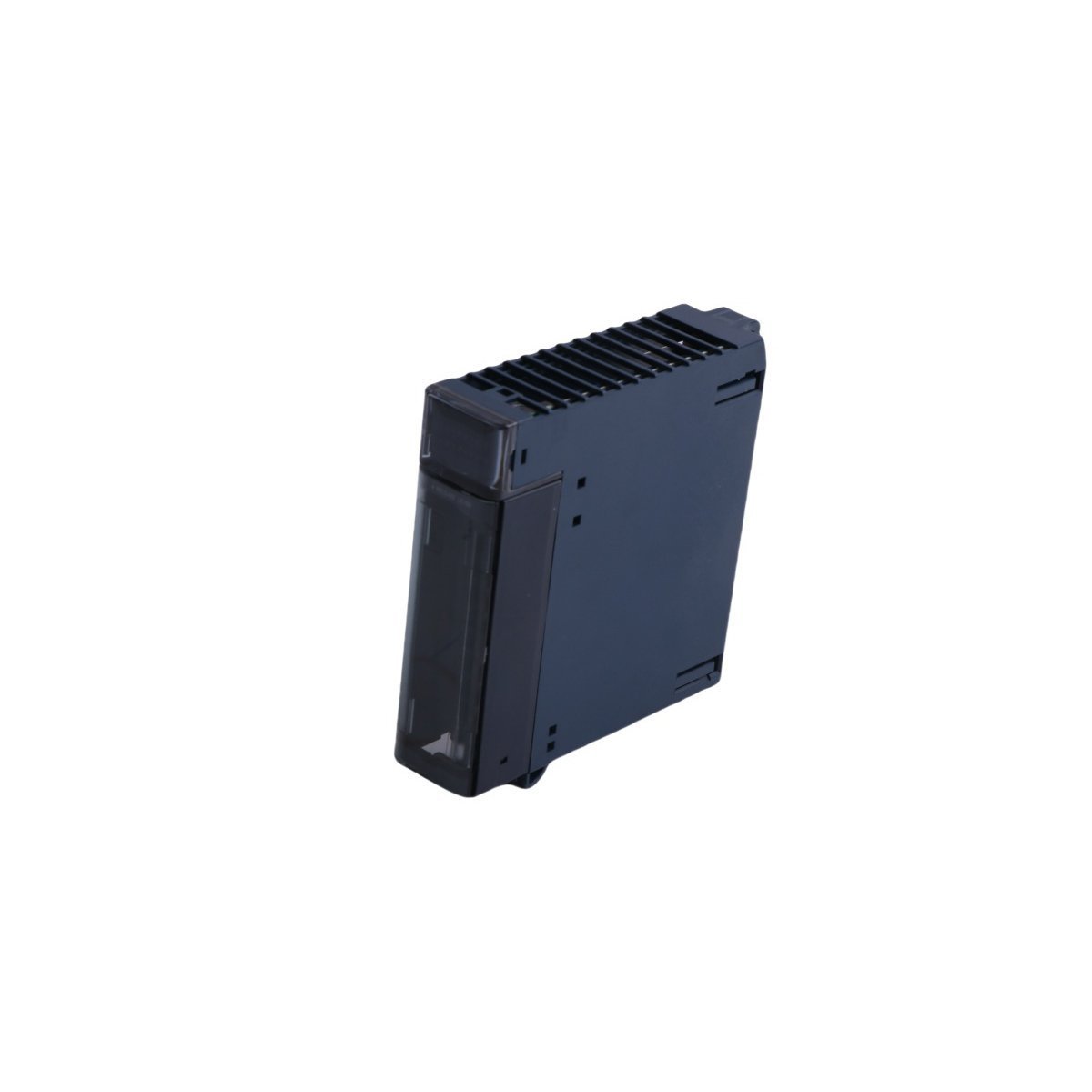

The GE Fanuc IC694MDL930 is an 8-channel relay output module for PACSystems RX3i PLC racks. It provides dry-contact switching to interface the controller with field devices such as contactors, solenoids, alarms, and indicator lamps. Each output is an individually isolated Form A (normally open) relay contact with a dedicated common, allowing mixed-voltage circuits on the same module when correctly wired.

Point LEDs provide quick verification of output status during commissioning and troubleshooting. Field loads are powered externally; the module switches the load circuit through relay contacts.

Switching and Electrical Specifications

• Model Number: IC694MDL930

• Product Type: Isolated Relay Output Module

• Product Family: PACSystems RX3i

• Outputs: 8 × relay outputs

• Contact Form: Form A, normally open (N.O.)

• Isolation: Individual point isolation with separate commons

• Voltage Range:

• 5–30 V DC (24 V DC nominal)

• 5–250 V AC, 50/60 Hz (120/240 V AC nominal)

• Current Rating:

• 4 A per point (resistive)

• 2 A per point (pilot duty)

• Minimum Load: 10 mA

• Typical Switching Response: 15 ms ON / 15 ms OFF

• Module Load Limit: Up to 30 A total for UL installations (derate with temperature)

• Dielectric Ratings: 250 VAC continuous, 1500 VAC for 60 seconds

• Indicators: 8 output status LEDs

• Power: Field power supplied externally (load side)

• Condition: Brand new

• Weight: Approx. 0.3 kg

• Dimensions: Approx. 3.5 × 13.2 × 13.5 cm

• System: PLC

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Typical Use Scenarios

The IC694MDL930 is used where relay isolation and broad voltage compatibility are required within an RX3i control system. Common applications include switching motor starter coils, interposing relays, solenoid valves, stack lights, horns, and alarm circuits in manufacturing automation, material handling, utilities, and process skids.

It is also used in retrofit projects to maintain existing relay-controlled field wiring while upgrading or servicing RX3i PLC racks.
