Product Overview

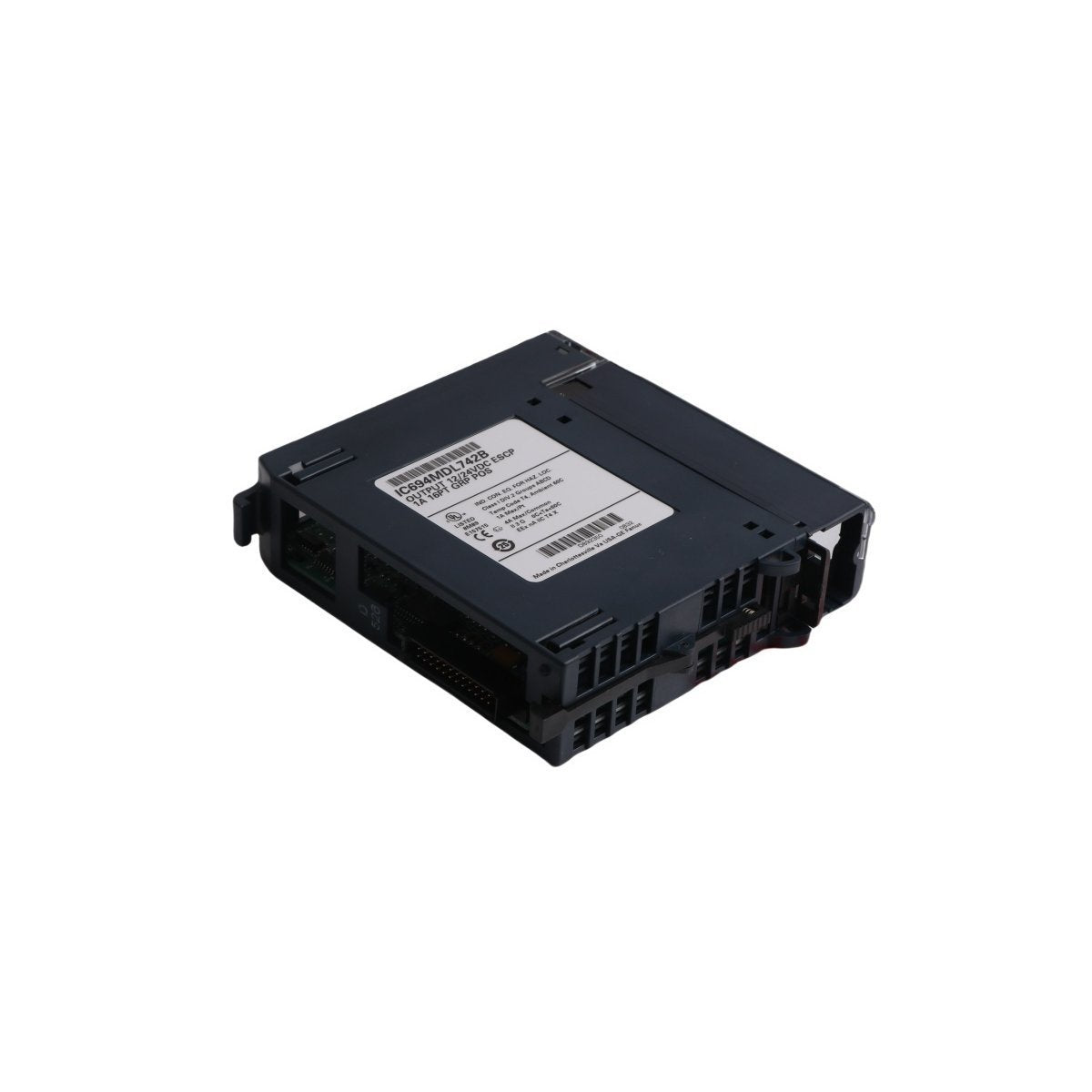

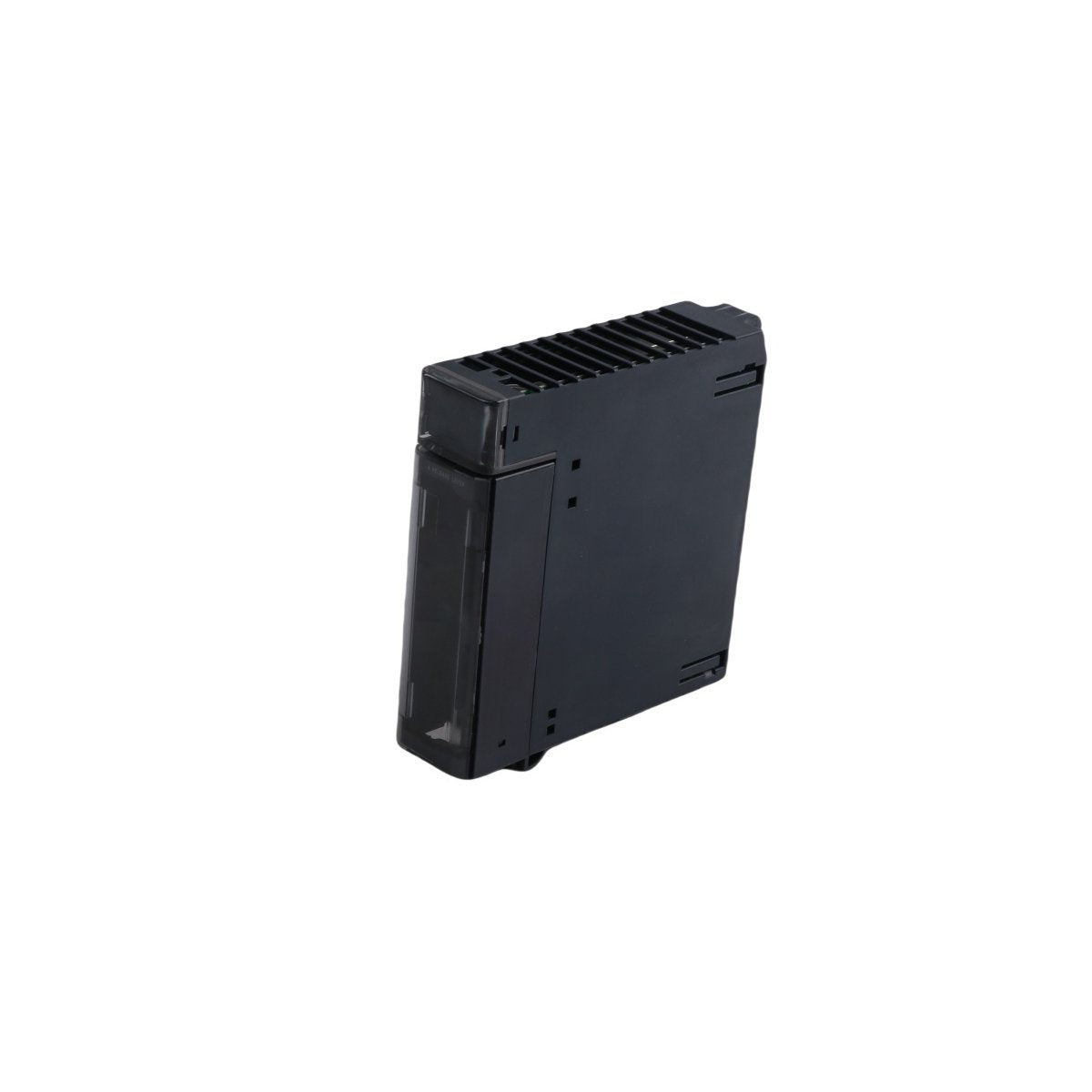

The GE Fanuc IC694MDL742 DC Output Module is a 16-point discrete output card for PACSystems RX3i racks. It provides transistor-based output switching for 12/24 VDC field devices and is commonly used for controlling relays, solenoids, indicators, and other DC loads in automation panels.

The module is grouped for structured wiring and includes onboard protection and clear status indication to support safe operation and faster troubleshooting. It can be installed in any compatible RX3i slot and supports replacement practices that minimize downtime when used with the appropriate system insertion/removal mode.

Output and Protection Specifications

• Model Number: IC694MDL742

• Product Type: DC Output Module

• Brand: General Electric (GE Fanuc)

• Product Family: PACSystems RX3i

• Output Points: 16 channels

• Grouping: 2 groups of 8 outputs

• Logic Type: Negative logic (sinking)

• Field Voltage Range: 12–24 V DC (tolerance -15% to +20%)

• Short-Circuit Protection: Electronic protection per output group (1–8, 9–16)

• Fault Indication: Fault LED when protection is active

• Channel Status: Individual output LEDs

• Backplane Current Consumption: Approx. 130 mA

• Inrush Rating: 5.2 A for 10 ms

• Hot Swap Support: Supported via controlled insertion/removal mode (system dependent)

• Field Power: External power required for connected loads

• Condition: Brand new

• Weight: Approx. 0.3 kg

• Dimensions: Approx. 3.5 × 13.2 × 13.5 cm

• System: PLC

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Common Use Environments

The IC694MDL742 is used in RX3i-based control cabinets for DC load switching in machine automation and process equipment. Typical applications include actuator control, motor starter interposing relays, alarm beacons, solenoid valves, and panel signaling.

It is a practical choice for installations that require protected output groups, clear LED feedback, and standardized 12/24 VDC discrete output control within PACSystems RX3i systems.
