Product Overview

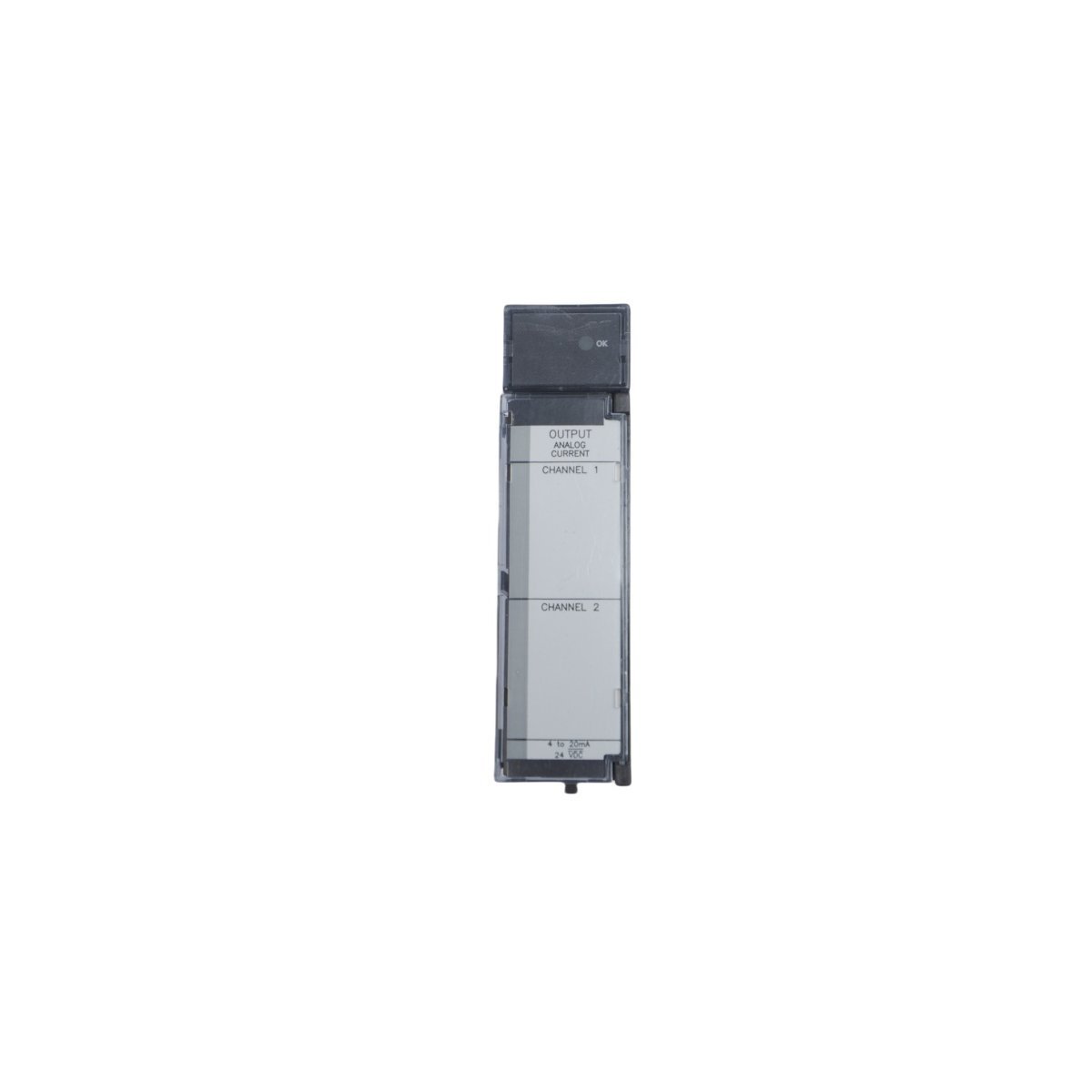

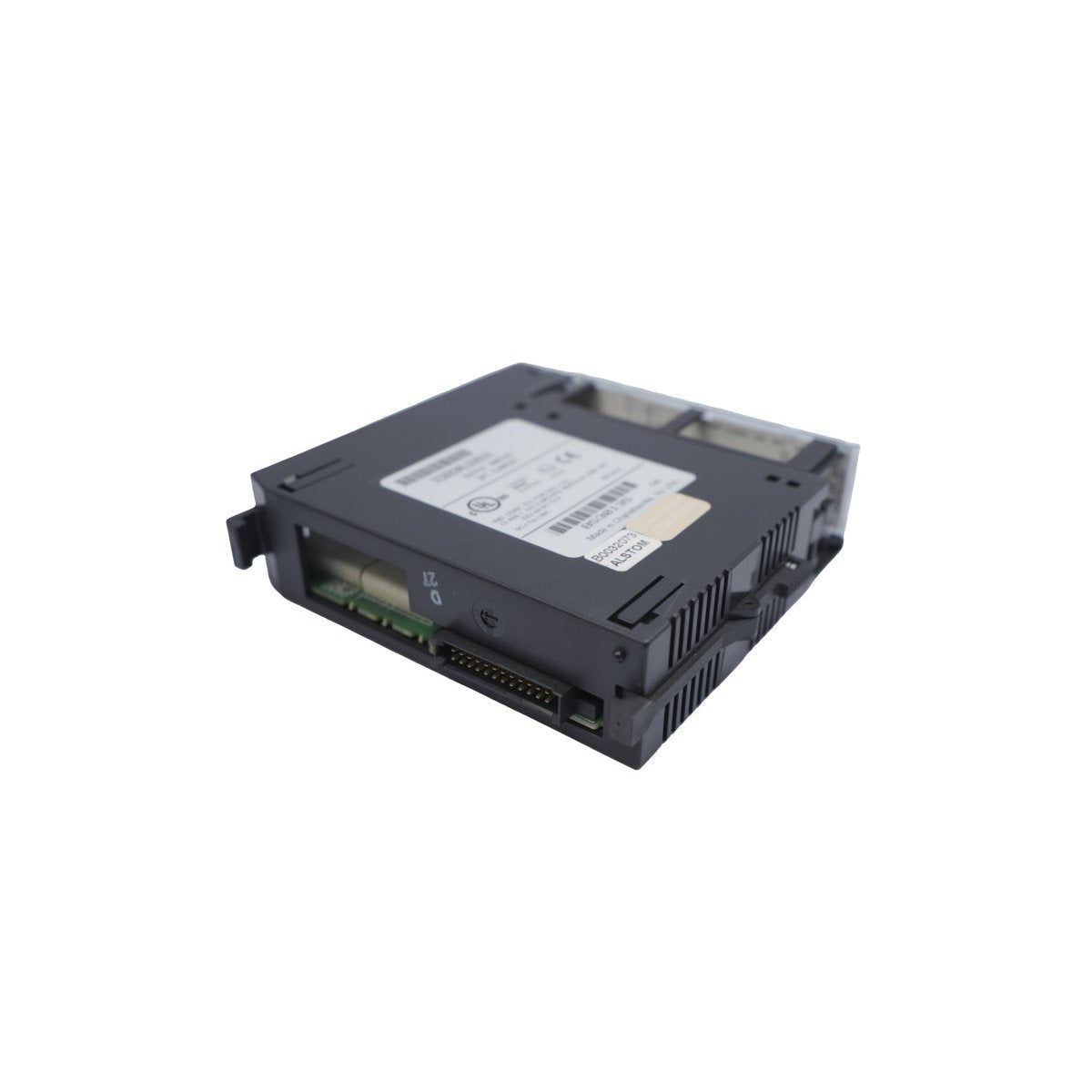

The GE Fanuc IC693ALG391 Analog Output Module is a two-channel analog output interface for Series 90-30 PLC systems. It is used to generate standard analog control signals for field devices, enabling stable modulation of process equipment such as control valves, positioners, VFDs, and analog indicators.

Each channel can be configured for either current or voltage output, allowing a single module type to support multiple signal standards in PLC panels. The module is designed for reliable closed-loop control and analog signal retransmission in industrial environments.

Signal and Power Specifications

• Model Number: IC693ALG391

• Product Type: Analog Output Module

• Brand: General Electric (GE Fanuc)

• Product Family: Series 90-30

• Output Channels: 2 channels

• Supported Output Signals:

• 4–20 mA

• 0–20 mA

• 1–5 V DC

• 0–5 V DC

• Output Resolution (typical):

• 4 µA (4–20 mA)

• 5 µA (0–20 mA)

• 1 mV (1–5 V)

• 1.25 mV (0–5 V)

• Backplane Current Draw:

• 30 mA at +5 V DC

• 215 mA at +24 V DC isolated backplane or external supply

• System Compatibility: PLC systems

• Condition: Brand new

• Weight: Approx. 0.34 kg

• Dimensions: Approx. 3.5 × 13 × 13.5 cm

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Typical Use Scenarios

The IC693ALG391 is used in control systems that require accurate analog command outputs from a Series 90-30 PLC. Common applications include valve positioning, damper control, speed reference to drives, analog setpoints to controllers, and retransmission to panel meters or recorders.

It is suitable for process automation, machine control skids, utilities, and general industrial PLC cabinets where both current-loop and voltage-based analog outputs are required.
