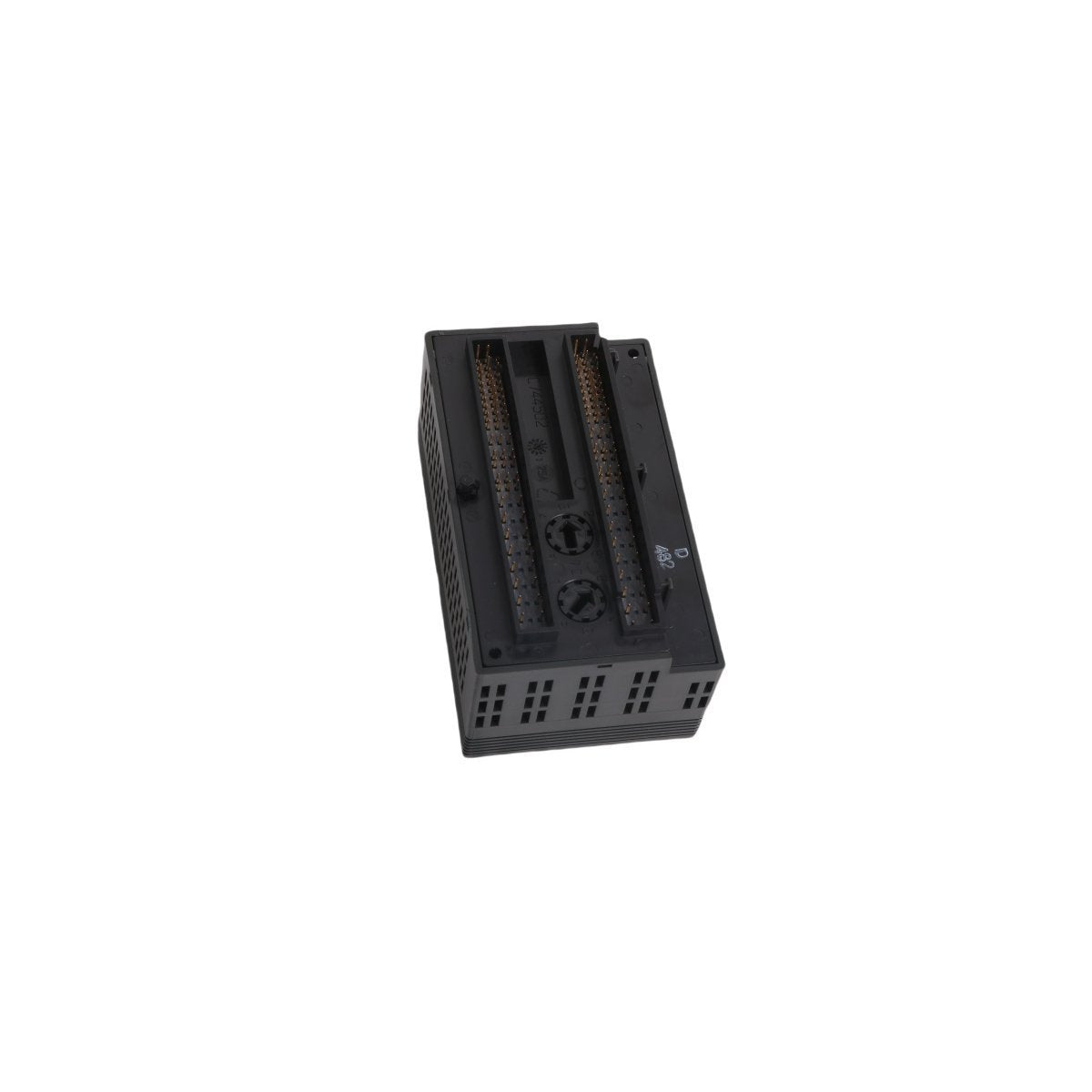

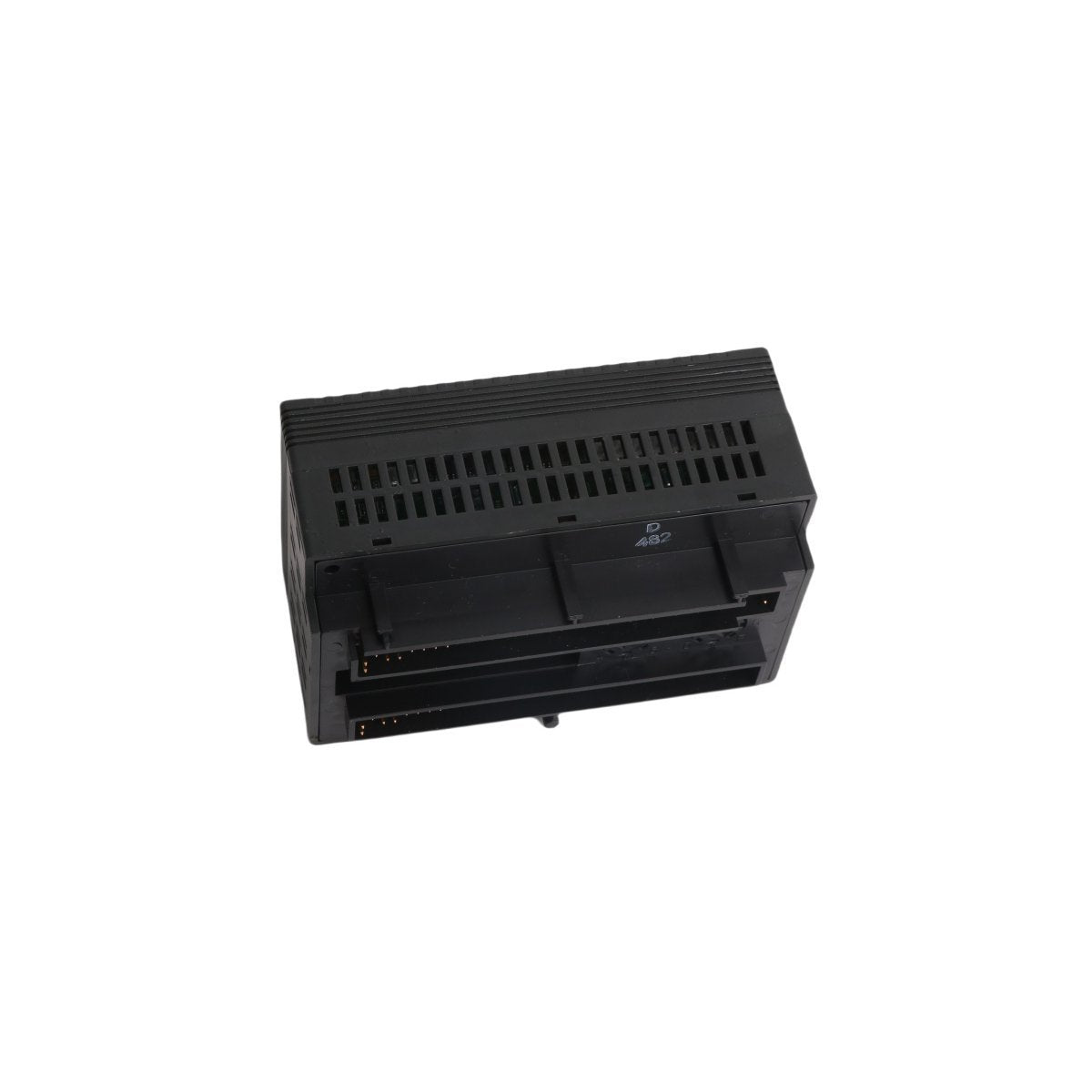

Product Overview

The GE Fanuc IC200MDL241 VersaMax AC Input Module provides 16 channels of discrete AC input sensing for VersaMax PLC I/O systems. It converts field-level AC signals from devices such as selector switches, limit switches, pilot devices, and auxiliary contacts into on/off status data for the controller.

Designed for compact control panels, the module mounts on a VersaMax I/O carrier and supports straightforward field wiring via snap-in style terminals. Status indication on the front panel assists commissioning and troubleshooting in production environments.

Electrical and Interface Specifications

• Model Number: IC200MDL241

• Product Type: AC Input Module

• Product Family: VersaMax

• System Compatibility: PLC systems

• Input Channels: 16 points

• Channel Grouping: 2 groups of 8

• Nominal Input Voltage: 240 V AC

• Input Voltage Range: 0 to 264 V AC

• ON-State Voltage: 155 to 264 V AC

• OFF-State Voltage: 0 to 40 V AC

• Input Type: Logic/sourcing inputs

• Isolation: Group isolation 1500 V for 1 minute

• Backplane Power: 5 V DC, max 110 mA

• Diagnostics: 1 module status LED, 16 channel LEDs

• Mounting: DIN-rail carrier system

• Hot Swap: Supported when used with compatible carrier and system practice

• Condition: Brand new

• Weight: Approx. 0.1 kg

• Dimensions: Approx. 11 × 5.8 × 6.5 cm

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Typical Use Scenarios

The IC200MDL241 is used in industrial automation systems that need high-voltage AC discrete input monitoring. Common use cases include machine safety and interlock status, motor starter auxiliary feedback, valve open/close indication, panel pushbutton stations, and general AC contact monitoring.

It is suitable for manufacturing lines, material handling systems, packaging equipment, and utility control panels where VersaMax I/O is used and 240 VAC input devices are present.
