Product Overview

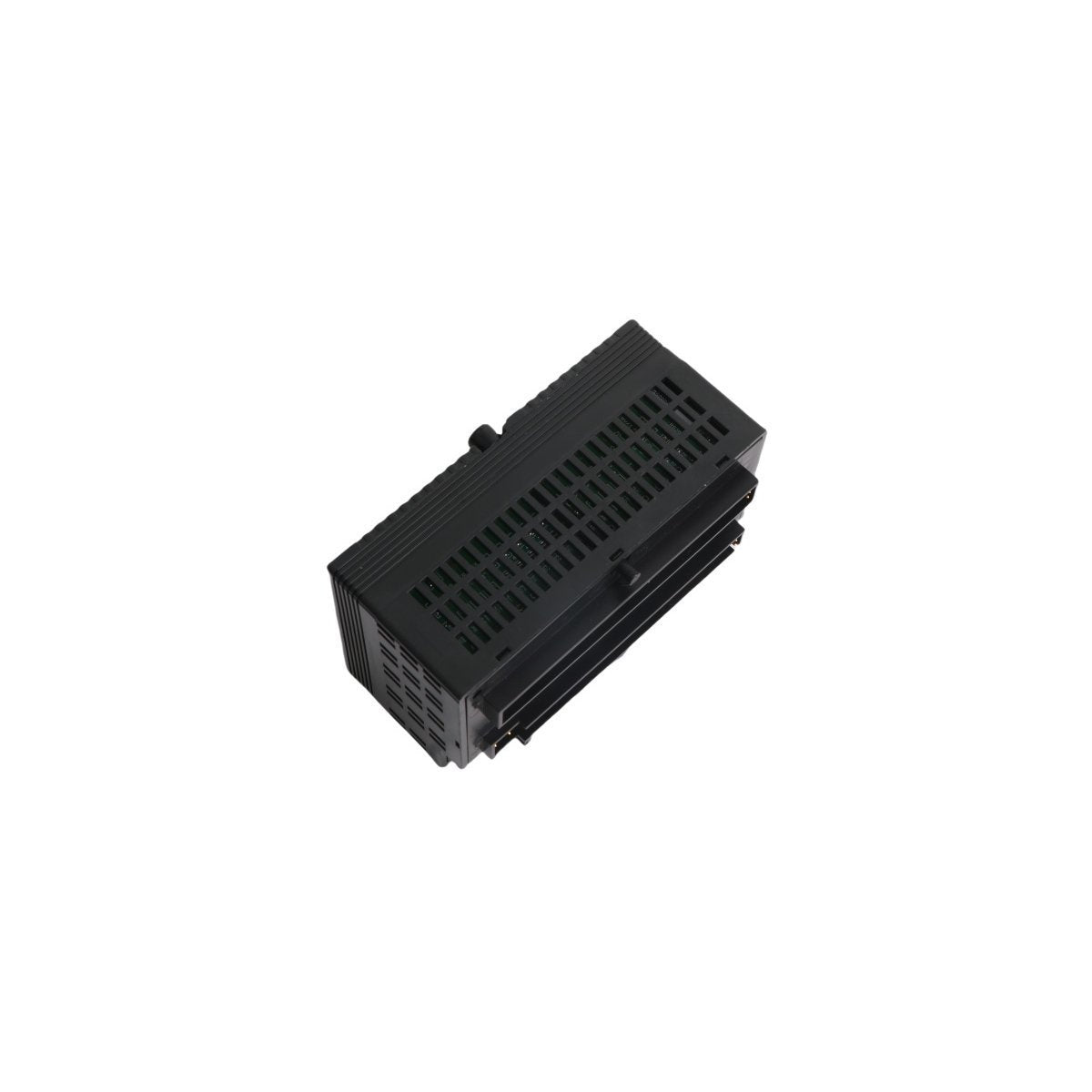

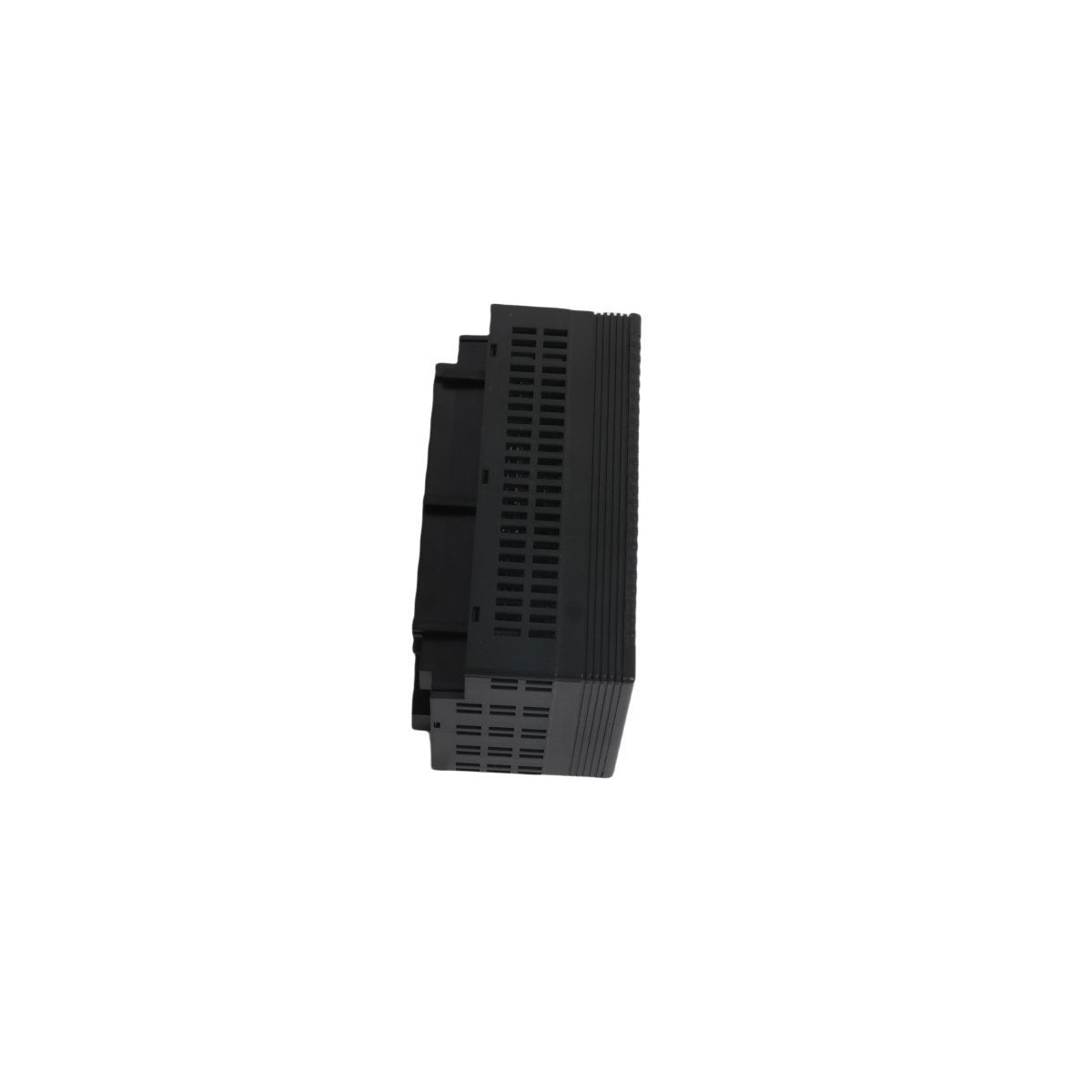

The GE IC200MDD843 is a versatile, high-density discrete mixed I/O module belonging to the VersaMax product family. This unit integrates both input and output capabilities into a single, compact slot, providing 10 discrete inputs and 10 discrete outputs. By merging these functions, the IC200MDD843 is specifically engineered to reduce hardware footprints in control cabinets while maintaining robust signal processing for 24V DC field devices. Now part of the Emerson Automation line, this module serves as a reliable interface between a central controller and common industrial components like pushbuttons, sensors, relay coils, and indicators.

Hardware Parameters and Technical Characteristics

• Total I/O Count: 20 discrete points (10 Inputs / 10 Outputs).

• Operating Voltage: 24V DC nominal range for both sensing and actuation.

• Input Logic: Configurable to support both sourcing and sinking field devices.

• Isolation Rating: 1500V AC group isolation ensuring protection between field circuitry and backplane logic.

• Power Efficiency: Maximum backplane current consumption of 110mA at 5V DC.

• Diagnostic Indicators: Front-panel LED array for per-channel status monitoring and communication health.

• Installation Efficiency: Supports hot-swapping on compatible carriers and uses a snap-in terminal base to prevent wiring disruption during module swaps.

• Physical Footprint: Compact dimensions (10.8 cm x 6.3 cm) optimized for DIN rail mounting.

• Thermal Performance: Rated for continuous operation in ambient temperatures from 0°C to 60°C.

Industrial Applications and Operational Benefits

The IC200MDD843 is an ideal solution for localized control tasks where a balanced mix of sensing and control is required in a small area. In Conveyor and Sorting Systems, it can simultaneously monitor box detection sensors (inputs) and trigger divert arm solenoids (outputs). For Small-Scale Assembly Machines, this module provides enough I/O to handle start/stop commands and status pilot lights without requiring multiple dedicated modules. Its high vibration resistance and wide temperature range make it suitable for Packaging and Material Handling environments. By consolidating 20 points of I/O into a single module, system integrators can achieve significant cost savings in terms of rack space, power supply requirements, and overall cabinet cooling costs.
