Product Overview

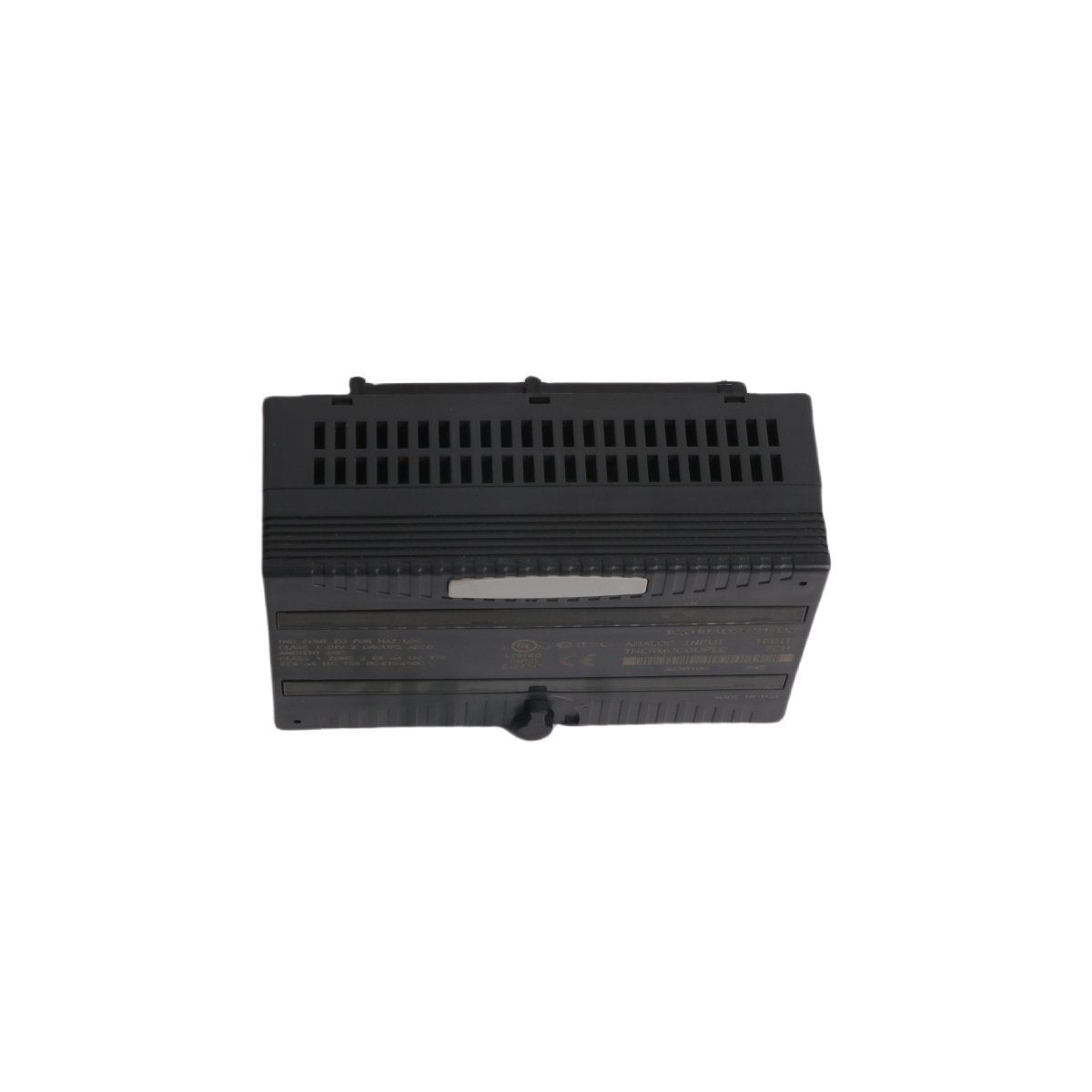

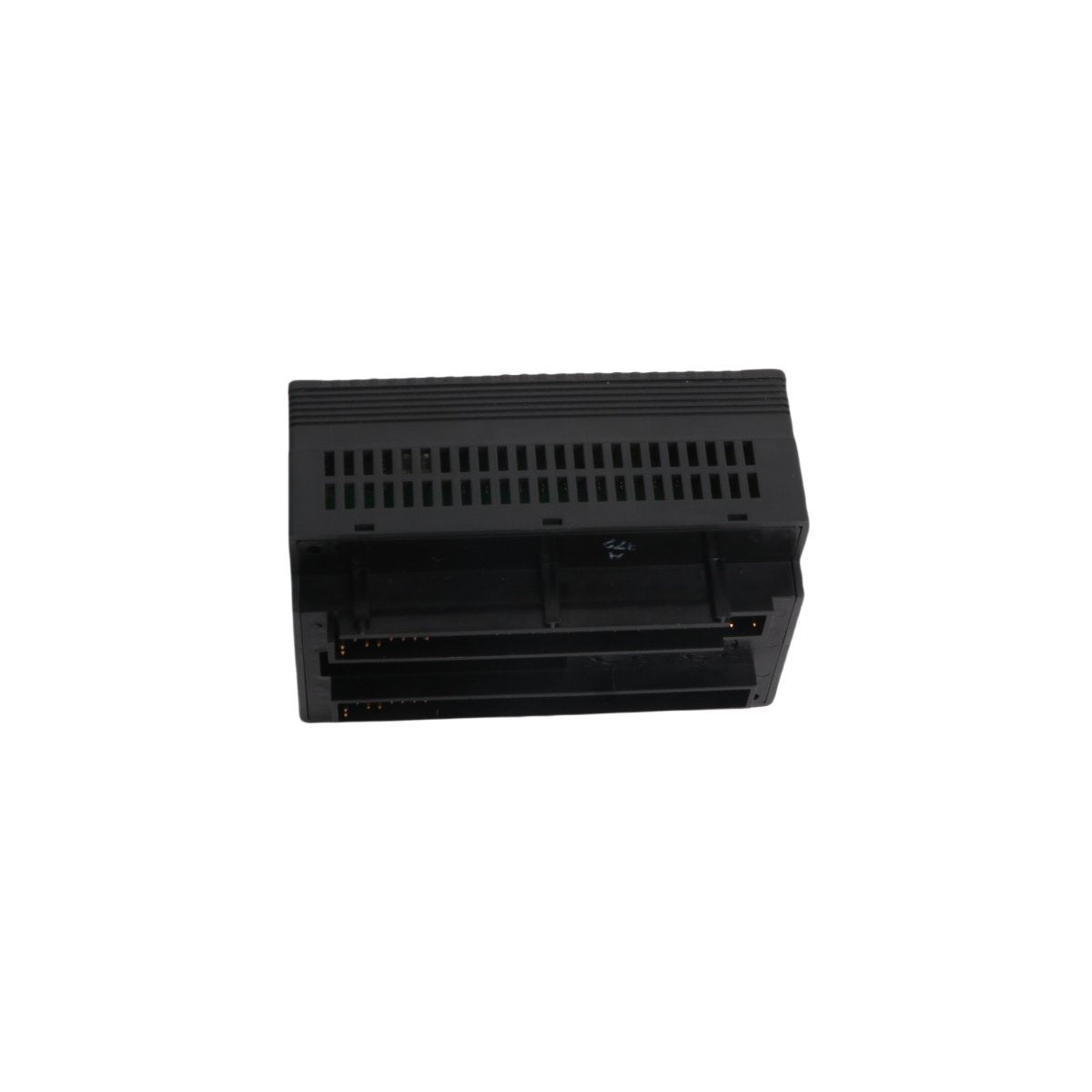

The GE IC200ALG630 is a high-density thermocouple input module designed for the VersaMax I/O system, now part of the Emerson Automation hardware portfolio. This module provides seven independent differential channels capable of measuring both low-voltage millivolt signals and a wide variety of standard thermocouple types. Each channel is equipped with its own 16-bit Analog-to-Digital Converter (ADC), ensuring high-resolution data acquisition for sensitive temperature loops. By integrating Cold Junction Compensation (CJC) and sophisticated electrical isolation, the IC200ALG630 delivers stable and accurate thermal readings even in electrically noisy industrial environments.

Key Technical Characteristics

• Input Capacity: 7 Differential channels for thermocouples or millivolt signals.

• Resolution: 16-bit processing for superior signal granularity.

• Sensor Compatibility: Natively supports Thermocouple types J, K, T, S, R, B, C, N, and E.

• Millivolt Range: Processes bipolar inputs from ±19.5mV up to ±625mV.

• Update Rate: Selectable based on line frequency; 60ms per point (60Hz) or 70ms per point (50Hz).

• Isolation Protection: 250 VAC continuous and 1500 VAC transient isolation between field circuits and backplane logic.

• Onboard Intelligence: Integrated Cold Junction Compensation (CJC) for ambient temperature correction.

• Current Draw: 125 mA from the 5 VDC backplane bus.

• Diagnostic Features: Automatic detection of open thermocouples, out-of-range hardware, and thermistor faults.

• Visual Status: Bi-color LED interface (Green for healthy operation, Amber for fault detection).

Industrial Applications

The IC200ALG630 is a vital component for precision thermal monitoring in heavy industry. In Heat Treatment and Metallurgy, it manages the high-temperature feedback required for furnace control and annealing processes. Within Plastic and Polymer Manufacturing, it provides the steady input needed for extruder barrel temperature regulation. It is also extensively used in Power Generation to monitor boiler temperatures and exhaust gas levels. Because the module supports hot-swapping on compatible carriers, it is an ideal solution for continuous process environments where maintenance must be performed without shutting down the entire I/O rack. Its high channel density significantly reduces the physical footprint in control cabinets while maintaining the high-voltage isolation necessary for operational safety.
