Product Overview

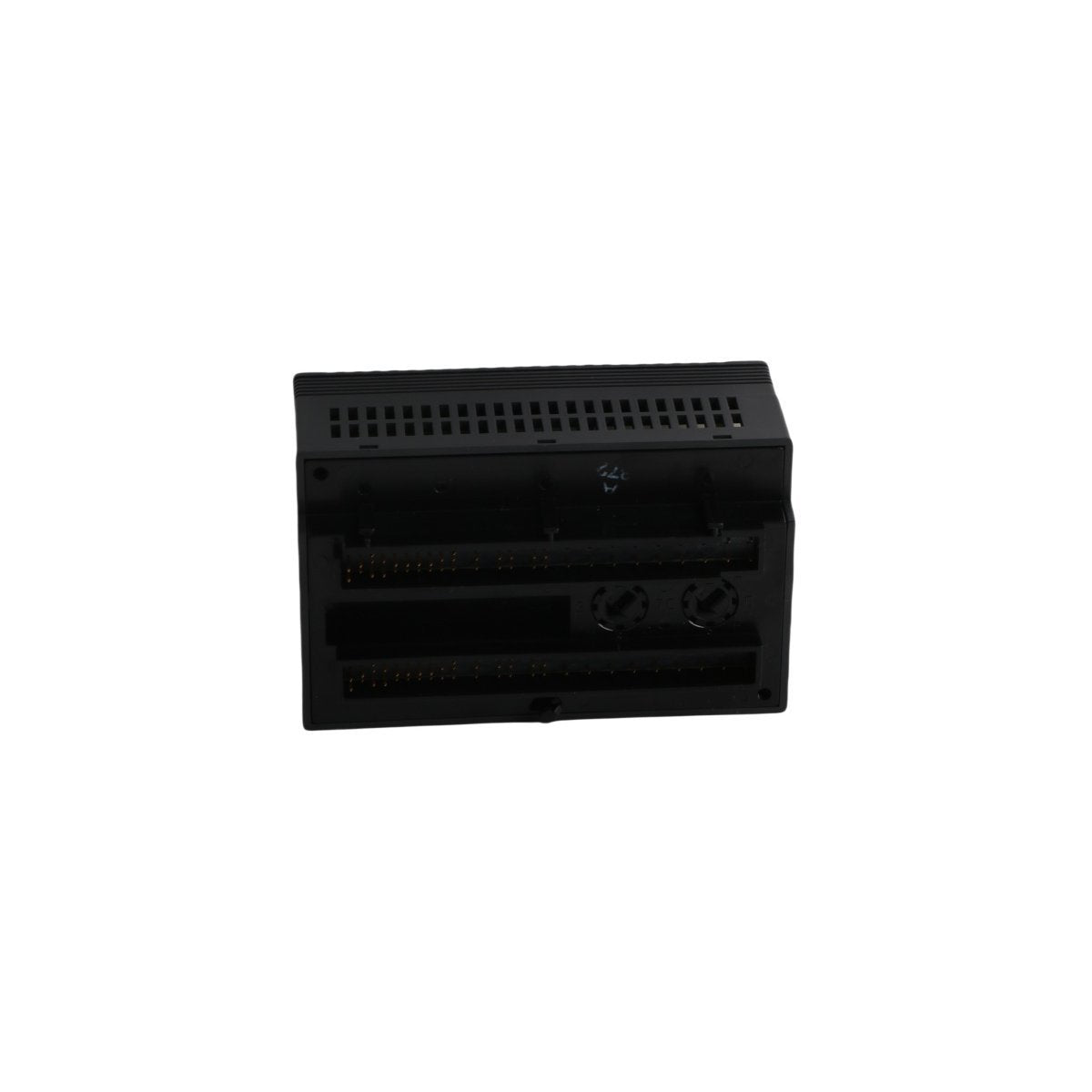

The GE Fanuc IC200ALG322 VersaMax Analog Output Module provides four voltage output channels for PLC-based control systems. It is used to generate analog command signals for field equipment such as VFDs, valve positioners, actuators, and analog signal conditioners. The module interfaces to the VersaMax backplane for logic power and data exchange, while the field-side output section uses an external supply as required by the installation.

Integrated diagnostics support maintenance by indicating module health and helping identify loss of field-side power or wiring issues in analog output circuits.

Electrical and Performance Specifications

• Model Number: IC200ALG322

• Product Type: Analog Output Module

• Product Family: VersaMax

• Output Channels: 4 analog voltage outputs

• Output Signal Range: ±10.24 V DC

• Resolution: 12-bit

• Recommended Load: ≥ 5000 Ω (resistive)

• Accuracy (typical): ±0.3% to ±1% (dependent on temperature and installation)

• Backplane Consumption: Approx. 210 mA

• Channel Crosstalk Rejection: ≥ 70 dB

• Field Power: External supply required for output operation

• Diagnostics: Module and output status monitoring

• Condition: Brand new

• Weight: Approx. 0.26 kg

• Dimensions: Approx. 15.5 × 15 × 8.3 cm

• System Compatibility: PLC systems

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Typical Use Scenarios

The IC200ALG322 is used in automation panels where voltage-based analog control signals are required. Typical applications include speed reference to drives, analog setpoints to controllers, proportional valve control, and analog retransmission to meters or recorders.

It is suitable for manufacturing, material handling, packaging, and process skids using VersaMax I/O where stable multi-channel voltage outputs are needed for closed-loop control.
