Product Overview

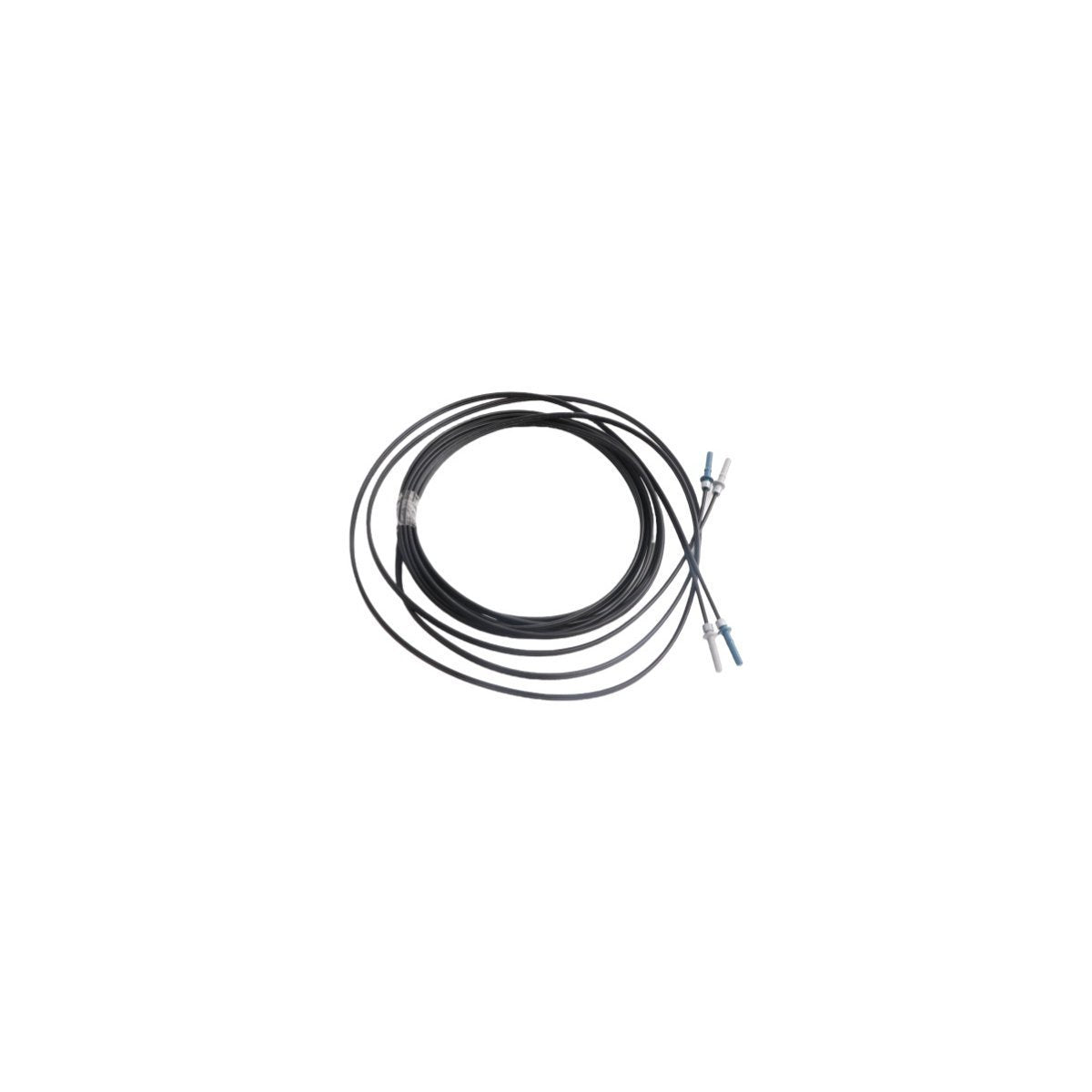

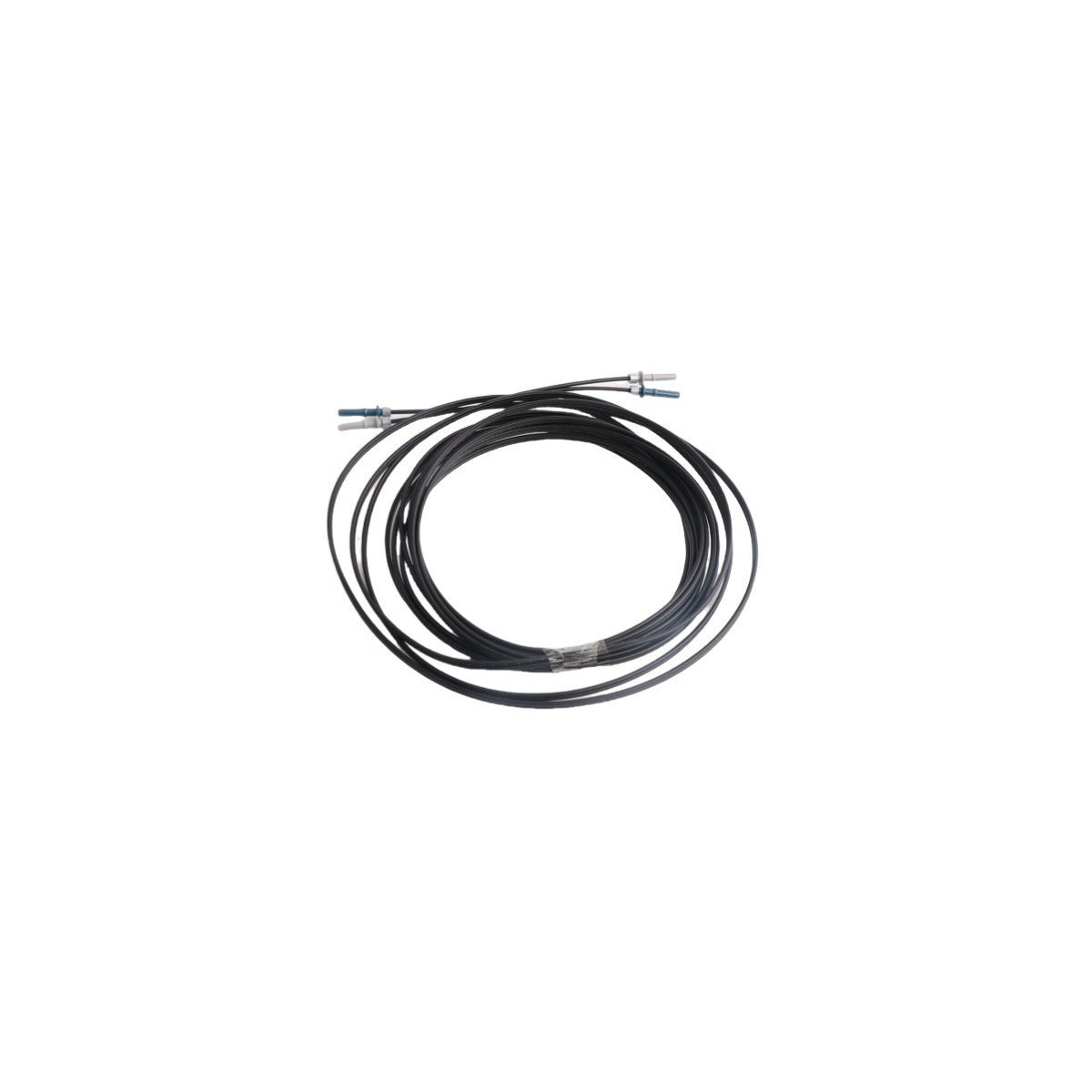

The ABB HP-HP/AA-7676-91-0050 is a specialized Plastic Optical Fiber (POF) duplex cable assembly designed for high-integrity data transmission within the FieldIT automation range. This 5-meter optical link provides a localized, EMI-immune communication path between controllers, drive units, and localized I/O modules. By utilizing optical pulses rather than electrical signals, the POF cable eliminates the risk of ground loops and signal corruption in high-voltage or electrically noisy environments. Its duplex construction allows for simultaneous bidirectional data flow, ensuring that Distributed Control Systems (DCS) maintain synchronized real-time feedback and high-speed logic execution across the plant floor.

Performance Attributes and Technical Data

• Component Classification Plastic Optical Fiber (POF) Duplex Cable

• Model Identifier HP-HP/AA-7676-91-0050

• Product Line ABB FieldIT / DCS

• Link Length 5 Meters

• Connector Type HP-HP Standard Duplex Interface

• Thermal Endurance -40°C to +85°C Operational Range

• Immunity Profile Total Electromagnetic Interference (EMI) Resistance

• Weight / Mass 0.04 kg

• Packaged Dimensions 15.5cm x 14cm x 1.5cm

• Compliance Standards CE, UL, ISO 9001

• Manufacturing Origin Sweden

Strategic Deployment and Industrial Scenarios

This POF cable is primarily utilized in power electronics, motor control centers, and turbine control systems where electrical noise is a significant factor. Within a DCS architecture, the HP-HP/AA-7676-91-0050 is used to bridge the gap between CPU modules and communication gateways or Ethernet routers. Its wide temperature tolerance makes it suitable for both outdoor enclosure mounting and high-heat indoor environments near heavy machinery. Unlike traditional copper cabling, the plastic fiber is flexible and easy to route through tight conduits, providing a low-maintenance, corrosion-resistant solution for long-term industrial networking. It is a critical component for facilities requiring galvanized isolation between different voltage potentials while maintaining high-speed serial data integrity.

FAQ

Q: What is the primary advantage of using POF over standard copper RS-485 cabling?

A: POF cables provide total immunity to electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures that data transmission remains error-free even when the cable is routed adjacent to high-power motor leads or transformers.

Q: Is the 5-meter length the maximum allowable distance for this link?

A: The HP-HP/AA-7676-91-0050 is pre-terminated at 5 meters for optimal signal strength. While POF can support longer runs, exceeding the designed length of the assembly may result in signal attenuation unless optical repeaters are used.

Q: Does this optical fiber require specialized tools for installation?

A: No, the cable comes pre-terminated with duplex connectors designed for "plug-and-play" integration into compatible ABB FieldIT ports. Simply ensure the optical interfaces are clean before insertion.

Q: Can this cable be used in outdoor environments with extreme cold?

A: Yes, the cable is rated for operation down to -40°C, making it suitable for unheated industrial cabinets or outdoor automation enclosures in sub-arctic climates.

Q: How do I verify the integrity of the optical signal?

A: System diagnostics on the connected ABB controller will typically report the optical link status. Visually, a red light is often visible at one end of the fiber when the transmitting port is active, allowing for quick physical verification.
