Product Overview

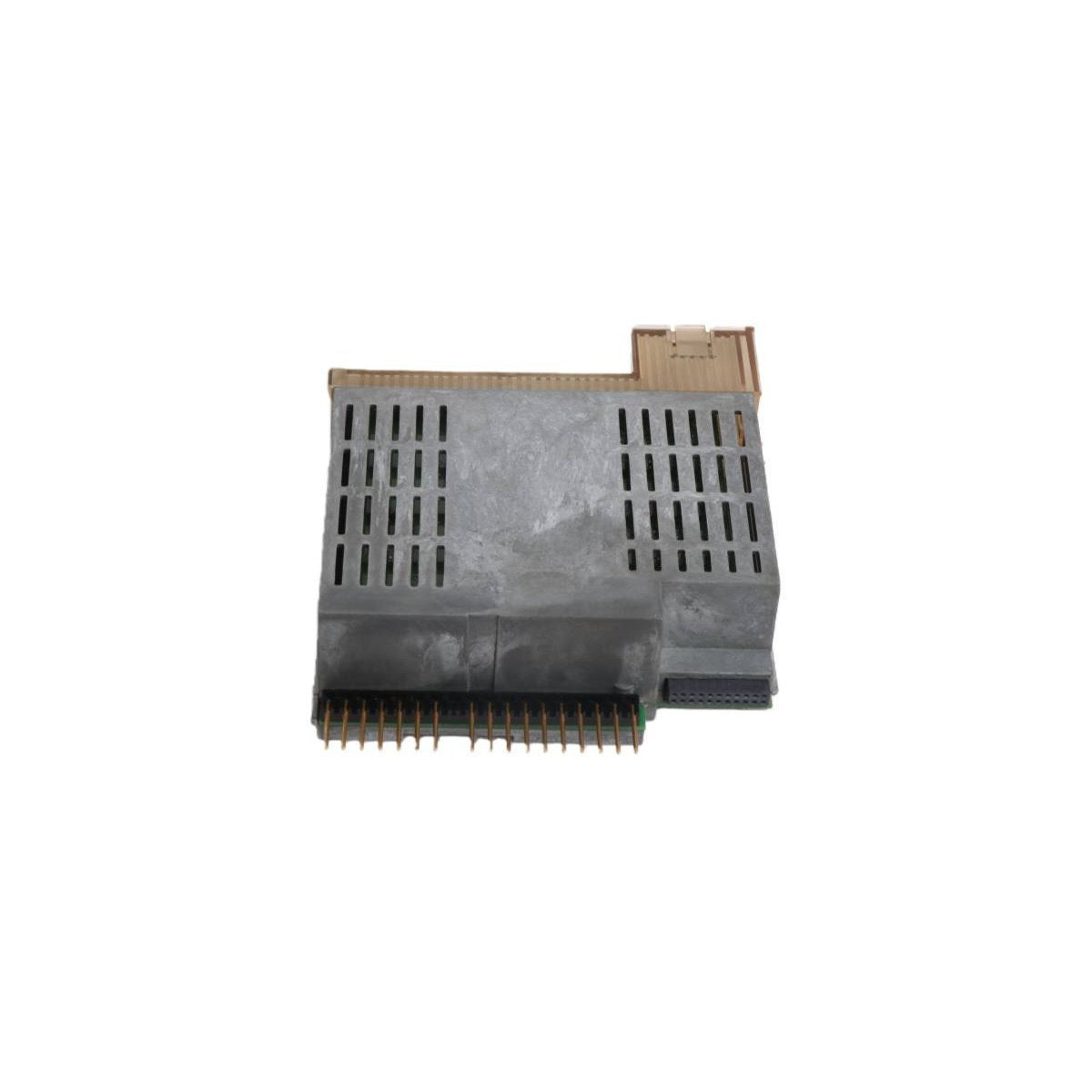

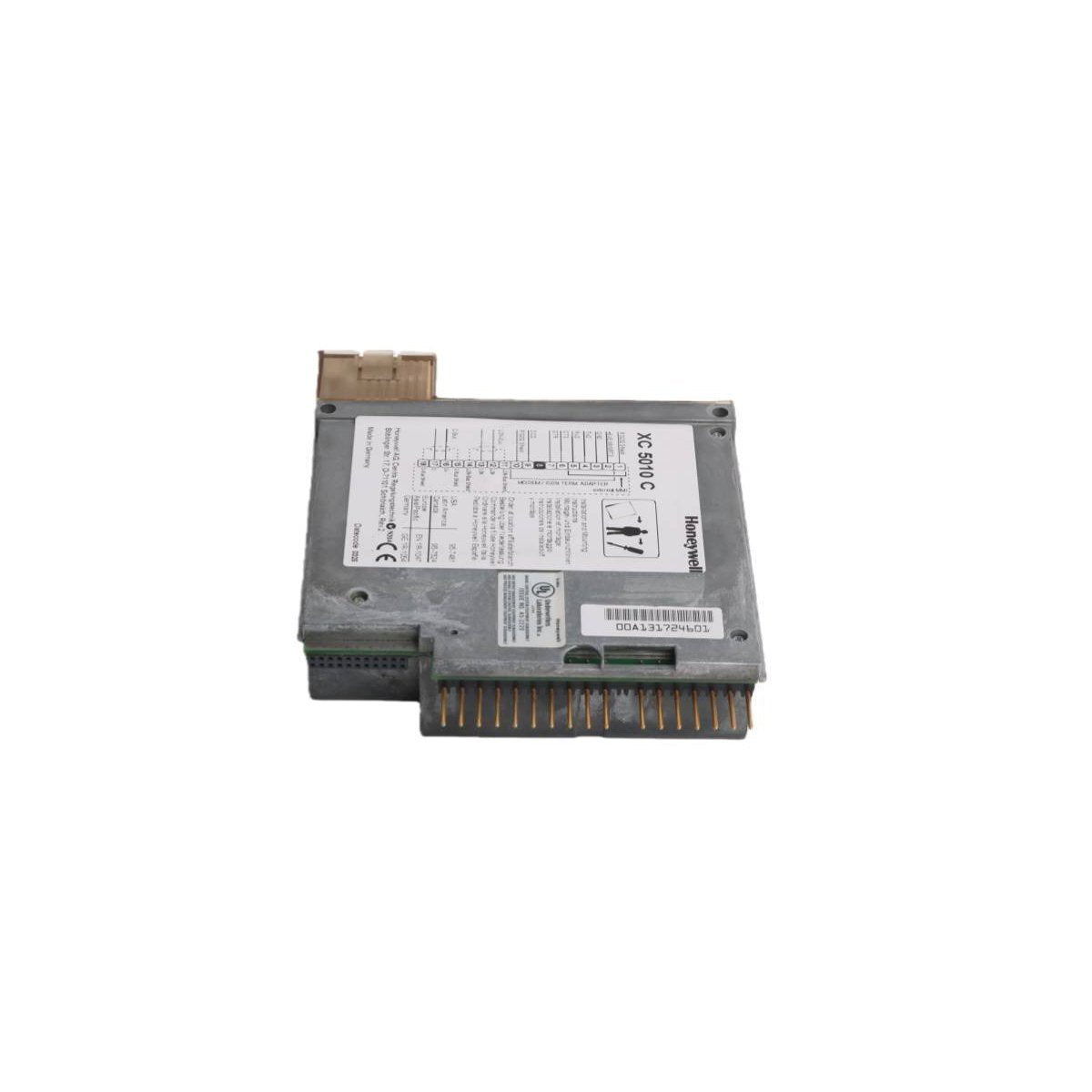

The Honeywell XC5010C is a high-performance central processing unit designed to serve as the intelligence hub for sophisticated Building Automation Systems (BAS) and industrial HVAC infrastructures. Engineered for versatility, this CPU module coordinates complex climate control logic, optimizing the performance of ventilation, heating, and air conditioning machinery to ensure environmental stability. The XC5010C excels in bridging the gap between field-level hardware and high-level management software, providing a deterministic platform for energy-saving algorithms and customized scheduling. Its robust architecture makes it a preferred choice for commercial facility managers seeking a reliable, programmable solution for large-scale environmental monitoring.

Performance Specs and Integrated Hardware Capabilities

• Onboard I/O Density: 16 Fully configurable Input/Output channels

• Communication Stack: Native support for BACnet and Modbus (Master/Slave)

• Hardware Interfaces: Integrated RJ45 Ethernet and RS-485 serial ports

• Processing Logic: Supports advanced scheduling, PID loops, and arithmetic functions

• Thermal Endurance: Reliable operation within -10°C to +50°C (14°F to 122°F)

• Certifications: UL listed, CE compliant, and CSA certified

• Unit Weight: 0.4 kg

• Product Dimensions: 7 x 14 x 14.5 cm

• Manufacturing Origin: USA

• System Type: Distributed Control System (DCS) / Building Management

• Power Supply Requirement: Standard 24V AC/DC (typical for Excel 500 series)

Building Automation and Smart Infrastructure Utility

The XC5010C CPU is strategically deployed in commercial office complexes, hospitals, and high-tech manufacturing plants where air quality and temperature precision are critical. By leveraging its dual-protocol support, engineers can integrate the module into existing Ethernet-based networks while simultaneously communicating with legacy Modbus field devices like variable frequency drives (VFDs) and power meters. The module’s 16 configurable channels allow for the direct connection of thermistors, pressure sensors, and 0-10V actuators, eliminating the need for excessive peripheral hardware. Its localized diagnostic capabilities provide operators with real-time insights into system health, facilitating predictive maintenance and significantly reducing long-term operational overhead.

FAQ

Q: Does the XC5010C support both BACnet IP and BACnet MS/TP?

A: Yes, the XC5010C is designed for flexible networking, allowing integration into modern Ethernet-based IP infrastructures as well as traditional twisted-pair MS/TP serial networks via its RS-485 interface.

Q: Can the 16 I/O channels be configured for different signal types?

A: Absolutely. The universal nature of these channels allows them to be individually defined as digital inputs, analog inputs (like NTC sensors), or analog outputs, providing immense flexibility for custom control sequences.

Q: Is specific software required to program the XC5010C?

A: Programming is typically handled via Honeywell’s CARE (Computer Aided Regulation Engineering) software, which allows for the creation of graphic-based logic and the deployment of complex control strategies.

Q: What happens to the control logic during a power failure?

A: The XC5010C features non-volatile memory that stores the application program and critical configuration data, ensuring the controller resumes its designated strategy immediately upon power restoration.

Q: How does this module contribute to LEED or energy-efficient building certifications?

A: Through precise PID control and customizable occupancy scheduling, the XC5010C minimizes the unnecessary operation of high-load HVAC equipment, directly contributing to reduced energy consumption and improved building efficiency ratings.
