Product Overview

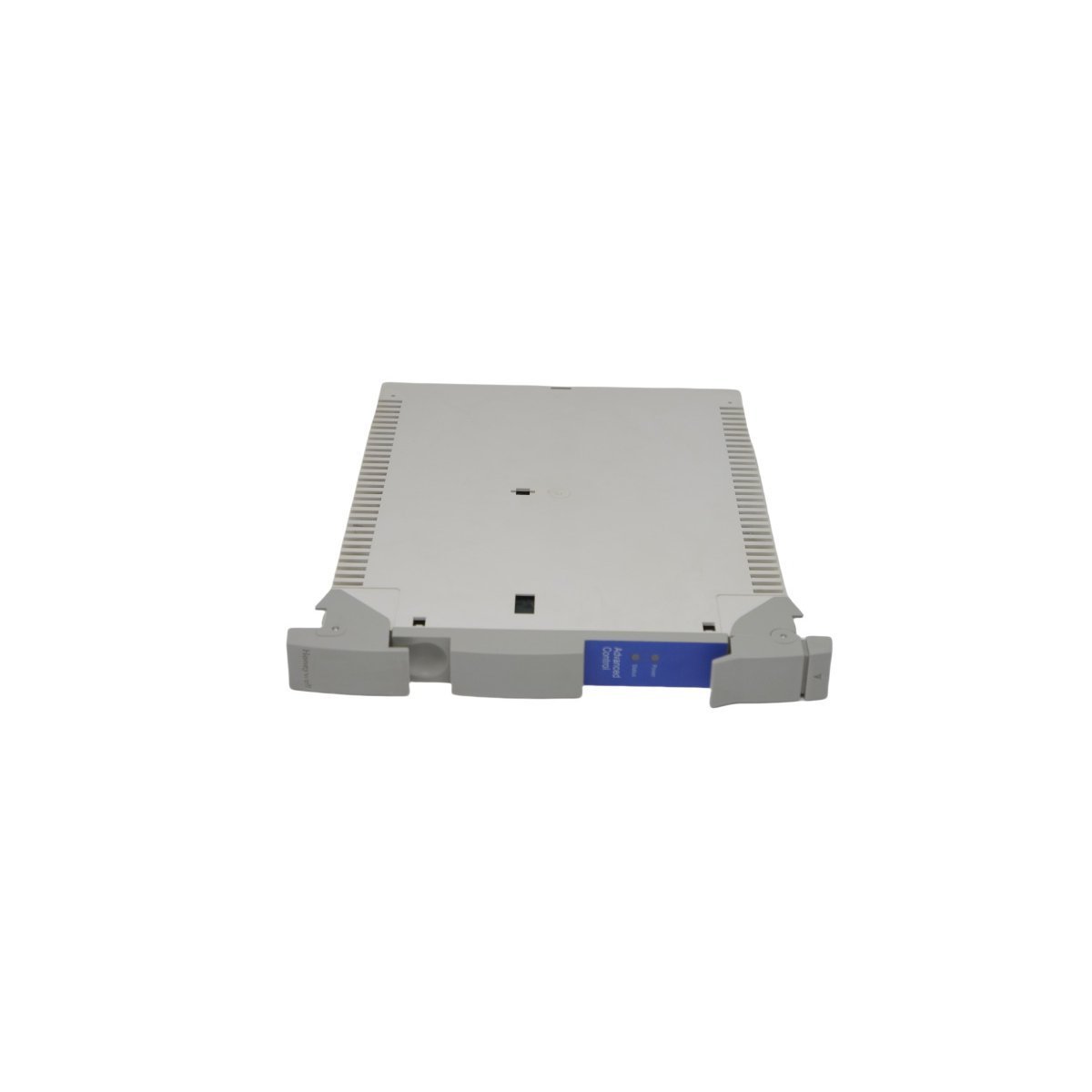

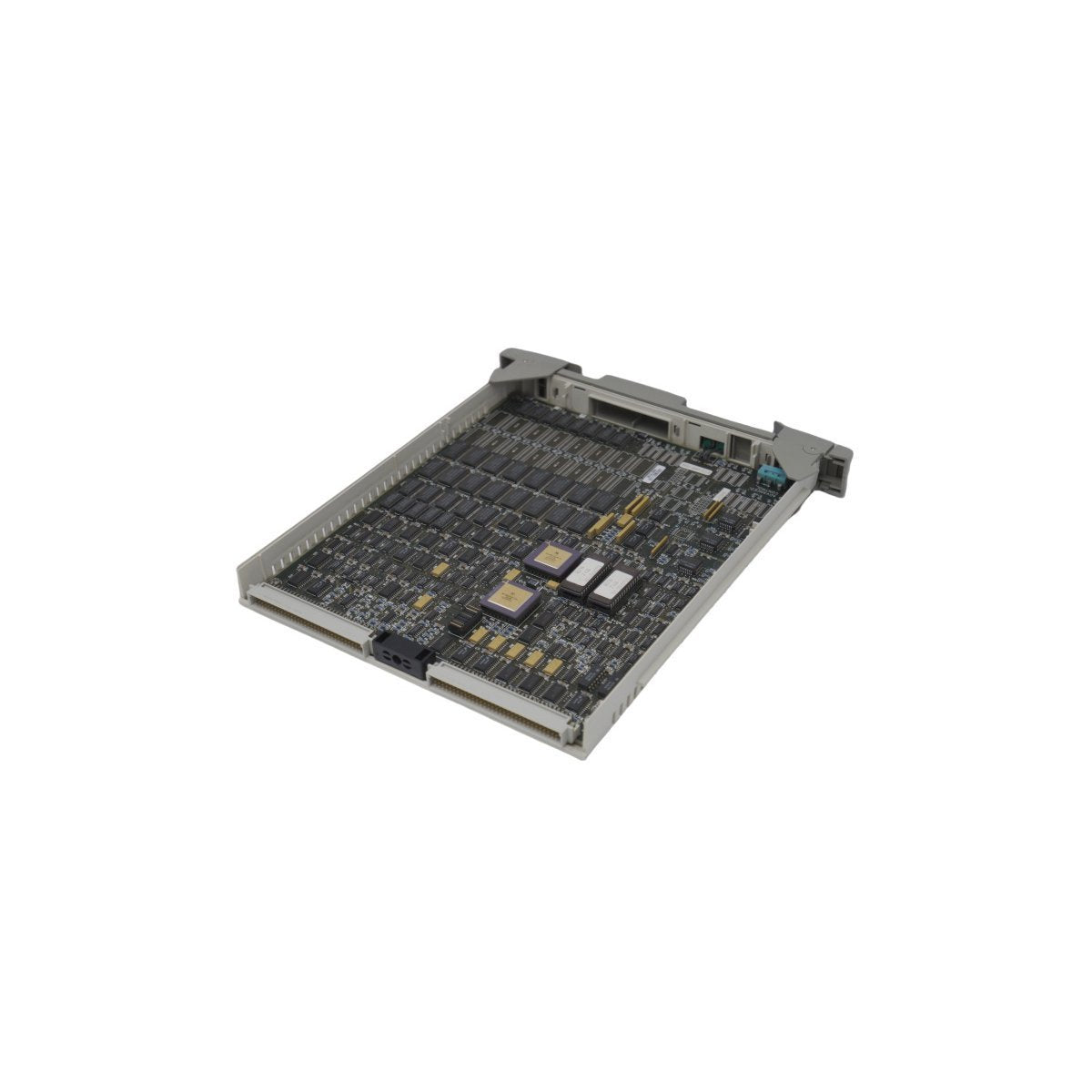

The Honeywell 51304518-150 is a high-performance Advanced Process Manager (APM) control module engineered for the legacy TDC 3000 Distributed Control System (DCS) environment. Positioned as the computational core of the process manager, this module executes high-level regulatory logic, sequential control, and complex mathematical algorithms required for large-scale industrial automation. By interfacing directly with the Universal Control Network (UCN), the 51304518-150 ensures synchronized data flow between the control room and field instrumentation. Its architecture is specifically designed to handle critical process variables—such as pressure, flow, and temperature—with the deterministic timing necessary for high-stakes manufacturing and safety-critical operations.

Critical Hardware Metrics and System Attributes

• Manufacturer Identification: Honeywell

• Model Designation: 51304518-150

• Component Classification: APM Control Module / Safety Manager Card

• System Environment: TDC 3000 / Advanced Process Manager (APM)

• Unit Net Weight: 0.24 kg

• Module Dimensions: 2 cm x 13.5 cm x 23.8 cm

• Network Interface: Universal Control Network (UCN)

• Manufacturing Origin: USA

• Condition Status: Brand New / Active

• Customs Tariff Code (HS): 8537101190

Industrial Deployment and System Roles

• Oil & Gas Refining: Manages intricate distillation logic and pressure stabilization protocols in continuous processing units.

• Chemical Synthesis: Controls batch sequencing and reactor cooling loops where precision timing is essential for product quality and hazardous runaway prevention.

• Thermal Power Generation: Oversees boiler combustion control and steam turbine monitoring within the TDC 3000 system architecture.

• Pharmaceutical Manufacturing: Provides the high-fidelity sequential control required for validated clean-room processing and automated mixing stations.

• Safety Instrumented Systems (SIS): Functions as a reliable logic solver for emergency shutdown (ESD) loops and critical interlocking mechanisms.

FAQ

Q: Does the 51304518-150 support redundant configurations within the APM rack?

A: Yes, the 51304518-150 is designed to operate in redundant pairs. In the event of a primary module failure, the secondary module takes over control without process interruption, maintaining system uptime.

Q: Is this module compatible with the newer Experion PKS system?

A: The 51304518-150 is primarily a TDC 3000 APM component. While it can interface with Experion PKS through UCN bridges or specialized gateways, it is natively designed for APM/HPM controller racks.

Q: What is the primary communication protocol used by this control module?

A: This module utilizes Honeywell's proprietary Universal Control Network (UCN) for high-speed, peer-to-peer communication between controllers and the operator consoles.

Q: What are the diagnostic capabilities of the 51304518-150?

A: The module features onboard self-diagnostics that monitor processor health, memory integrity, and communication status, reporting any anomalies directly to the DCS alarm management system.

Q: How do the dimensions 2 x 13.5 x 23.8 cm impact installation?

A: This slim, vertical card format is designed to fit precisely into the standard TDC 3000 APM/HPM card file slots, allowing for high-density control configurations within the system cabinet.
