Product Overview

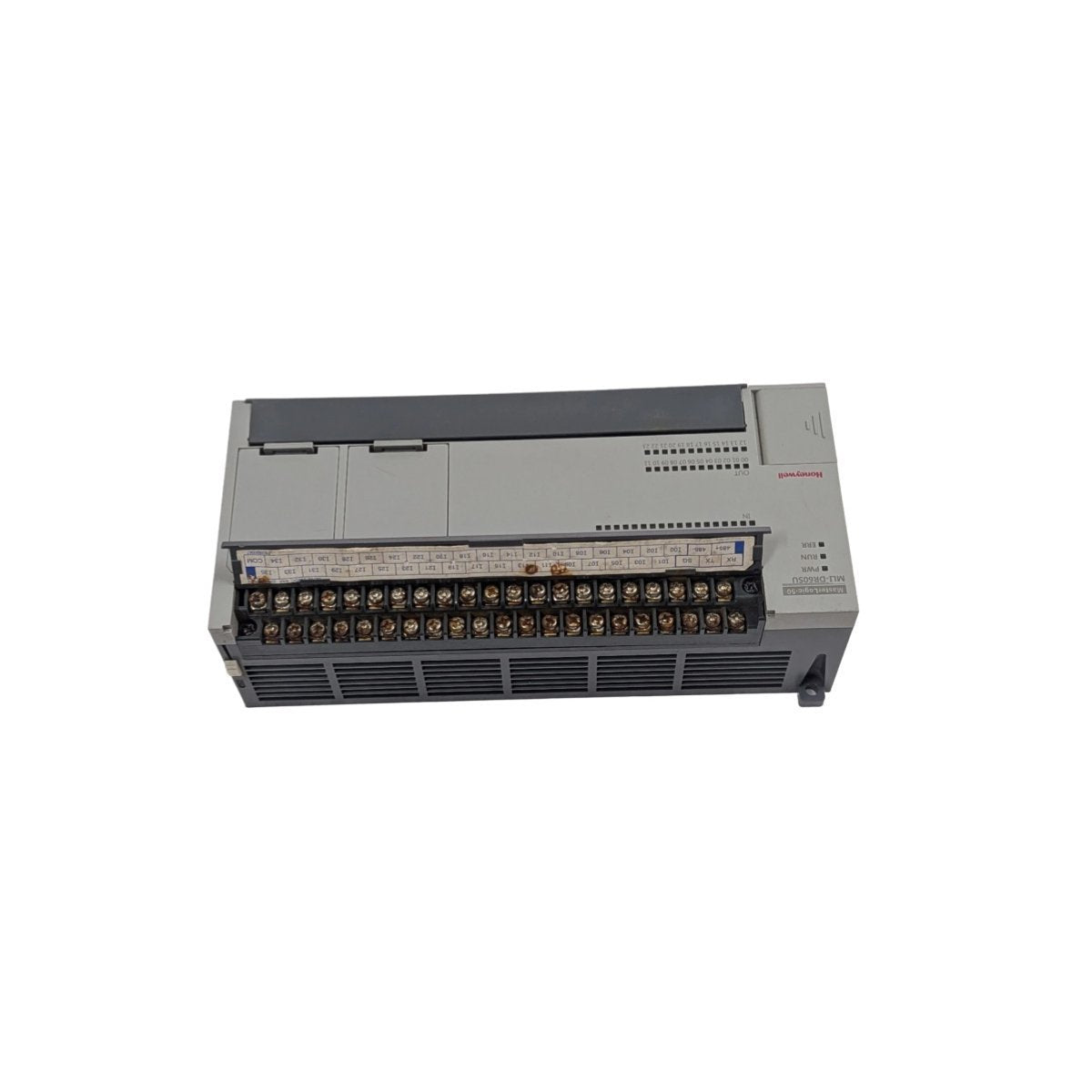

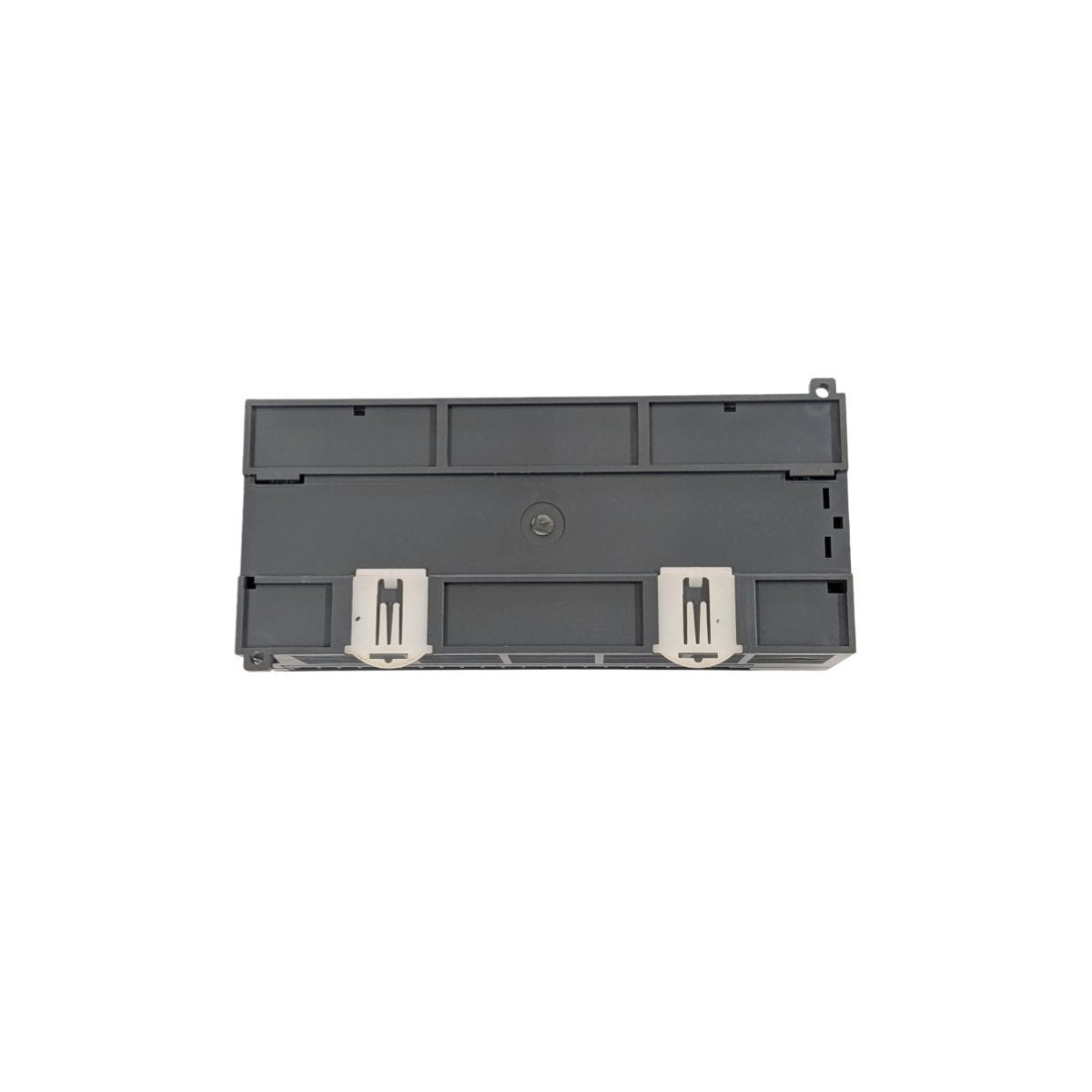

The Honeywell MLI-DR60SU Base Module serves as the robust foundational backbone for scalable industrial control systems within the MasterLogic programming environment. Engineered to support high-density I/O configurations, it accepts a wide range of universal input signals, simplifying sensor integration and minimizing complex wiring. System integrators and automation engineers rely on this module to build flexible, high-performance control architectures that handle everything from basic sequencing to complex networked applications. With built-in multi-communication capabilities, the MLI-DR60SU seamlessly exchanges data with HMIs, routers, and supervisory systems, delivering exceptional reliability for modern industrial automation.

Core Technical Advantages

High-Density Universal Integration

The module features 60 configurable channels that accept diverse voltage and current signals. This high-density architecture reduces cabinet space requirements and streamlines sensor connectivity in demanding industrial environments.

Scalable Architecture and Expansion

The base module supports expandable I/O configurations, allowing systems to scale up to 254 I/O points across seven stages. Users can add up to two expansion modules to achieve highly tailored network and control topologies without redesigning the core system.

Advanced MasterLogic Compatibility

Fully supported by the MasterLogic programming environment, the module executes complex instructions including advanced arithmetic, data processing, and trigonometric operations. It supports native communication protocols such as MLDP and Modbus to ensure seamless integration with existing Supervisory Control and Data Acquisition (SCADA) systems.

Technical Specifications

Installation and Maintenance Guide

Ensure the module is mounted securely on a standard DIN rail within a clean, vibration-free control panel that meets the environmental operating specifications.

Connect the power supply and grounding cables according to the standard MasterLogic wiring diagram. Verify that the grounding resistance is below 100 ohms to prevent electrical interference.

Connect the Ethernet and field communication cables securely, ensuring that the cable bend radius is maintained at least four times the cable diameter to prevent signal degradation.

Verify the input signals using the MasterLogic software before placing the module into full operation. Ensure the terminal blocks are fully locked and protected from ingress of dust and moisture.

Why Choose This Model

The Honeywell MLI-DR60SU provides a cost-effective and highly reliable solution for modernizing control systems. Its advanced hardware architecture minimizes signal loss, while the durable enclosure offers excellent thermal stability in standard industrial conditions. The native integration with the MasterLogic platform ensures long-term operational continuity, reducing maintenance efforts and downtime during system upgrades.

Delivery & Logistics

We ship all items in brand-new, original sealed packaging with standard anti-static protection.

• Lead Time: In Stock, ready to ship

• Delivery Time: 3 - 5 business days upon payment confirmation

• Shipping Carriers: DHL, FedEx, UPS

Technical FAQs

Q1: What is the maximum number of I/O points supported by this system configuration?

A1: The MasterLogic architecture connected to the MLI-DR60SU supports up to 254 I/O points across seven stages, allowing for significant scalability.

Q2: Does the module support Modbus communication out of the box?

A2: Yes, the module features built-in communication protocols including Modbus and MLDP for direct communication with HMIs and other network devices.

Q3: Can this module be used in place of older Honeywell PLC units?

A3: The MLI-DR60SU is designed to be compatible with the MasterLogic-50 platform, providing a reliable, direct replacement or upgrade path for older modules.
