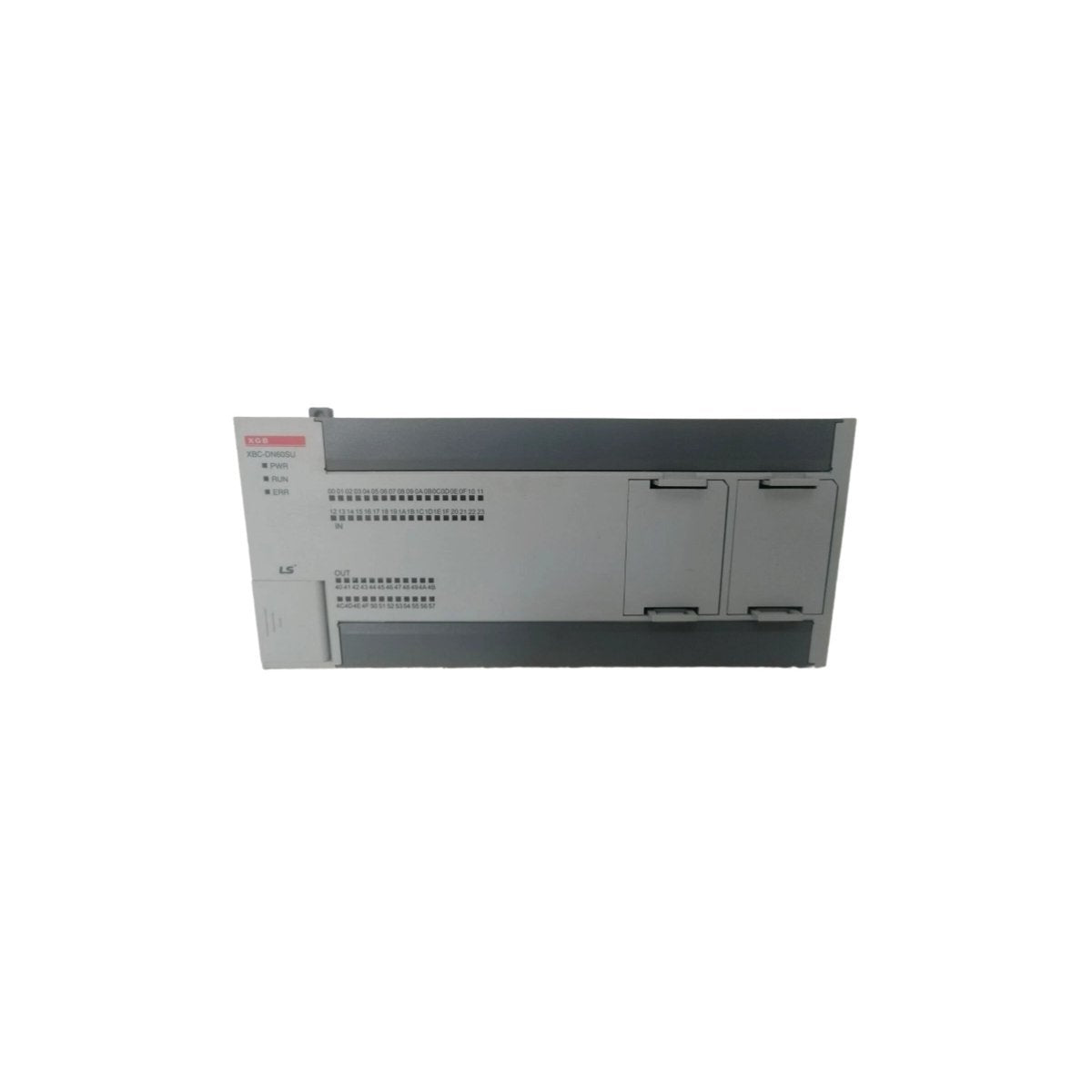

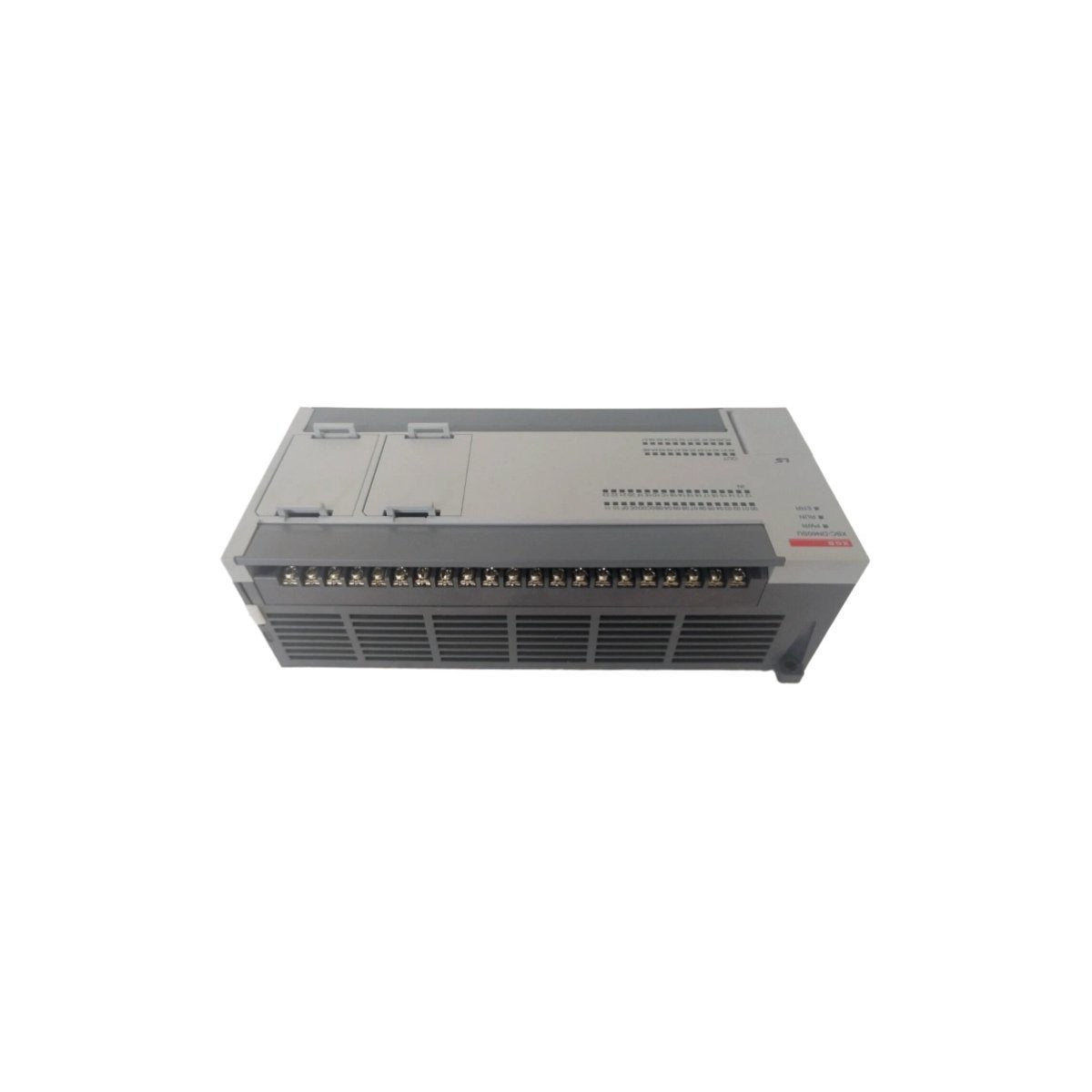

Product Overview

The Honeywell MLI-DN60SU serves as the fundamental structural and electronic foundation for the MasterLogic 200 PLC series. This high-density Base Module provides the essential backplane communication bus and power distribution pathways required for CPU and I/O module synchronization. Designed for high-availability industrial environments, the MLI-DN60SU ensures that data exchange between the processor and field interfaces occurs with deterministic timing and absolute signal integrity.

In critical sectors such as water treatment, power distribution, and chemical processing, the stability of the base unit determines the reliability of the entire control loop. The MLI-DN60SU utilizes a ruggedized chassis design that resists mechanical stress and thermal expansion, maintaining secure electrical contact across all module slots. Whether supporting a standalone logic controller or serving as a remote I/O node within an Experion PKS architecture, this base module delivers the industrial-grade performance necessary to prevent unplanned system outages.

Backplane Architecture and System Logic

The MLI-DN60SU features a high-speed parallel bus architecture that facilitates low-latency data transfer between the CPU and the 10 available module slots. This backplane manages the "I/O Link" traffic, ensuring that every discrete and analog signal reaches the processor within the defined scan cycle. The unit includes integrated power rail filtering, which shields sensitive module electronics from electromagnetic interference (EMI) and transient noise generated by nearby high-power equipment.

Compatibility remains a core strength of this base unit. It supports a diverse range of MasterLogic 200 modules, including high-speed counters, analog I/O, and specialized communication interfaces. The internal bus termination logic prevents signal reflection, maintaining high-fidelity data transmission even when the rack is fully populated. This deterministic hardware layer allows engineers to develop complex PID control and safety interlock strategies with total confidence in the underlying physical infrastructure.

Fundamental Unit Specifications

Field Installation and Rack Management

Mounting the MLI-DN60SU requires a rigid, flat surface to prevent chassis twisting, which can lead to intermittent module connectivity. We recommend using the provided M4 mounting screws in addition to the standard DIN rail clips for high-vibration environments. Ensure a minimum vertical clearance of 80mm above and below the rack to allow for natural convection cooling of the installed modules.

Before inserting modules, verify that the base unit's grounding terminal is bonded to the master instrument earth bar using a low-impedance copper strap. This grounding path is essential for the effective operation of the internal surge protection circuitry. When populating the slots, always insert modules starting from the left (Power and CPU) and utilize slot covers for any unoccupied positions to prevent dust ingress and maintain the integrity of the cooling airflow.

Structural Engineering Performance

The MLI-DN60SU excels in extreme industrial climates where airborne contaminants and thermal cycles often degrade standard electronics. The base unit’s bus connectors utilize specialized plating to resist "fretting corrosion," ensuring long-term contact reliability in humid or corrosive G3-rated environments. This durability makes it a preferred choice for offshore platforms and wastewater treatment facilities where mechanical longevity is paramount.

When integrated into a larger Experion PKS system, the MLI-DN60SU supports high-resolution Sequence of Events (SOE) data passing, providing the millisecond-accurate timestamps needed for post-incident forensics. Its rugged construction facilitates seamless integration with Turbine Supervisory Instrumentation (TSI), as the backplane remains stable even under the persistent low-frequency vibrations typical of turbine halls. This structural resilience ensures a superior Mean Time Between Failures (MTBF) and reduces the total cost of ownership (TCO) for the plant operator.

Delivery and Logistics Information

Processing Speed: Your order is prepared for dispatch within 2-7 days when payment finish.

Global Logistics: We provide worldwide delivery via premium carriers including DHL, FEDEX, and UPS with real-time tracking.

Anti-Static Packaging: Each MLI-DN60SU is vacuum-sealed in moisture-barrier bags and supported by high-density industrial foam.

Product Integrity: We guarantee the delivery of Brand New, factory-sealed units in their Original Pack, ensuring that the hardware meets all original manufacturer performance specifications.

Technical Maintenance FAQs

Q1: Can I expand the MLI-DN60SU with an expansion base?

A1: Yes. The MLI-DN60SU can be connected to additional expansion bases via a dedicated expansion cable. This allows the CPU on the main base to control I/O modules across multiple racks seamlessly.

Q2: What is the maximum current capacity of the MLI-DN60SU backplane?

A2: The current capacity is determined by the specific Power Supply Module installed in the first slot. Ensure the total current draw of all modules in the rack does not exceed the power supply's rated output for the 5V and 24V rails.

Q3: Is the MLI-DN60SU compatible with hot-swapping modules?

A3: Generally, the MasterLogic 200 modules should be replaced while the power is off to protect the backplane bus. Always refer to the specific module's datasheet for "Hot Swap" capability before attempting live maintenance.

Q4: How do I handle a slot communication error?

A4: First, inspect the pins on the module and the base connector for debris or bending. If the pins are clean, verify the slot addressing in your software configuration. If the fault persists in the same slot with multiple modules, the base unit may require replacement.
