Product Overview

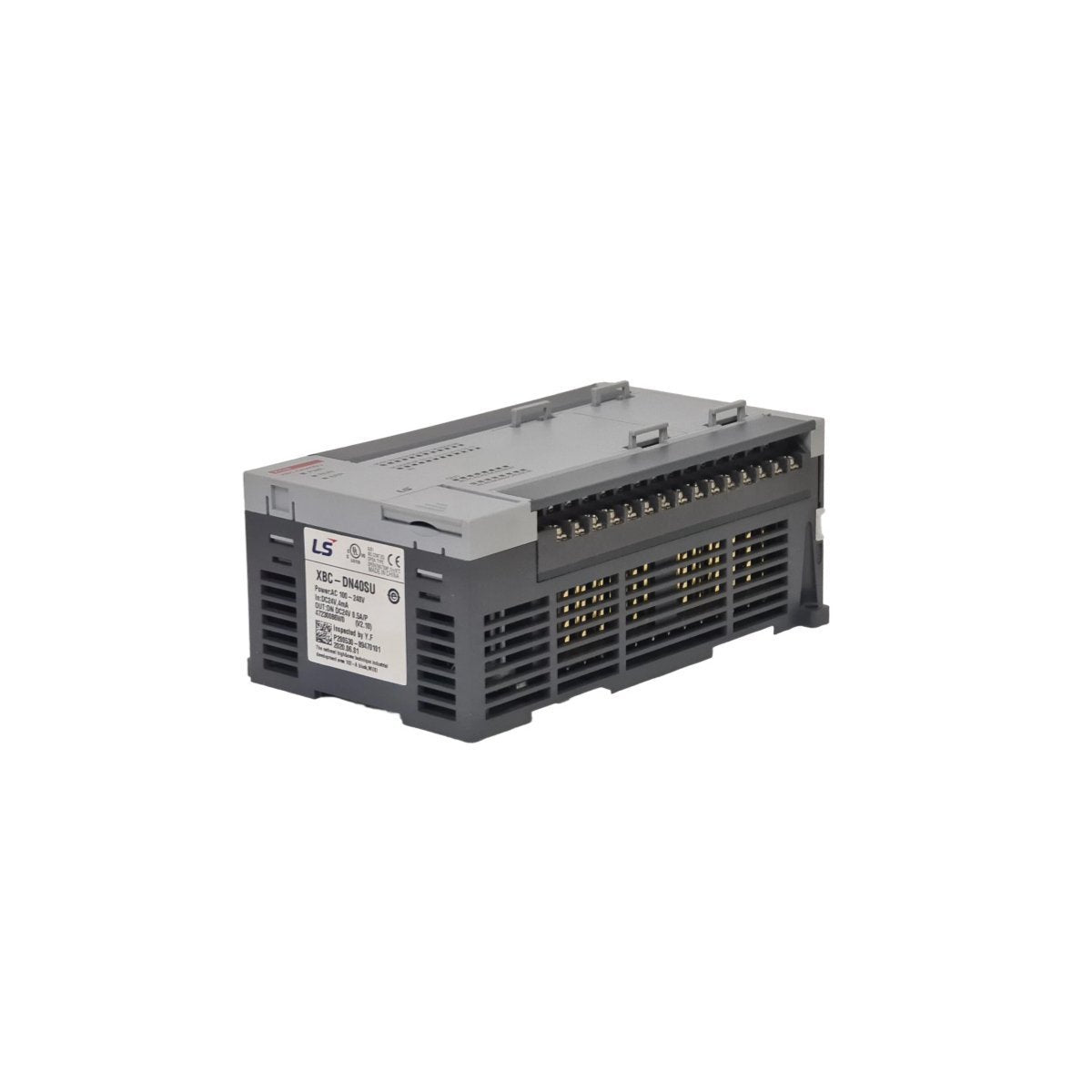

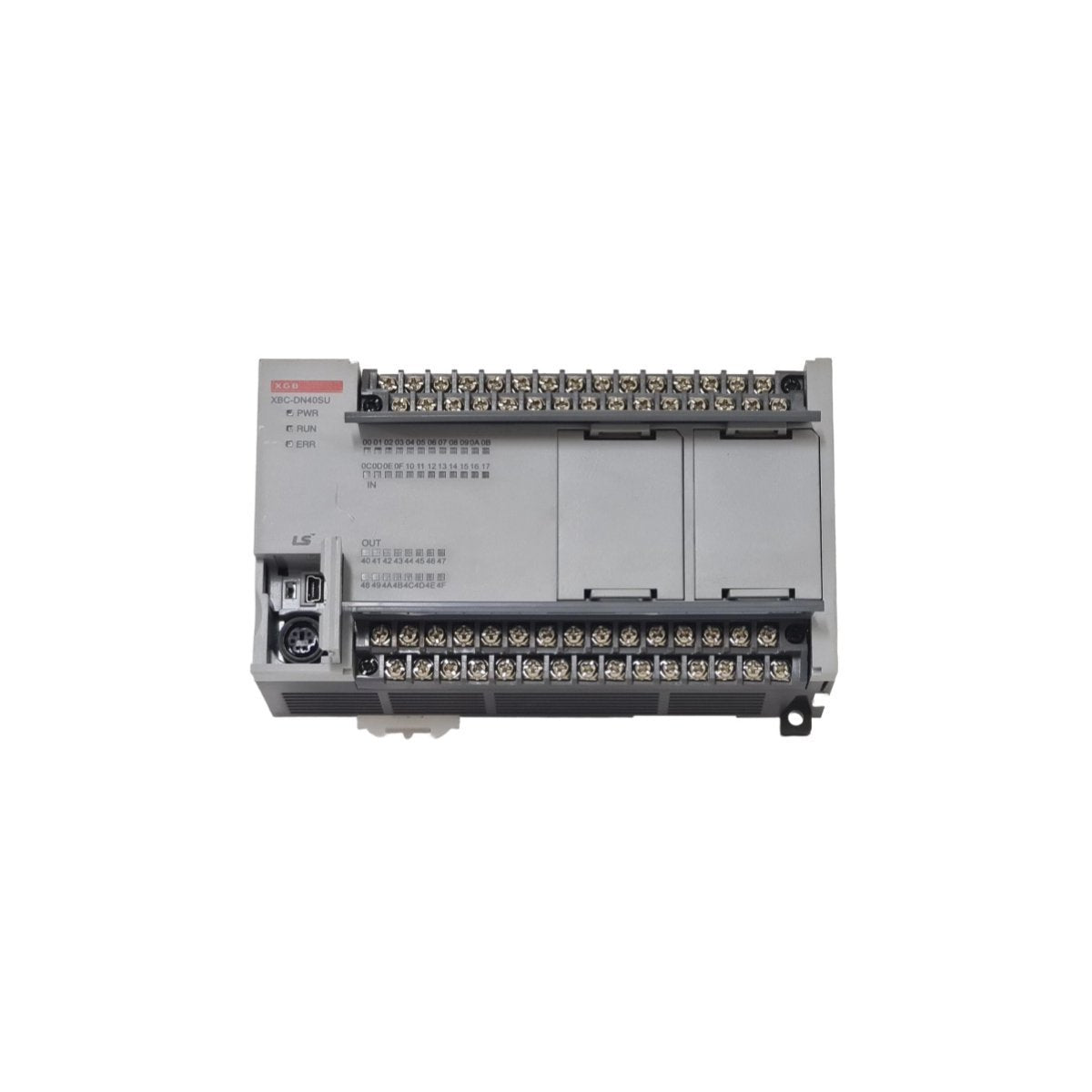

The Honeywell MLI-DN40SU stands as a fundamental component of the MasterLogic 200 PLC series, providing a high-integrity backplane architecture for system expansion. In complex industrial environments—such as power generation, water treatment, and chemical processing—the ability to scale I/O density without sacrificing signal speed is paramount. This base module facilitates the seamless integration of additional discrete and analog I/O cards, ensuring the central CPU maintains deterministic control over an expanded field device network.

Engineered for the rigors of continuous 24/7 operations, the MLI-DN40SU serves as the high-speed communication artery between the main controller and expansion racks. It ensures power distribution stability and data synchronization across all mounted modules. By providing a ruggedized mounting platform, this base module secures the physical and electrical connections necessary for high-density automation tasks, making it a critical asset for engineers looking to maximize their system's footprint while maintaining Honeywell’s renowned reliability standards.

Advanced Backplane Architecture

The MLI-DN40SU utilizes a multi-layered bus architecture specifically optimized for the MasterLogic 200's high-speed data throughput requirements. Unlike standard DIN-rail connectors, this base module features reinforced gold-plated connector pins that minimize contact resistance and prevent oxidation in humid or corrosive industrial atmospheres. This design ensures that high-frequency data packets from high-speed counters or analog modules remain intact, even in high-EMI (Electromagnetic Interference) environments.

The module incorporates an integrated power management circuit that balances the current load across the backplane, protecting sensitive I/O cards from voltage sags or surges. Its passive backplane design significantly increases the Mean Time Between Failures (MTBF) by eliminating active electronic components that are prone to thermal wear. Furthermore, the MLI-DN40SU supports advanced rack-addressing logic, allowing the system to automatically recognize and configure expansion modules during initial commissioning, drastically reducing engineering setup time.

Technical Specifications

Field Deployment & Installation Standards

To ensure optimal system performance, the MLI-DN40SU must be mounted on a grounded metallic backplate within a NEMA 4 or IP54 rated enclosure. When expanding multiple racks, engineers should use Honeywell-certified extension cables to maintain signal timing and impedance matching. It is critical to verify the current consumption of all modules installed on the MLI-DN40SU to ensure they do not exceed the capacity of the power supply module.

Proper grounding is mandatory; use a heavy-gauge copper strap to connect the base module’s grounding terminal to the cabinet's main earth bar. This prevents ground loops which can cause noise in sensitive 4-20mA analog signals. During installation, ensure the module locking levers are fully clicked into place; a loose connection on the backplane can lead to intermittent "Module Missing" faults in the PLC logic, which are often difficult to diagnose during live operations.

Industrial Engineering Advantages

The Honeywell MLI-DN40SU provides superior mechanical stability in high-vibration zones, such as those found near large compressors or turbines. Its robust housing protects the internal bus from dust and airborne contaminants, a common cause of failure in lesser PLC hardware. Because the MasterLogic system integrates seamlessly with Experion PKS, this base module allows for the effortless scaling of SCADA points. It supports the high-speed data demands of Turbine Supervisory Instrumentation (TSI), ensuring that critical vibration and temperature data are transmitted to the control layer without latency, enabling proactive maintenance and preventing catastrophic equipment failure.

Shipment & Fulfillment Policy

We prioritize the security of your critical automation hardware during international transit.

• Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

• Global Dispatch: We ship to over 150 countries with real-time tracking.

• Protection: Every MLI-DN40SU is shipped in anti-static industrial packaging and multi-layer shock-absorbent foam to ensure the backplane pins remain perfectly aligned and factory-sealed.

Hardware Support FAQs

Q1: Can I use the MLI-DN40SU as a standalone PLC base?

A1: The MLI-DN40SU is designed as an extension base. It typically works in conjunction with a CPU base and a remote expansion module to extend the physical reach of your I/O network.

Q2: How many I/O modules can be mounted on this specific base?

A2: The DN40SU designation refers to the specific slot and point capacity of the series. Always refer to your system configuration tool to ensure you do not exceed the addressing limit of your MasterLogic CPU.

Q3: Is the base module hot-swappable?

A3: The base itself is a passive backplane and cannot be swapped while the system is powered. However, it supports specific I/O modules that may be hot-swappable depending on the MasterLogic CPU and firmware version in use.

Q4: Does this module require a separate power connection?

A4: The MLI-DN40SU receives power through the expansion cable connected to the main rack or via a dedicated power supply module mounted on the first slot of the expansion base.
