Product Overview

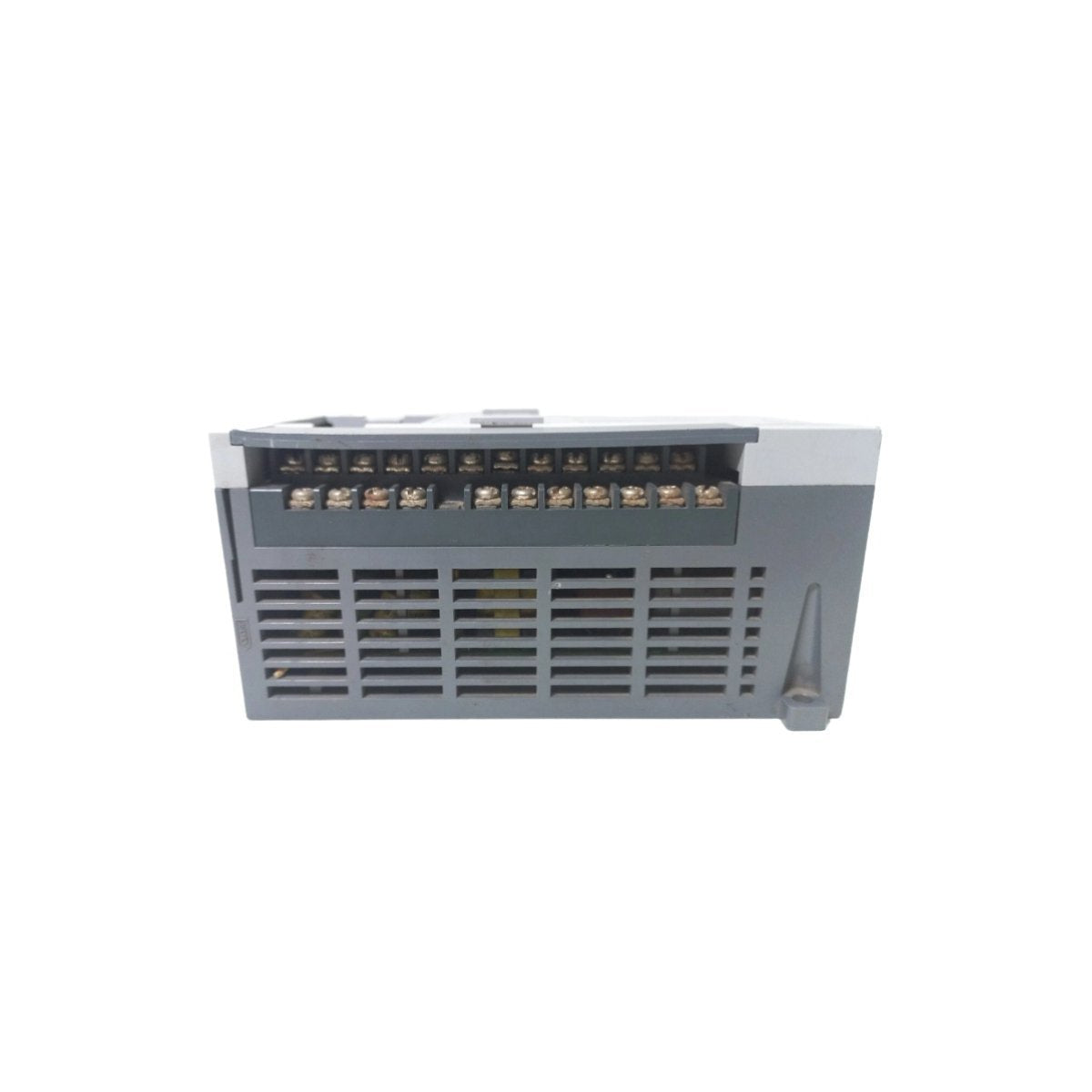

The Honeywell MLI-DN30E Base Module serves as the backbone architectural foundation for the Master Logic PLC series, providing critical power regulation, high-speed backplane communication, and secure physical structural docking for expansion I/O arrays. Control systems engineers deploy this modular base chassis within medium-to-large DCS subsystems, automated manufacturing assembly cells, and water treatment processing infrastructures. The module orchestrates high-speed internal bus transfers, managing data traffic between the central processing unit and field connection blocks with zero signal propagation latency. By prioritizing safety-critical loop isolation and embedding physical protection against short-circuit faults, the MLI-DN30E ensures uncompromised uptime in continuous processing plants. It bridges localized discrete machinery control loops cleanly with larger enterprise networks, keeping factory floor assets responsive, stable, and completely protected against data synchronization dropouts.

Hardware Architecture and Backplane Topology

The MLI-DN30E incorporates an advanced multi-layered circuit board backplane designed specifically to minimize signal attenuation and cross-talk across high-density digital and analog I/O placements. The physical infrastructure accommodates dedicated slots for redundant power supplies, internal CPU extensions, and intelligent communication cards supporting open networks like Modbus TCP, EtherNet/IP, and Profibus-DP.

An integrated internal 32-bit bus matrix governs data prioritization, processing active module discovery routines seamlessly when adding or swapping ancillary cards. Built-in optical isolation networks isolate the delicate internal processing bus from volatile field-side electrical surges, preventing inductive feedback spikes from damaging the core logic processors. High-grade metallic ground planes run through the entire length of the chassis structure, channeling environmental electromagnetic interference (EMI) away from the data lanes to maintain crisp clock cycles under demanding switching loads.

Structural Profile and Operational Constraints

Physical and Logistical Benchmarks

Core Technical Capabilities

Panel Assembly and Earthing Protocols

Mount the MLI-DN30E base module horizontally onto a standard 35mm symmetrical DIN rail inside a structural control cabinet, checking that the integrated spring retention clips snap completely over the rail shoulders. Ensure a minimum vertical clearance of 50mm above and below the chassis assembly to establish sufficient convective airflow and prevent localized thermal traps from stressing the modular electronics.

Connect a heavy-duty copper earthing conductor directly from the dedicated functional ground terminal stud on the base plate to the central enclosure ground bus bar. Keep this earthing connection as short as possible, using minimum 2mm² (14 AWG) low-impedance wire strands to ensure optimum shielding performance. Before clicking the primary CPU or individual I/O modules into their respective slots, vacuum the backplane connector sockets to clear out any airborne construction debris or metallic filings that could short the data pins.

Operational Durability and Control System Alignment

The MLI-DN30E framework displays superior resilience against mechanical stress, absorbing low-frequency industrial cabinet vibrations and handling temporary voltage sags without breaking active process control loops. The anti-corrosive plating on the backplane connectors prevents galvanic oxidation in coastal facilities or pulp and paper mills where airborne chemical mists are present.

This modular hub shares a unified database structure with broader Honeywell automation assets, allowing instrumentation specialists to map local I/O variables directly into Experion PKS supervisory networks via Ethernet links. The highly deterministic backplane architecture allows the master controller to execute rapid scan rates, providing the high-speed data refreshes required for complex interlocking emergency shutdown systems and precision motion applications.

Inventory Configuration and Fulfillment List

Your industrial control hardware is fully serialized, undergoes backplane continuity verification, and is sealed at the factory before worldwide distribution. Each package includes:

(1) New Genuine Honeywell MLI-DN30E Master Logic Base Unit

(2) Pre-fitted Heavy-Duty DIN Rail Retention Clip Assemblies

(3) Integrated Modular Slot Protective Blanking Covers

(4) Factory Mechanical Inspection and Ground Continuity Certificate

Express Dispatch and Packing Standards

We arrange international dispatch within 2-7 days when payment finish, partnering with premium express logistics providers including DHL, FEDEX, and UPS to streamline your supply chain. Warehouse technicians seal each MLI-DN30E base inside specialized anti-static industrial packaging folders to guard against electrostatic discharge hazards during transit. The hardware is nested inside multi-layered, shock-absorbent foam enclosures within rigid outer cartons, ensuring your critical backplane components arrive pristine, dry, and ready for panel integration.

Control System Infrastructure FAQs

Q1: What is the exact function of the vacant slot blanking covers included with the MLI-DN30E base?

A1: The blanking covers shield unused backplane connector pins from airborne conductive dust, moisture droplets, and accidental contact with tools during system expansion. Always leave blanking covers snapped into any unpopulated slots to maintain the IP20 safety integrity and prevent stray shorts on the system bus.

Q2: Can I hot-swap I/O modules directly on this base module while the Master Logic system is actively running?

A2: Hot-swapping capabilities depend strictly on the specific CPU model version and the software configuration settings deployed within your Honeywell Programming Studio project. Review your application's active safety parameters and controller manual guidelines before pulling any active module from the base during live operations.

Q3: How does the MLI-DN30E handle internal 5V DC and 24V DC power balancing across populated slots?

A3: The base module acts as a passive distribution path for the currents supplied by the main Master Logic power supply module. You must sum the individual current draws of all planned CPU, communication, and I/O modules to ensure the total load remains within the 6.0A rating for the 5V rail and the 0.8A rating for the 24V rail.
