Product Overview

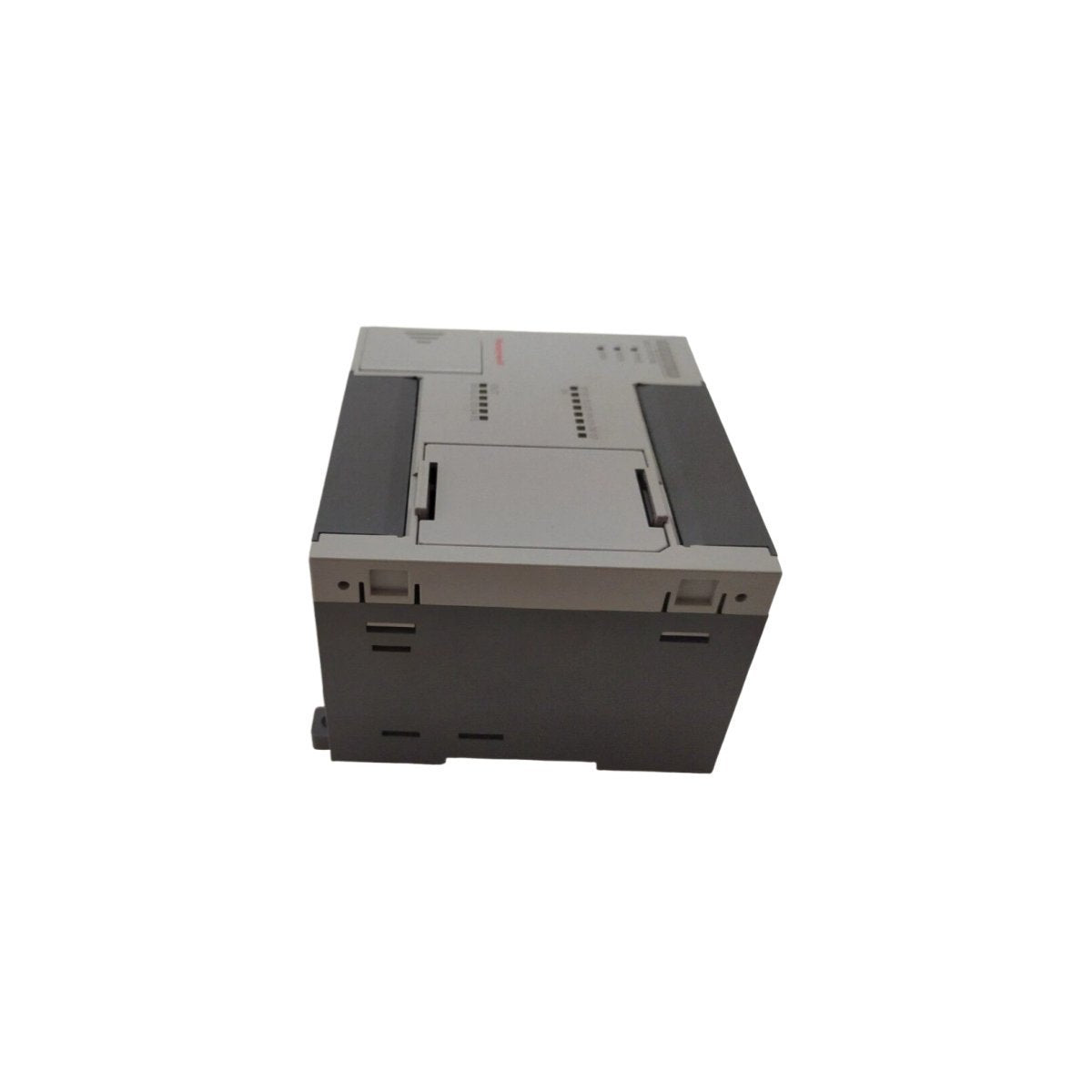

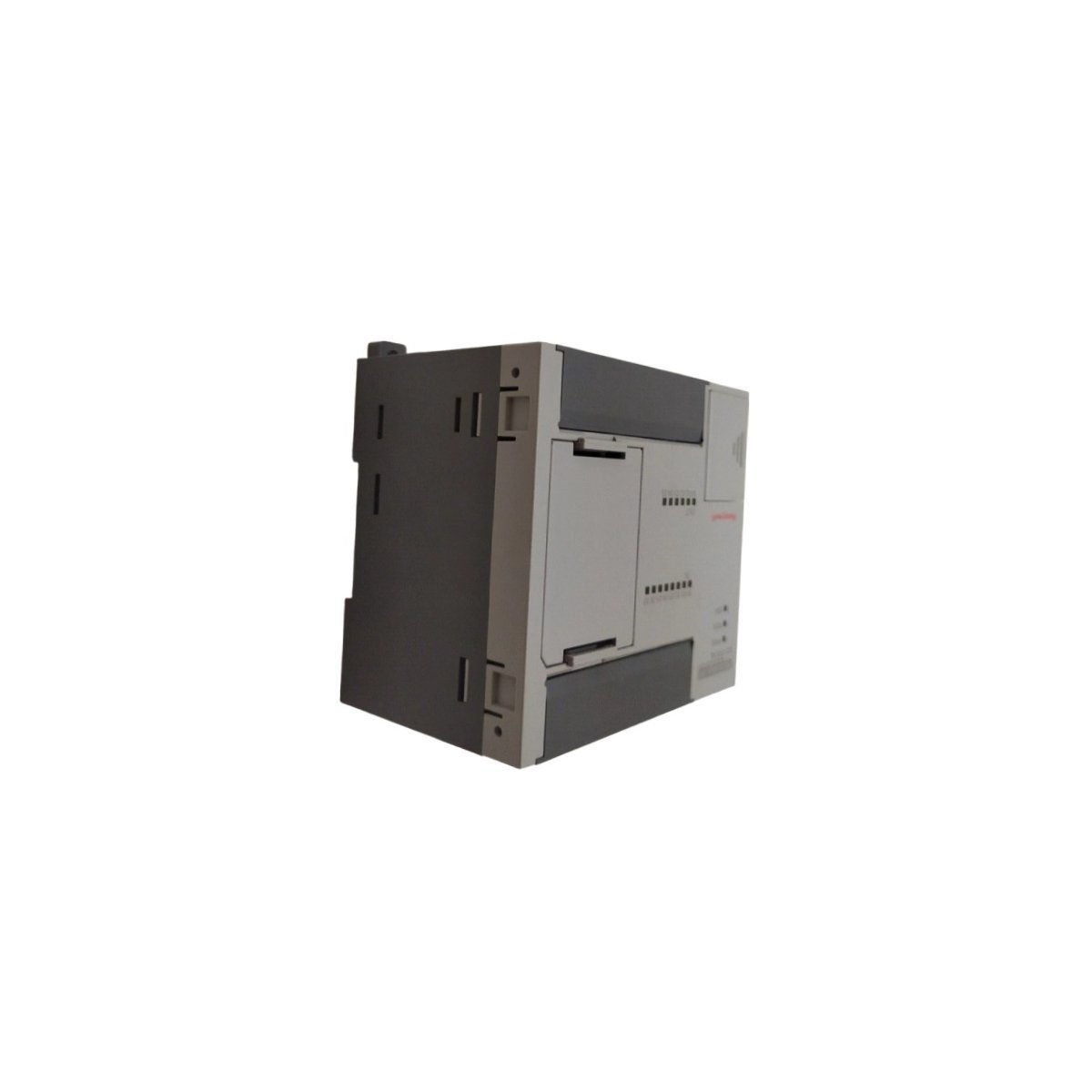

The Honeywell MLI-DN20E functions as the central intelligence and interface hub for the MasterLogic 50 programmable logic controller series. This compact, DIN rail-mounted base module provides a high-density integration of 12 digital input channels and 8 transistor output channels, specifically engineered for precision control in distributed industrial environments. While often utilized in general factory automation, its robust signal conditioning makes it a reliable choice for monitoring auxiliary systems in large-scale power plants and compressor stations.

This module captures field signals with millisecond accuracy, ensuring that critical process variables from limit switches, proximity sensors, and flow meters reach the logic engine without distortion. By utilizing advanced photo-coupler isolation, the MLI-DN20E protects the internal processor from high-voltage transients and electrical noise common in heavy industrial settings. Its wide-range AC power supply compatibility allows for global deployment, providing a stable control platform that maximizes uptime for essential machinery.

Core Technical Advantages

The MLI-DN20E features a sophisticated hardware architecture designed for high-speed response and electrical resilience. The 12-channel input stage utilizes specific resistance mapping to optimize signal detection, with high-speed contacts (00-03) optimized at 3.3kΩ for rapid pulse capture. This hardware-level optimization allows the PLC to react to process changes faster than standard general-purpose modules.

On the output side, the 8-channel open collector (sink type) transistor array offers a contactless switching solution that eliminates the mechanical wear associated with traditional relays. This design facilitates high-frequency switching and provides a significantly longer operational lifespan. The integrated 24-point connector system ensures that all wiring remains secure under vibration, while the wide operational voltage window (DC20.4V to 28.8V) accommodates the fluctuations often found in secondary DC power loops during peak plant loads.

Technical Specifications

Engineering Installation & Maintenance Guide

For optimal performance and safety, engineers must mount the MLI-DN20E on a standard 35mm DIN rail within a grounded metallic enclosure to minimize EMI interference. When wiring the 24-point connector, utilize ferrules to ensure a gas-tight connection and prevent intermittent signals caused by oxidation.

Special attention must be paid to the power supply wiring; given the wide input range (100-240VAC), ensure the circuit is protected by a dedicated 2A slow-blow fuse. Maintain a minimum clearance of 50mm above and below the module to allow for natural convection cooling, especially when operating at the upper limit of the temperature range. For applications involving high-speed inputs (CH 00-03), utilize shielded twisted-pair cabling and ground the shield at the cabinet entry point to prevent "ghost" triggers from adjacent high-power cables.

Strategic Engineering Advantages

The Honeywell MLI-DN20E excels in demanding industrial landscapes where space is at a premium but reliability cannot be compromised. Its ability to withstand high insulation voltages (AC560Vrms) even at altitudes of 2000 meters makes it an ideal candidate for remote mining sites and high-altitude power substations. The module integrates seamlessly with larger DCS frameworks through standard communication protocols, serving as a robust edge-control device. This durability ensures that the module remains operational in high-vibration environments near reciprocating compressors, providing a stable data link between the field sensors and the supervisory control layer.

Logistics and Global Fulfillment

We understand that downtime costs money, which is why we prioritize rapid logistics for every order.

• Delivery time: 3-5 days when payment finish.

• Shipping Carrier: Worldwide express via DHL, FEDEX, or UPS.

• Handling: Every unit is shipped in anti-static industrial packaging and factory-sealed boxes to ensure 100% operational integrity upon arrival.

Technical Procurement FAQs

Q1: What is the benefit of the different resistance values for contacts 00-03?

A1: Contacts 00-03 are designed for high-speed input tasks. The lower 3.3kΩ resistance allows for a higher current flow (7mA), which sharpens the signal transition and allows the PLC to detect pulses at a higher frequency compared to the standard 5.6kΩ inputs.

Q2: Can this module operate in environments with significant electrical ripple?

A2: Yes, the MLI-DN20E is engineered with a robust power filtering stage that handles a ripple rate of up to 5% while maintaining precise ON/OFF voltage thresholds.

Q3: Is the transistor output compatible with AC loads?

A3: No. The MLI-DN20E utilizes DC sink-type transistor outputs. For AC loads, you must use an interposing relay or a different module variant with relay-contact outputs.

Q4: Does this module require a separate power supply for the I/O field side?

A4: While the module itself is powered by 100-240VAC, the 24VDC inputs and transistor outputs require an external DC24V power source to drive the field loops.
