Product Overview

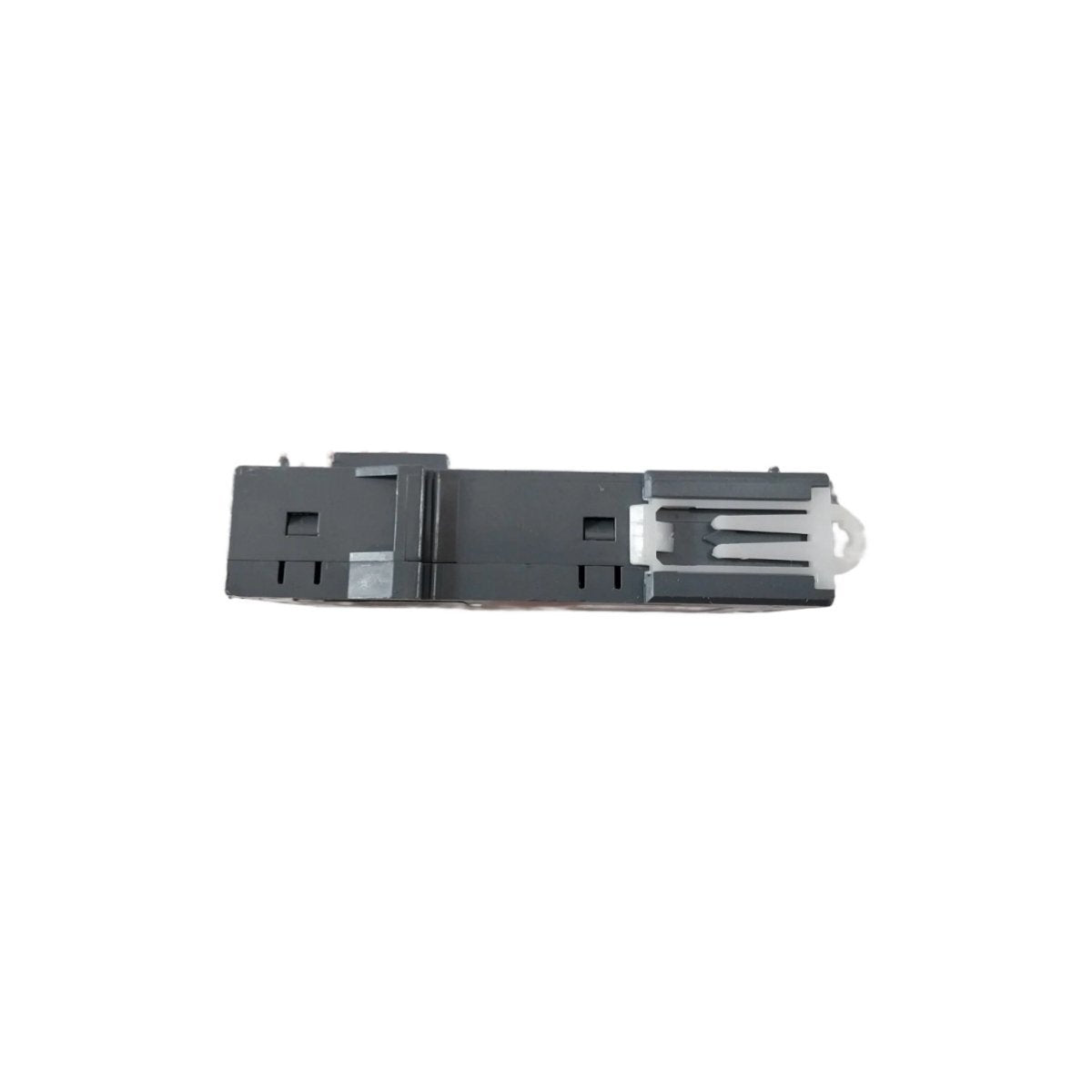

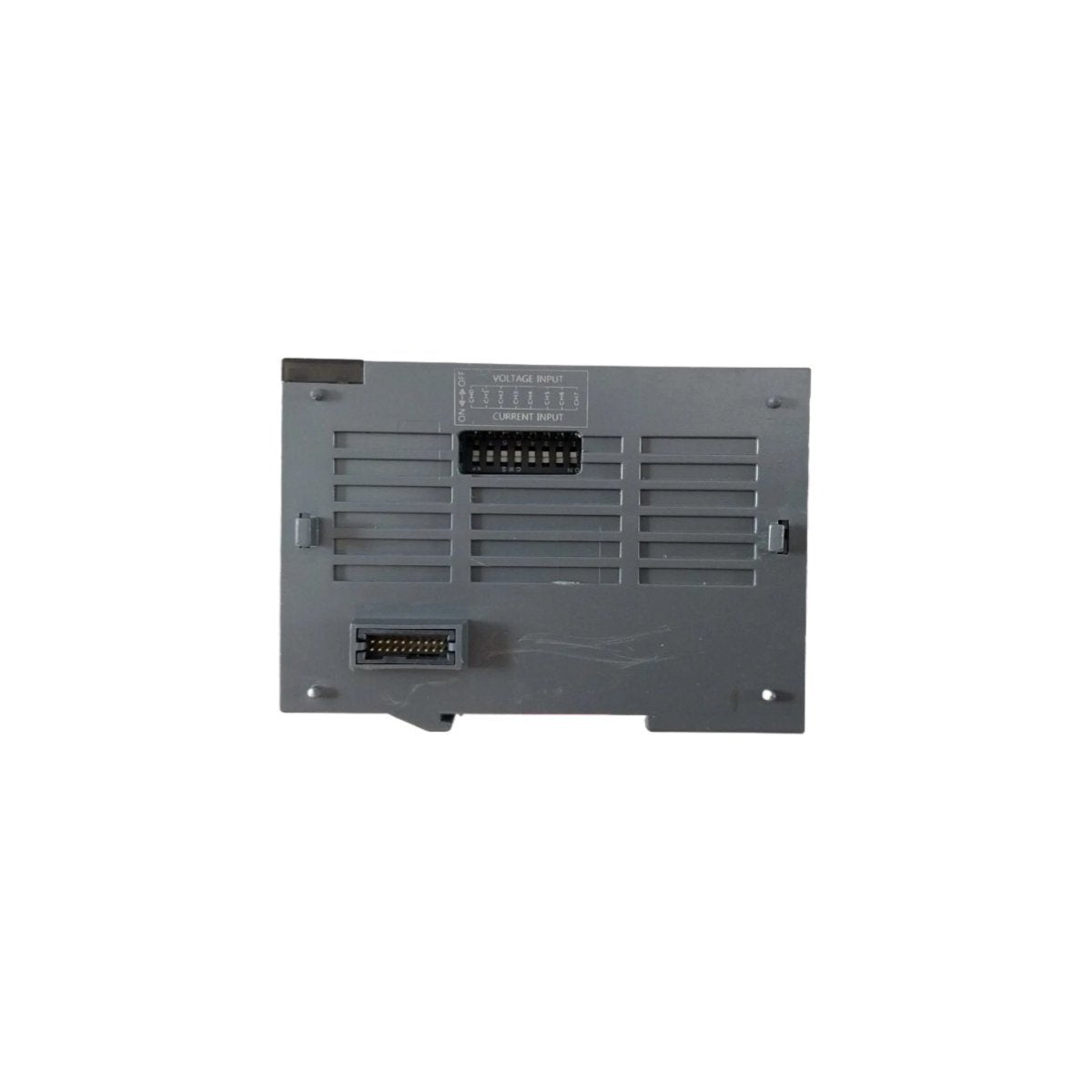

The Honeywell MLF-AD08A stands as a high-precision analog acquisition cornerstone for the Master Logic PLC series, specifically engineered to bridge the gap between field instrumentation and digital control logic. This 8-channel module converts continuous voltage and current signals into high-resolution digital data, enabling real-time monitoring of pressure, temperature, and flow variables in demanding industrial sectors like water treatment, HVAC, and power distribution. In critical process environments, the MLF-AD08A delivers the deterministic performance required to maintain tight control loops and prevent system excursions. Its advanced noise-rejection circuitry ensures that low-level field signals remain uncorrupted by the electromagnetic interference typically found in motor control centers and turbine halls, making it an essential asset for engineers who prioritize measurement integrity.

Advanced Data Conversion Architecture

The MLF-AD08A utilizes a sophisticated 14-bit Successive Approximation Register (SAR) A/D converter across all eight channels to provide exceptional granularity in signal processing. This module supports multiple input ranges, including 4~20mA, 0~20mA, and 1~5V DC, which users can configure independently via the SoftMaster programming environment. To enhance system stability, the hardware incorporates a dedicated digital filter and scaling function, allowing the module to perform pre-processing on raw field data before it reaches the CPU. This decentralized processing approach reduces backplane traffic and ensures that the controller receives clean, linearized values ready for immediate use in PID calculations or interlocking logic.

Technical Performance Matrix

Field Commissioning Protocol

Mount the MLF-AD08A onto the Master Logic backplane and verify that the module is correctly seated before applying 24VDC field power. For current loop inputs (4-20mA), ensure the use of high-quality shielded twisted-pair (STP) cabling to eliminate inductive noise. The shield must be grounded at a single point, preferably the control cabinet ground bar, to prevent ground loops that could skew analog readings. When wiring the 8-channel terminal block, maintain physical separation from high-voltage AC lines. Before full system startup, utilize the SoftMaster I/O monitor to verify that the digitized values accurately reflect the physical field instrument output, adjusting the zero and span offsets if necessary to compensate for long cable runs.

System Resilience and Integration

The MLF-AD08A thrives in extreme industrial climates, featuring a ruggedized build that withstands the thermal cycling and vibration inherent in heavy manufacturing. Its native integration with the Master Logic architecture allows for seamless diagnostic feedback, including wire-break detection and out-of-range alarming, which alerts operators to instrument failure instantly. By utilizing the MLF-AD08A, facilities can achieve higher operational transparency and improved asset protection. Its low power consumption and slim profile contribute to a reduced cabinet thermal footprint, ensuring that high-density I/O configurations remain cool and reliable throughout their 15+ year service life.

Fulfillment and Logistics Excellence

Global Delivery: We initiate shipping within 2-7 days when payment finish, utilizing the world-class express networks of DHL, FEDEX, and UPS.

Industrial Protection: Every MLF-AD08A is enclosed in a specialized anti-static industrial packaging and shielded with moisture-resistant barriers.

Secure Transit: We use reinforced, impact-absorbing double-walled boxes to ensure that factory-calibrated components arrive in perfect condition.

Verified Inventory: We supply only New, Sealed, and Original Pack units to guarantee full manufacturer-spec performance for your critical automation projects.

Logic Implementation FAQs

Q1: Does the MLF-AD08A require an external power supply for the 4-20mA loops?

A1: The module handles the signal conversion, but the 4-20mA loop typically requires an external 24VDC power supply to drive the field transmitters (2-wire configuration), unless the transmitters are self-powered (4-wire).

Q2: Can I mix voltage and current inputs on the same module?

A2: Yes, the MLF-AD08A allows for independent channel configuration. You can set individual channels to current or voltage modes via the software parameters, providing maximum flexibility for diverse sensor arrays.

Q3: How does the module handle a "broken wire" scenario?

A3: In 4-20mA or 1-5V modes, the module identifies an input signal below the minimum threshold (e.g., <3.8mA) as a wire-break fault and triggers a diagnostic flag in the PLC's status register.

Q4: Is it possible to use the MLF-AD08A for high-speed signal capture?

A4: With a conversion speed of 1ms per channel, the module is excellent for most process control tasks. For extremely high-frequency vibration or pulse analysis, a dedicated high-speed counter or specialized vibration module would be more appropriate.
