Product Overview

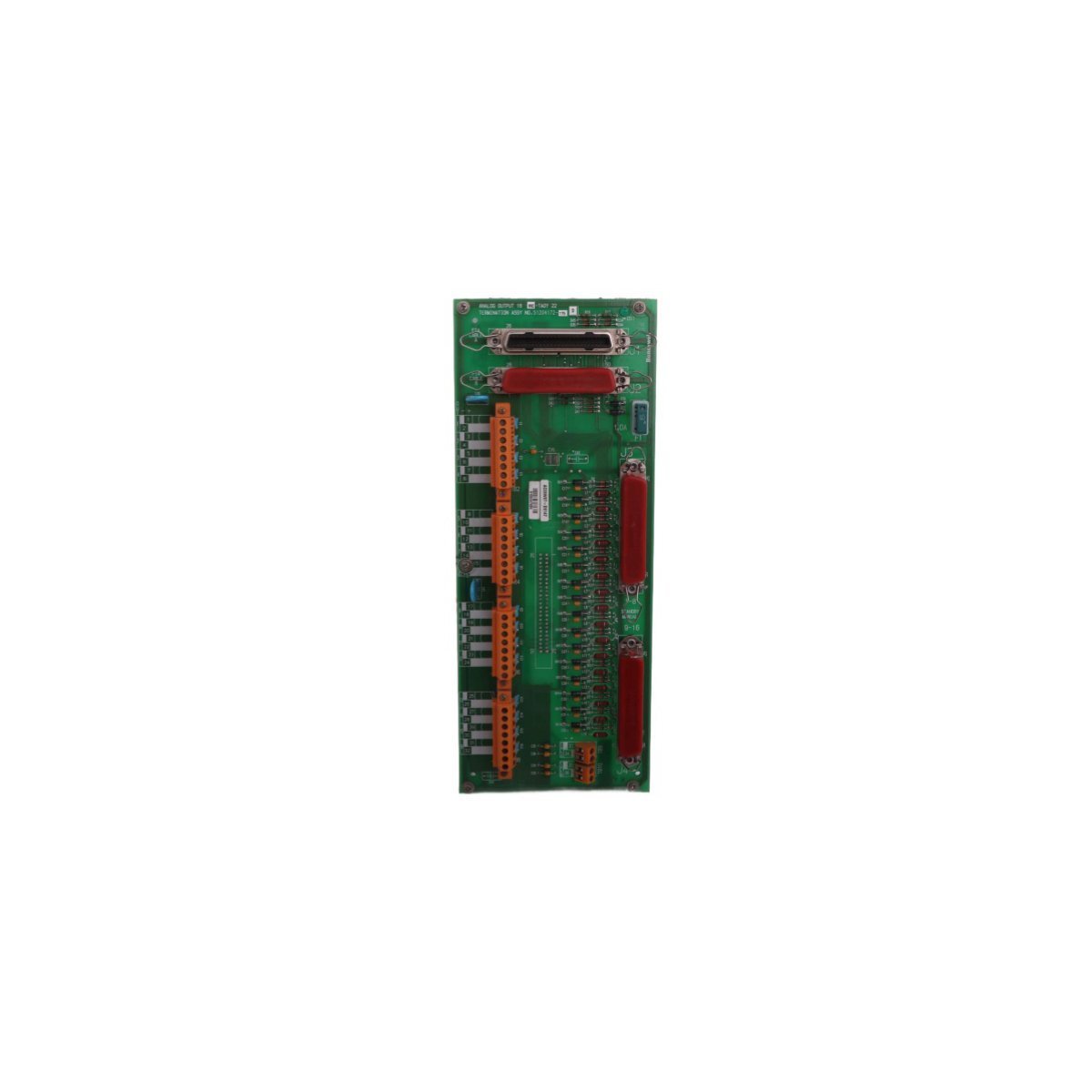

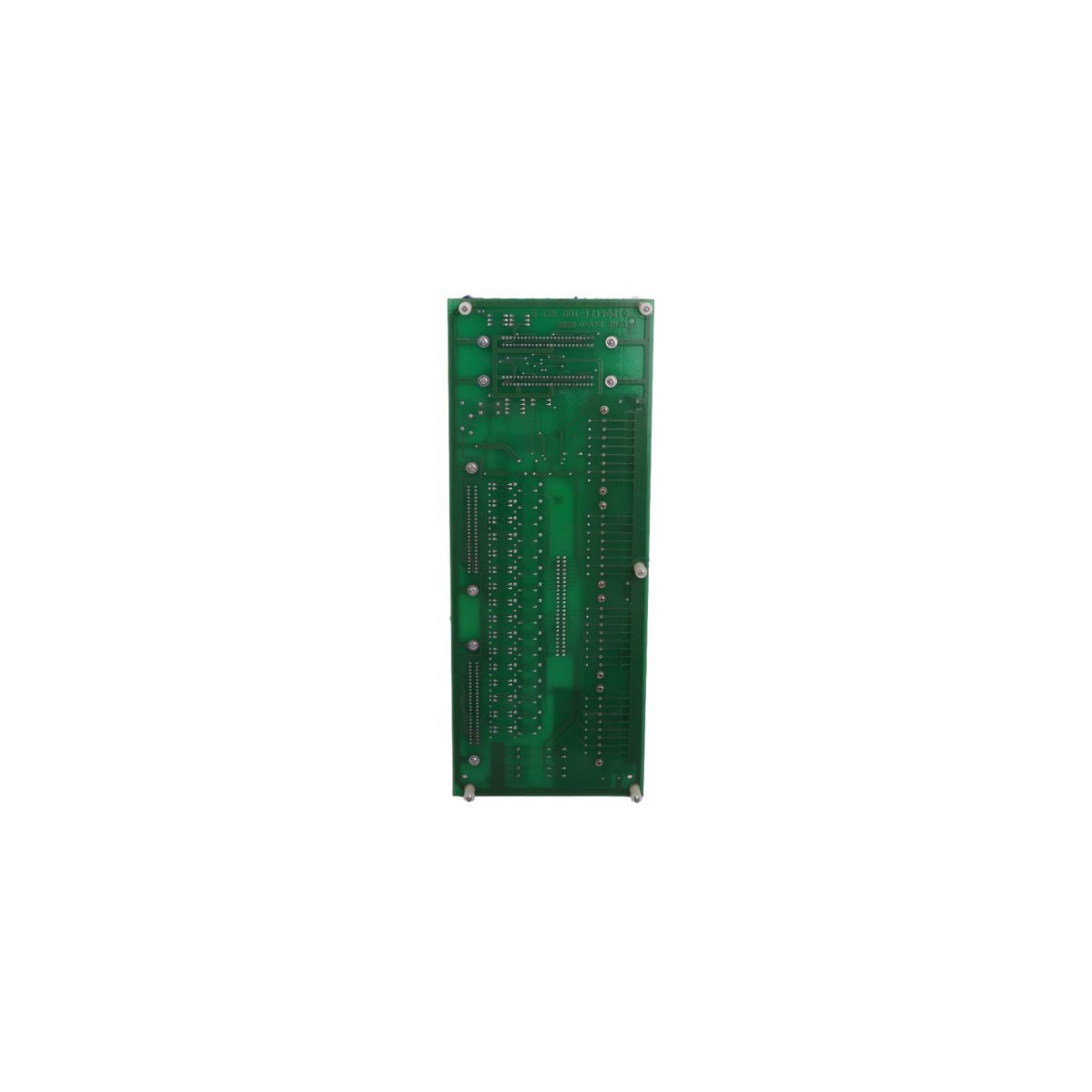

The Honeywell MC-TAOY22 is a high-performance analog command interface engineered for legacy Distributed Control Systems (DCS), specifically within the TDC 3000 and Experion PKS migration architectures. This module serves as a 16-channel signal transmitter, converting digital processor commands into precise electrical signals to drive final control elements. Built on a Size B Field Termination Assembly (FTA) platform, it utilizes compression-style terminal blocks to ensure vibration-resistant field wiring. Designed for reliability in mission-critical loops, the MC-TAOY22 provides the deterministic output necessary for modulating actuators, control valves, and variable frequency drives, ensuring that process variables remain strictly aligned with system setpoints.

Hardware Architecture and Performance Profile

The MC-TAOY22 is defined by a rugged electronic design tailored for continuous industrial operation:

• Model Identification: MC-TAOY22

• Component Category: 16-Channel Analog Output (AO)

• Termination Interface: Size B Field Termination Assembly (FTA)

• Connection Logic: Compression terminal blocks for secure signal pathing

• Signal Output Type: Standard 4-20 mA current loops (typical)

• Physical Mass: 0.4 kg

• Chassis Footprint: 7 x 14 x 14.5 cm

• System Pedigree: Compatible with Honeywell TDC 3000 and Experion platforms

• Durability: Hardened circuitry for protection against electromagnetic interference (EMI)

• Manufacturing Origin: USA

Industrial Control Applications and Utility

In Petrochemical Refining and Hydrocarbon Management, the MC-TAOY22 plays a vital role in the proportional control of flow-regulating valves. Its 16-channel high-density configuration allows for the consolidation of multiple control loops into a single I/O slot, optimizing cabinet space. The compression terminal design is particularly beneficial in these environments, as it prevents signal loss or intermittent connectivity caused by the mechanical vibrations of nearby compressors and heavy pumping machinery.

Within Chemical Synthesis and Batch Processing, this analog output module facilitates the precise modulation of reagent feed rates and thermal jacket control. By delivering consistent current signals to pneumatic positioners, the MC-TAOY22 ensures that chemical reactions are managed with high repeatability. Its integration with the wider DCS architecture allows for real-time monitoring of loop integrity, providing the accuracy required for high-stakes batch cycles where even slight signal drift could result in product spoilage.

For Municipal Water Treatment and Power Utilities, the MC-TAOY22 provides the stable command signals needed for motor speed regulation and chemical dosing pumps. In these large-scale infrastructure applications, the module's longevity and proven track record in legacy systems make it an essential component for maintaining operational continuity. It allows facilities to extend the lifecycle of their existing control hardware while maintaining the precise level of automation required for modern regulatory compliance and resource efficiency.
