Product Overview

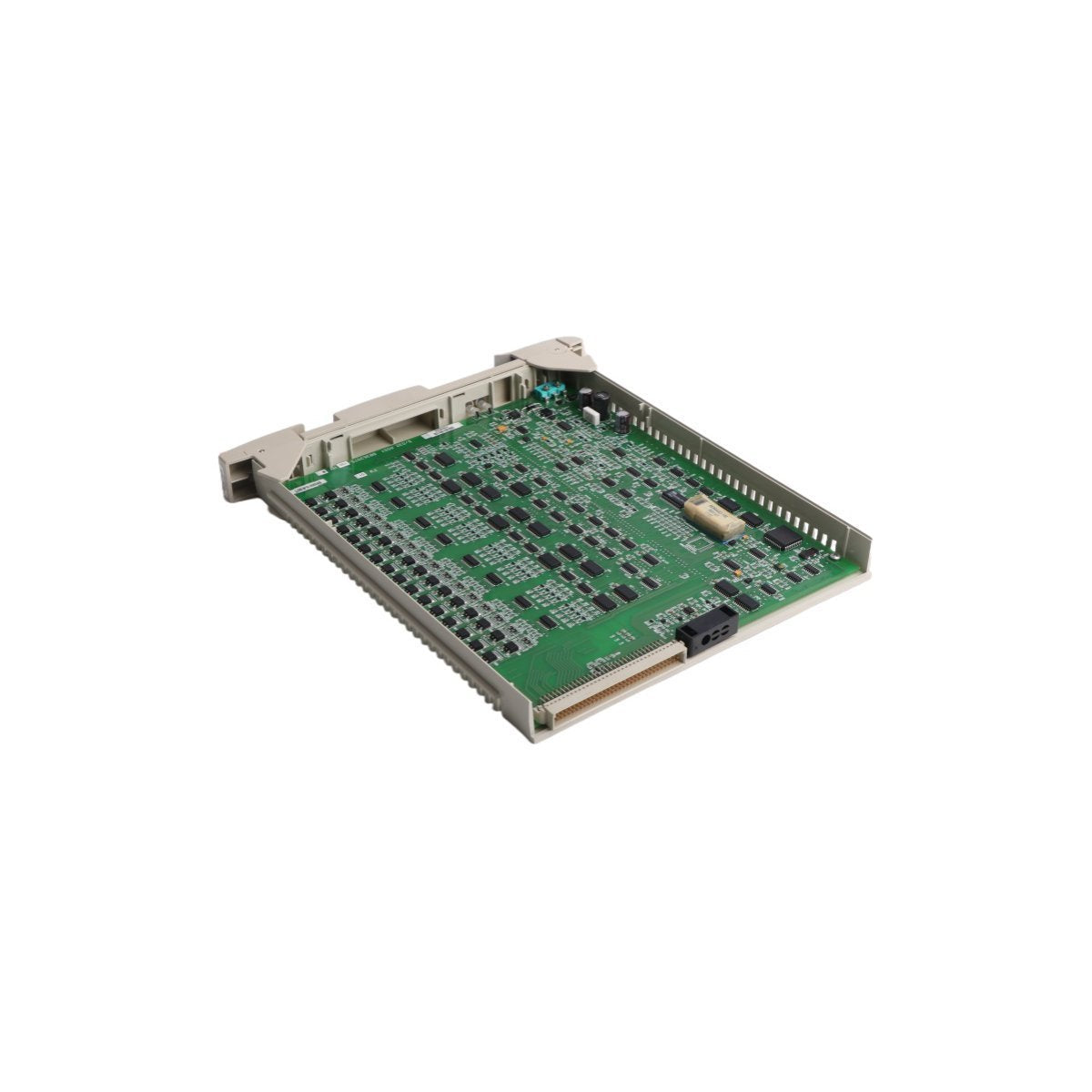

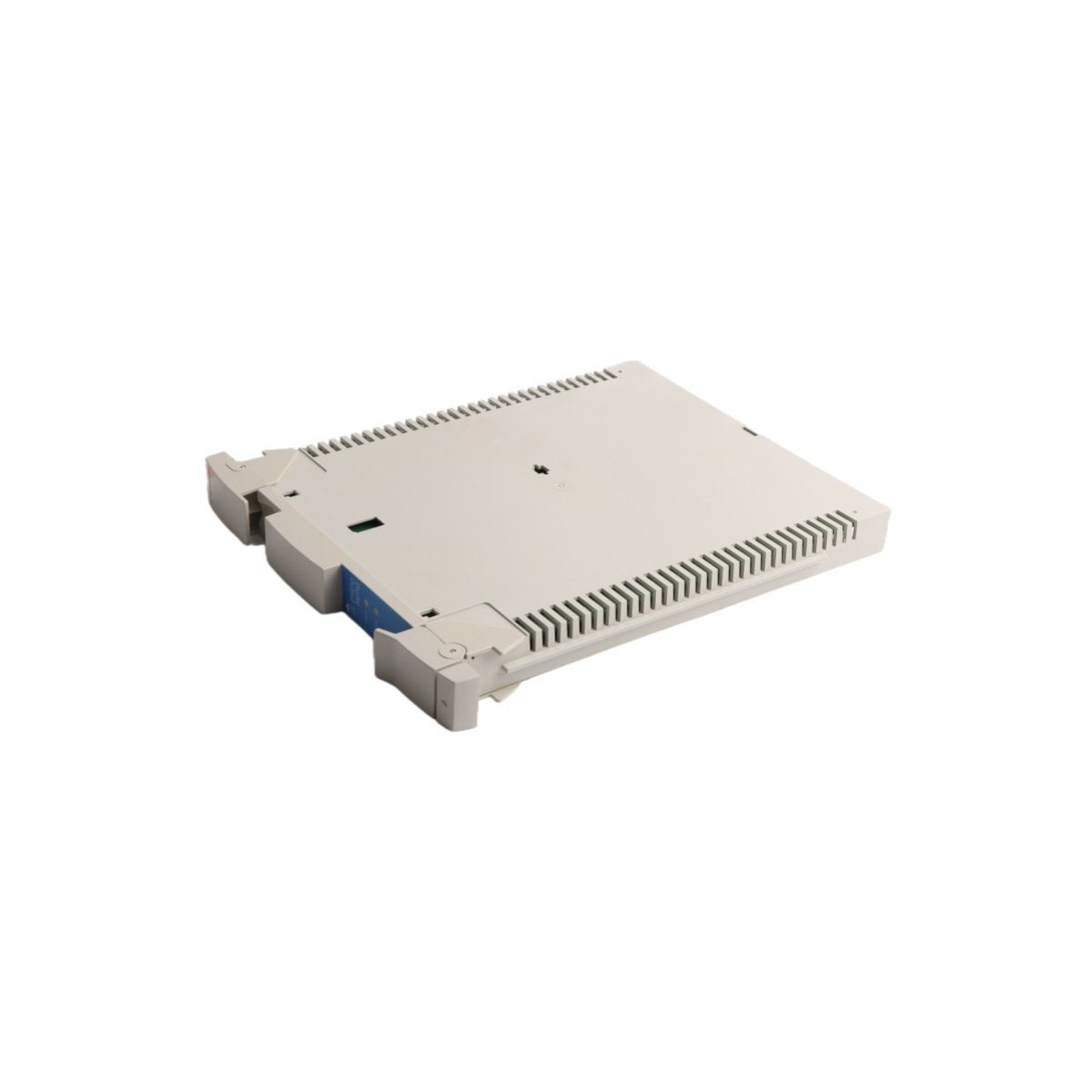

The Honeywell MC-PDOY23 is a high-capacity Digital Output (DO) module designed for the Universal Control Network (UCN) within the TotalPlant Solution (TPS) and Experion PKS ecosystems. This industrial-grade relay module acts as a critical interface between low-level control logic and high-power field devices. Featuring 16 independent output channels, the MC-PDOY23 is engineered to switch AC voltages directly, eliminating the need for external interposing relays in many applications. It provides robust galvanic isolation to protect the sensitive controller backplane from electrical transients, ensuring the operational integrity of the Distributed Control System (DCS) in electrically noisy environments.

Technical Specifications and Hardware Parameters

• Model Number: MC-PDOY23

• Interface Type: Universal Control Network (UCN)

• Output Configuration: 16-Channel Relay (Form A)

• Switching Voltage: 125V AC to 240V AC

• Protection Logic: Integrated surge suppression and electromagnetic shielding

• Installation: Rack-mounted or cabinet-integrated terminal layout

• Physical Weight: 0.4 kg

• Unit Dimensions: 7 x 14 x 14.5 cm

• Manufacturing Origin: USA

• HS Tariff Code: 8537101190

Industrial Deployment and System Utility

The MC-PDOY23 is strategically utilized in heavy process industries such as petrochemical refining, pharmaceutical batching, and high-pressure steam generation. It is the primary choice for driving final control elements that require significant AC current, including motor starter coils, industrial solenoid valves, and large-scale alarm beacons. Because it is natively compatible with the Honeywell HPM (High Performance Process Manager) and APM hardware, it supports rapid system updates and maintenance without sacrificing reliability. Its relay-based architecture is particularly effective in fail-safe logic applications where a physical mechanical break in the circuit is required for verified electrical isolation.

FAQ

Q: Can the MC-PDOY23 be used to switch DC loads instead of AC?

A: While specifically optimized for 125-240V AC industrial loads, these relay contacts can technically handle DC loads within specific current limits. However, to prevent contact arcing and ensure maximum longevity, we recommend following the AC specifications as defined by the Honeywell TPS documentation.

Q: Is this module compatible with modern Experion PKS systems?

A: Yes, the MC-PDOY23 remains a vital component for Experion systems that utilize UCN-based I/O racks, allowing for seamless communication with C200 or C300 controllers via the appropriate network bridge.

Q: Does the module provide diagnostic feedback for each output point?

A: The module manages the state of the 16 relays based on controller commands. Status indicators on the module or within the DCS software provide real-time feedback on the logic state of each output point for easier troubleshooting.

Q: What type of maintenance is required for the relay contacts?

A: The MC-PDOY23 is designed for long-cycle reliability. However, we recommend periodic inspection of the terminal connections and monitoring the switching frequency of highly active inductive loads to prevent contact wear.

Q: How do the dimensions of this module impact cabinet space?

A: At 7 x 14 x 14.5 cm, the module is designed for high-density I/O racks, allowing multiple 16-point modules to be installed side-by-side to maximize control points within a standard industrial enclosure.
