Product Overview

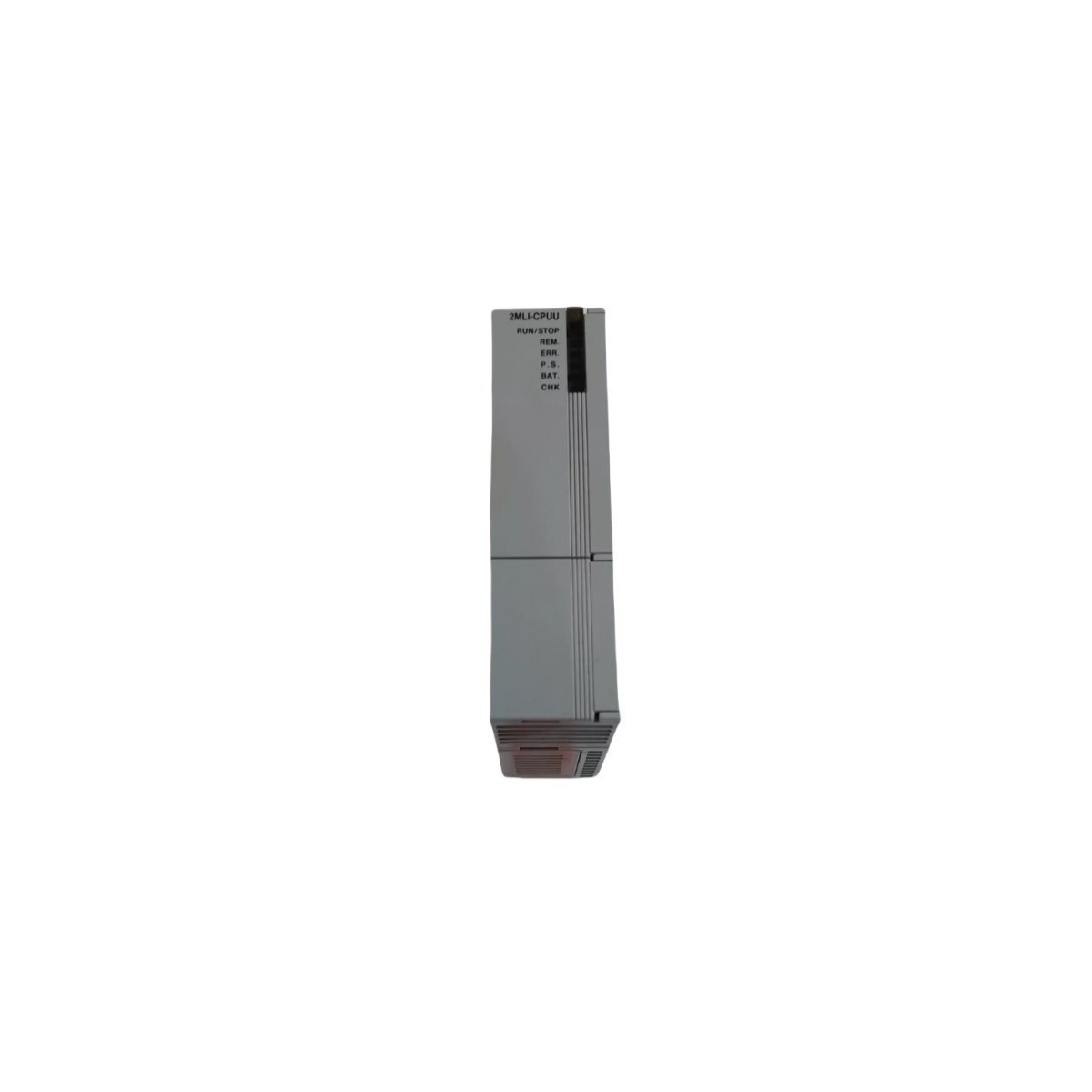

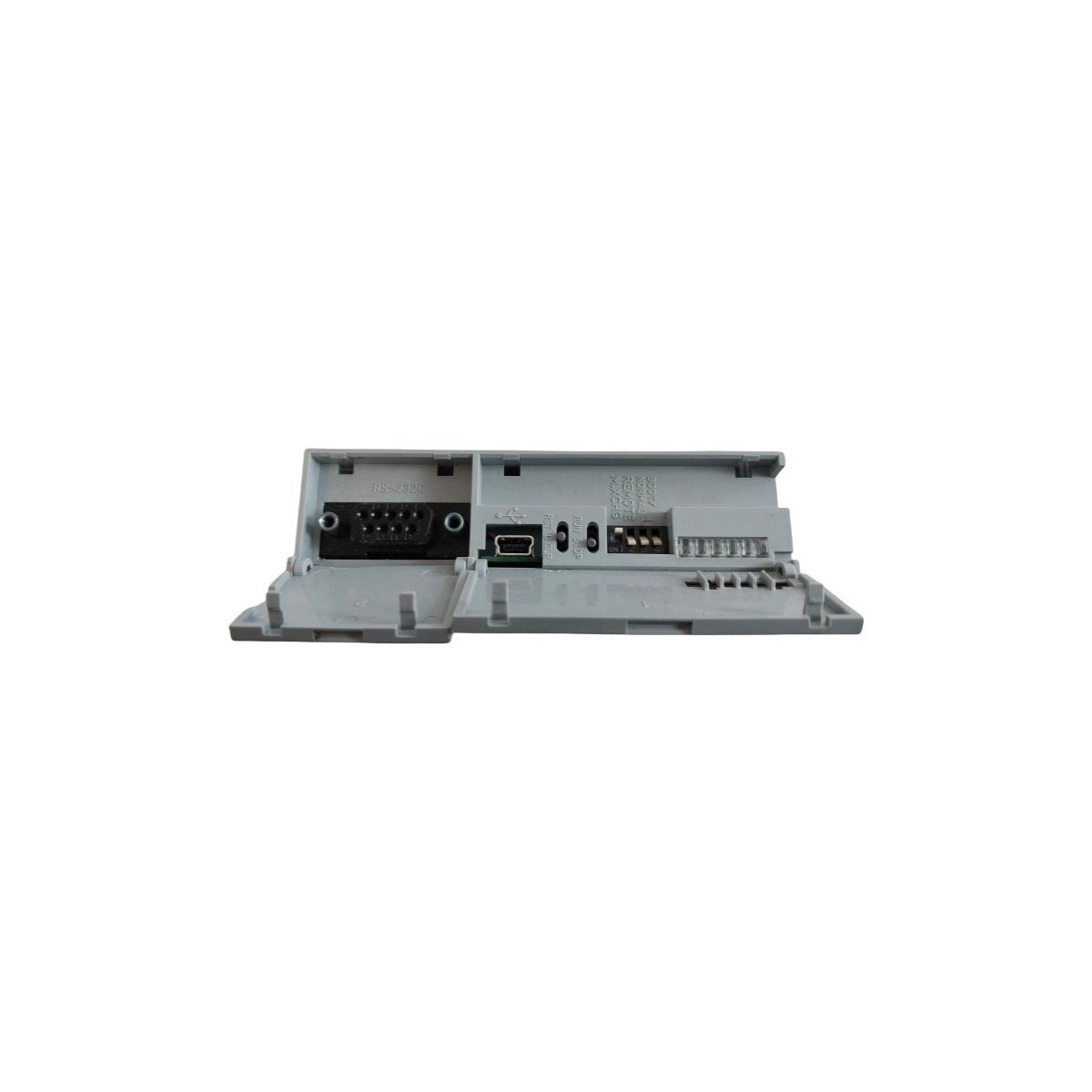

The Honeywell 2MLI-CPUU is the high-performance Central Processing Unit (CPU) for the MasterLogic-200 PLC series, integrated within the Experion PKS ecosystem. Engineered for high-speed logic execution and complex process control, this module serves as the primary intelligence for industrial automation racks. It provides a robust architecture for executing IEC 61131-3 compliant programming, ensuring seamless interoperability across diverse field equipment. With its compact form factor, the 2MLI-CPUU optimizes cabinet space while maintaining the computational power required for mission-critical Distributed Control System (DCS) environments. It features integrated communication ports and advanced diagnostic capabilities to ensure maximum system uptime and operational transparency.

Architectural Hardware and Technical Data

• Processor Type: MasterLogic-200 Series High-Speed CPU

• Net Weight: 0.12 kg

• Physical Dimensions: 2.6 cm x 10.3 cm x 9.8 cm

• Ethernet Communication: Dual-rate 10/100 Mbps RJ45 interface

• Programming Standard: Full IEC 61131-3 support (LD, SFC, ST, FBD, IL)

• System Capacity: Scalable I/O expansion via local and remote racks

• Diagnostic Indicators: Integrated LED status for Run, Stop, and Error modes

• Installation: Backplane-mounted within the MasterLogic rack system

• Origin: Manufactured in the USA

Industrial Deployment and Operational Roles

Advanced Process Control

In chemical and pharmaceutical manufacturing, the 2MLI-CPUU manages intricate PID loops and sequential logic. Its high-speed processing ensures that variables like temperature, pressure, and flow are maintained within strict tolerances to ensure product quality and safety.

Power Generation and Utilities

The module is frequently deployed in power plant automation and water treatment facilities. It coordinates the synchronization of turbines and the management of high-capacity filtration systems, providing the reliable uptime required for public utility infrastructure.

Factory Automation and Material Handling

For high-speed assembly lines and automated warehouse systems, the 2MLI-CPUU handles rapid I/O polling. Its 10/100 Mbps Ethernet link allows for real-time data exchange with HMI panels and upper-level SCADA systems for comprehensive plant-floor visibility.

Critical Infrastructure Protection

Utilizing its built-in self-diagnostics, this CPU module is ideal for emergency shutdown (ESD) and safety-critical monitoring. It continuously verifies the integrity of the logic solver and I/O bus, alerting operators instantly to any hardware irregularities.

FAQ

Q: Is the 2MLI-CPUU a standalone power supply or a CPU?

A: While sometimes categorized in general lists under power modules, the 2MLI-CPUU is functionally the Central Processing Unit (CPU) of the MasterLogic PLC. It requires a separate power supply module within the rack to operate.

Q: Which programming languages can I use with this Honeywell module?

A: The 2MLI-CPUU supports all five standard IEC 61131-3 languages, including Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD), providing flexibility for different engineering preferences.

Q: Does this module support Ethernet/IP or Modbus TCP communication?

A: Yes, the integrated Ethernet port supports multiple industrial protocols, allowing it to communicate with third-party devices, Ethernet routers, and Honeywell Experion PKS supervisory networks.

Q: Can I replace a 2MLI-CPUU module while the rack is powered?

A: It is generally recommended to power down the specific rack before replacing the CPU module to prevent logic corruption or electrical arcing, unless your specific rack configuration explicitly supports hot-swapping.

Q: How do I handle firmware updates for this processor?

A: Firmware updates are typically managed through the Honeywell MasterLogic configuration software via the Ethernet or USB maintenance port, ensuring the hardware stays compatible with the latest Experion PKS releases.
