Product Overview

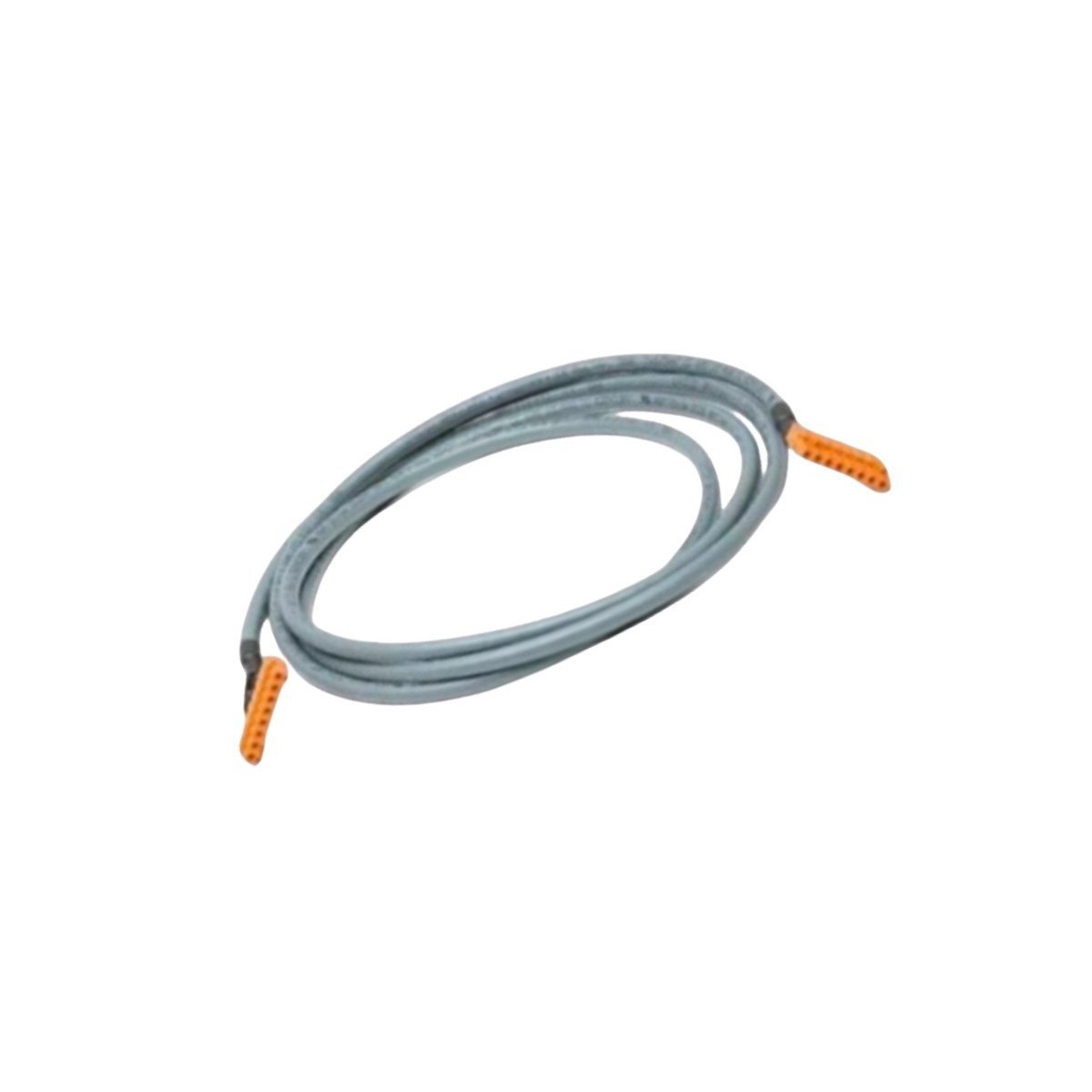

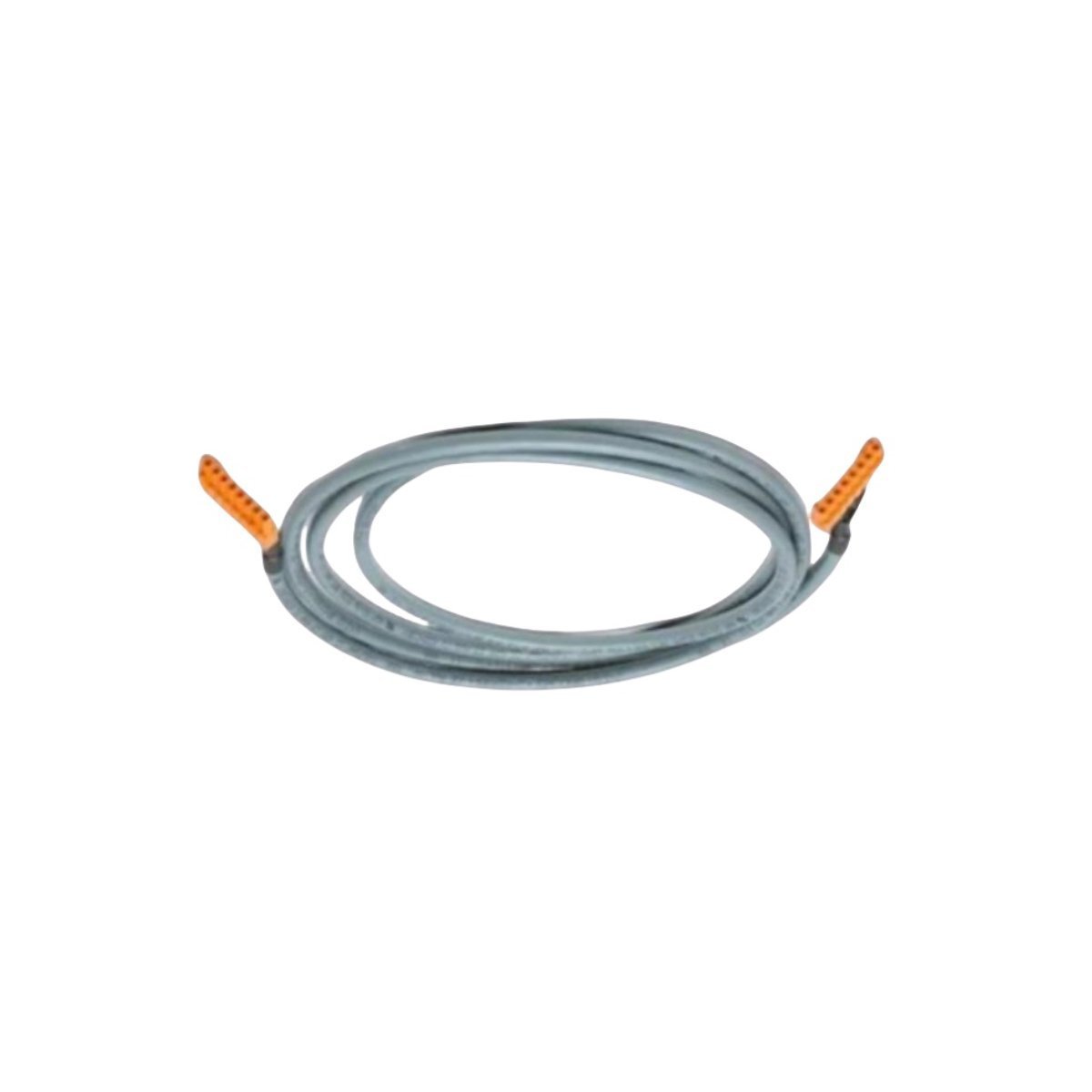

The Honeywell FS-PDC-IOR05A is a high-integrity power distribution interconnect specifically engineered for the Honeywell Safety Manager system architecture. This specialized cable assembly is designed to provide a stable and secure power path for critical I/O modules housed within the IOCHAS-0003R chassis. By utilizing premium-grade conductors and industry-standard termination hardware, the FS-PDC-IOR05A ensures that safety-critical logic solvers and field interfaces receive consistent voltage, even in the demanding electrical environments typical of heavy industrial facilities. This cable is a vital component for maintaining the hardware reliability required in Safety Instrumented Systems (SIS) and Emergency Shutdown (ESD) applications.

Definitive Hardware Specifications and Component Data

• Cable Designation: SAB 2040707 high-flex industrial type

• Conductor Configuration: 7 cores × 0.75 mm²

• Assembly Length: 2.45 Meters (approx. 8 feet)

• Primary Connector: 8-Pole Weidmuller BLC 5.08/8 BR pin header

• Termination Pins: Weidmuller DFFC 0.5 - 1.0 SN E precision pins

• Certifications: UL Recognized and CSA Certified for industrial safety

• Physical Weight: 0.4 kg

• Crate Dimensions: 24 x 18.8 x 6.5 cm

• Manufacturing Origin: USA

• Harmonized Tariff Code: 8537101190

Industrial Deployment and Field Utility

The FS-PDC-IOR05A is primarily deployed in the marshalling cabinets and control rooms of petrochemical refineries, offshore platforms, and power generation plants. Its main role is to facilitate the distribution of power across redundant I/O chassis, ensuring that if one power path is compromised, the safety system remains operational. The 2.45-meter length allows for flexible routing within standard 800mm or 1000mm deep industrial enclosures while maintaining a low impedance profile. Because it is built with SAB-type cabling, it offers superior resistance to the mechanical stresses of cabinet installation and is designed to withstand the thermal fluctuations common in remote instrument enclosures (RIE).

FAQ

Q: Is the FS-PDC-IOR05A compatible with standard Experion PKS C300 controllers?

A: No. This power distribution cable is specifically pinned and terminated for the Safety Manager (FSC) I/O chassis, specifically the IOCHAS-0003R. It is not intended for use with the Series C hardware family.

Q: What is the benefit of the SAB 2040707 cable type used in this assembly?

A: The SAB 2040707 is an industrial-grade cable that provides excellent insulation resistance and mechanical durability. It is designed to prevent cross-talk and withstand the vibration levels found in heavy-duty industrial racks.

Q: Can this cable be shortened if the 2.45-meter length is too long for my cabinet?

A: It is highly recommended to use the cable at its factory-terminated length. Modifying the cable and re-crimping the Weidmuller pins without specialized tools can compromise the safety certification and electrical integrity of the power path.

Q: Does this cable assembly include the 8-pole pin header?

A: Yes, the FS-PDC-IOR05A comes as a complete assembly, including the 8-pole Weidmuller BLC header and the associated DFFC pins already terminated and tested.

Q: Why is this cable considered a "Safety" component?

A: In a Safety Instrumented System, power continuity is as critical as the logic itself. This cable meets UL and CSA standards to ensure it won't fail under load, preventing an "unplanned trip" or a failure to respond during a safety event.
