Product Overview

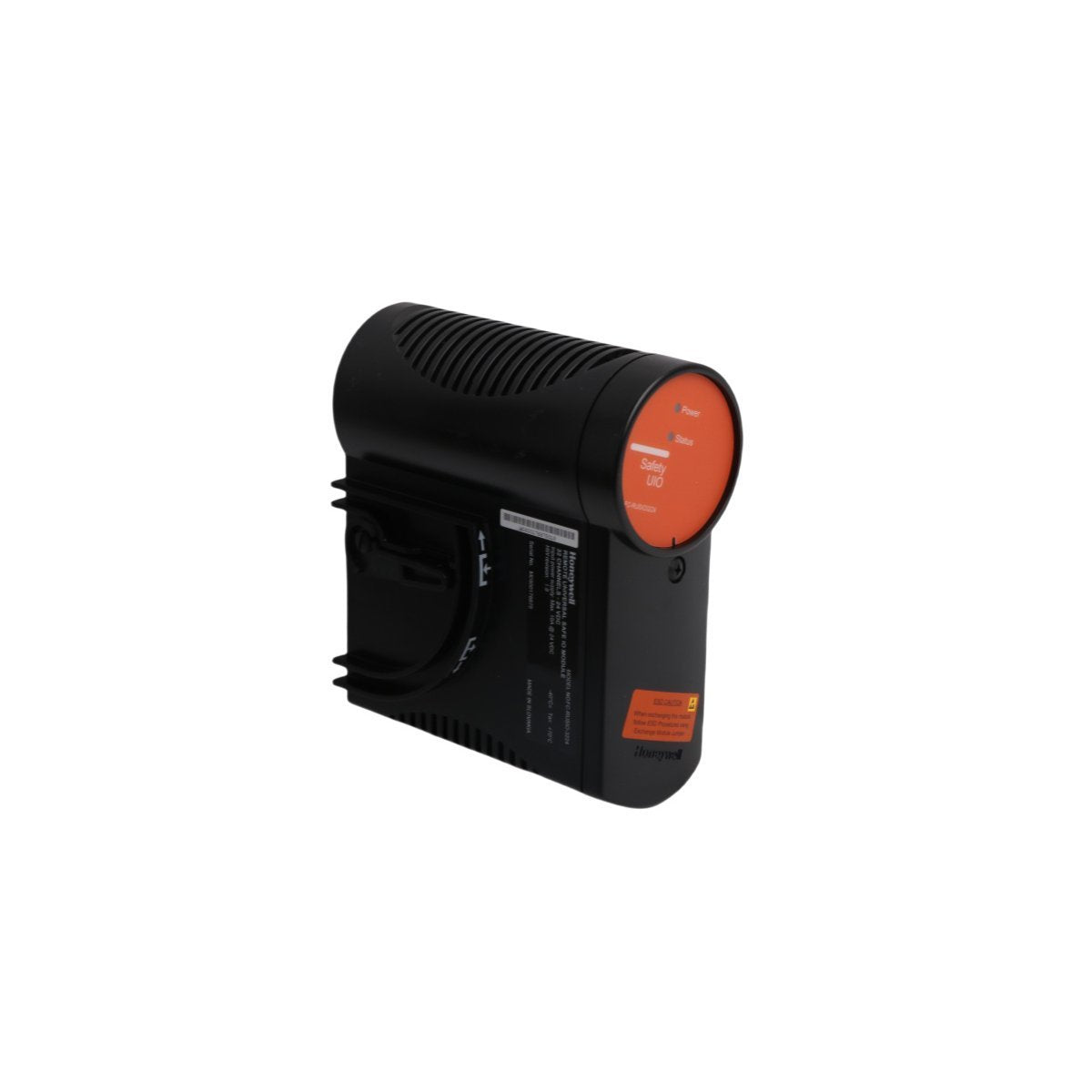

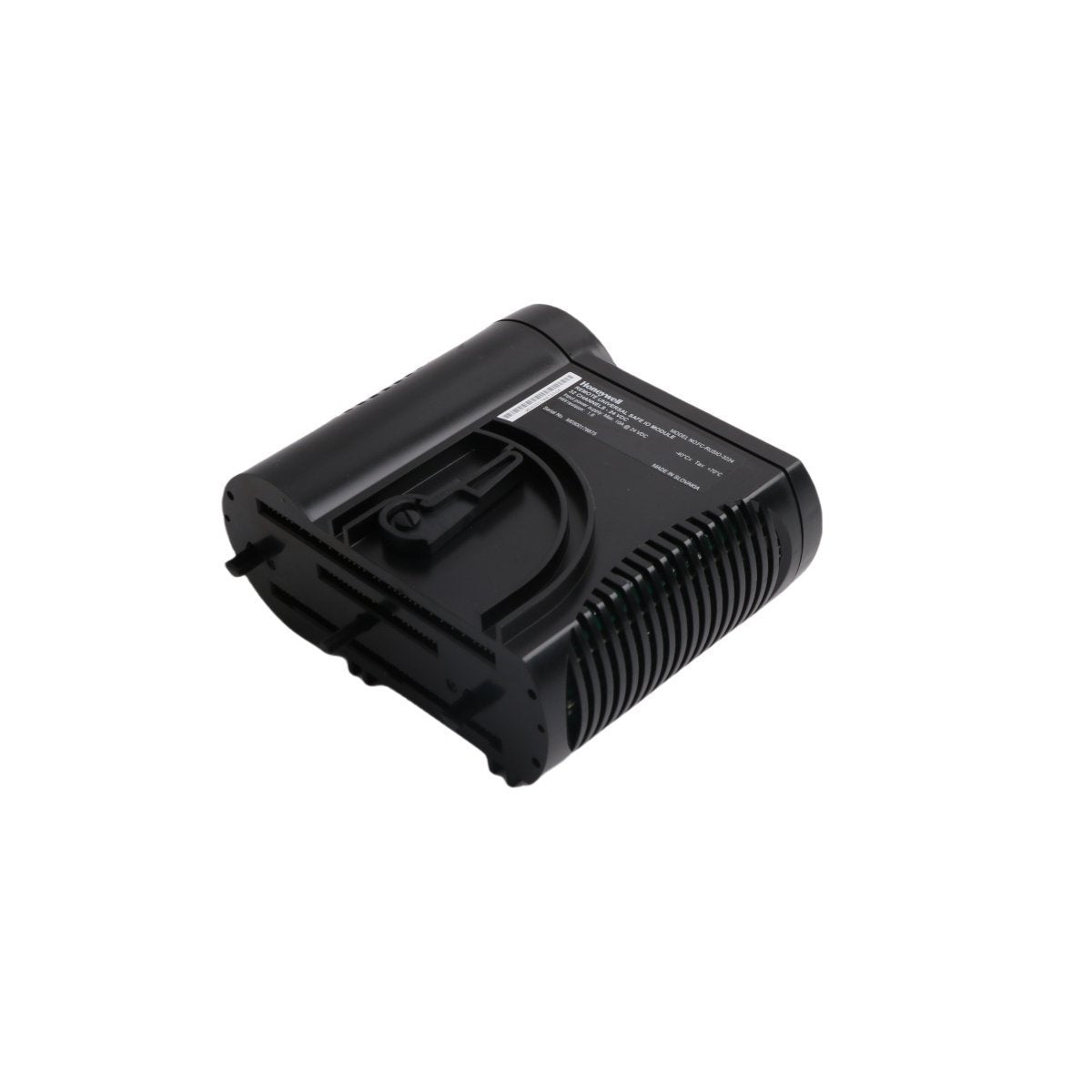

The Honeywell FC-TUIO52 is a high-integrity Input/Output Termination Assembly (IOTA) specifically engineered for the Safety Manager SC architecture. Designed to meet SIL 3 requirements, this module acts as the critical physical and electrical interface between field instrumentation and the safety controller logic. It supports universal channel configuration, allowing for a mix of analog and digital signals on a single platform. By providing superior signal conditioning and isolation, the FC-TUIO52 ensures that safety-critical data is transmitted with maximum accuracy and zero interference, making it a cornerstone for Safety Instrumented Systems (SIS) in high-risk industrial environments.

Performance Specifications and Hardware Details

• Safety Integrity Level: SIL 3 Capable

• System Compatibility: Honeywell Safety Manager SC

• Input Voltage Range: 0 to 30 VDC

• Nominal Operating Voltage: 24 VDC

• Current Handling: Supports output drives from 5A up to 16A (total assembly capacity)

• Thermal Operating Range: -20°C to +60°C (-4°F to +140°F)

• Signal Versatility: Configurable for Universal Analog and Digital points

• Physical Footprint: 19.1 x 18.8 x 6.5 cm

• Mass: 0.4 kg

• Mounting: Standard Series C / Safety Manager IOTA carrier compatible

Industrial Deployment and Field Utility

The FC-TUIO52 is primarily utilized in sectors where operational uptime and personnel safety are non-negotiable, such as liquefied natural gas (LNG) terminals, offshore oil platforms, and large-scale pharmaceutical synthesis plants. Its universal nature allows engineers to standardize on a single IOTA type for various field device signals, including emergency shutdown valves (ESD), fire detectors, and pressure transmitters. This flexibility significantly reduces the complexity of wiring and cabinet design. Furthermore, the robust hardware construction ensures reliable performance in corrosive or volatile atmospheres, providing a secure link for localized control and remote monitoring within a Distributed Control System (DCS) framework.
