Product Overview

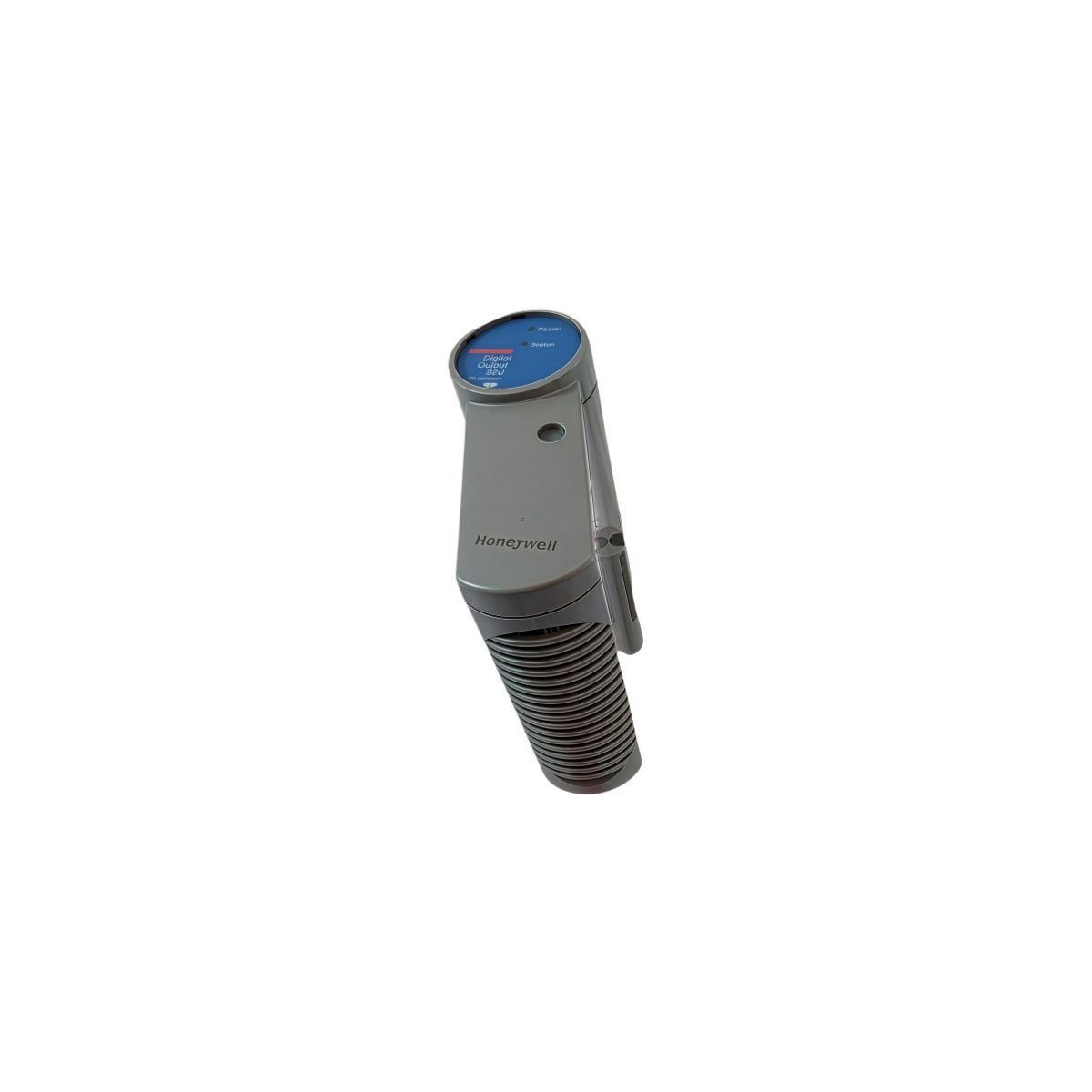

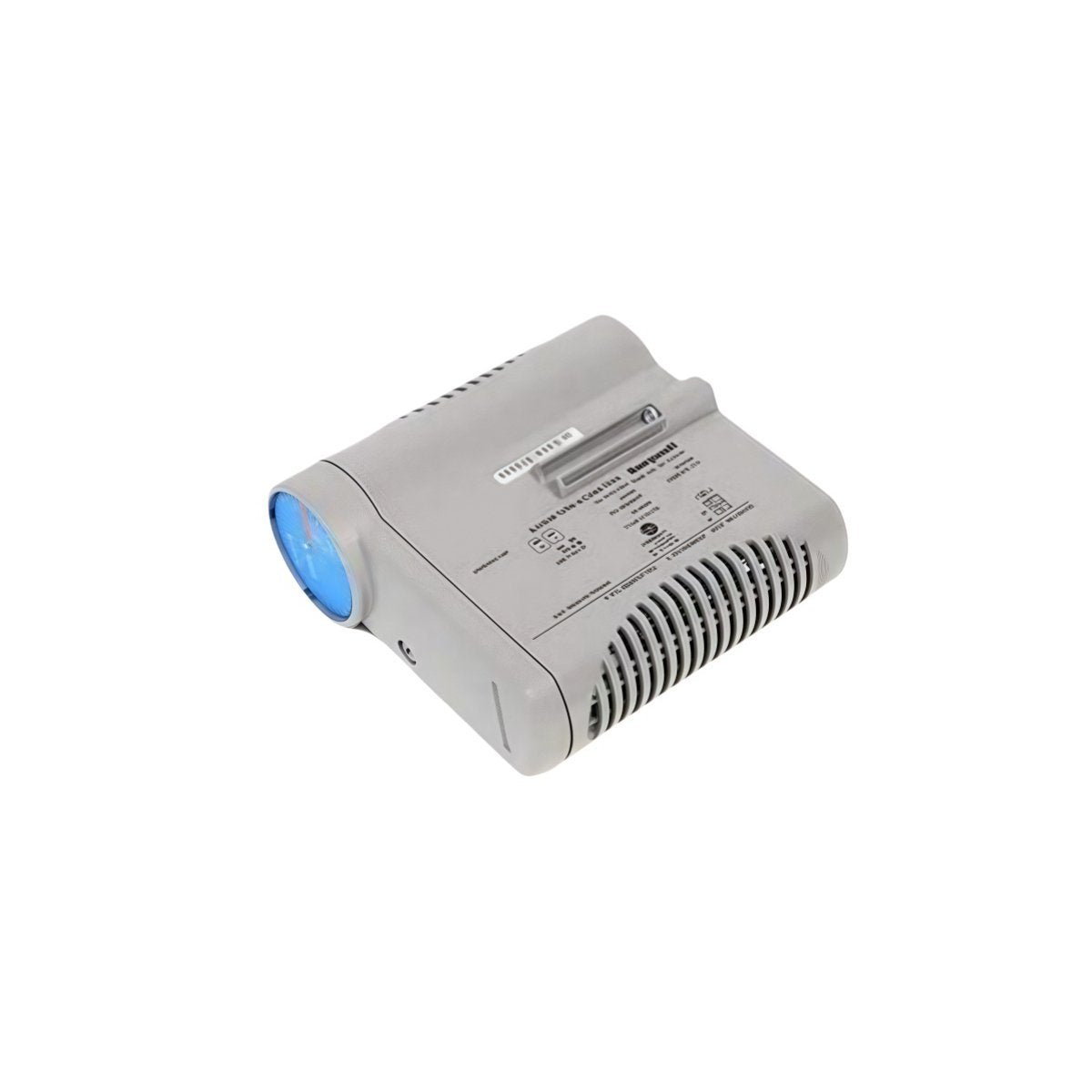

The Honeywell DC-PDOD51 (Part Number 51454820-175) is a high-density Digital Output Module designed for the Experion PKS (Process Knowledge System) environment. This module serves as a critical interface for the C300 controller or UIO (Universal I/O) architectures, providing 16 channels of discrete output control for field devices.

Note: While some technical documentation occasionally refers to similar form factors with analog features, the DC-PDOD51 is primarily utilized for 24VDC digital switching. It allows the Distributed Control System (DCS) to command binary field elements such as solenoids, relays, and motor starters with high temporal precision. Built with advanced internal diagnostics, the module monitors the health of its output circuits to ensure continuous operation in demanding industrial processing sectors.

Hardware Parameters

The DC-PDOD51 is engineered for reliable electrical switching and thermal efficiency within the Series 8 hardware family.

• Output Channels: 16 Channels

• Rated Voltage: 24 VDC

• Output Type: Discrete Digital (Sourcing/Sinking depending on IOTA)

• Accuracy/Resolution: High-speed logic switching with minimal latency

• Construction: Conformal coated for protection against corrosive gases and moisture

• Environmental Protection: Designed for cabinet mounting with IP20 rating; internal components built to withstand harsh atmospheres

• Weight: 0.85 kg

• Dimensions: 6.1 x 15.7 x 14.4 cm

• Operating Temperature: 0°C to 60°C

• Power Consumption: Optimized for low heat dissipation in high-density racks

Industrial Applications

This digital output module is a standard component for discrete control logic in a variety of complex process industries:

• Emergency Shutdown Systems (ESD): Driving final control elements like solenoid-actuated valves for safety interlocking.

• Process Sequencing: Controlling batch cycles by managing the opening and closing of discrete process valves.

• Motor Control Centers (MCC): Sending start/stop commands to remote motor starters and variable frequency drives.

• Hydrocarbon Processing: Reliable switching for flare ignition systems and auxiliary pump control in refinery environments.
