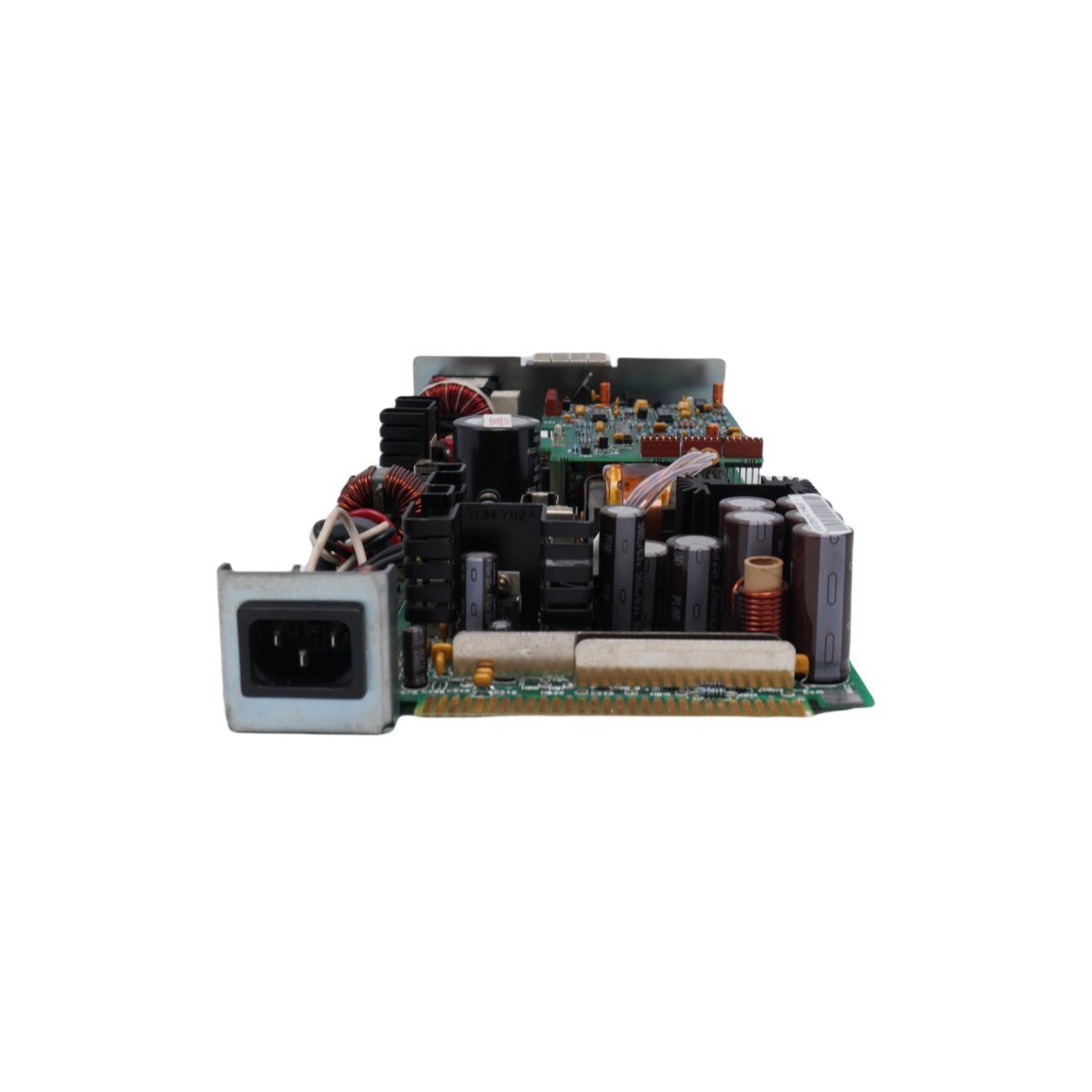

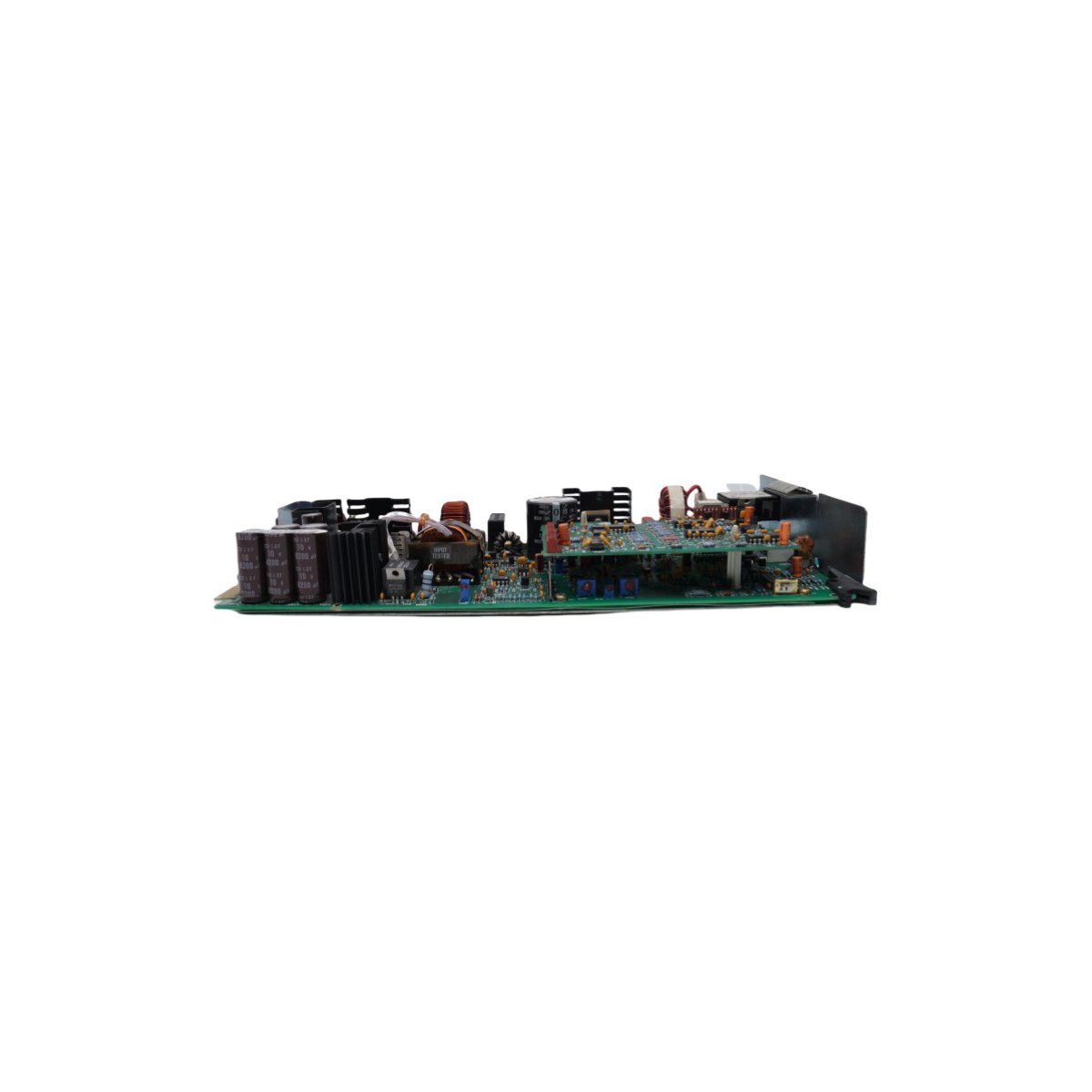

Product Overview

The Honeywell ACX633 51196655-100 serves as a critical power regulation cornerstone within the legacy TDC 3000 Distributed Control System (DCS) architecture. This high-reliability power supply module delivers stable, transient-free direct current to critical processing cards, input/output files, and communication nodes. Engineered for continuous duty in demanding process industries such as petroleum refining, chemical processing, and power generation, the module ensures operational continuity where power fluctuations could lead to catastrophic system downtime. It features robust thermal management and advanced internal filtering to isolate sensitive control logic from harsh industrial electrical noise. By maintaining strict voltage regulation under varying load conditions, this module preserves data integrity and execution timing across the entire control network.

Core Architecture and Electrical Design

The hardware engineering of the 51196655-100 prioritizes fault isolation and long-term component life within dense system enclosures. The module incorporates a heavy-duty switching regulator circuit that converts primary facility power into tightly monitored backplane voltages. Advanced over-voltage and over-current protection circuitry constantly monitors output rails, instantly clamping spikes to safeguard downstream processors.

The electrical design features premium-grade electrolytic capacitors rated for high ambient temperatures, significantly extending the mean time between failures (MTBF). Integrated diagnostic indicators on the front panel provide real-time visual status of power health, facilitating immediate fault isolation during routine maintenance or system upsets. Dual-diode auctioneering capability allows this power supply to function flawlessly in redundant configurations, ensuring seamless power transition without system initialization loss if a parallel supply fails.

Engineering Specifications

On-Site Deployment Protocol

Secure the module into the designated chassis slot using the heavy-duty retention screws to ensure positive grounding through the enclosure frame. Maintain a minimum vertical clearance of 50 mm above and below the chassis rack to allow unobstructed convective airflow across the rear cooling fins.

Verify that the main input power breaker is locked out before connecting the primary wiring harness to the backplane. Field engineers must utilize specialized anti-static wrist straps bonded to the cabinet ground during insertion to eliminate electrostatic discharge risks to adjacent digital control components. Check all terminal screw torques to prevent localized resistive heating before energizing the power distribution panel.

Operational Benefits and Legacy Integration

This power supply module exhibits exceptional resilience against continuous thermal stress and high-frequency line interference common in heavy industrial substations. It integrates seamlessly into existing TDC 3000 UCN (Universal Control Network) and Data Hiway architectures, requiring no software modifications, firmware flashes, or hardware recalibration.

The design mitigates harmonic distortions, ensuring that underlying analog-to-digital processing units receive clean, uncompromised power for precision loop control. Deploying this genuine Honeywell hardware ensures full compliance with original system safety certifications and maintains the intrinsic safety loops established for hazardous area operations.

Ordering Information

Every shipment includes the verified hardware assembly and documentation necessary for rapid deployment.

(1) One Brand New Honeywell ACX633 51196655-100 Power Supply Module

(2) Factory original product certification and compliance documentation

(3) Industrial chassis mounting brackets and integrated retention hardware

Logistics and Packaging Standard

All orders process immediately upon payment verification, enabling standard global transit delivery within 3-5 days. Shipping operations utilize premium international couriers including DHL, FedEx, and UPS to guarantee tracking accuracy and handling priority.

The module travels enclosed inside a multi-layer protective system consisting of a heavy-duty ESD anti-static shielded bag, form-fitting high-density shock-absorbing foam inserts, and a rigid, double-walled industrial exterior carton designed to withstand international freight movement.

System Maintenance FAQs

Q1: Can this power supply module undergo hot-swapping while the TDC 3000 system is actively controlling a process?

A1: Hot-swapping depends entirely on the chassis configuration. If the rack utilizes a redundant power architecture with active diode auctioneering, you can replace a faulty module without shutting down the system. For non-redundant single-supply racks, you must safely power down the connected system file prior to extraction to prevent data corruption.

Q2: What front panel indications signify a critical internal component failure?

A2: The module features dedicated status LEDs on the faceplate. A loss of the green status indicator or the activation of a red fault light signals that output voltages have drifted outside the permissible tolerances, or the internal over-current protection has tripped, requiring immediate replacement.

Q3: Does the 51196655-100 require manual voltage selection for 120 VAC or 240 VAC input sources?

A3: The advanced power electronics inside the module automatically detect incoming line voltages within the specified industrial ranges, eliminating the need for manual jumper changes or physical switch adjustments during on-site commissioning.
