Product Overview

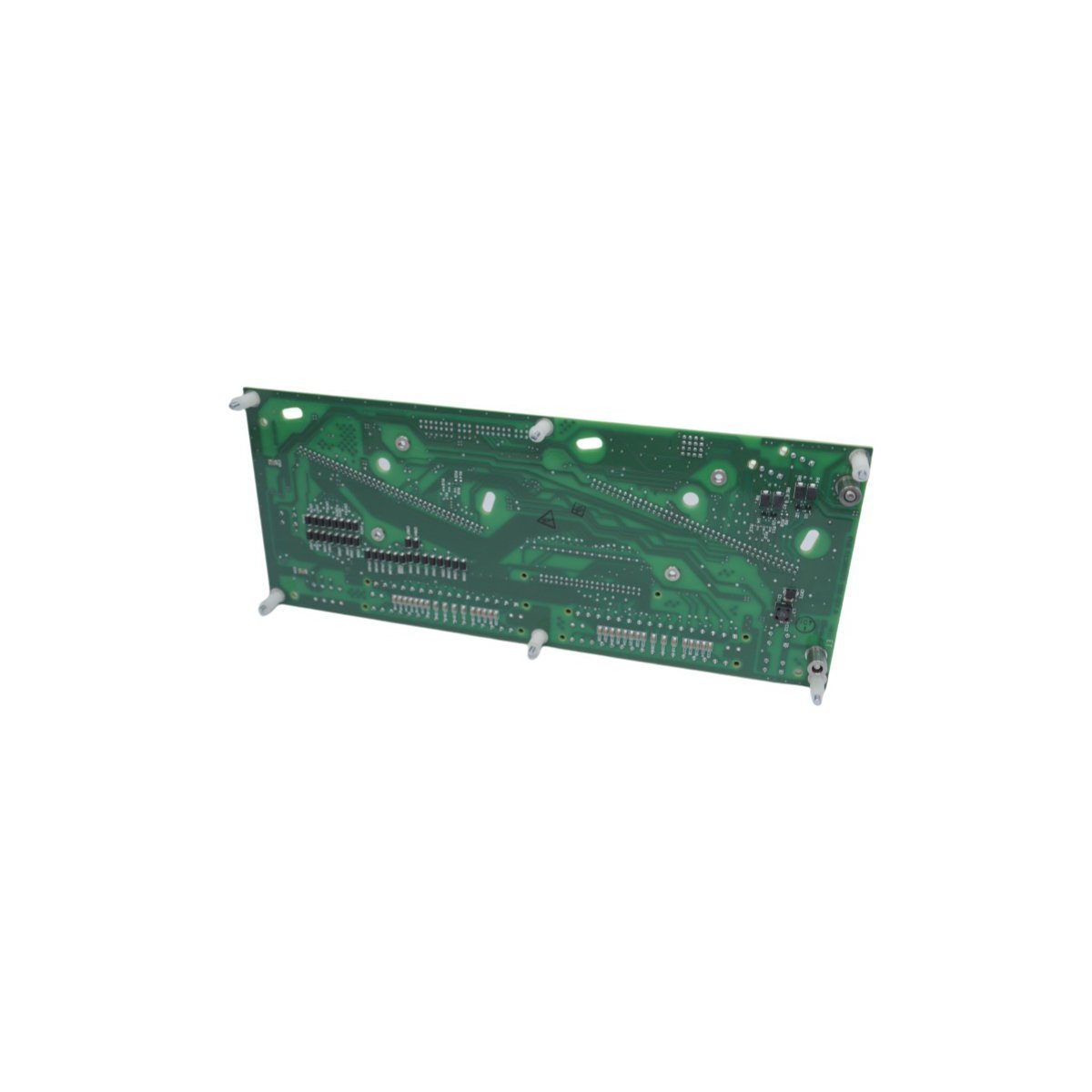

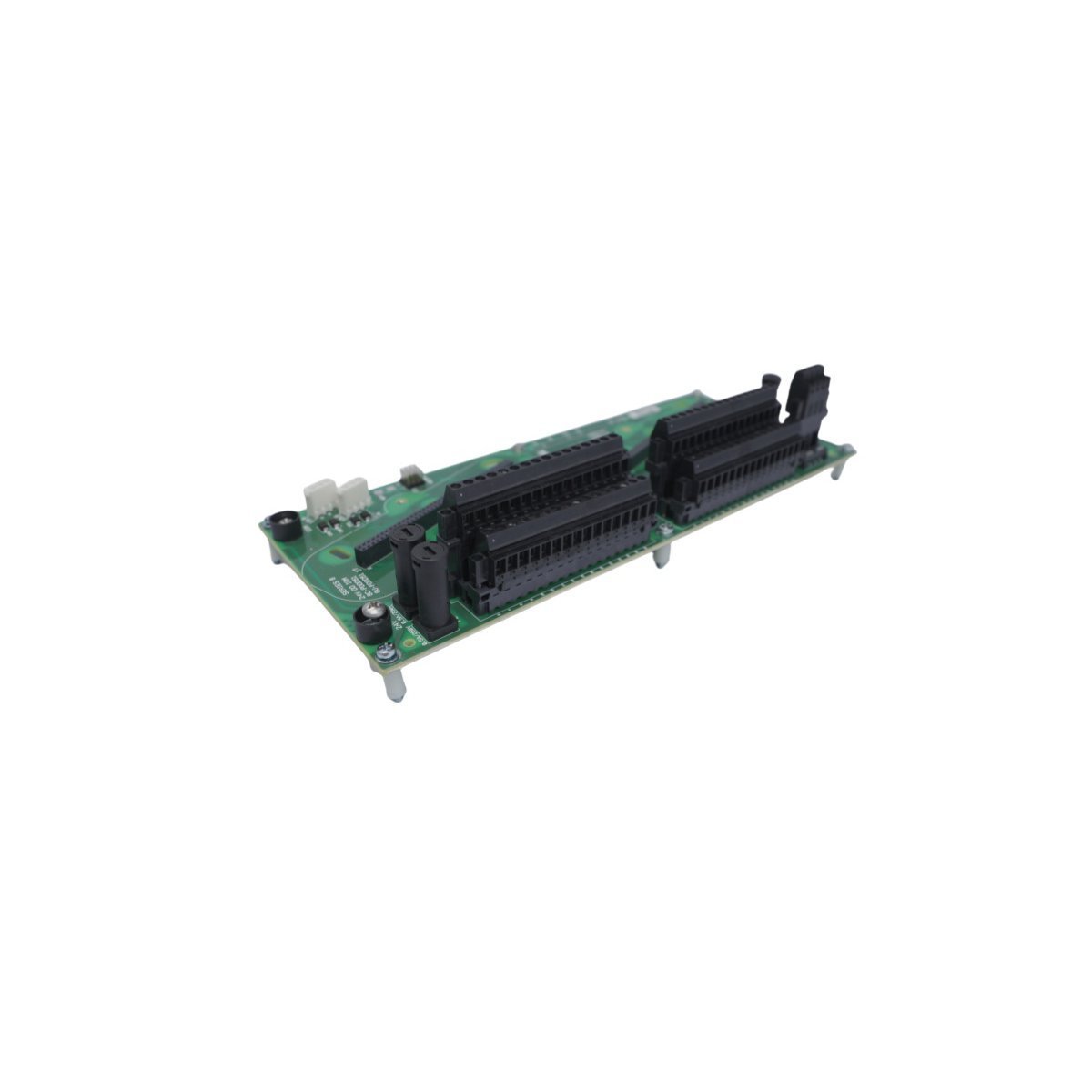

The Honeywell 8C-TDOD61 with order number 51306973-175 is a Series 8 digital output interface module designed for dependable control of discrete field devices in distributed control system architectures. This module provides stable 24 VDC output switching for actuators, relays, and solenoids while maintaining strong electrical isolation to protect control electronics from field-side disturbances.

Engineered for continuous industrial operation, the module integrates seamlessly into Honeywell Series 8 I/O systems, supporting consistent signal delivery and predictable performance in demanding automation environments.

Key Technical Characteristics

• Model Number: 8C-TDOD61

• Order Number: 51306973-175

• Product Series: Series 8

• Module Category: Digital Output Interface Module

• Output Type: 24 VDC digital outputs

• Channel Density: 16 output channels

• Output Current Rating: Up to 0.5 A per channel

• Isolation: Galvanic isolation between field and system circuits

• Diagnostics: Channel-level status indication

• Installation: Series 8 I/O mounting

• Operating Temperature Range: Industrial-rated for control cabinets

• Weight: Approx. 0.24 kg

• Dimensions: 12 × 14.5 × 6.5 cm

• Country of Origin: USA

Industrial Applications

The 8C-TDOD61 digital output module is used in process control and factory automation systems to drive discrete loads such as valves, contactors, alarms, and indicator devices. Typical applications include oil and gas facilities, chemical processing units, power plants, and manufacturing lines utilizing Honeywell Series 8 control platforms.

Its compact footprint and reliable switching characteristics make it suitable for both new installations and system expansion or replacement projects where consistent digital output control is required.
