Product Overview

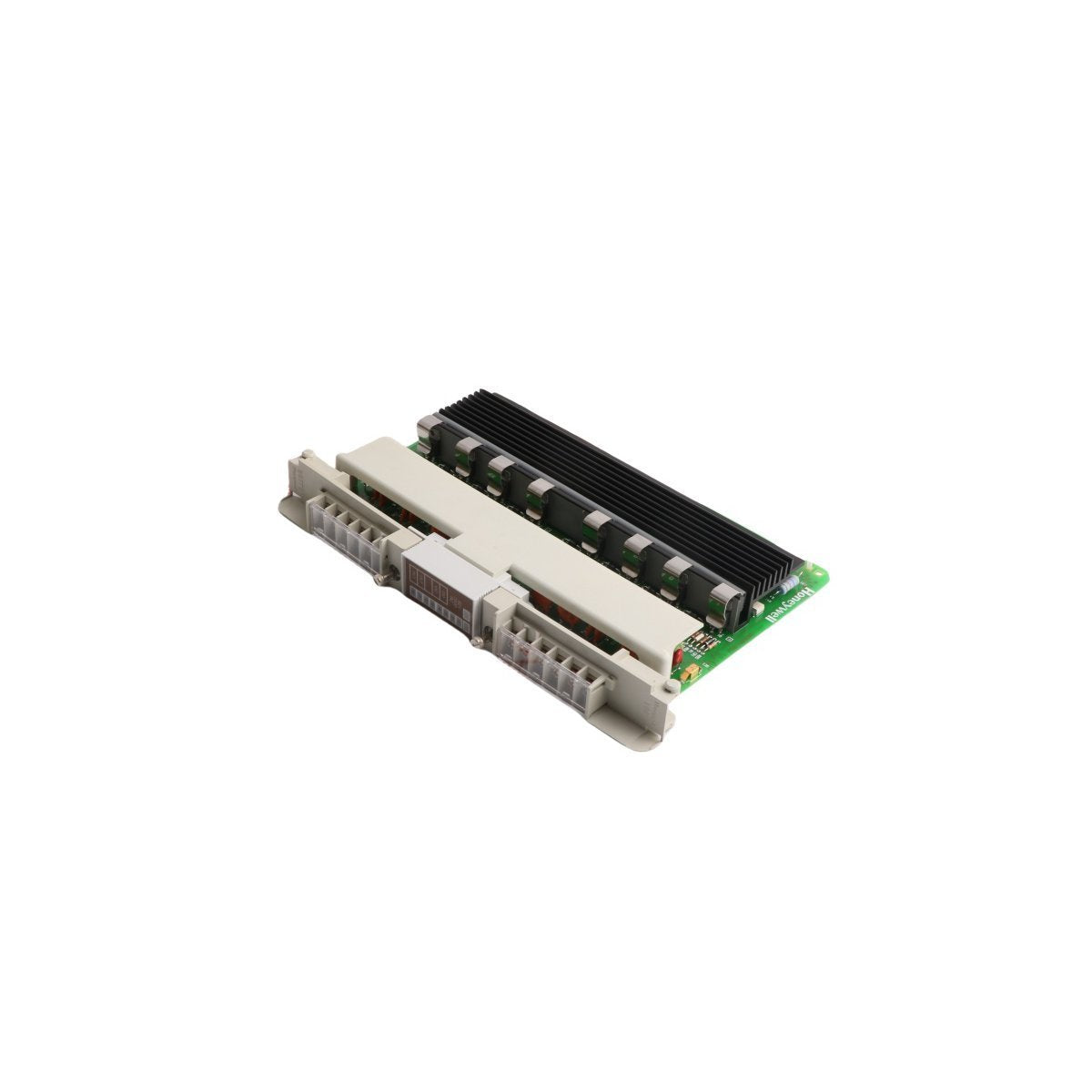

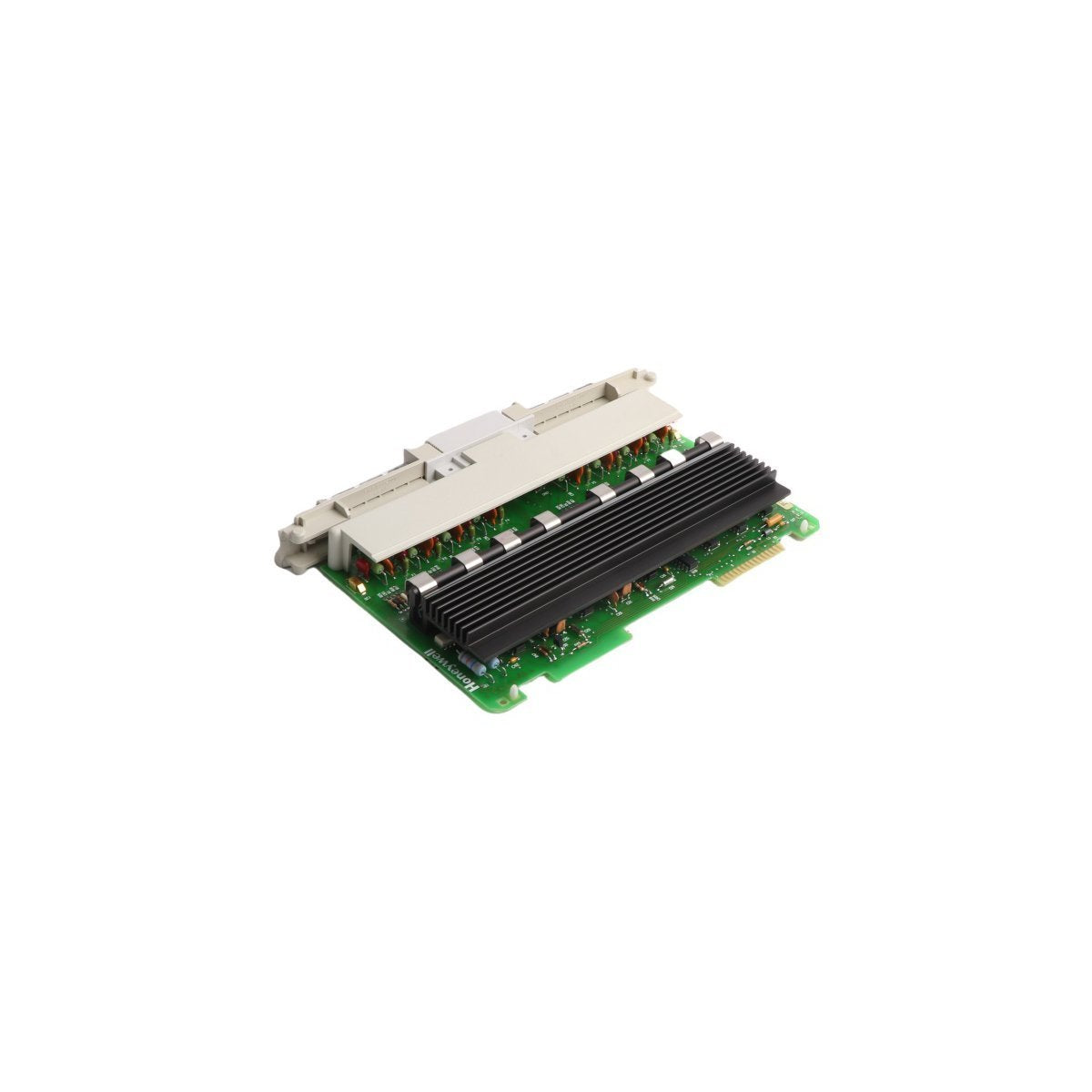

The Honeywell 621-2200RC Output Module delivers high-isolation discrete control action within legacy IPC 621 programmable logic controller architectures and retrofitted hybrid distributed control systems. This rugged digital relay output board coordinates physical switching execution for heavy-duty field elements, interfacing directly with interposing relays, large motor contactors, solenoid valves, and visual indicator panels. It maintains mission-critical value in harsh, high-load industrial operations—such as batch chemical processing, mineral ore milling lines, and emergency pneumatic valve actuation clusters. By incorporating complete galvanic channel-to-channel and channel-to-logic isolation barriers, the board prevents electrical noise migration and suppresses hazardous ground loops. This structural defense secures steady, deterministic loop performance during major electrical fault transients, shielding sensitive processing components from inductive kickback and preventing accidental plant shutdowns.

Internal Circuitry and Protection Architecture

This heavy-duty discrete output module features individual isolated relay contact sets designed to handle high-inrush current profiles without contacts welding or suffering premature arc degradation. The board architecture integrates robust resistor-capacitor (RC) snubber networks across each contact point, effectively shunting inductive voltage spikes generated when switching heavy inductive field coils. Onboard diagnostic logic monitors backplane communication constantly, executing an automated safe-state drop when the module detects a host controller CPU watchdog fault or rack power dip. Multi-stage optical isolators protect internal shift registers from high-voltage spikes on the field terminal block, providing steady logic transition profiles across high-speed execution sweeps.

Hardware Data Matrix and Physical Parameters

Component Engineering Metrics

Field Commissioning and Wiring Guidelines

Field electricians must slide this module firmly into its assigned slot inside a completely isolated, powered-down IPC 621 rack chassis. Ensure the removable heavy-duty field terminal block screws latch tightly onto the module faceplate frame to avoid high-resistance micro-gapping under heavy plant vibrations. Maintain separate routing ducts for the AC voltage load lines connected to this board, keeping them at a minimum 100 mm distance from low-voltage analog inputs or communication coaxial drops. If interfacing with high-capacity DC solenoid coils, install an external freewheeling diode directly across the load terminals to back up the module's internal RC snubber networks and maximize contact longevity.

System Synergies and Environmental Toughness

The 621-2200RC board exhibits high structural endurance when mounted inside remote marshalling enclosures subject to ambient thermal shifts and sustained physical vibrations from nearby mill trains. A heavy conformal layer seals the underlying copper tracking against dampness and atmospheric sulfur gases, blocking the formation of conductive leakage paths across the components. The module drops seamlessly into legacy controller configurations and bridges cleanly into modern Experion PKS supervisory tiers, providing operators with uncompromised discrete feedback from distant field devices. This total channel isolation prevents large inductive switching transients from destabilizing core system calculations or degrading adjacent processing components.

Purchase Package Manifest

Every finalized logistics shipment includes the following components:

(1) Original Honeywell 621-2200RC Output Module

(2) Removable Front Facing Terminal Block Assembly

(3) Pre-installed Safety Pin Guide Connectors

(4) Factory Quality Compliance and Isolation Test Record

Freight and Specialized Logistics Management

Your shipment dispatches within 2-7 days when payment finish. Our terminal packs every single discrete module inside high-shielding anti-static industrial packaging wrapped with layers of dense, shock-absorbing closed-cell foam to ensure complete physical armor during global express air transport. We handle all international consignments exclusively through top-tier air express couriers—including DHL, FEDEX, and UPS—to guarantee rapid, trackable, and safe delivery straight to your site warehouse or engineering stockroom.

Discrete Module Field Support

Q1: What specific failure condition causes the module's front panel "FAULT" indicator to light up solidly?

A1: A solid red fault indicator reveals an onboard logic error, a blown internal fuse on one of the isolated power paths, or a total loss of tracking synchronization with the main rack processor board.

Q2: Can I mix alternating current (AC) and direct current (DC) loads across different channels on the same 621-2200RC board?

A2: Yes, because this module features true individual channel-to-channel isolation, you can safely connect 120 VAC loads on one channel cluster and 24 VDC control lines on another without cross-conduction or safety compromise.

Q3: What maintenance step is critical to prevent intermittent output drops on this model over years of continuous switching?

A3: Maintenance crews should verify terminal screw torque parameters (recommended 0.5 Nm) and clean trace dust buildup during scheduled seasonal plant turnarounds, ensuring the mechanical relay contacts do not suffer from external localized heat retention.
