Product Overview

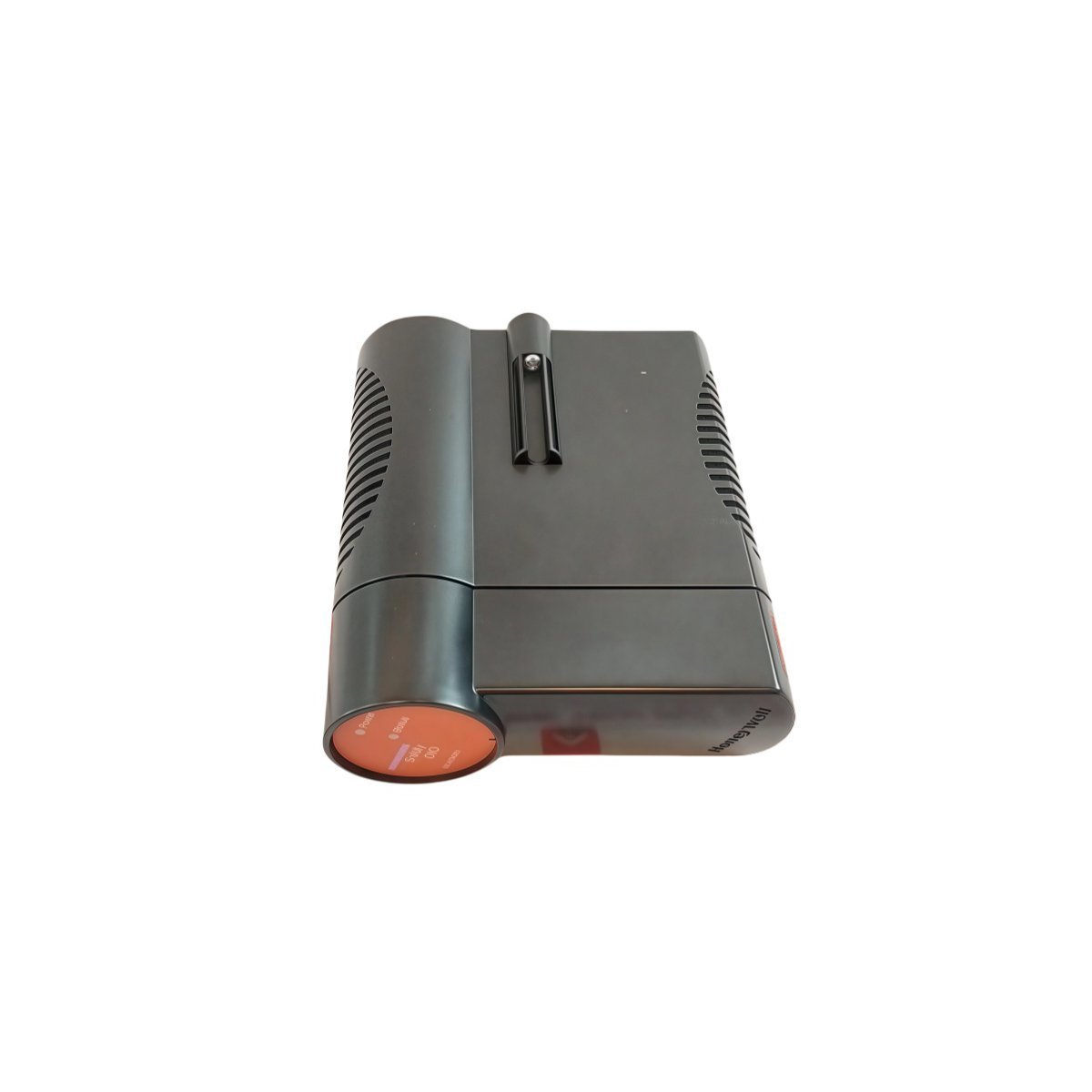

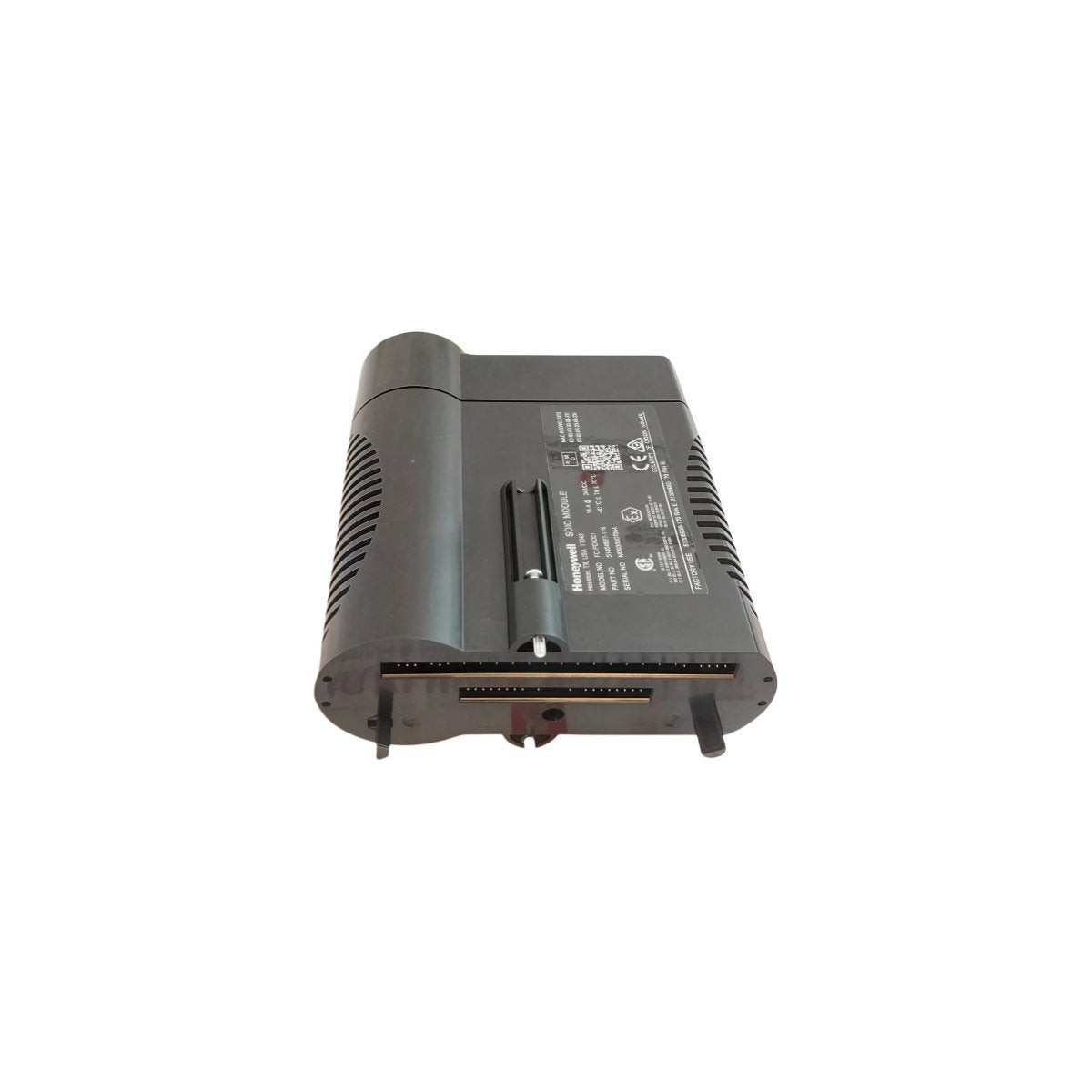

The Honeywell FC-PDIO01 (Part Number: 51454927-176) is a high-performance 16-channel discrete I/O module engineered for the Fail-Safe Control (FSC) and Safety Manager ecosystems. Functioning as a critical node within Honeywell’s Universal Marshaling Solution (UMS), this module simplifies the interface between field instrumentation and the safety logic solver. It provides a standardized platform for 24VDC digital signal processing, allowing for both centralized and remote distributed architectures. By integrating the FC-PDIO01 into a UMS framework, facilities can eliminate the clutter of traditional external barriers and relays, moving toward a more compact, modular, and maintenance-friendly safety instrumented system (SIS).

Technical Infrastructure and Hardware Specs

• Model Number: FC-PDIO01

• Order Number: 51454927-176

• Channel Density: 16-Channel Digital Input/Output

• Operating Voltage: 24VDC Discrete Logic

• Interface Type: High-density D-Sub connectors for UMS integration

• Signal Compatibility: Supports Signal Conditioning Adapters (SCAs) for specialized isolation

• Maintenance Features: Hot-swappable design with integrated LED diagnostics

• Physical Weight: 0.55 kg

• Module Dimensions: 20.8 x 12.1 x 5.5 cm

• Manufacturing Origin: USA

• Customs Code: 8537101190

Industrial Deployment and System Utility

The FC-PDIO01 51454927-176 is predominantly utilized in safety-critical process industries, including oil and gas refining, chemical manufacturing, and emergency shutdown (ESD) applications. Within the Universal Marshaling Solution, this module allows for "three-level" field termination flexibility, enabling engineers to incorporate fuses and knife disconnects directly into the marshaling sequence. Its ability to interface with Safety IOTAs via specialized System Integration Cables (SICs) ensures that power distribution and signal routing remain reliable even in high-vibration or electrically noisy environments. This modular approach reduces cabinet wiring complexity by up to 30%, making it a preferred choice for large-scale plant upgrades and greenfield automation projects where rapid commissioning is a priority.

FAQ

Q: Does the FC-PDIO01 require separate isolators for intrinsic safety?

A: When used within the UMS framework, the FC-PDIO01 can be paired with optional Signal Conditioning Adapters (SCAs). These adapters allow for intrinsic safety, relaying, or galvanic isolation to be handled at the terminal level, removing the need for separate standalone barrier installations.

Q: Can this module be replaced while the safety system is active?

A: Yes, the FC-PDIO01 features a hot-swappable architecture. This allows for the removal and replacement of the module without disrupting the power or communication of other modules in the same rack, significantly reducing mean time to repair (MTBF).

Q: What is the significance of the LED indicators on the front panel?

A: The integrated LEDs provide real-time status updates for each of the 16 channels. This allows maintenance technicians to perform immediate visual diagnostics to identify failed field loops or internal module faults without needing a laptop interface.

Q: Is this module compatible with the Safety Manager SC series?

A: The FC-PDIO01 is primarily designed for the FSC and traditional Safety Manager UMS architectures. For Safety Manager SC, you should verify backplane compatibility, as those systems often utilize different high-density I/O families.

Q: How does the D-Sub connector improve system reliability?

A: The D-Sub interface provides a secure, vibration-resistant connection point that standardizes the wiring between the I/O module and the marshaling panel. This reduces the risk of loose terminal connections and speeds up the cabinet assembly process.
