Product Overview

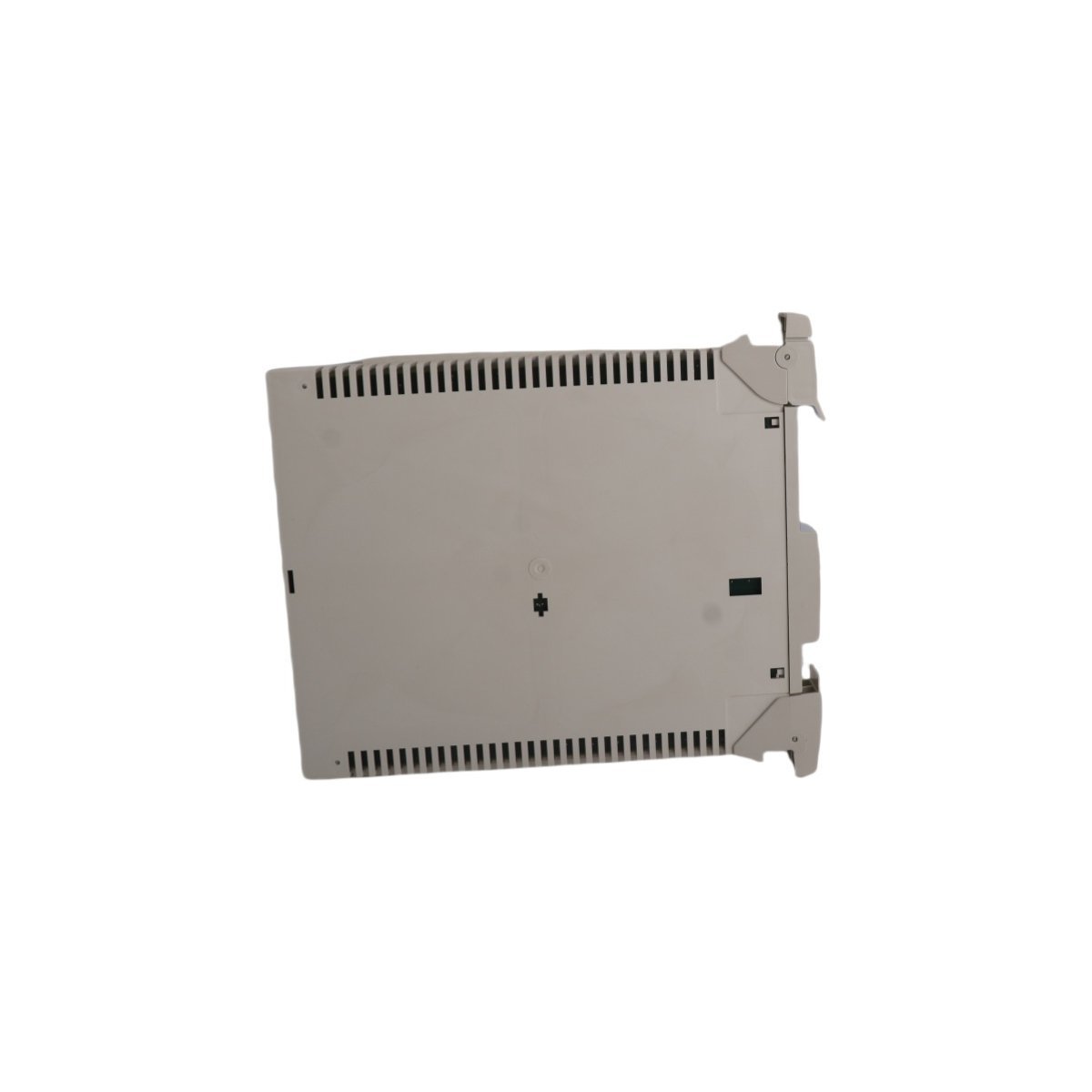

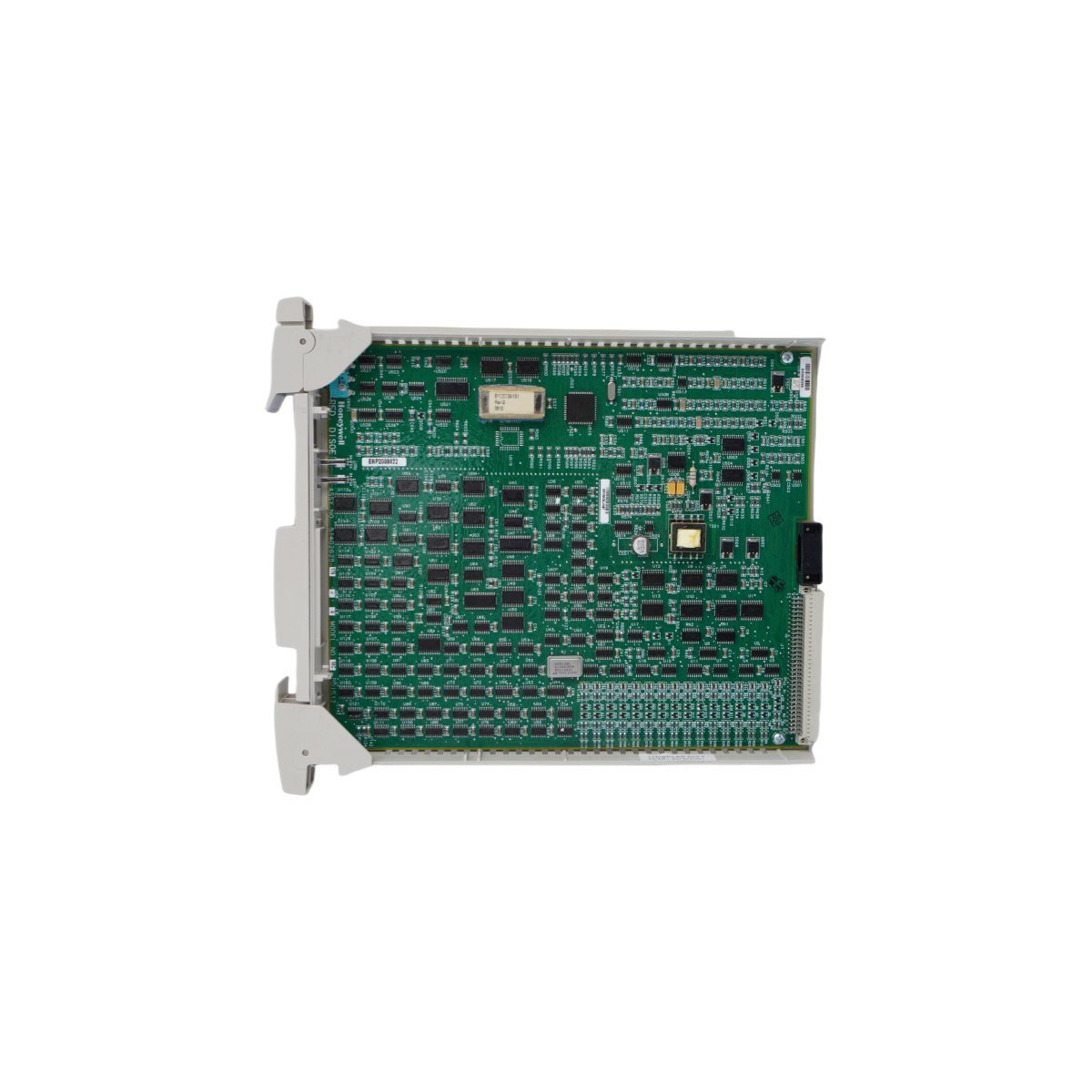

The Honeywell MU-PDIS12 (Part Number 51402625-125) is a specialized VDC Logic I/O Module engineered for the Experion PKS (Process Knowledge System) environment. This precision-built hardware serves as a critical monitoring interface, functioning primarily as a differential pressure logic switch within industrial automation and sophisticated building management architectures. Designed to detect minute variances in air or gas pressure, the MU-PDIS12 converts mechanical diaphragm movement into reliable digital signals. Its primary role is to provide real-time logic feedback for airflow verification, filter obstruction detection, and environmental pressure stability, ensuring that automated systems respond instantly to process deviations.

Mechanical Parameters and Hardware Constants

• Model Identification MU-PDIS12

• Reference Number 51402625-125

• Circuit Type VDC Logic Digital Input

• Switch Configuration SPDT (Single Pole Double Throw)

• Chassis Protection NEMA-rated rugged enclosure

• Physical Weight 0.2 kg

• Module Dimensions 8.8cm x 4.7cm x 7.8cm

• Adjustability Manual setpoint calibration with accessible screws

• Country of Origin USA

• System Integration Honeywell Experion PKS DCS

Industrial Operations and Deployment Utility

The MU-PDIS12 is a fundamental safety and efficiency tool for facilities requiring stringent atmospheric control. By providing a clear logic state based on pressure differentials, it simplifies the automation of complex ventilation and filtration systems.

• Environmental Cleanrooms: Monitoring the positive pressure levels required in pharmaceutical and semiconductor manufacturing to prevent contaminant ingress.

• Filter Management Systems: Delivering "clogged filter" logic alarms by sensing the pressure drop across media in high-volume air handling units (AHUs).

• HVAC Safety Interlocks: Serving as a proof-of-flow switch to ensure fans are operational before heating or cooling stages are energized.

• Healthcare Ventilation: Maintaining negative pressure logic in hospital isolation wards to secure hazardous airflow paths.

• Industrial Exhaust Monitoring: Verifying the extraction of gases in chemical processing zones to ensure operator safety and regulatory compliance.
