Product Overview

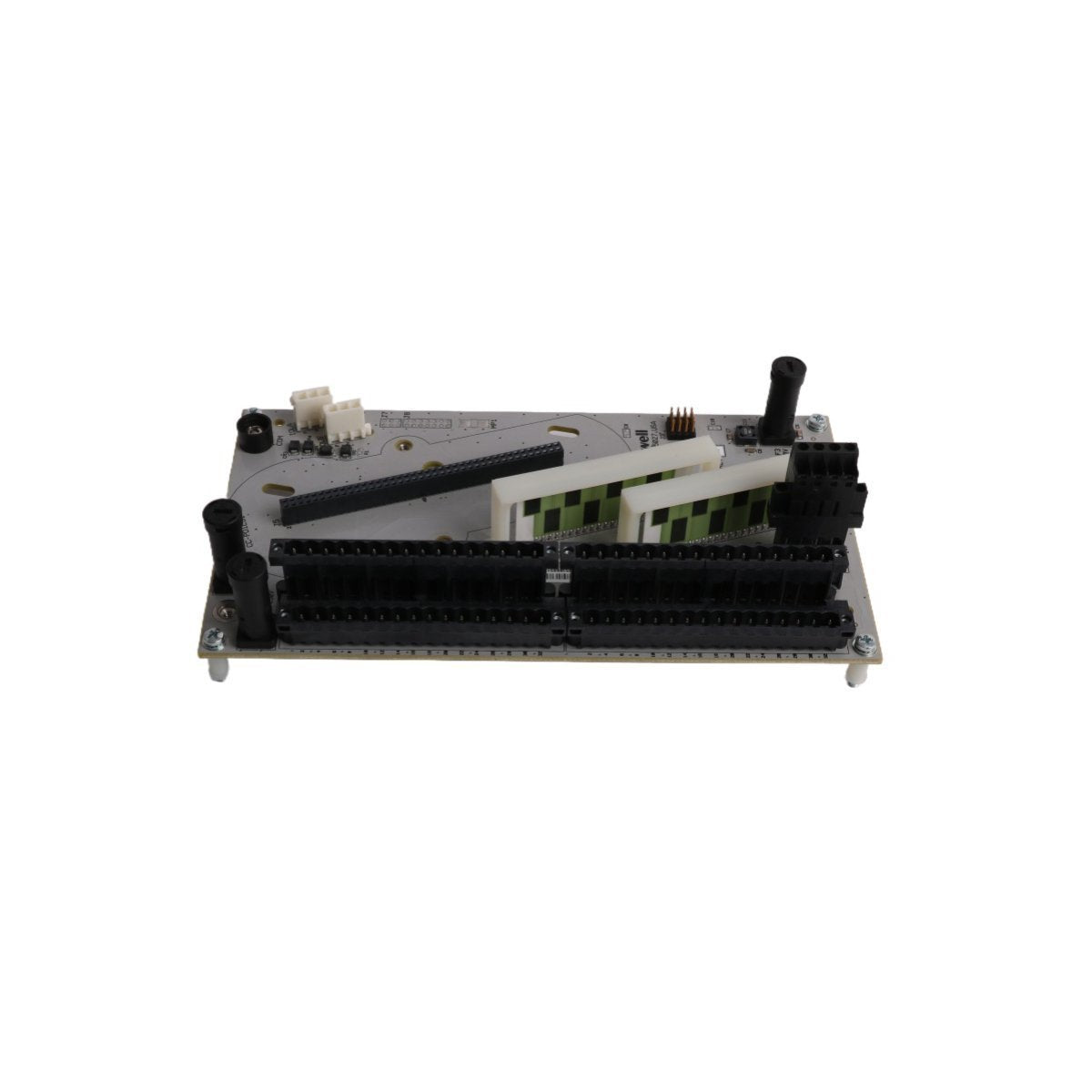

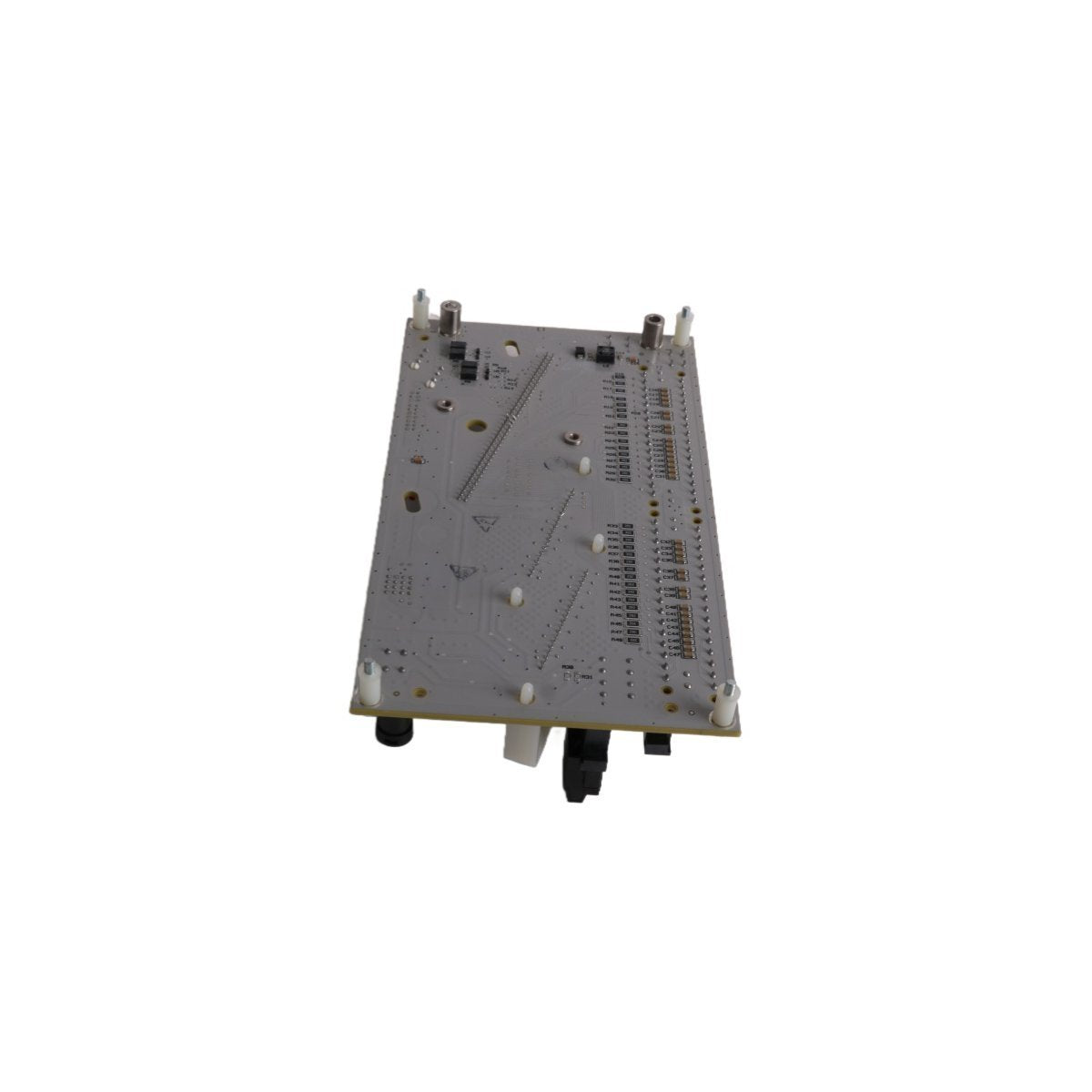

The Honeywell 51307094-100 stands as a cornerstone of the Experion PKS Series C Input/Output family, specifically engineered to deliver high-density digital command execution. This module orchestrates the precise control of field actuators, solenoid valves, and motor starters within complex industrial loops. Its advanced design prioritizes maximum uptime and deterministic response times, making it an essential component for refineries, chemical plants, and large-scale power generation facilities where synchronized logic execution is a non-negotiable requirement.

By leveraging Honeywell’s unique Series C vertical orientation, the 51307094-100 facilitates superior heat dissipation and space efficiency within the control cabinet. The module provides a high degree of electrical isolation between the control network and field instrumentation, shielding the C300 controller from external surges. With integrated short-circuit protection and per-channel diagnostics, it ensures that process deviations are identified and isolated before they impact the broader plant operation, maintaining the integrity of critical safety and control sequences.

Advanced Logic and Redundancy Architecture

The 51307094-100 utilizes a high-performance RISC-based processing architecture that supports rapid-fire logic execution for 32 discrete output channels. Each channel operates with dedicated solid-state switching technology, eliminating the latency and mechanical wear associated with traditional relay-based systems. The module communicates via the redundant I/O Link, ensuring that every command from the C300 controller is acknowledged and executed with sub-millisecond precision.

System resilience is further enhanced through full redundancy support. When paired on a redundant Input Output Termination Assembly (IOTA), the 51307094-100 participates in a "Hot Standby" synchronization protocol. If the primary module detects a hardware fault, the secondary module assumes control of the field outputs within 500ms, facilitating a bump-less transfer that prevents process trips. This architecture also supports "Output Readback" capability, allowing the controller to verify that the physical state of the output circuit matches the intended logic state.

Core Technical Parameters

Field Deployment and Commissioning Advice

To ensure long-term stability of the 51307094-100, engineers must prioritize the thermal management of the I/O cabinet. Maintain at least 50mm of clearance above and below the I/O rack to facilitate the Series C natural convection cooling path. When wiring field devices, use shielded 18 AWG cabling for any runs exceeding 100 meters to minimize potential voltage drops that could affect solenoid actuation thresholds.

Proper grounding of the IOTA is mandatory; ensure the protective earth (PE) connection is bonded to the main instrument ground bar with low-impedance copper busbars. For inductive loads such as heavy-duty contactors, we recommend installing external surge suppression (diodes for DC) to prevent back-EMF spikes from stressing the module's output transistors. During initial power-up, verify the "OK" LED status in the Experion Monitoring tool to ensure no "Address Conflict" exists on the I/O Link.

Engineering Performance and Integration

The 51307094-100 is purpose-built for the rigors of modern Distributed Control Systems. It features a G3-rated conformal coating as standard, providing robust protection against humidity, salt spray, and corrosive sulfur gases commonly found in paper mills and offshore platforms. This durability ensures the module maintains high-precision switching performance for over a decade of continuous service.

Integration with existing Experion PKS environments is seamless, allowing for millisecond-accurate Sequence of Events (SOE) reporting on all output transitions. This capability is vital for post-incident analysis in Emergency Shutdown (ESD) scenarios. Furthermore, the module supports online firmware upgrades, enabling maintenance teams to implement security patches and functional enhancements without decommissioning the I/O rack, thus optimizing the Total Cost of Ownership (TCO).

Global Logistics and Secure Dispatch

Dispatch Window: 3-5 days when payment finish.

Carrier Partners: Express delivery via DHL, FEDEX, or UPS with global tracking.

Industrial Protection: We utilize specialized anti-static industrial packaging and moisture-barrier vacuum sealing.

Quality Guarantee: Every unit is shipped in its Original Pack, Sealed, ensuring factory-fresh condition upon arrival at your site.

Technical Support FAQ

Q1: Can I mix different 51307094 series modules in a redundant pair?

A1: No. For stable redundancy and bump-less failover, both the primary and secondary modules must share the exact same model number (51307094-100) and matching firmware revisions.

Q2: What happens to the outputs if the I/O Link communication is lost?

A2: The module features a configurable "Fail-Safe" state. You can program each channel to either "Hold Last Value" or "Go to OFF" in the event of a controller communication loss, depending on your process safety requirements.

Q3: Is this module suitable for 120V AC output applications?

A3: No, the 51307094-100 is a 24V DC sourcing module. For 120V AC loads, you must use this module to drive interposing relays or select a dedicated Honeywell AC Output module.

Q4: How do the per-channel diagnostics work?

A4: The module continuously monitors the current flow and voltage state of each channel. If a field wire is disconnected (Open Circuit) or if the load exceeds 0.5A (Short Circuit), the module reports a specific fault code to the Experion PKS operator station.
