Product Overview

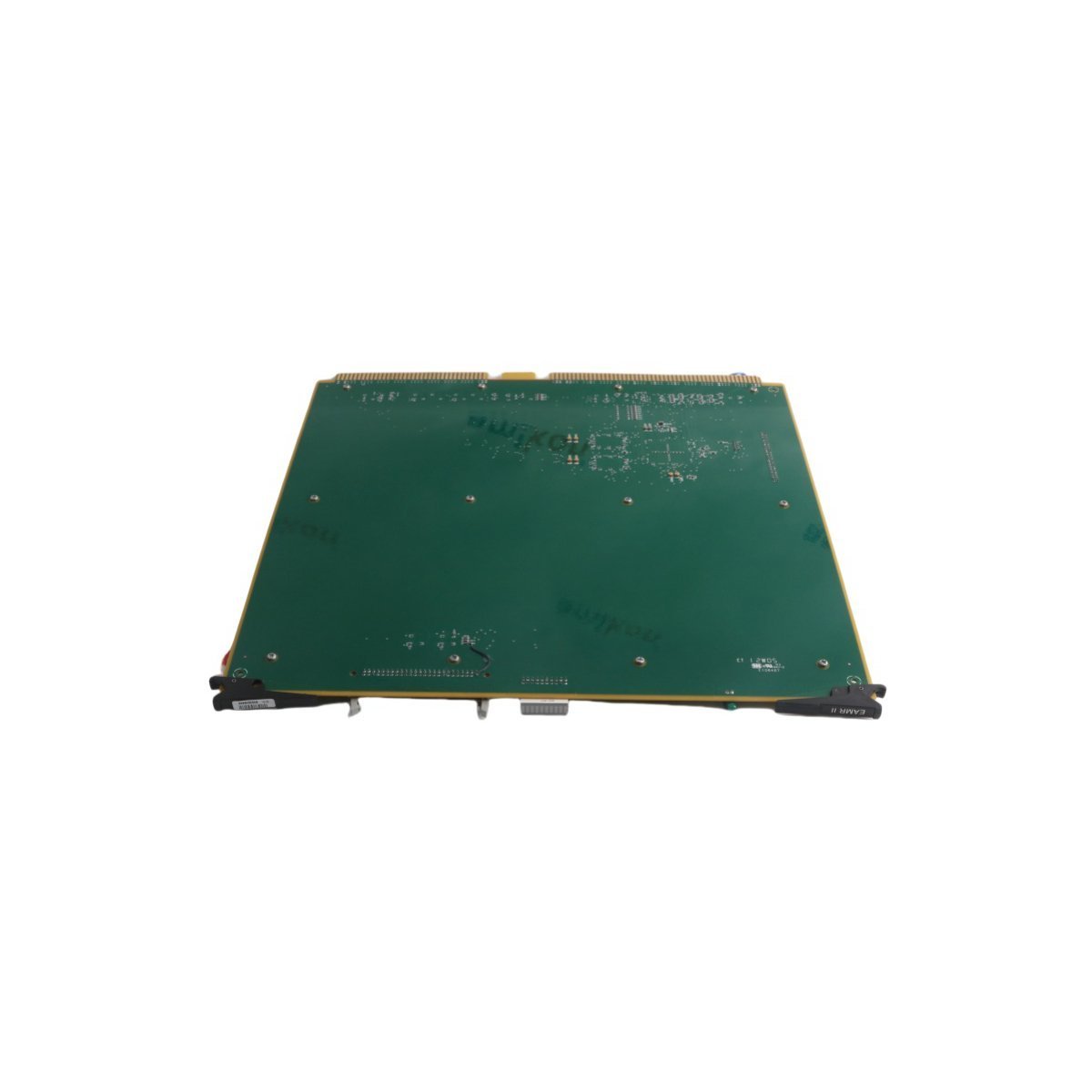

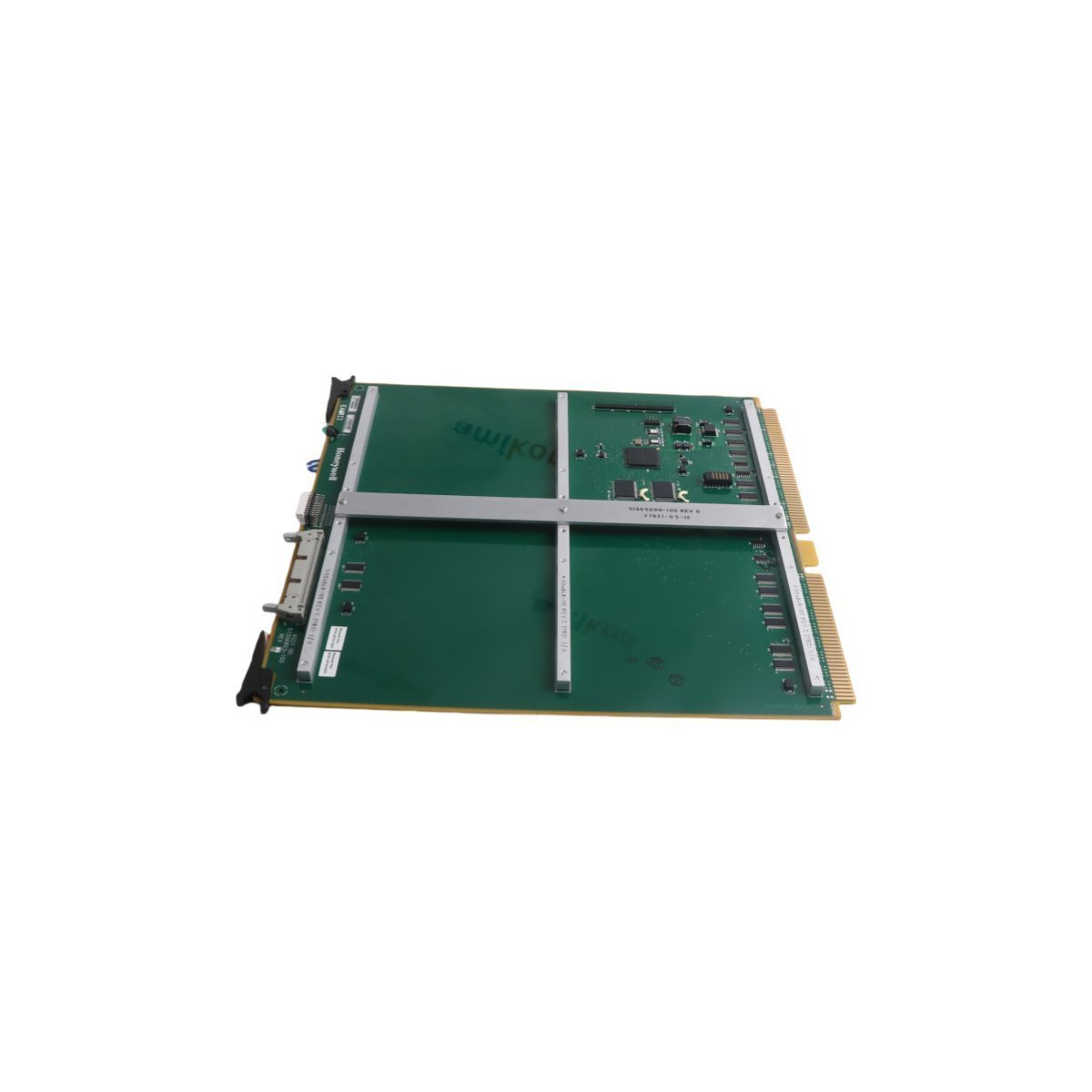

The Honeywell 51306803-100 High-Density Input Output Module provides superior signal processing capabilities within modern process automation infrastructure. This industrial-grade hardware serves as a critical bridge between physical field instrumentation and upper-level DCS processors, ensuring continuous data acquisition and precise execution commands. Engineered for high-stress manufacturing environments like continuous chemical processing, hydrocarbon storage, and baseline power generation, this module maintains exceptional signal fidelity over long distances. It optimizes scanning cycles and eliminates latency, delivering real-time telemetry from remote field locations directly to central operators. Its advanced filtering mechanics isolate baseline control processes from electromagnetic interference, preventing unexpected system interrupts and protecting expensive downstream automation investments.

Hardware Architecture and Network Integration

The advanced circuit design of this processing card prioritizes fault tolerance and high-speed data propagation across the controller backplane. The module features independent channel isolation, preventing localized electrical failures from migrating across adjacent channels and protecting the integrity of the broader input-output network.

The onboard microprocessors manage localized computational tasks, reducing the data processing burden on the main central processing unit and enabling lightning-fast loop updates. Dual-channel communication capabilities provide built-in hardware redundancy options when paired with a matching secondary terminal unit. The card constantly runs background self-diagnostic protocols, transmitting immediate warning flags to the human-machine interface upon identifying abnormal voltage levels or loop discontinuities.

Physical and Operational Parameters

Field Commissioning Protocol

Field engineers must verify that all terminal alignment pins match the receiving slot tracks before locking the module into the active backplane interface. Maintain a minimum field-wire bending radius of 75 mm within the marshalling panel to avoid mechanical stress on the wire insulation and terminal connections.

Ensure the grounding rail maintains a low-resistance connection directly to the facility earth ground to mitigate high-frequency signal noise and ambient stray currents. Install the module only inside a climate-controlled enclosure when surrounding environment pollutants or corrosive atmospheric elements exceed standard industrial guidelines. Always disconnect primary loop power prior to adjusting field wiring layouts or verifying terminal block connection torques.

Industrial Survivability and Process Compatibility

This hardware configuration utilizes a rugged design that effortlessly withstands extreme temperature variations and constant physical vibration found near heavy rotating machinery. It interfaces natively with existing Honeywell Experion PKS architectures, allowing engineers to scale out physical input-output counts without modifying existing operational code.

The low-thermal-signature components ensure the module functions safely within packed marshalling cabinets, reducing the need for aggressive auxiliary cooling systems. The integrated conformal coating protects internal multi-layer boards from moisture ingress and airborne chemical contaminants, maintaining a long service life under stressful refinery or petrochemical facility conditions.

Ordering Information

Your order package contains authentic, certified automation components packaged for immediate field deployment.

(1) One Brand New Honeywell 51306803-100 Input Output Module

(2) Factory original certificate of conformity and parameter calibration documents

(3) Modular terminal interface connectors and mounting alignment studs

Logistics and Transit Procedures

All orders clear processing channels immediately upon receipt of finalized payment, transitioning to active shipment inside a rapid 2-7 days timeline. Global logistics partners DHL, FedEx, and UPS provide full air freight transit and end-to-end tracking updates until safe arrival at your industrial facility.

The shipping preparation protocol demands specialized anti-static industrial packaging. Each module resides within an ESD shielded bag, surrounded by custom-molded high-density shock protection foam inside an ultra-rigid exterior transport box to guarantee absolute component safety through rough handling conditions.

Diagnostics and Application FAQs

Q1: How does this module react to an abrupt open-circuit fault on an active input loop?

A1: The module instantly registers an out-of-range signal drop and switches its internal status register to a fault condition. It transmits an immediate diagnostic alert to the centralized control room while forcing the affected channel into a pre-configured safe state to prevent cascading control logic errors.

Q2: Is the 51306803-100 module backward-compatible with legacy Honeywell control networks?

A2: Yes, the module architecture enables flawless integration into hybrid legacy systems when deployed alongside appropriate field termination assemblies and matching firmware versions. This allows facilities to modernize hardware infrastructure without a complete system overhaul.

Q3: Does the module support online configuration changes while other channels remain active?

A3: The advanced hardware layer permits non-disruptive parameter configuration for independent loops. You can update scaling values or engineering units on an unassigned or inactive channel without altering the processing schedule or affecting execution loops on neighboring active channels.
