Product Overview

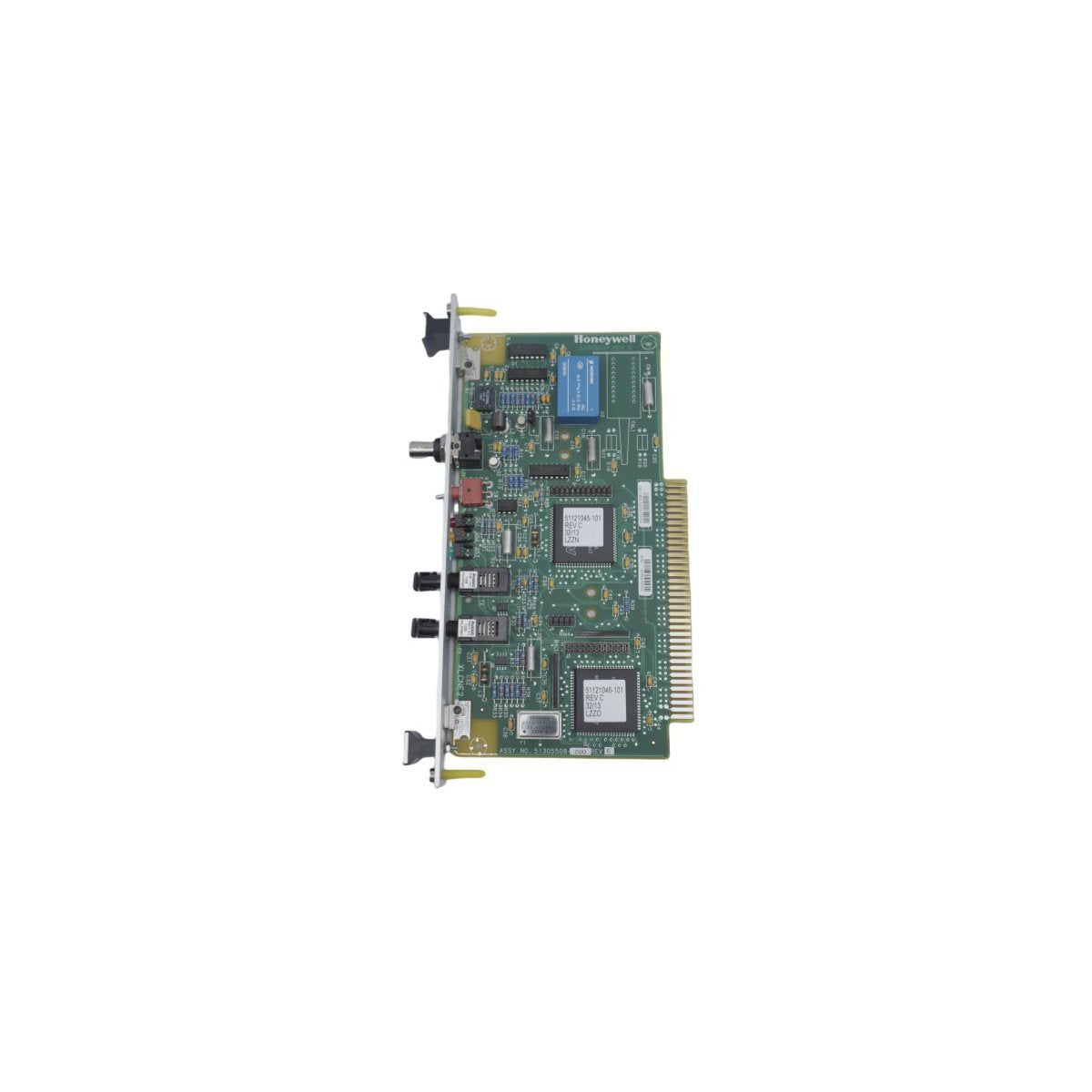

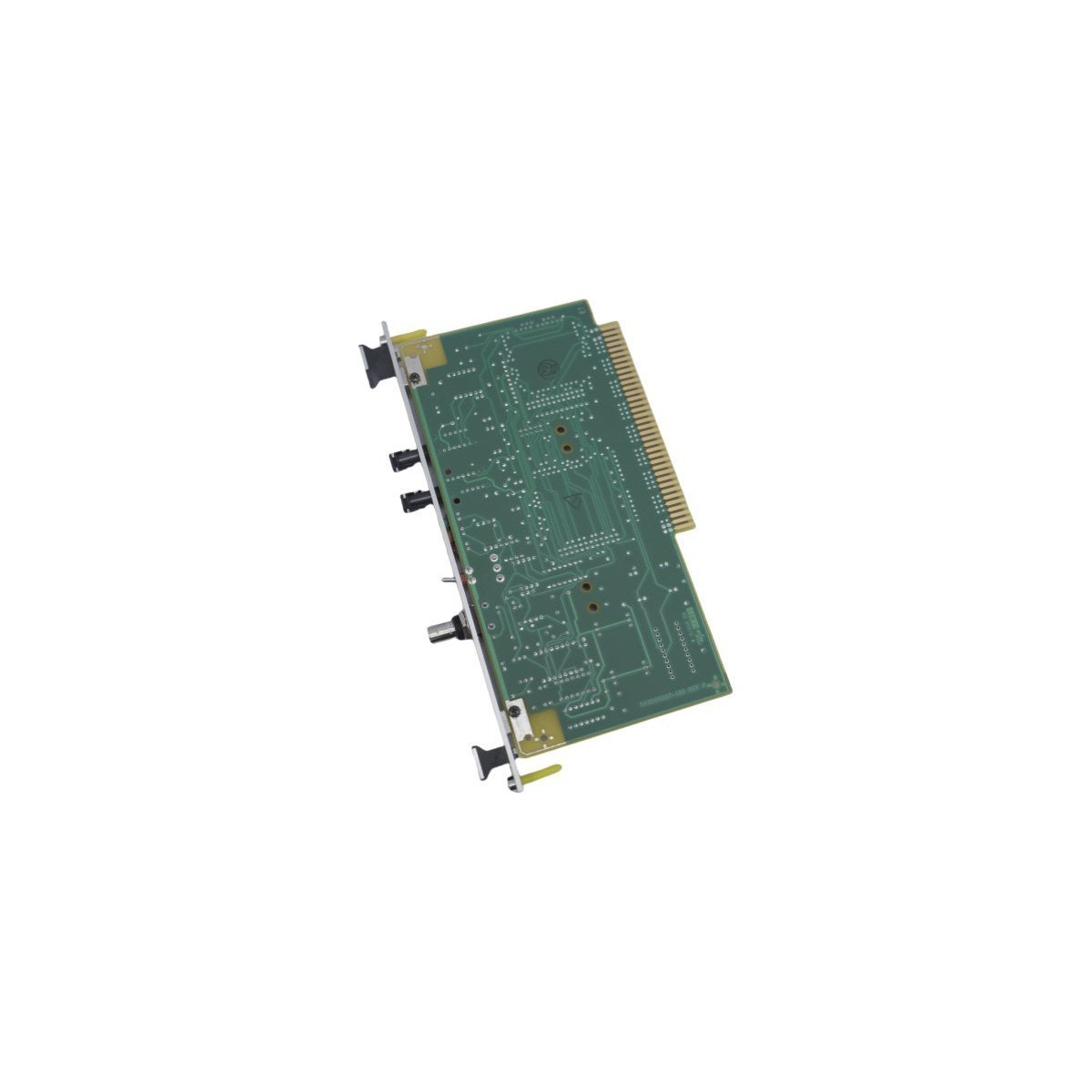

The Honeywell 51305508-100 XLCNE2 Paddle Board functions as a critical communication interface within the Experion PKS and legacy TDC 3000 control architectures. This module facilitates the seamless bridging of high-level control networks, ensuring deterministic data transfer between the Local Control Network (LCN) and advanced processing nodes. In demanding industrial environments—such as oil refineries and chemical processing plants—the XLCNE2 maintains the integrity of the "digital thread," allowing supervisory systems to monitor and control complex instrument loops with zero latency.

Engineered for high-availability applications, the 51305508-100 eliminates communication bottlenecks that could otherwise lead to system-wide synchronization issues. Its robust circuitry is specifically optimized to support the high-speed data packets required for modern plant optimization software and safety-critical monitoring. By deploying this genuine Honeywell component, plant operators secure the reliability of their distributed control system (DCS), protecting large-scale assets from the risks associated with intermittent network failures or signal degradation.

Core Hardware Advantages

The Honeywell XLCNE2 architecture prioritizes physical durability and signal purity. Unlike standard interface cards, this paddle board utilizes gold-plated edge connectors to minimize contact resistance and prevent oxidation in corrosive industrial atmospheres. The board features an optimized trace layout that significantly reduces electromagnetic interference (EMI), ensuring that high-frequency data signals remain crisp and reliable even when mounted in high-density cabinets alongside power switching components.

This module acts as a hardware-level gateway, supporting localized processing of network protocols to offload computational strain from the primary controller. It integrates seamlessly with existing Honeywell backplane architectures, providing a plug-and-play solution for system expansions or emergency MRO (Maintenance, Repair, and Overhaul) replacements. The XLCNE2 also incorporates onboard diagnostics that allow the DCS to monitor the health of the physical link, facilitating proactive maintenance before a communication fault can impact production uptime.

Technical Specifications

Installation and Maintenance Standards

Successful implementation of the 51305508-100 requires strict adherence to ESD (Electrostatic Discharge) protocols. Engineers must ensure they are properly grounded using an anti-static wrist strap before removing the module from its protective shielding. When inserting the paddle board into the chassis slot, verify that the alignment guides are correctly seated; never force the module, as this can damage the high-density pin headers.

For optimal network performance, ensure that all connecting cables are shielded and that the shield is properly terminated at the cabinet ground bar to prevent ground loops. During commissioning, utilize the Experion diagnostic suite to verify that the XLCNE2 node is recognized and that the packet error rate remains at zero. Periodic inspection of the edge connectors for dust accumulation is recommended, particularly in non-climate-controlled environments, to maintain long-term signal conductivity.

Engineering Advantages

The 51305508-100 XLCNE2 is purpose-built for extreme industrial longevity. Its specialized components are rated for continuous 24/7 operation under thermal cycling conditions that would cause standard commercial electronics to fail. This durability makes it the preferred choice for Turbine Supervisory Instrumentation (TSI) and critical process loops where an unscheduled shutdown could result in millions of dollars in lost revenue. Furthermore, the XLCNE2’s backward compatibility ensures that plants running legacy Honeywell systems can modernize their communication backbone without a complete and costly hardware overhaul.

Delivery and Logistics Information

We understand that downtime is not an option for your facility.

• Delivery time: 3-5 business days after payment confirmation.

• Shipping Carriers: Worldwide express shipping via DHL, FEDEX, or UPS.

• Handling: Every 51305508-100 is shipped in certified anti-static industrial packaging and a secondary reinforced carton to ensure it arrives in factory-sealed, ready-to-install condition.

Technical FAQs

Q1: Is the 51305508-100 compatible with both TDC 3000 and Experion PKS?

A1: Yes. The XLCNE2 paddle board is designed to bridge these architectures, facilitating the migration of data from legacy LCN networks to modern Ethernet-based Experion nodes.

Q2: What is the primary difference between the -100 and previous revisions?

A2: The -100 revision features updated componentry for better heat dissipation and improved firmware stability, ensuring higher reliability in high-traffic network environments compared to older versions.

Q3: Does this module require manual firmware configuration upon installation?

A3: Generally, the module is recognized by the system's existing hardware manager. However, it is always best practice to verify that your system’s software release supports the XLCNE2 features to ensure all diagnostic capabilities are active.

Q4: How can I verify if a used XLCNE2 is still functional?

A4: We only provide Brand New units. For existing onsite units, check the status LEDs on the associated interface card; a red "FAIL" or amber "LINK" light typically indicates a physical layer issue with the paddle board or the cable termination.
