Product Overview

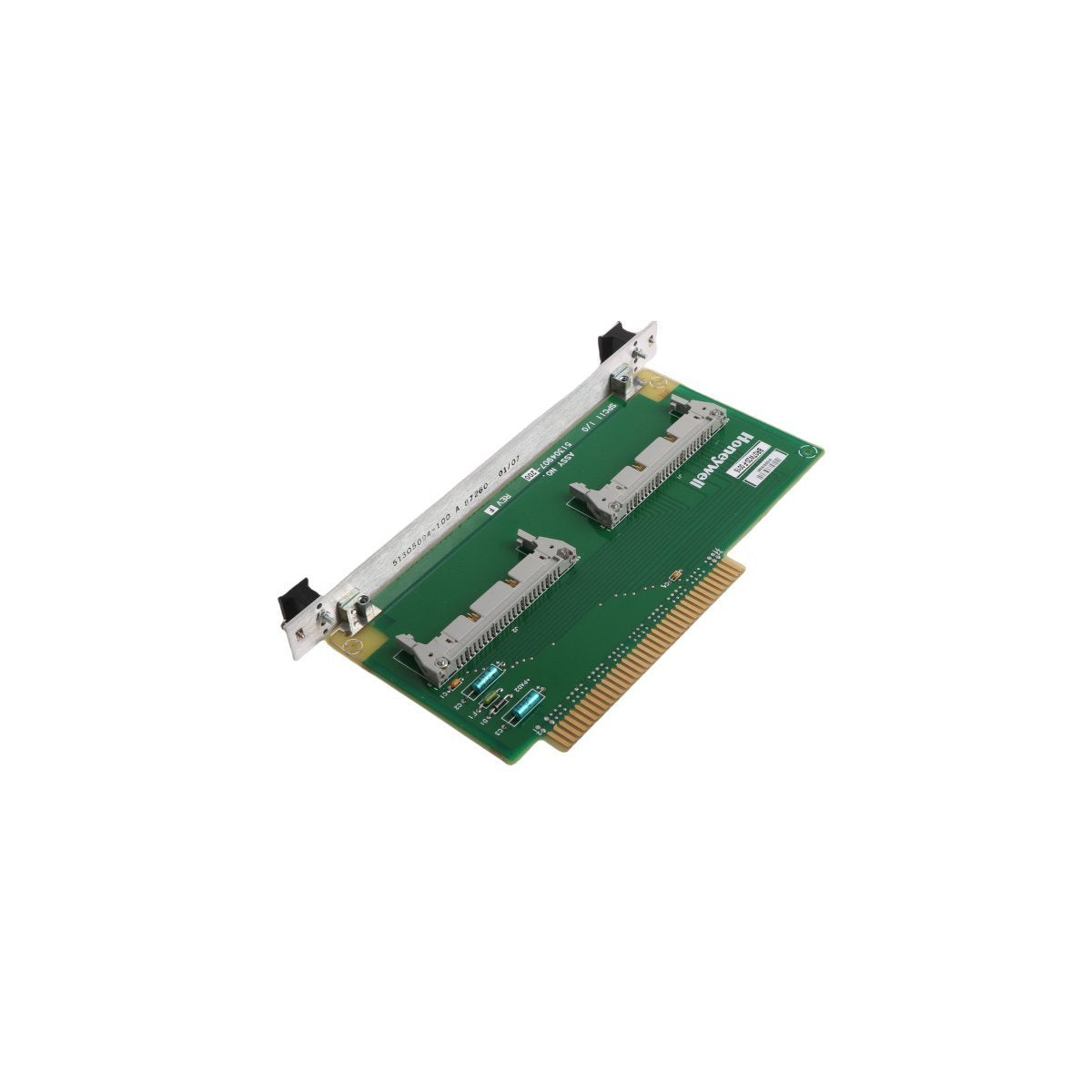

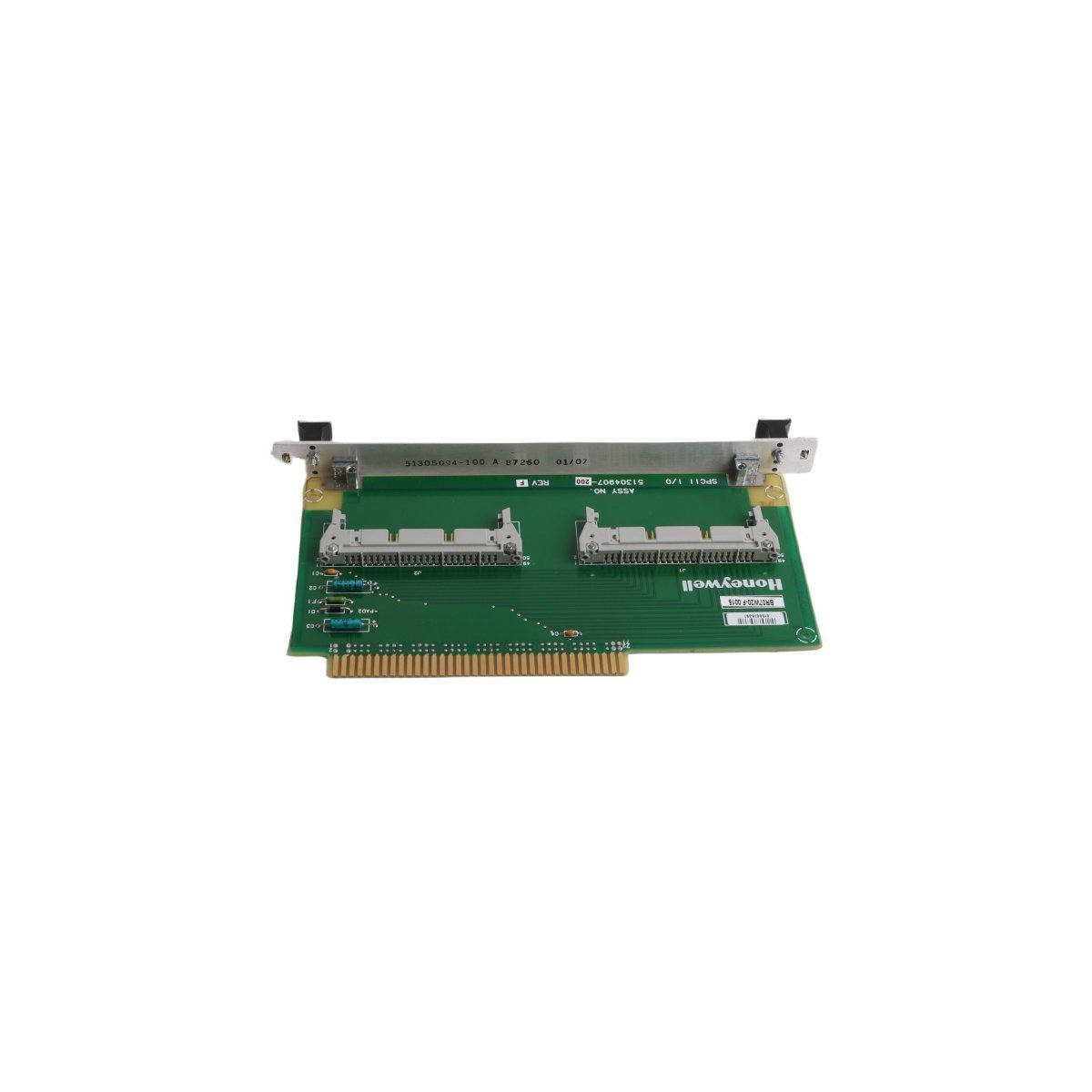

The Honeywell 51304831-100 TPDG I/O Board delivers deterministic data translation and multi-channel input/output coordination across High-Performance Process Manager (HPM) sub-racks and complex Distributed Control System (DCS) architectures. This high-density technical component translates real-time analog and discrete process parameters directly from demanding field transmitters, routing prioritized loop data straight to core supervisory controllers. It anchors stability in high-throughput, high-risk industrial utilities—including automated petrochemical processing hubs, heavy metallurgical furnace lines, and utility-scale steam generation plants. By establishing strict signal processing separation and hardware filtering metrics, the board completely eliminates electrical signal cross-talk and transmission lag. This constant processing accuracy ensures upper-level control displays receive clean, raw field telemetry instantly, allowing site operators to minimize troubleshooting time and protect expensive downstream infrastructure from operational extremes.

Onboard Filtering Architecture and Signal Redundancy

This technical signal processing card relies on a high-speed onboard analog-to-digital processing core paired with multi-stage resistor-capacitor (RC) filtering arrays to sanitize raw field data before it enters the system backplane. The module architecture features true parallel channel tracking configurations, allowing for independent diagnostic screening across every signal terminal without causing loop interruptions. High-integrity optical couplers provide robust isolation boundaries between field wiring connections and internal logic arrays, protecting delicate diagnostic micro-components from high-voltage line surges. It manages complex data routing paths across standard proprietary protocols, integrating seamlessly with system node software to enforce instant channel failure detection and immediate backup path selection.

Component Specifications and Dimensional Layout

Hardware Integration Metrics

Field Integration Checklist and Mounting Rules

Automation assembly technicians must execute all handling operations inside a certified static-controlled workspace, securing an approved grounding wrist strap to the enclosure metal frame prior to module contact. Before seating this multi-layer board into its slot, check the physical configuration shunt pins on the board surface to guarantee the terminal settings align perfectly with your loop diagram sheets. Slide the board slowly along the chassis structural guide channels, applying consistent pressure to the integrated nylon lever latches until they seat flush with the sub-rack frame. Verify the external multi-pin terminal plug screws down tightly to prevent high-resistance connection gaps during prolonged industrial machinery shaking.

Atmospheric Isolation and System Synergies

The 51304831-100 interface card demonstrates high resilience when deployed inside harsh marshalling panels exposed to continuous temperature swings and chemical outgassing. A thick layer of premium conformal coating wraps all copper traces and micro-chips, sealing out fine moisture droplets, particulate soot, and corrosive airborne compounds like hydrogen sulfide. The board coordinates seamlessly with existing turbine supervisory instrumentation systems and emergency shutdown safety nodes, mapping raw parameter trends straight to Honeywell Experion PKS operator displays. This total hardware isolation shields local logic calculations from high-frequency electromagnetic fields emitted by nearby high-power contactors or massive variable frequency drives.

Shipping Package Components

Every finalized commercial shipment contains:

(1) Original Honeywell 51304831-100 TPDG I/O Board

(2) Pre-installed System Address Shunt Blocks

(3) Heavy-Duty Metallized Static-Shielding Transport Pouch

(4) Factory Bench Quality Certification and Inspection Record

Freight Safety and Logistics Processing

Your shipment dispatches within 2-7 days when payment finish. Our terminal packs every single input/output board inside sealed anti-static industrial packaging wrapped with dense layers of closed-cell shock-absorbing foam inserts. This rigorous packaging standard shields the gold edge pins from scratching and moisture damage during rapid air express transit. We coordinate all global transport exclusively through elite logistics specialists—including DHL, FEDEX, and UPS—insuring rapid, trackable, and safe arrival to your project warehouse or refinery maintenance bay.

Sub-Rack I/O Interface Support

Q1: What specific diagnostic readout confirms a hardware communication failure between this board and the master controller?

A1: A solid amber status light on the faceplate paired with an escalating "Card Offline" error flag in the supervisor software reveals a breakdown in data tracking across the sub-rack backplane interface pins.

Q2: Can this -100 board lot replace an older version of the TPDG card without reloading system configurations?

A2: Yes, the 51304831-100 matches the physical tracking dimensions and channel pin layouts of legacy cards, providing a direct hardware drop-in solution, but engineering crews must verify software firmware version compliance in the host system matrix.

Q3: How do I handle an individual channel input value that begins drifting or reporting erratic spikes?

A3: First, check the external field terminal connection block for loose wires or moisture buildup, then use a calibrated multi-meter to check the loop power voltage parameters directly at the board test terminals to rule out a field instrument grounding loop.
