Product Overview

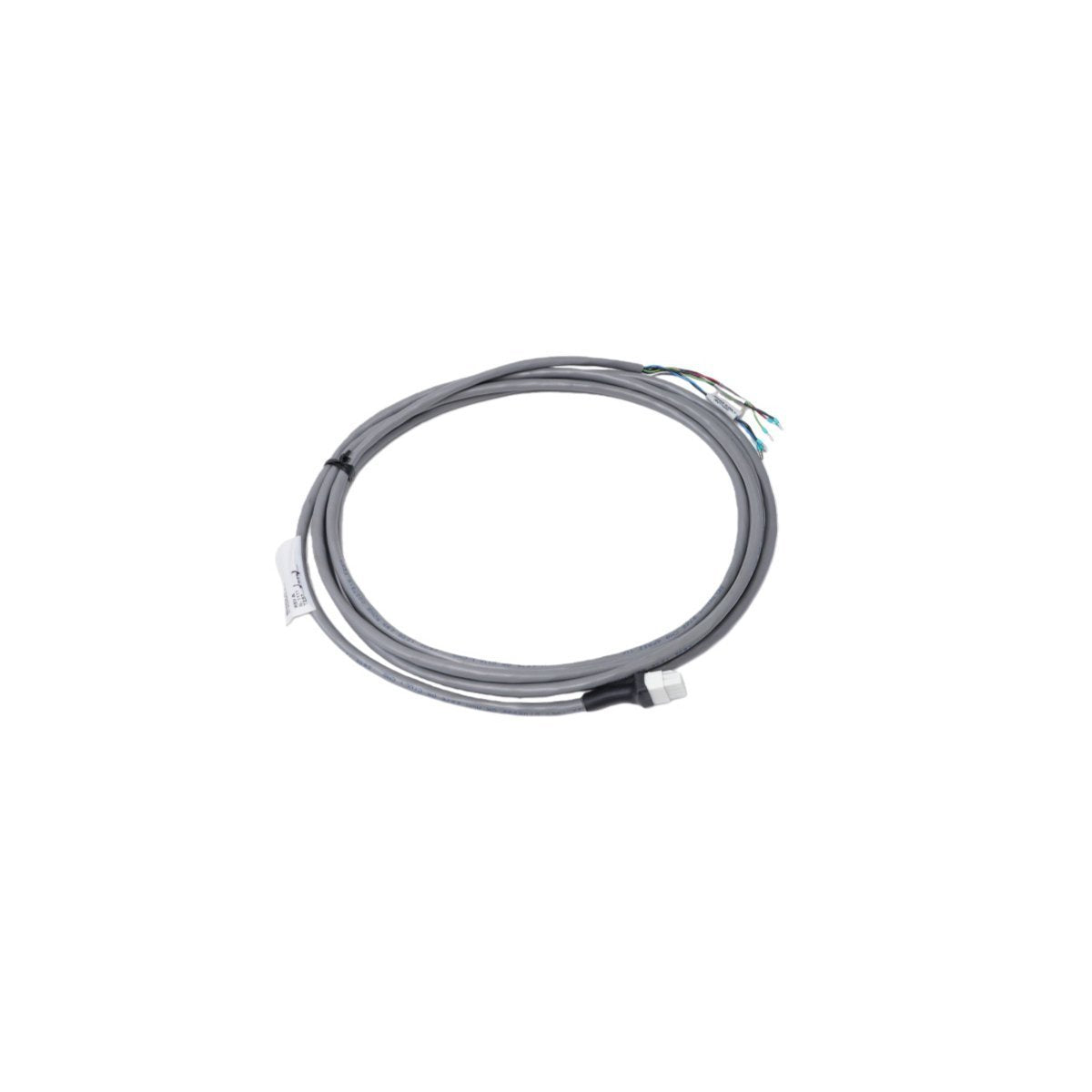

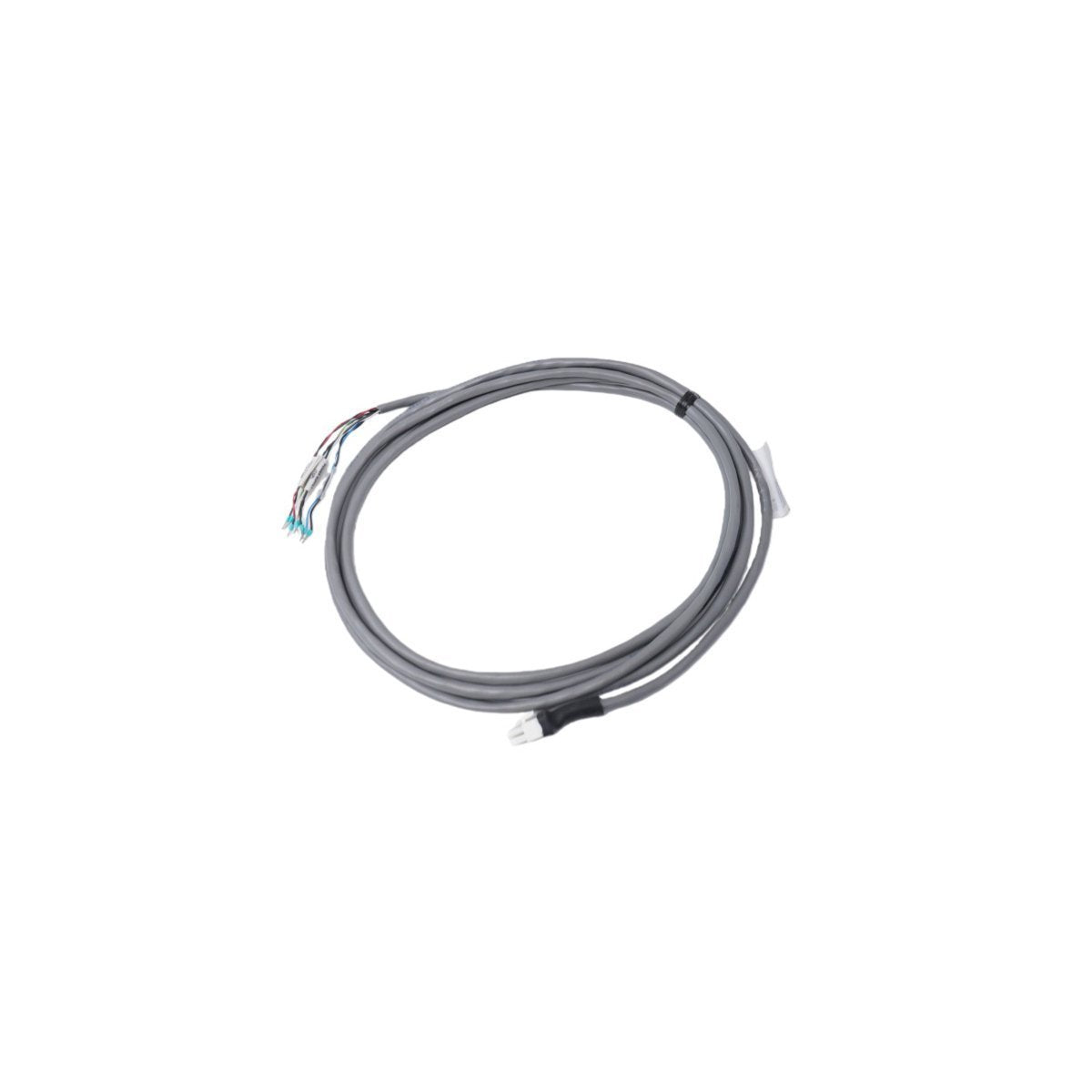

The Honeywell 51202659-202 is a mission-critical I/O Link communication cable specifically engineered for the Experion Process Knowledge System (PKS) architecture. In the demanding world of Distributed Control Systems (DCS), the integrity of the data path between controllers and I/O modules defines the reliability of the entire plant. This cable ensures high-fidelity signal transmission, facilitating the seamless exchange of sensor data and control commands. Optimized for I/O Link point-to-point serial communication, the 51202659-202 effectively eliminates signal jitter and data loss in electrically congested environments. Whether managing critical refinery processes or complex chemical batching, this cable provides the robust physical layer required for high-availability automation.

Connectivity Architecture and Signal Integrity

The 51202659-202 utilizes a specialized high-density shielding logic to protect low-baud rate serial data from High-Frequency (HF) interference common in industrial power cabinets. Specifically designed for COM1 mode operations, it maintains a stable impedance profile across its entire length to prevent signal reflection.

The hardware interface features industrial-grade locking connectors that mitigate the risks associated with vibration and thermal expansion—two leading causes of intermittent communication failures in field-mounted I/O racks. This cable is not merely a passive component; it is a precision-engineered link that supports the advanced diagnostics and parameter configuration capabilities inherent in the Experion PKS I/O Link protocol, ensuring that smart field devices remain fully visible to the controller.

Core Technical Specifications

Engineering Field Installation Guide

To maintain the high-grade performance of the 51202659-202, engineers must adhere to strict cable management protocols. Ensure the minimum bend radius is maintained at 10 times the cable diameter to prevent internal conductor fatigue or shielding gaps. When routing through cable trays, avoid parallel runs with high-voltage AC motor leads; a minimum separation of 300mm is recommended to prevent inductive coupling.

Before commissioning, verify that the locking screws on the connectors are hand-tightened to ensure a gastight seal against corrosive atmospheres. For installations in high-vibration zones, such as near rotating machinery, utilize additional strain relief clips within 10cm of the connection point to isolate mechanical stress from the I/O module port.

Engineering Advantages in Extreme Environments

The 51202659-202 is built with a ruggedized outer jacket that resists chemical degradation and maintains flexibility in low-temperature industrial settings. This durability is essential for systems integrated with Turbine Supervisory Instrumentation (TSI) or Emergency Shutdown (ESD) systems, where any delay in signal transmission is unacceptable.

By providing a low-latency, shielded path, this cable allows the Experion PKS system to perform real-time diagnostics on field devices. Its seamless integration capability ensures that when expanding existing DCS racks, the 51202659-202 maintains the precise timing requirements of the I/O Link protocol, preventing synchronization errors that can lead to system-wide "OOS" (Out of Service) alarms.

Delivery Information

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

Every cable is shipped in anti-static industrial packaging and original Honeywell sealed boxes to guarantee that the insulation and connectors remain in factory-perfect condition until deployment.

Technical FAQs

Q1: Can this cable be used for high-speed Ethernet communication within Experion PKS?

A1: No, the 51202659-202 is specifically designed for I/O Link serial communication (COM1). For Ethernet-based Control Level Network (CLN) connections, specific Category 6 shielded cables must be used.

Q2: What is the significance of the "-202" suffix in the model number?

A2: The suffix typically denotes a specific length or connector configuration within the Honeywell parts catalog. The 51202659-202 is a standard length assembly optimized for standard rack-to-rack or rack-to-field-box distances.

Q3: Is this cable suitable for use in Class I, Division 2 hazardous areas?

A3: When installed in accordance with Honeywell’s hazardous area guidelines and protected by appropriate conduits or enclosures, the 51202659-202 is compatible with the environmental requirements of industrial DCS field installations.

Q4: How do I diagnose a suspected fault in the I/O Link cable?

A4: Check the "Link Status" LED on the I/O module. If the LED indicates intermittent errors, inspect the 51202659-202 for physical kinks or loose connector pins. Swapping with a known-good "New" cable is the fastest way to isolate physical layer issues from software configuration errors.
