Product Overview

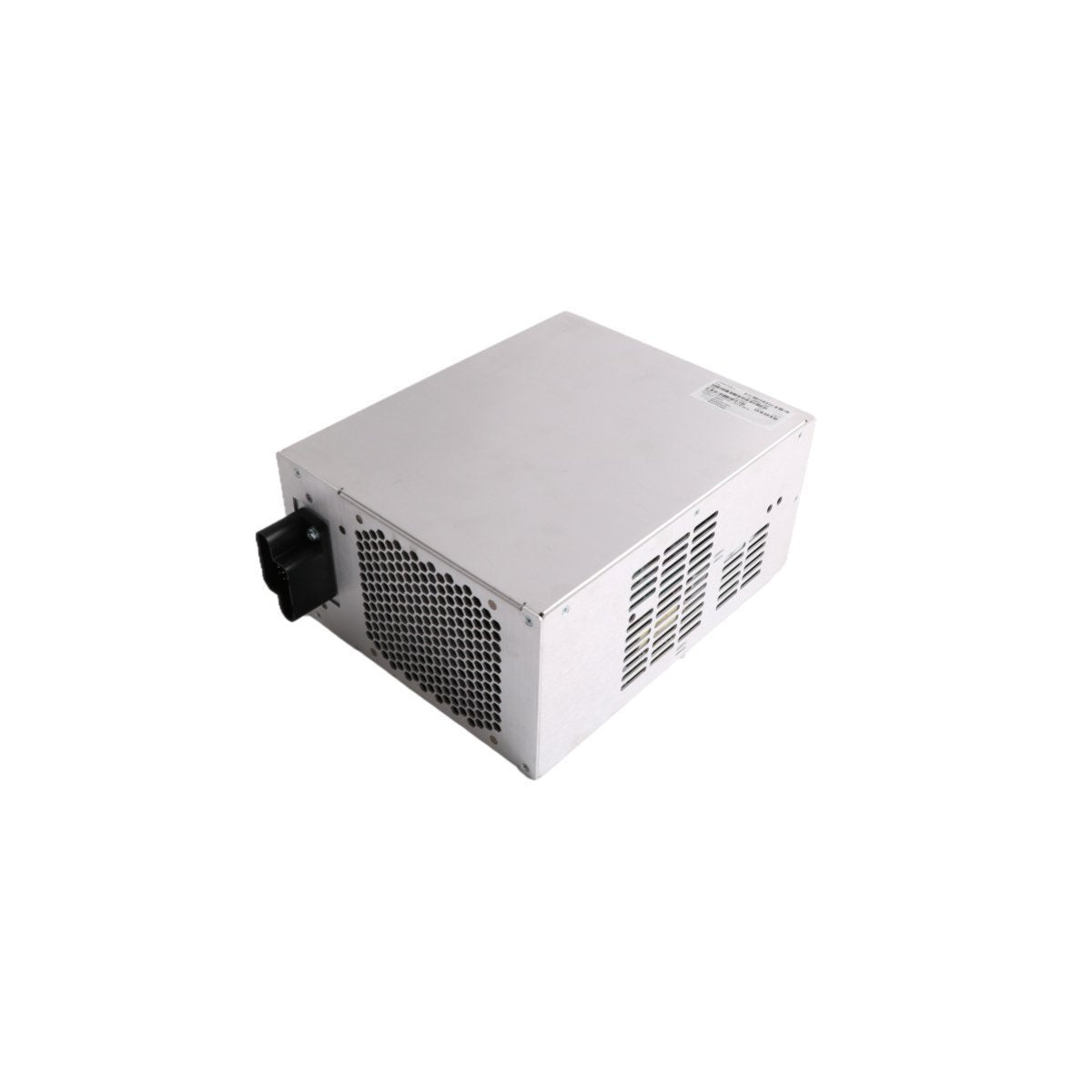

The Honeywell 51198947-100 High Performance Process Manager (HPM) 20A Power Supply Module delivers unwavering, regulated direct-current power to critical legacy TDC 3000 and modernized Experion HPM controller cages. Instrumentation engineers install this heavy-duty power component to sustain processing nodes, communication boards, and field-side termination arrays. By maintaining precise voltage tolerances under wildly shifting source grids, the module eliminates system reboots and hardware resets that threaten continuous industrial operations. This high-capacity power chassis safeguards operations in high-risk environments such as continuous chemical reactors, offshore drilling platforms, and utility power generation plants. The 51198947-100 acts as a defensive barrier against destructive electrical anomalies, ensuring the underlying control logic retains total command over critical emergency shutdown and loop control sequences.

Hardware Architecture and Redundancy Mechanisms

The 51198947-100 features a robust transformerless switching topology engineered to optimize thermal dissipation and deliver maximum current efficiency within dense rack assemblies. The module integrates specialized diodic isolation circuitry, which enables fault-tolerant, parallel redundant configurations when paired with an identical secondary power unit on the same chassis backplane.

The internal diagnostic system executes real-time current-sharing balancing routines, preventing single-unit overload conditions and extending the lifespan of internal solid-state components. Integrated metal-oxide varistors (MOVs) shield the power circuits against severe voltage surges and line transients caused by lightning strikes or large inductive motor disconnects. An array of front-facing diagnostic light-emitting diodes provides instant visual verification of output health, status tracking, and internal over-temperature fault flags, allowing technicians to diagnose power loops before a failure occurs.

Hardware Configuration and Electrical Benchmarks

Physical and Logistical Attributes

Technical Capabilities

Field Integration and Enclosure Maintenance Guidelines

Mount the 51198947-100 unit strictly within a vertical HPM or TDC 3000 power chassis rack, verifying that the mechanical rear alignment pins engage completely with the backplane sockets. Maintain a structural ventilation gap of at least 80mm above and below the power enclosure assembly to allow free convective heat transfer and protect internal capacitors from premature dry-out.

Terminate the primary AC supply lines using high-integrity ring terminals fastened securely to the chassis ground stud using minimum 4mm² (12 AWG) copper wiring layouts. Ensure the active utility distribution panel shares an identical earth reference point with the central DCS marshalling cabinet to suppress common-mode electrical noise. Tighten all structural faceplate retention screws to 3.5 Nm to prevent ongoing cabinet vibrations from backing the module out of its copper bus bar slot.

Mechanical Hardening and Legacy System Evolution

The 51198947-100 circuitry exhibits high environmental resilience, working continuously in environments exposed to corrosive airborne sulfur dioxide and high-humidity processing basements. The internal printed circuit boards feature a thick layer of premium conformal coating that seals delicate electronic tracks away from moisture deposits and conductive soot.

This power module drops natively into classic Honeywell High Performance Process Manager (HPM) chassis configurations, matching the tight voltage regulation requirements of legacy control boards. It permits processing facilities to upgrade or replace failing power nodes without removing existing wiring arrays, bridging old hardware with modern plant availability goals.

Procurement Inventory and Package Manifest

Your critical system infrastructure power hardware undergoes factory load testing and insulation resistance verification prior to worldwide dispatch. Each ordered set consists of:

(1) New Honeywell 51198947-100 HPM 20A Power Supply Module

(2) Pre-fitted Heavy-Duty Metal Slide Rail Locking Guides

(3) Factory Acceptance Test (FAT) Voltage Stability Log Sheet

(4) Molded Terminal Shield Protective Insulator Cover

Logistics Management and Dispatch Quality

We coordinate international air transport processing within 2-7 days when payment finish, relying on top-tier global shipping couriers including DHL, FEDEX, and UPS. Packaging specialists encase each heavy power module within thick anti-static industrial packaging sleeves to completely eliminate static discharge risks during transport. The module is packed into heavy-walled shipping cartons lined with custom-molded, high-density foam inserts, ensuring your heavy-duty power supply arrives free from structural deflection, dry, and ready for immediate live panel activation.

Power Supply Unit Technical FAQs

Q1: What does the "-100" configuration suffix indicate regarding the electrical profile of this Honeywell HPM module?

A1: The -100 suffix designates the standard high-current production variant of this power supply series. It indicates a factory-tuned 20A output capacity at a regulated 24V DC baseline, designed to power fully populated HPM processing and input/output card cages.

Q2: How does the internal diodic steering circuit behave if one module in a redundant pair loses input power?

A2: The internal auctioneering diode instantly isolates the failed power supply module from the active DC bus bar. The secondary redundant power supply module picks up the full 20A load capability within micro-seconds, ensuring zero voltage sag and zero disruption to the running C200 or HPM controller logic.

Q3: Is it possible to use this power module to directly drive inductive field loads like external solenoid valves or large relays?

A3: This power module is optimized to supply clean logic power directly to the internal controller backplane and delicate I/O processing circuitry. To drive highly inductive field loads, route power through isolated marshalling relays or use a separate, dedicated field power supply to prevent inductive kickback spikes from entering the controller logic bus.
