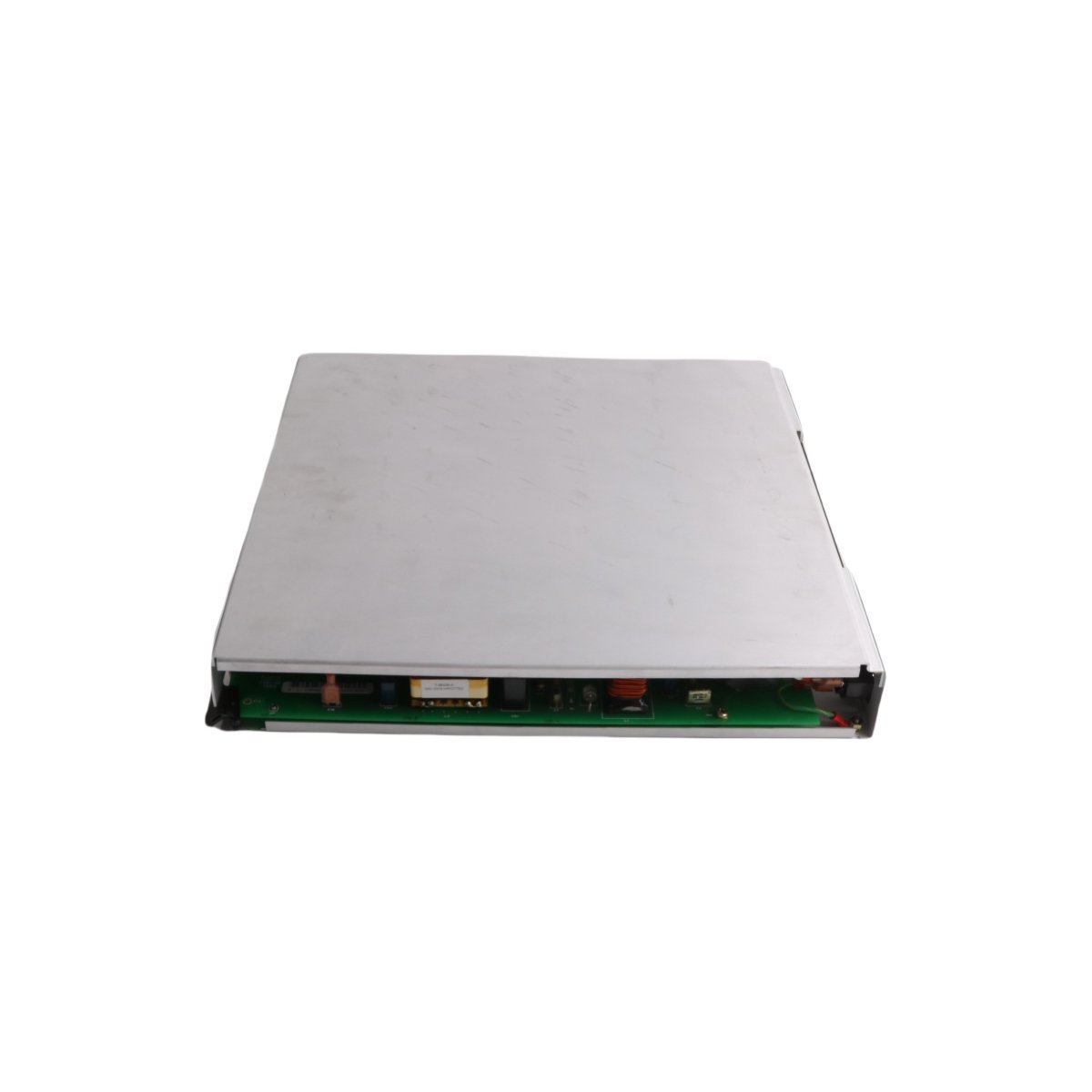

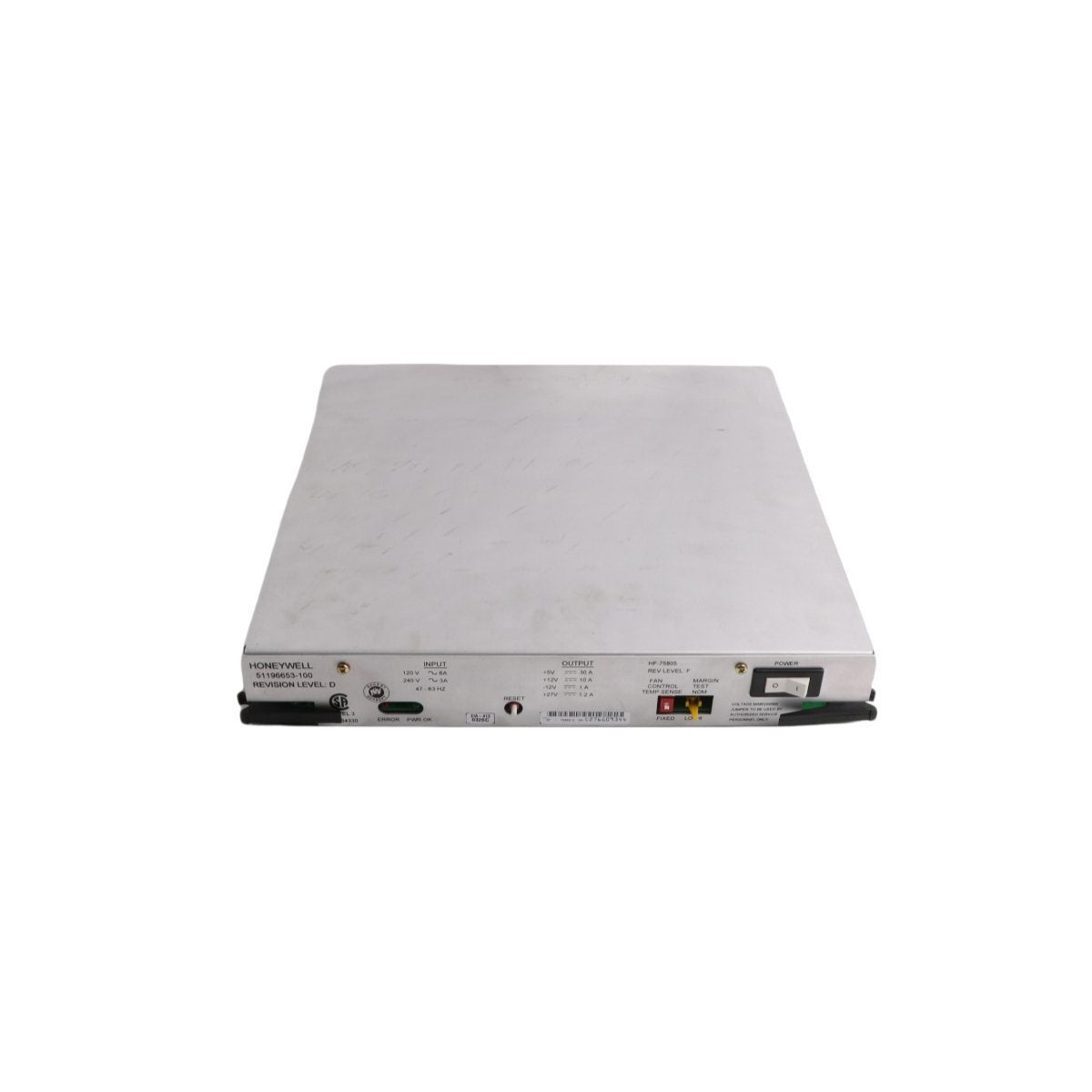

Product Overview

The Honeywell 51196653-100 serves as a heavy-duty, mission-critical Power Supply Module engineered specifically for the Honeywell TDC 3000 Distributed Control System (DCS) five-slot chassis file assemblies. This high-capacity power regulation card drives the internal backplane logic, providing highly stabilized, low-noise DC voltages directly to critical processing, communication, and I/O cards. It forms the backbone of continuous processing operations within legacy refining, chemical manufacturing, and heavy utility control infrastructures globally.

Unregulated voltage fluctuations or power micro-interruptions can corrupt runtime memory tables and lead to catastrophic, unplanned plant shutdowns. The 51196653-100 module effectively insulates the internal card file from raw mains instabilities by enforcing rigorous power conditioning, over-current suppression, and thermal monitoring. By deploying this specialized power architecture, instrumentation teams safeguard the active runtime matrix of their legacy control files, ensuring deterministic hardware performance and continuous process visibility where asset downtime is not an option.

Core Power Conversion and Protection Topology

This power supply unit utilizes an advanced multi-rail switching topology to derive clean, isolated DC outputs from incoming primary power vectors. The internal circuit path features dedicated heavy-duty smoothing chokes and high-temperature electrolytic capacitors that minimize ripple voltage, preserving the signaling integrity of high-speed backplane communication buses.

Comprehensive Fail-Safe Circuitry

The onboard supervisory hardware implements rapid-response over-voltage, under-voltage, and short-circuit protection grids across all secondary rails. If a field-side malfunction or card-slot failure induces a massive current draw, the power supply module dampens the surge immediately, containing the electrical fault to prevent cascading damage across adjacent processor and I/O nodes.

Thermal Dissipation Engineering

An industrial-grade aluminum heat-sink matrix covers the core power-switching transistors to optimize passive thermal dissipation. This design eliminates localized hot-spots inside the unventilated cabinet enclosures, significantly reducing component degradation and extending the operating lifespan of the overall file infrastructure.

Hardware Architecture and Mechanical Attributes

Field Integration and Alignment Framework

Slidably insert the power supply module into its dedicated end-slot of the five-slot chassis file, verifying that the heavy-gauge guide tracks correctly receive the card edges. Push firmly until the heavy-duty backplane power pins mate securely, then fully torque the faceplate retention bolts to complete the electrical frame ground path.

Input Power Terminal Shielding

All primary power supply lines must terminate via ring lugs torqued to specific factory parameters on the rear terminal block assembly. Cover the termination block using the original protective insulating shroud to shield operators from contact risks and prevent dust accumulation from creating creeping short circuits.

Earth Grounding Requirements

Run a low-impedance copper earthing conductor directly from the chassis grounding stud to the primary instrument ground bus of the cabinet panel. Proper grounding remains essential to allow the internal line filters to bypass high-frequency electromagnetic interference away from sensitive logic registers.

Power Stability and System Longevity

This heavy-duty supply module withstands high-stress industrial electrical environments, repelling common-mode line noise generated by massive inductive switching cycles from neighboring motor control centers.

Cohesive Lifecycle Preservation

The module integrates smoothly with existing TDC 3000 standard frameworks, restoring baseline power reliability without demanding modifications to cabinet layouts or backplane architectures. This direct drop-in capability allows process plants to extend the lifespan of proven control assets, protecting capital investments while ensuring full operational safety.

Ordering info

The standard logistics procurement package shipped directly to your engineering warehouse contains:

(1) Brand New Honeywell 51196653-100 Five-slot File Power Supply Module

(2) Factory Certified Quality Validation and Diagnostic Summary

(3) Sealed Heavy-Duty Anti-Static Protective Enclosure Shield

Supply Chain Management and Worldwide Logistics

Delivery time: 2-7 days when payment finish. We partner with elite global logistics networks including DHL, FEDEX, and UPS to manage overnight or priority express delivery directly to your facility. Each heavy power supply unit travels encased inside multi-layer anti-static industrial packaging and high-density foam cushioning to absorb mechanical shocks and vibrations during international freight transit.

Industrial Power Infrastructure FAQ

Q1: Does this power supply module provide status indication contacts for remote control room alerting?

A1: Yes, the 51196653-100 incorporates a dedicated dry-contact alarm relay that interfaces with the system's diagnostic logic. A failure on any internal voltage rail opens this contact instantly, triggering a critical power system error on the operator console.

Q2: Can the 51196653-100 power supply module be hot-swapped while the five-slot file is actively executing control?

A2: No, because this module provides primary operating power to the backplane of the entire five-slot card file, pulling the unit while energized will immediately shut down all cards in that specific file. Technicians must safely migrate or shut down the associated control loop before executing a hardware replacement.

Q3: How can a field technician verify the output health of the individual voltage rails directly at the cabinet?

A3: The faceplate features dedicated test points alongside status LEDs. An engineer can utilize a standard digital multimeter to verify real-time DC voltage levels against the factory-etched calibration values on the front of the module card.
