Product Overview

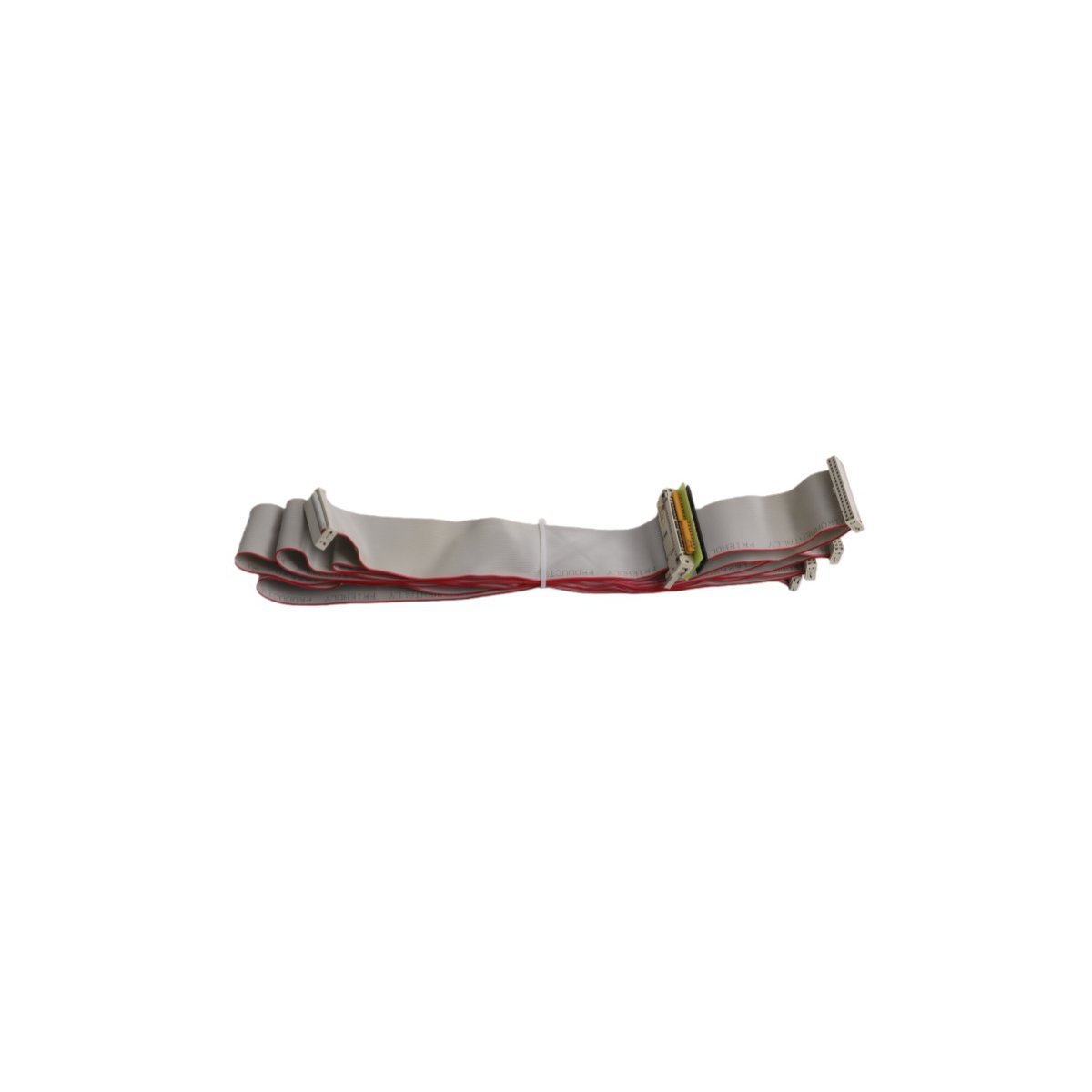

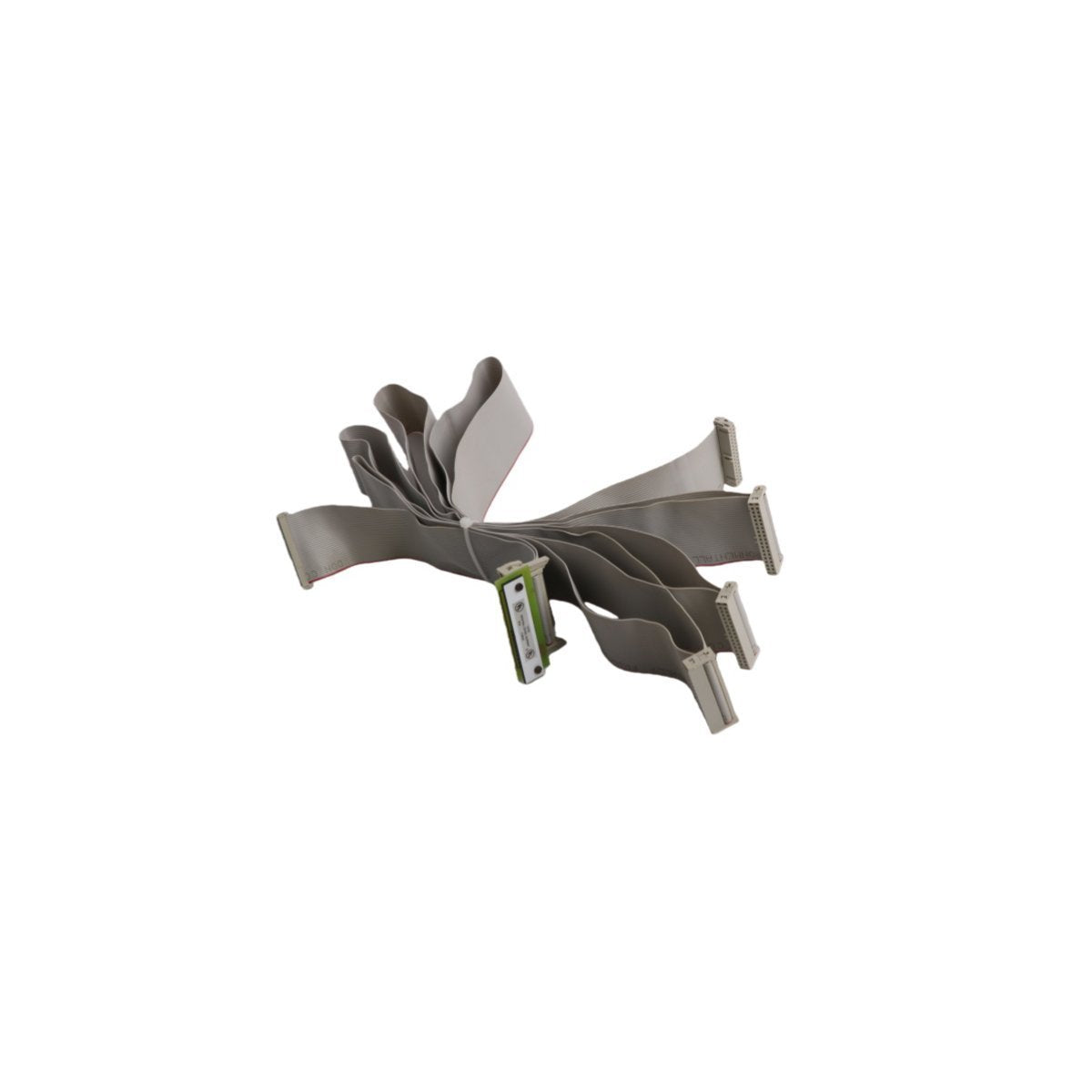

The Honeywell 10307/1/1 is a high-reliability hardware termination module specifically engineered for the Fail Safe Control (FSC) system architecture. Its primary technical purpose is to manage impedance matching and signal stabilization on the vertical bus, which serves as the primary communication backbone for multi-rack safety systems. In high-speed digital control environments, Unterminated bus lines often suffer from signal "bounce" or reflections; the 10307/1/1 eliminates these phenomena, ensuring that data packets transmitted between I/O modules and the central processor remain coherent and error-free.

As a critical component of a functional safety system (SIL-rated environments), this terminator provides the physical and electrical closure necessary for a secure communication loop. It is a passive yet vital device that maintains the voltage levels and timing requirements defined by the Honeywell FSC bus protocol, directly contributing to the system's overall Mean Time Between Failures (MTBF).

Technical Characteristics and System Benefits

The 10307/1/1 module is designed for deterministic performance within the vertical backplane of a Honeywell DCS cabinet.

• Signal Reflection Suppression: Absorbs electromagnetic energy at the end of the transmission line to prevent standing waves and signal distortion.

• Vertical Bus Integration: Equipped with a precision-machined connector designed for the specific pinout and physical geometry of the FSC vertical bus.

• Noise Immunity: Enhances the system's resistance to electromagnetic interference (EMI) by maintaining a stable bus impedance, crucial in electrically noisy industrial settings.

• Safety Integrity Support: Facilitates the high-availability requirements of safety-instrumented systems (SIS) by preventing intermittent communication faults.

• Passive Architecture: Requires no external power supply, operating as a robust, low-maintenance hardware component with high thermal stability.

• Plug-and-Play Installation: Designed for rapid deployment at the designated bus termination points within the rack, simplifying system commissioning and expansion.

Technical Specifications

• Manufacturer: Honeywell

• Model Number: 10307/1/1

• Module Type: Vertical Bus Terminator

• System Series: FSC (Fail Safe Control)

• Application: DCS Backplane Signal Termination

• Dimensions: 7 x 14 x 14.5 cm

• Weight: 0.4 kg

• HS Code: 8537101190

• Lifecycle Status: Active

• Product Origin: USA

Industrial Applications

The Honeywell 10307/1/1 is a standard-setting component for safety-critical infrastructures, including:

• Emergency Shutdown (ESD) Systems: Protecting communication lines in high-integrity pressure protection systems (HIPPS).

• Fire and Gas (F&G) Detection: Ensuring reliable data flow between remote sensors and logic solvers in large-scale industrial facilities.

• Burner Management Systems (BMS): Maintaining signal stability for boiler and furnace safety control loops.

• Critical Process Automation: Safeguarding the communication backbone of chemical reactors and oil refining modules.
