Product Overview

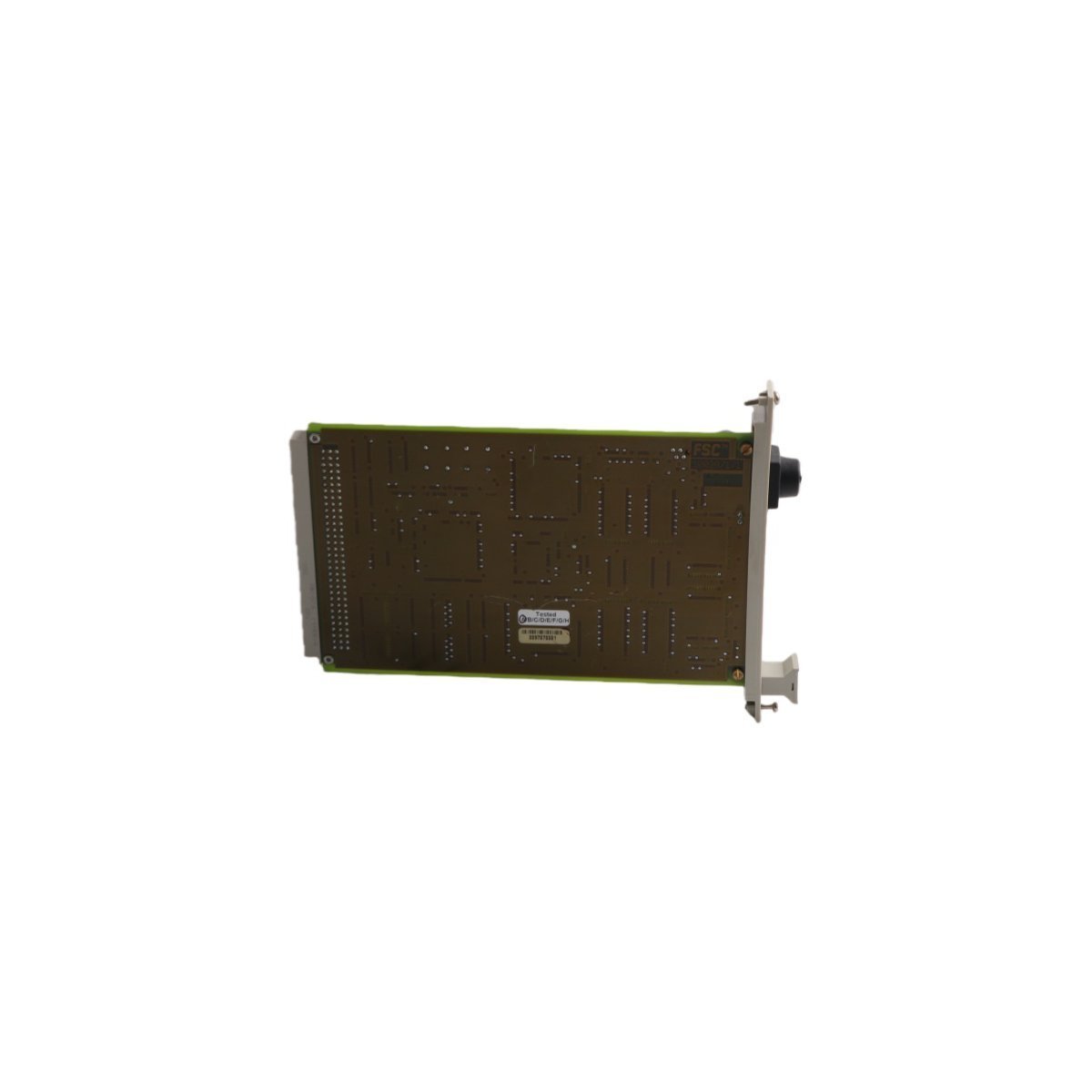

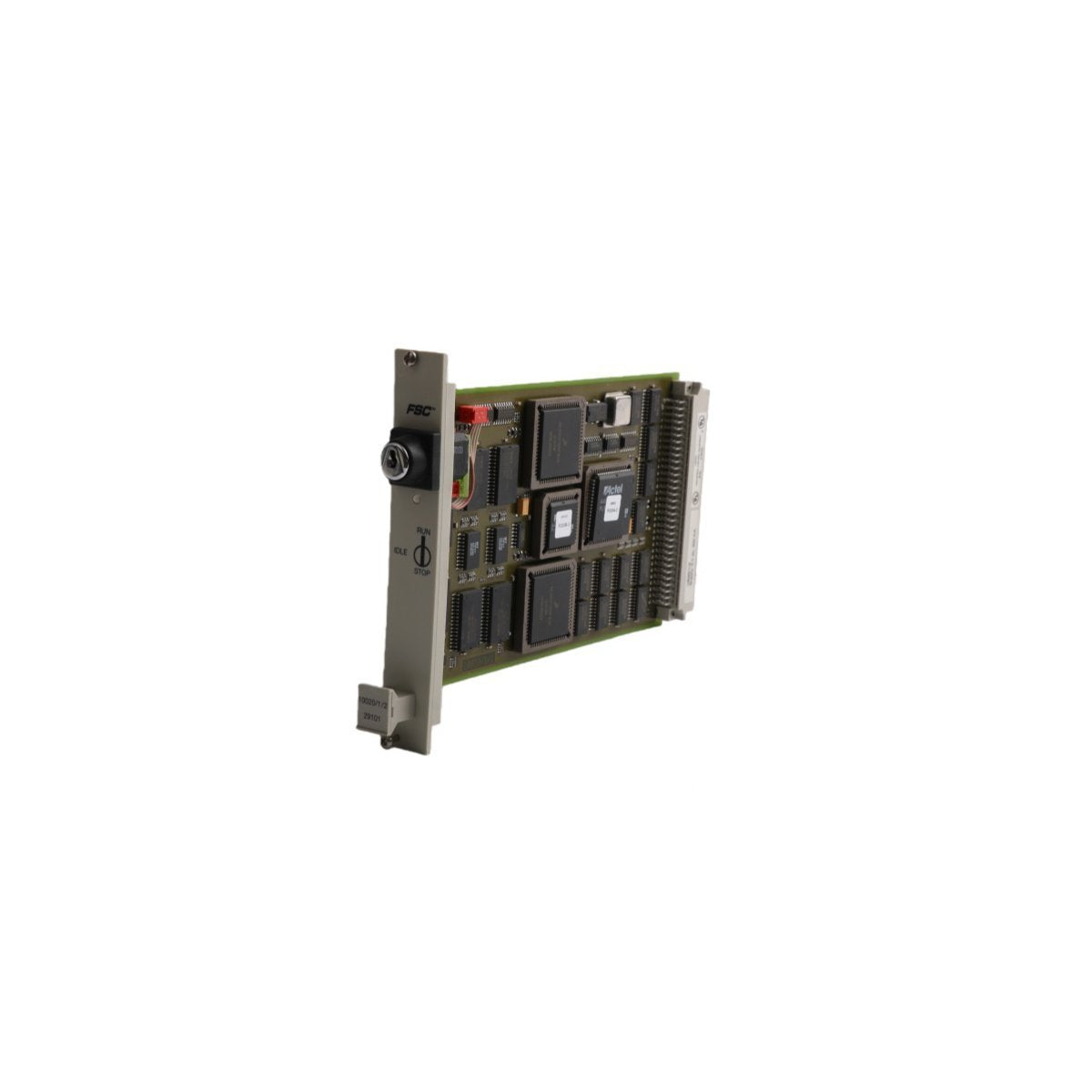

The Honeywell 10020/1/1 is a high-availability Central Processing Unit (CPU) module engineered specifically for the Fail Safe Control (FSC) system architecture. As the primary intelligence of the safety system, this module is responsible for executing safety logic, managing I/O scanning, and ensuring fault-tolerant operation in mission-critical environments. Designed to meet stringent safety integrity requirements, the 10020/1/1 provides the computational power necessary for high-speed logic execution while maintaining continuous hardware diagnostics. This module is a core component in Distributed Control Systems (DCS) where preventing unplanned shutdowns and protecting personnel and assets are the highest priorities.

Hardware Parameters and Technical Specifications

The 10020/1/1 CPU is built with a focus on redundancy and electrical protection to ensure the system remains operational even during internal component failures.

• Module Type: Central Processing Unit (CPU)

• System Compatibility: Honeywell FSC (Fail Safe Control) System

• Redundancy Support: Supports Dual and Quadruple Redundant architectures

• Isolation: Integrated galvanic isolation for superior noise immunity

• Diagnostic Capabilities: Continuous self-testing and hardware fault monitoring

• Power Consumption: Optimized for low heat dissipation in high-density racks

• Communication Interface: Supports proprietary high-speed backplane protocols and serial interfacing

• Weight: 0.4 kg

• Dimensions: 7 x 14 x 14.5 cm

• Origin: USA

• Condition: Brand New

Industrial Applications

The 10020/1/1 CPU Module is utilized globally in industries requiring Safety Integrity Level (SIL) rated performance and Fail-Safe logic:

• Emergency Shutdown Systems (ESD): Providing the logic execution for rapid plant-wide shutdowns in oil and gas refineries.

• Fire and Gas (F&G) Systems: Coordinating sensor inputs and executive actions for fire suppression and gas detection in chemical plants.

• Burner Management Systems (BMS): Ensuring safe ignition and monitoring of industrial boilers and furnaces in power generation.

• Critical Process Control: Managing high-risk sequences in pharmaceutical manufacturing where process deviation can lead to hazardous outcomes.
