Product Overview

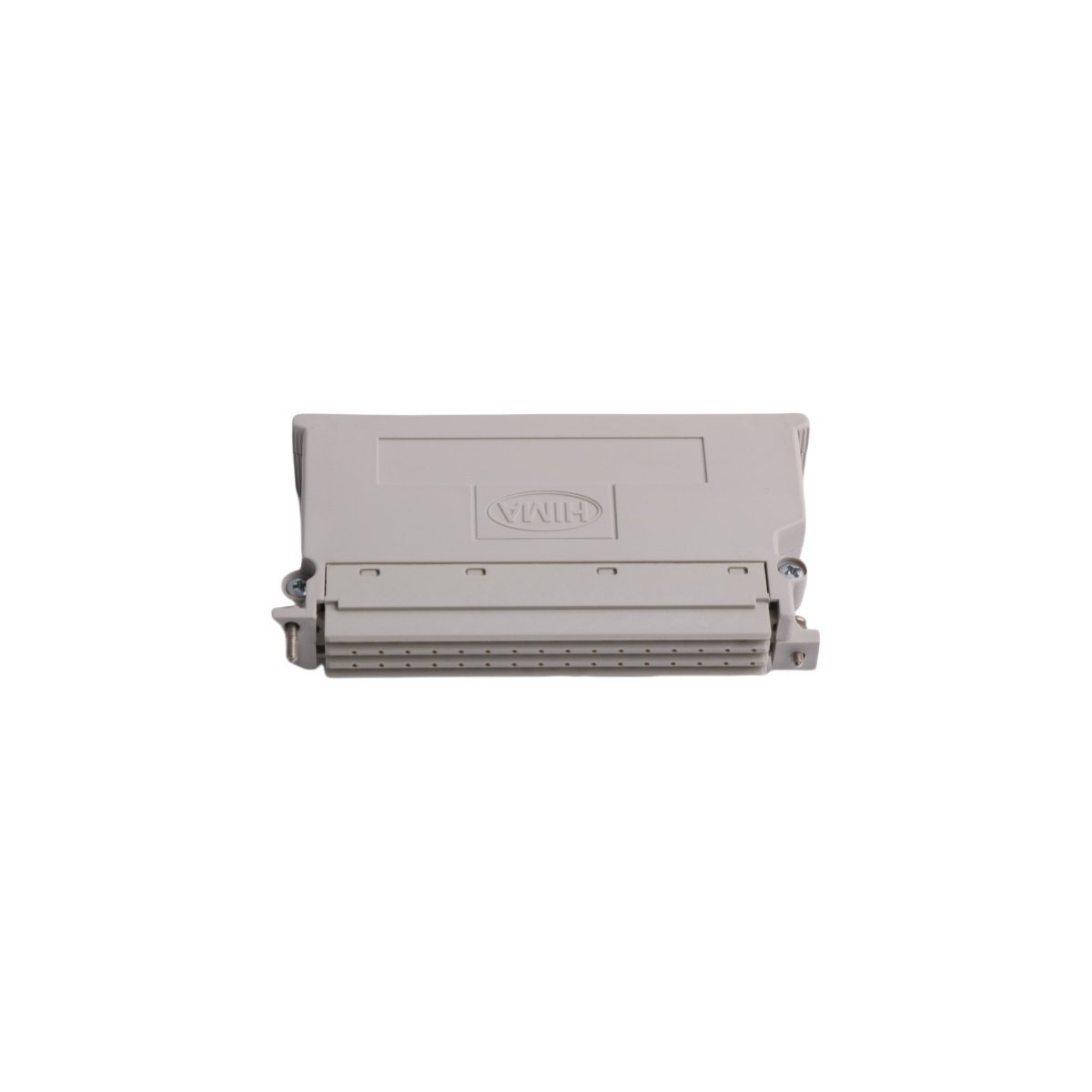

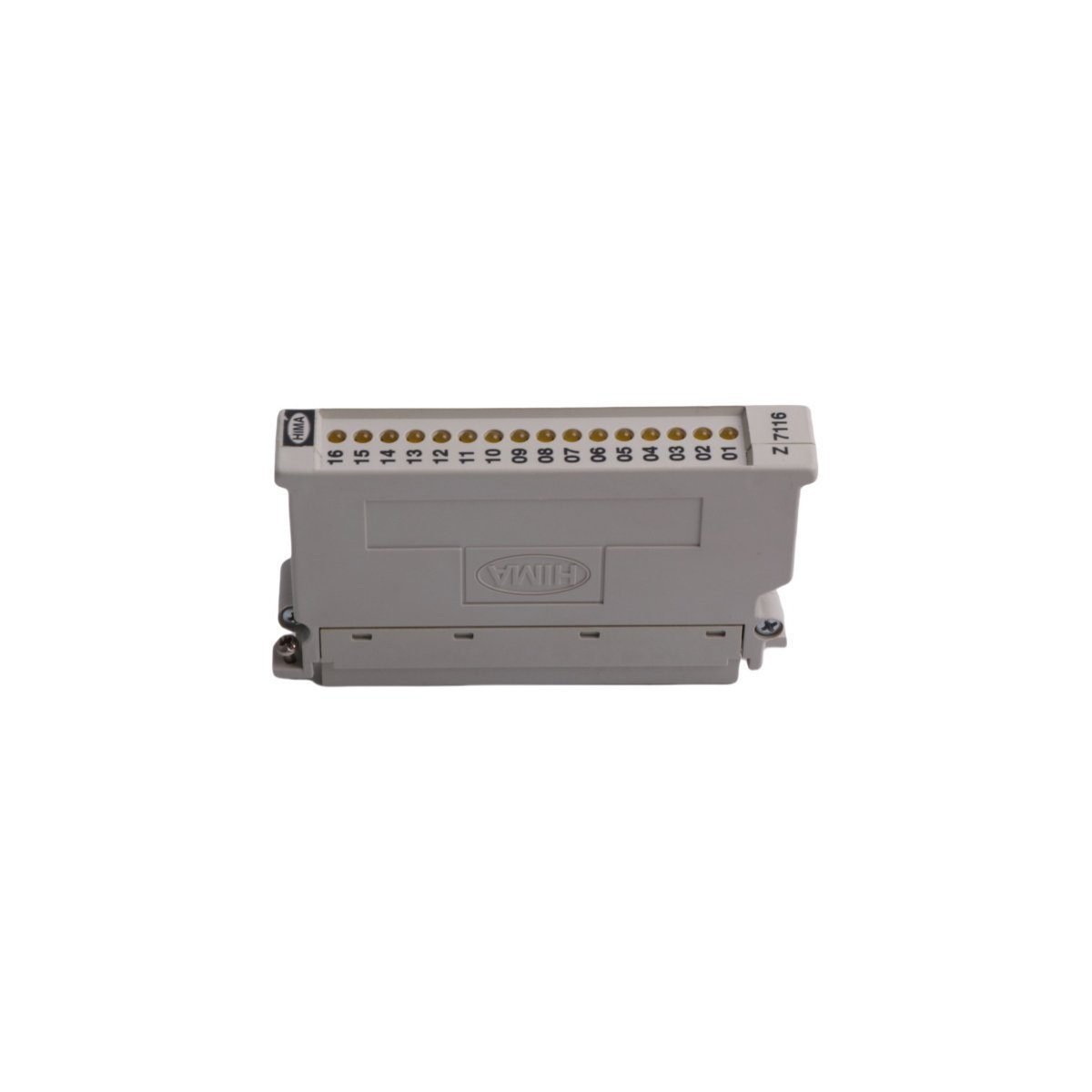

The HIMA Z7116 is a specialized connection and interface module engineered for the HIQuad X safety-related controller series. Unlike standard I/O modules, the Z7116 serves as a critical communication and cabling bridge, facilitating high-speed data transfer and physical connectivity between the controller and field-level automation components. This module is essential for system integrators looking to establish robust, fail-safe communication paths in Safety Instrumented Systems (SIS).

Encased in a high-grade aluminum alloy, the Z7116 combines mechanical durability with excellent electromagnetic shielding. This ensures that sensitive signals remain clear of interference in heavy industrial environments. It is a vital component for upgrading or expanding HIMA safety systems in the oil and gas, chemical, and energy sectors, where long-term operational integrity is mandatory.

Technical Characteristics

• System Compatibility: Exclusively designed for the HIMA HIQuad X range

• Communication Interfaces: Four (4) RS-485 ports and Two (2) CAN ports

• Protocol Support: Optimized for CANopen and Modbus RTU/TCP integration

• Mechanical Construction: Lightweight, corrosion-resistant aluminum alloy housing

• Operational Temperature: -20°C to +60°C, suitable for unconditioned control rooms

• Safety & Compliance: CE, UL, and ISO 9001 certified for use in critical safety loops

• Interface Type: Cable plug and connection terminal interface

• Weight: 0.08 kg

• Dimensions: 2.0 x 6.0 x 10.3 cm

Industrial Application and Performance

The Z7116 is built to act as the communication backbone for complex production lines. By supporting both CANopen and MODBUS protocols, it allows the HIQuad X system to interface seamlessly with a wide array of third-party PLCs, HMIs, and intelligent field devices. The multi-port RS-485 configuration provides the flexibility to create various network topologies, reducing the need for additional signal repeaters or complex wiring.

The compact footprint of the Z7116 allows for high-density mounting within control cabinets, optimizing rail space without compromising on heat dissipation or accessibility. Because it adheres to stringent international safety standards, the module ensures that the communication layer of the DCS or SIS remains as reliable as the logic solver itself, providing a dependable solution for mission-critical automation infrastructure.
