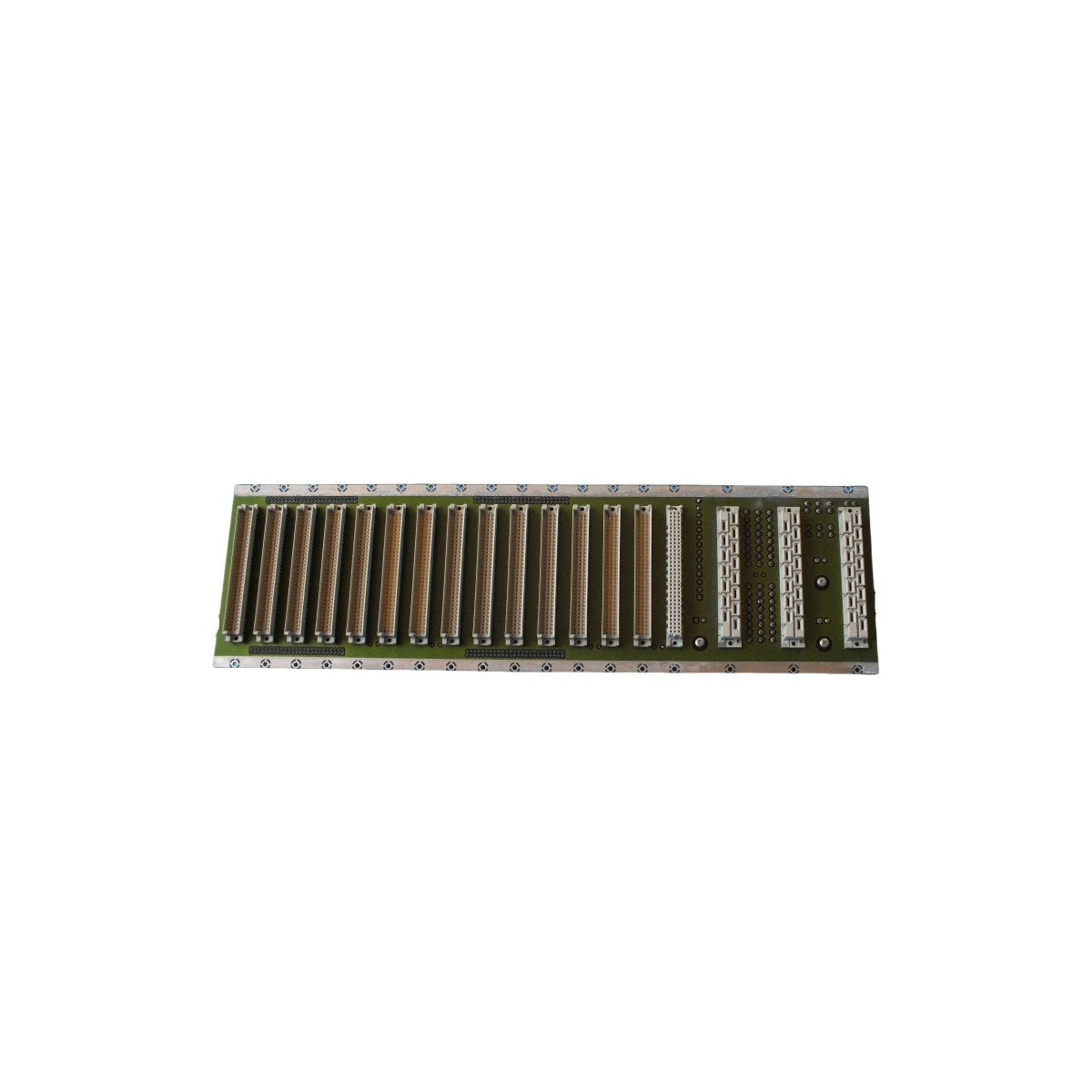

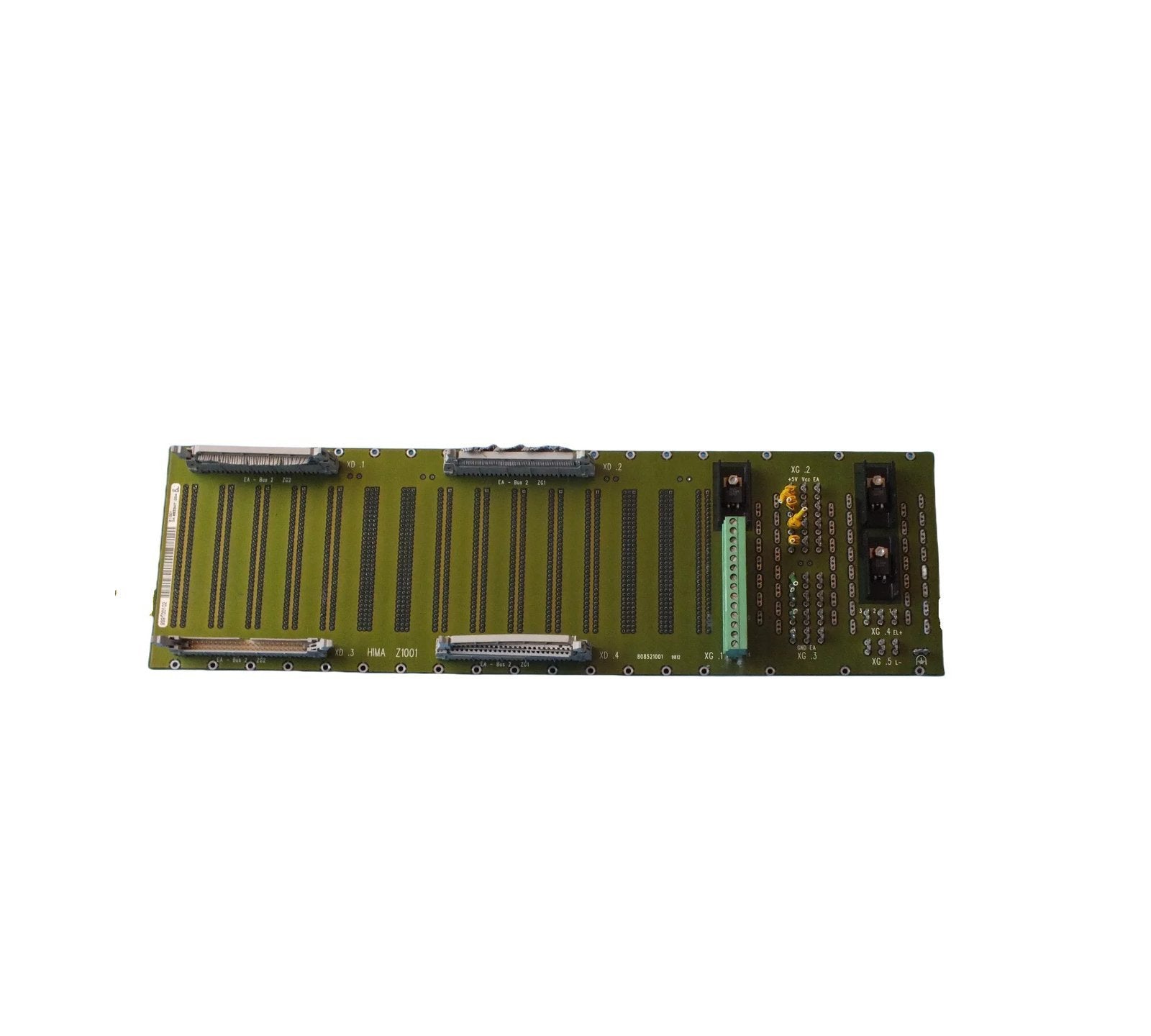

Product Overview

The HIMA Z1001 is a high-integrity safety relay and termination module designed to facilitate secure, fail-safe connections within HIMA Safety Instrumented Systems (SIS). This specialized component serves as a critical bridge for emergency shutdown (ESD) and safety interlock circuits, ensuring that control commands are executed with the highest degree of reliability. By utilizing a forced-guided contact mechanism, the Z1001 prevents the occurrence of unsafe failure modes, a prerequisite for processes requiring Safety Integrity Level 3 (SIL 3) compliance.

Engineered for the rigorous demands of the petrochemical, energy, and heavy manufacturing sectors, the Z1001 allows for the safe switching of both normally open (NO) and normally closed (NC) contacts. Its robust German construction is optimized for long-term deployment in harsh industrial environments, providing a deterministic interface between the logic solver and field-side safety actuators.

Technical Characteristics

• Contact Configuration: 8 Safe contacts utilizing forced-guided relay technology

• Safety Certification: TÜV certified for use in SIL 3 safety-related loops

• Switching Versatility: Supports both Normally Open (NO) and Normally Closed (NC) contact paths

• Fault Detection: Integrated diagnostic capabilities for continuous monitoring of switching integrity

• Isolation: High galvanic isolation between control logic and field-side switching circuits

• Mechanical Format: Modular plug-in design for rapid installation and standardized HIMA rack integration

• Environmental Tolerance: Designed for high vibration resistance and thermal stability in industrial cabinets

• Dimensions: 4.1 x 18.7 x 12.0 cm

• Weight: 0.34 kg

• Country of Origin: Germany

Industrial Application and Reliability

The Z1001 Cable Plug is a cornerstone for high-availability automation where personnel and asset protection are paramount. Its unique architecture simplifies the wiring and commissioning process, reducing the potential for human error during system setup. The module is specifically designed to handle the inductive loads common in industrial safety circuits, such as solenoid valves and heavy-duty motor starters.

Through its modular interface, the Z1001 can be seamlessly integrated into existing Distributed Control Systems (DCS) or new HIMatrix/HIQuad infrastructures. The proactive diagnostic features allow the system to identify potential relay fatigue or circuit irregularities before a failure occurs, significantly enhancing the Safety Availability of the plant. Whether used for critical interlocks or as part of a plant-wide ESD network, the HIMA Z1001 delivers the uncompromising mechanical switching precision required by modern global safety standards.
