Product Overview

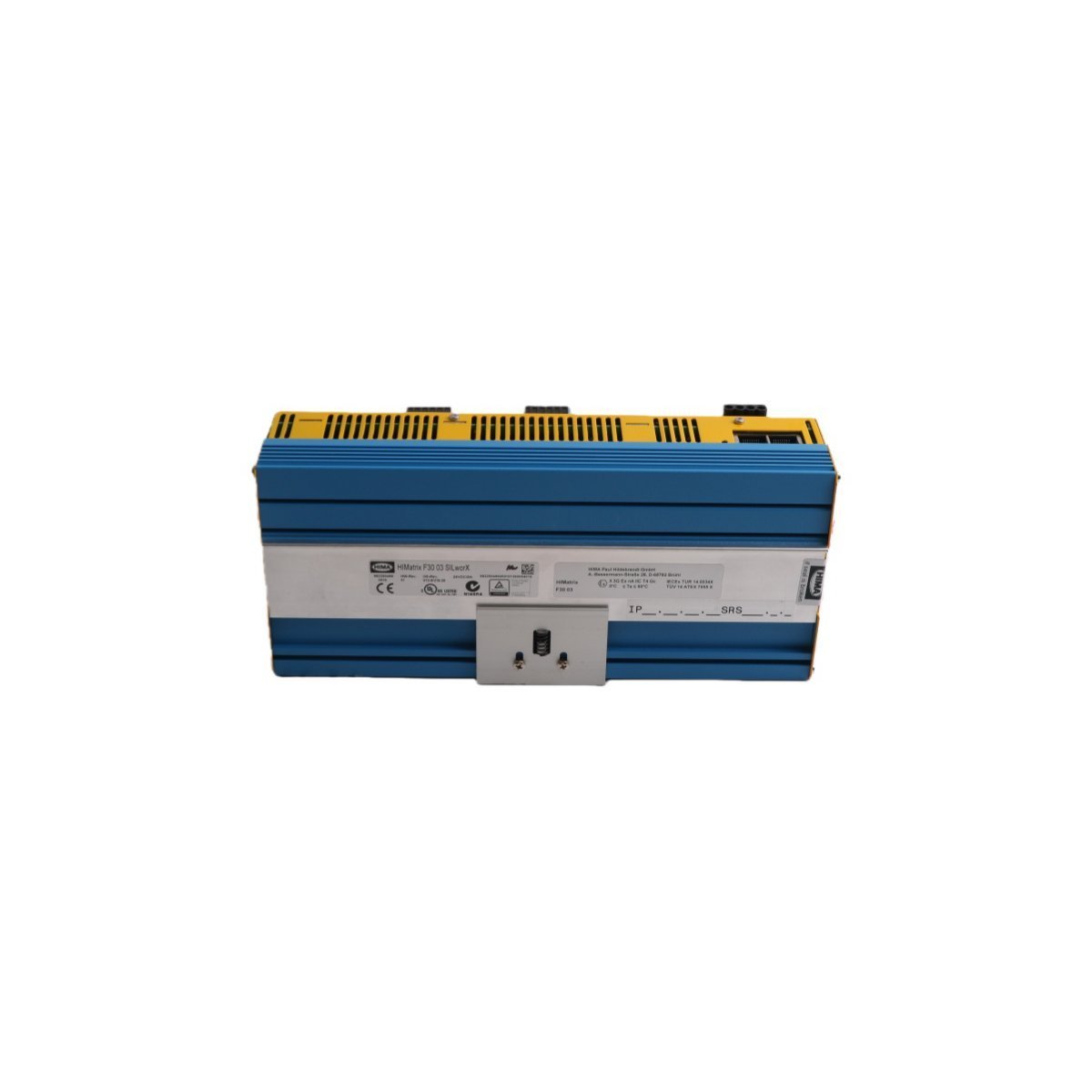

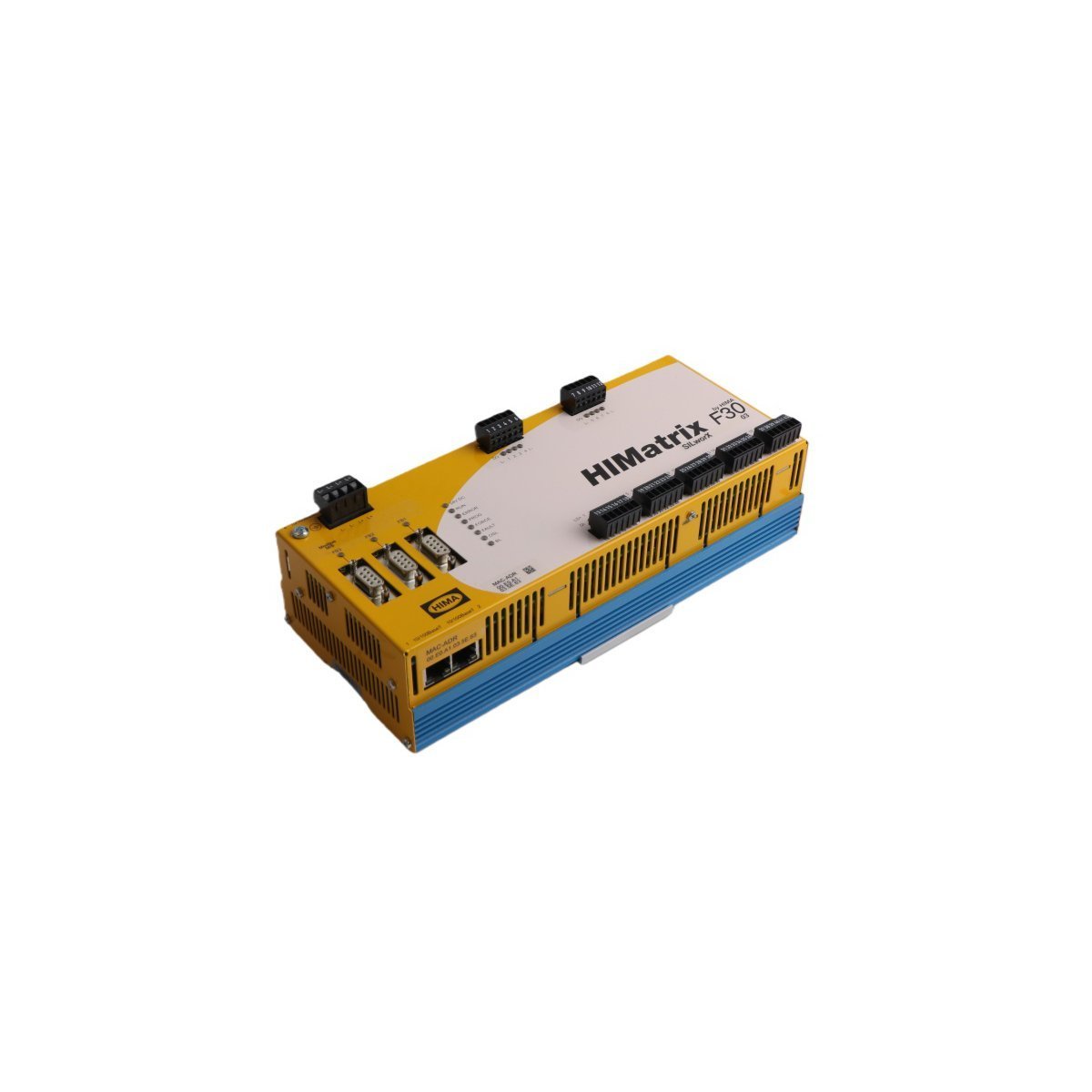

The HIMatrix F30 01 by HIMA is a high-performance, autonomous safety controller designed for distributed and decentralized safety applications. This compact unit integrates a powerful logic solver with high-density I/O to manage critical safety instrumented functions (SIF). It is specifically engineered for environments requiring maximum safety integrity in a small physical footprint, such as burner management systems (BMS), emergency shutdown (ESD) loops, and high-pressure protection systems.

Equipped with a robust metal housing, the F30 01 is built to withstand industrial rigors while maintaining strict compliance with global safety standards. It provides a localized control solution that can operate independently or be networked within a larger HIMA safety ecosystem via safe Ethernet communication.

Technical Specifications

• Digital Inputs: 20 Safety-Rated Channels (24V DC)

• Digital Outputs: 8 Safety-Rated Channels (24V DC)

• Safety Integrity Level: SIL 3 (IEC 61508 / IEC 61511)

• Performance Level: Category 4 / PL e (EN ISO 13849-1)

• Hazardous Area Approval: Certified for ATEX Ex-zone 2 installation

• Internal Power Source: Short-circuit-proof 24V supply for potential-free contacts

• Diagnostic Feedback: Individual LED status indicators for all I/O channels

• Programming Support: Compatible with SILworX and ELOP II Factory engineering environments

• Housing: Industrial-grade metal enclosure for superior EMC protection

• Dimensions: 2.5 x 12.7 x 20.3 cm

• Weight: 0.1 kg (Net unit weight)

• Manufacturing Origin: Germany

Advanced Safety and Connectivity

The HIMatrix F30 01 excels in hazardous area applications, holding certification for Ex-zone 2. This allows the controller to be placed closer to the field devices in potentially explosive atmospheres, significantly reducing wiring costs and signal latency. The internal 24V DC power source is segmented to supply groups of four potential-free mechanical contacts, ensuring that field-side short circuits do not compromise the entire controller's operation.

Data integrity is further protected through sophisticated internal cross-monitoring and self-testing routines. The controller supports rapid scan times, making it suitable for fast-acting processes. Whether used for fire and gas detection or complex machine guarding, the F30 01 provides the deterministic performance and high diagnostic coverage necessary to protect personnel, assets, and the environment.
