Product Overview

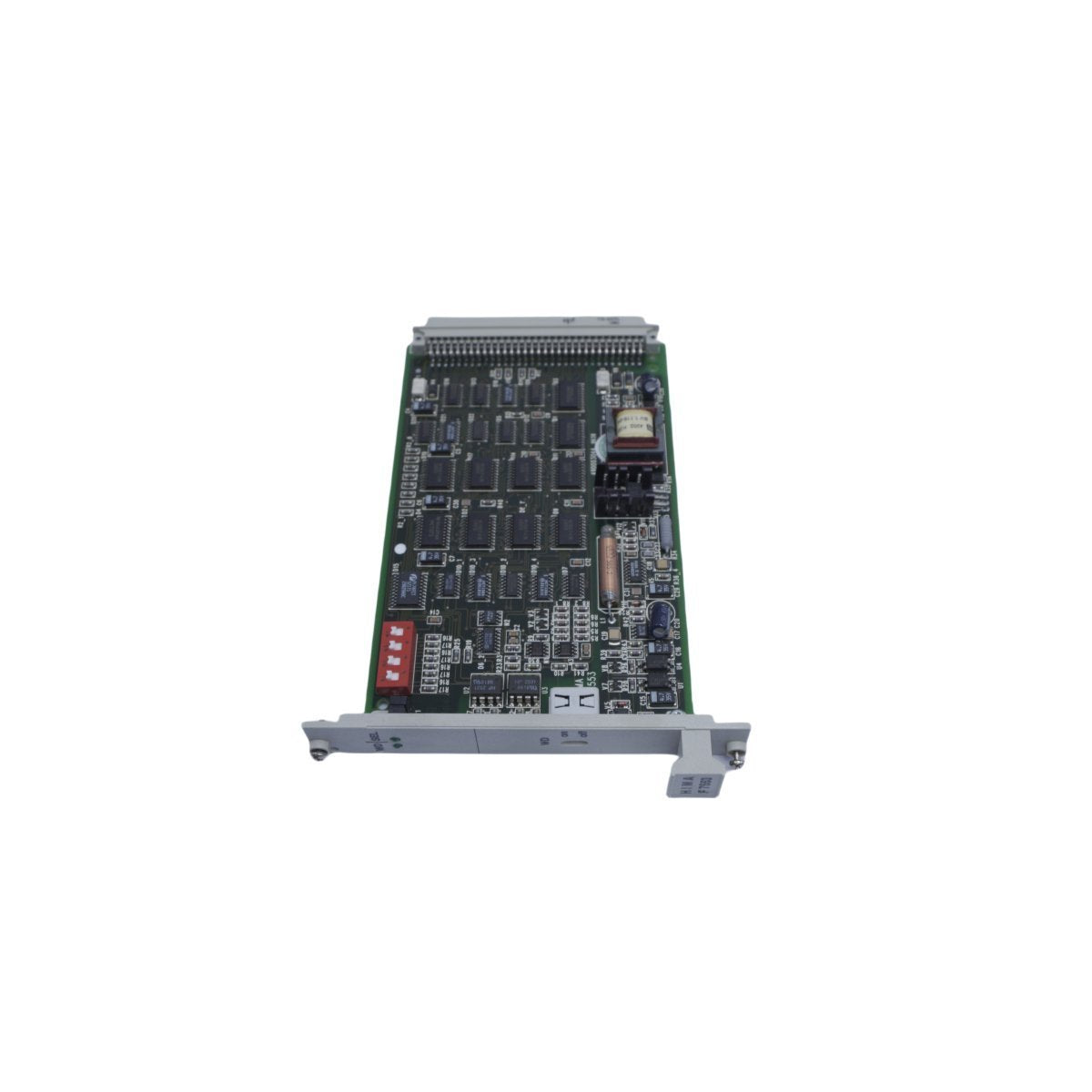

The HIMA F7553 is a specialized coupling module designed for the H41q and H51q safety-related automation systems. Functioning as a high-speed communication coprocessor, this module is engineered to manage the complex data exchange between safety-critical central processing units and external plant networks. By isolating communication tasks from the main logic solver, the F7553 ensures that safety execution remains deterministic and immune to network-induced latency.

As a core component of HIMA’s Safety Instrumented Systems (SIS), the F7553 provides the necessary hardware interface to maintain high availability in critical industrial sectors. It is primarily utilized in large-scale Distributed Control System (DCS) architectures where seamless, synchronized communication between multiple subracks or peer-to-peer safety controllers is required to maintain plant-wide protection.

Technical Characteristics

• System Compatibility: Exclusively for HIMA H41q and H51q safety platforms

• Module Type: Communication / Bus Coupling Coprocessor

• Redundancy Support: Fully compatible with fault-tolerant and redundant system configurations

• Data Monitoring: Integrated hardware self-tests for real-time error detection and link status reporting

• Safety Integrity: Designed for use in Safety Instrumented Functions up to SIL 3

• Interface Protocol: Optimized for HSR (High-speed Safety-Related) and peer-to-peer bus communication

• Thermal Range: Rated for standard industrial operation within unconditioned control cabinets

• Dimensions: 2.0 x 18.5 x 12.8 cm

• Weight: 0.14 kg

• Country of Origin: Germany

System Integration and Fault Tolerance

The F7553 Coupling Module is built with a focus on maximum system uptime. It features a robust, fault-tolerant architecture that allows safety functions to persist even during localized communication hardware anomalies. This "fail-operational" capability is essential for hazardous environments where unexpected downtime can lead to dangerous process conditions or significant financial loss.

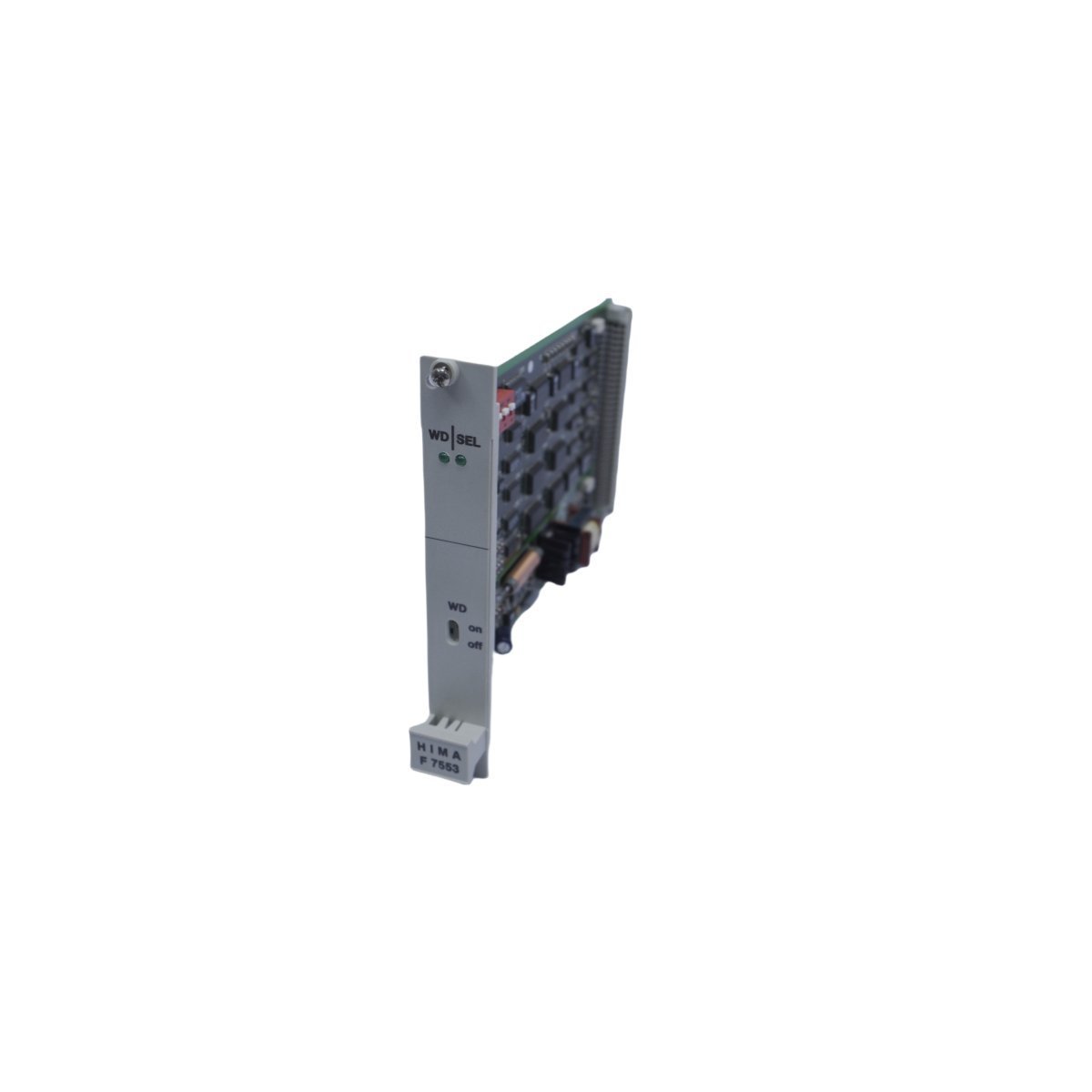

Installation is streamlined via HIMA’s standard 19-inch subrack interface, allowing for hot-swapping or rapid replacement during scheduled maintenance windows. The module includes intuitive diagnostic indicators on the front panel, providing maintenance teams with immediate visual feedback on bus health and data throughput. Whether upgrading a legacy H41q system or implementing a new H51q safety loop, the F7553 ensures a high-integrity communication backbone that complies with the most stringent international safety regulations.
