Product Overview

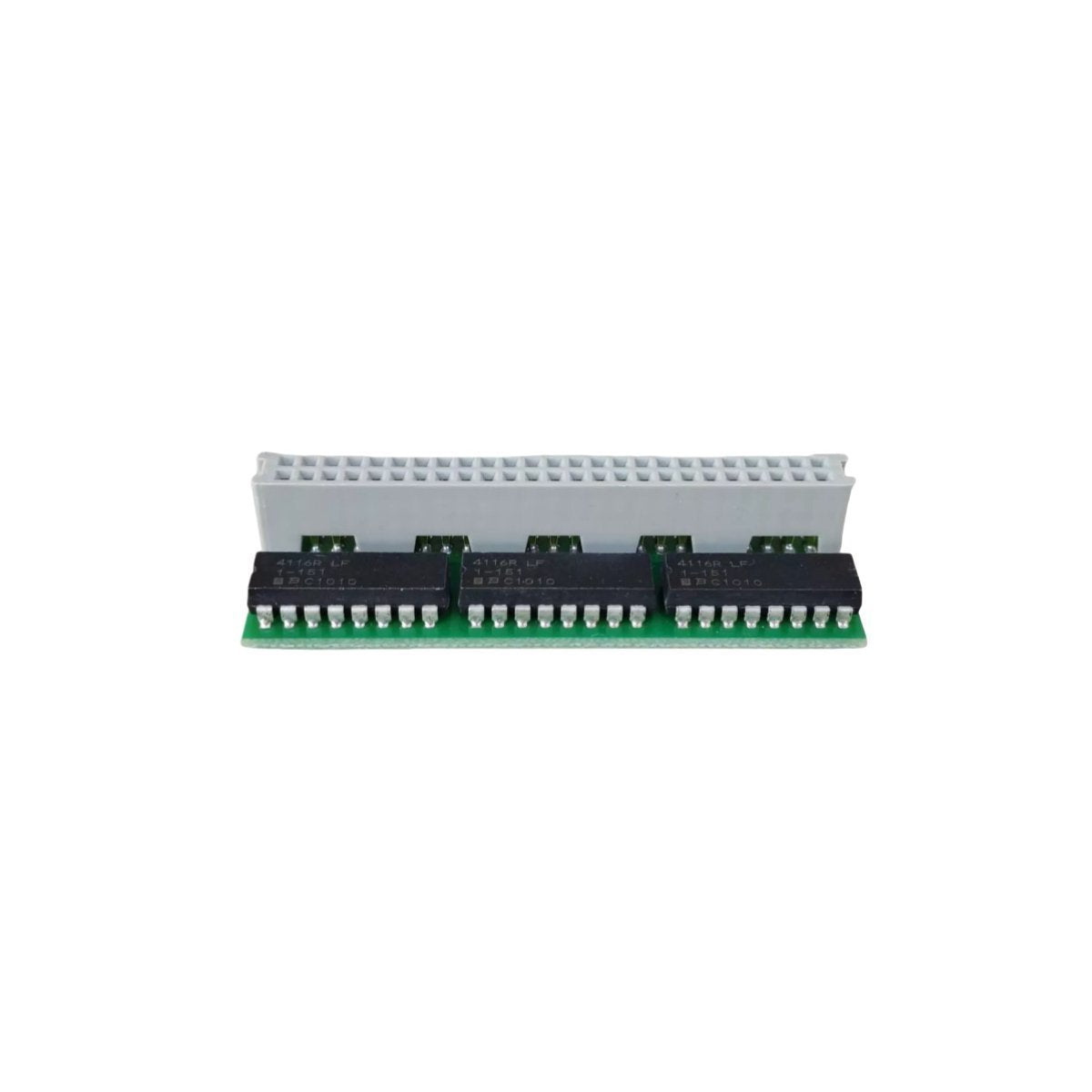

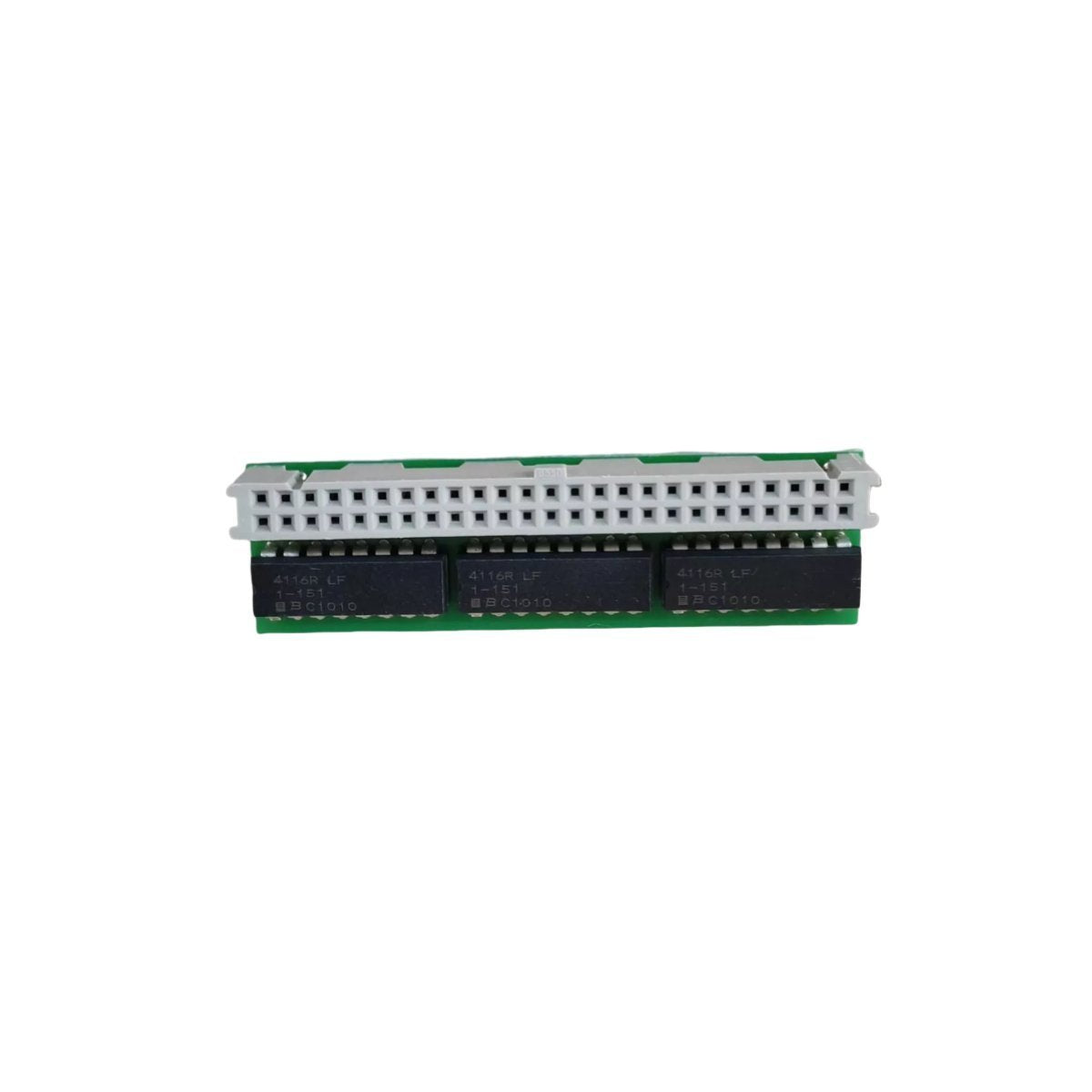

The HIMA F7546 is a specialized I/O Bus Coupling Module engineered for the H41q and H51q safety-related automation systems. This critical interface component facilitates the high-speed data exchange between the central processing unit (CPU) and the localized or remote I/O subracks. By managing the signal traffic across the internal system bus, the F7546 ensures that safety-critical data is transmitted with the deterministic timing required for SIL 3 (Safety Integrity Level) applications.

Constructed to meet rigorous German engineering standards, this module supports both single-channel and redundant configurations, allowing for high-availability setups in the energy, chemical, and petrochemical sectors. Its primary function is to maintain bus integrity and provide termination, ensuring that the safety instrumented system (SIS) remains stable even during complex emergency shutdown (ESD) sequences.

Technical Characteristics

• System Series: HIMA H41q and H51q Safety Systems

• Module Function: I/O Bus Coupling and Termination

• Safety Integrity: TÜV-certified for SIL 3 applications (IEC 61508)

• Response Timing: Deterministic data processing supporting sub-100ms system response

• Electromagnetic Compatibility: Fully compliant with EMC directive 89/336/EWG for high-noise industrial environments

• Redundancy Support: Compatible with fault-tolerant dual-channel architectures

• Diagnostics: Integrated internal monitoring for bus fault detection

• Physical Dimensions: 2.0 x 18.7 x 12.8 cm

• Operating Weight: 0.12 kg

• Manufacturing Origin: Germany

Functional Integration and Reliability

The F7546 I/O Bus Coupling Module acts as the backbone of the H41q platform’s communication layer. It is designed to withstand significant electrical interference, ensuring that data packets between field modules and the logic solver are not corrupted. The module's compact 20mm width allows for efficient rack utilization, which is essential for high-density I/O cabinets.

For maintenance and expansion, the F7546 provides a scalable solution that allows for the addition of I/O subracks without redesigning the core safety logic. The module features localized diagnostic indicators that provide immediate feedback on bus status, simplifying troubleshooting for site technicians. By maintaining a deterministic communication cycle, the F7546 guarantees that critical safety functions—such as fire and gas detection or pressure relief logic—are executed with uncompromising precision and reliability.
