Product Overview

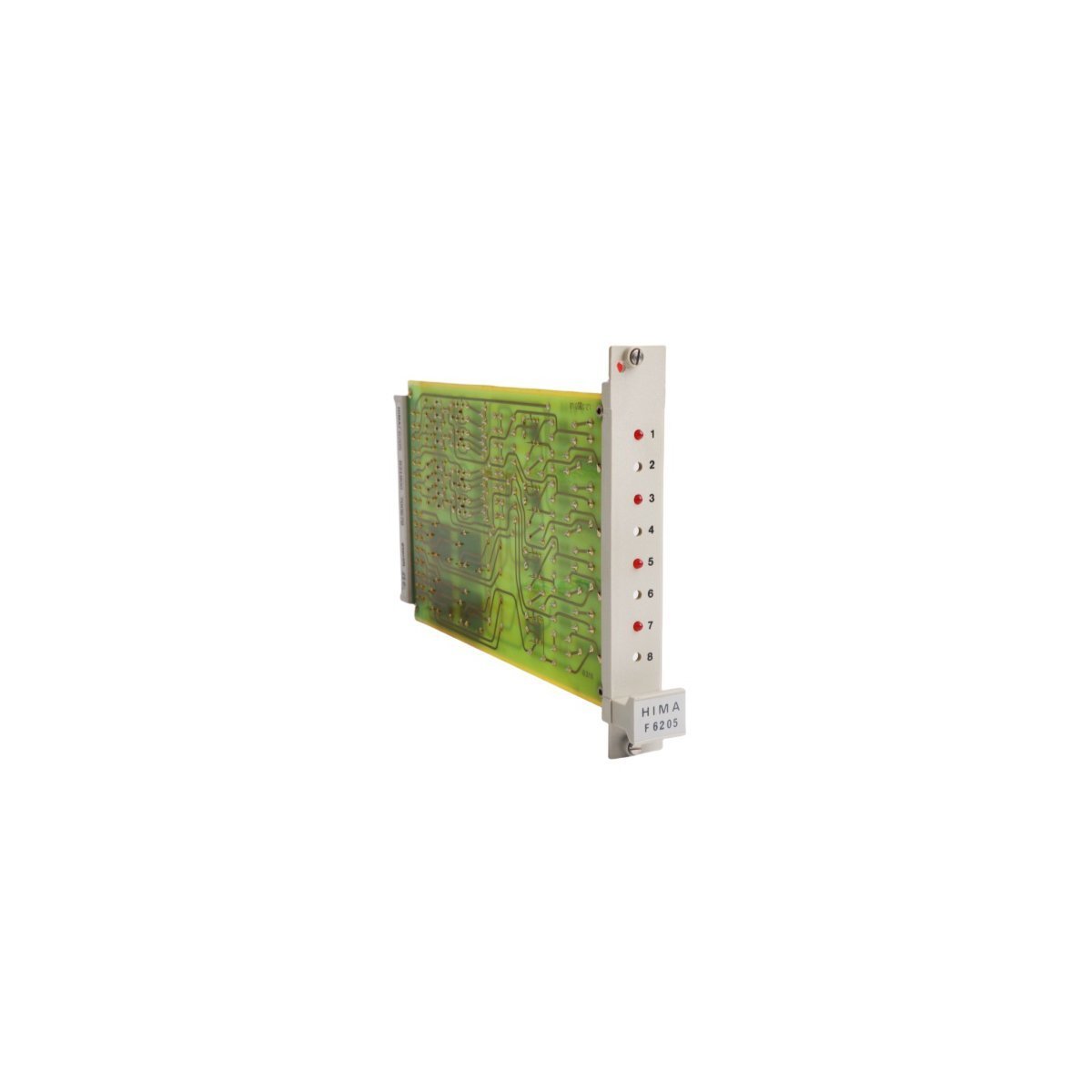

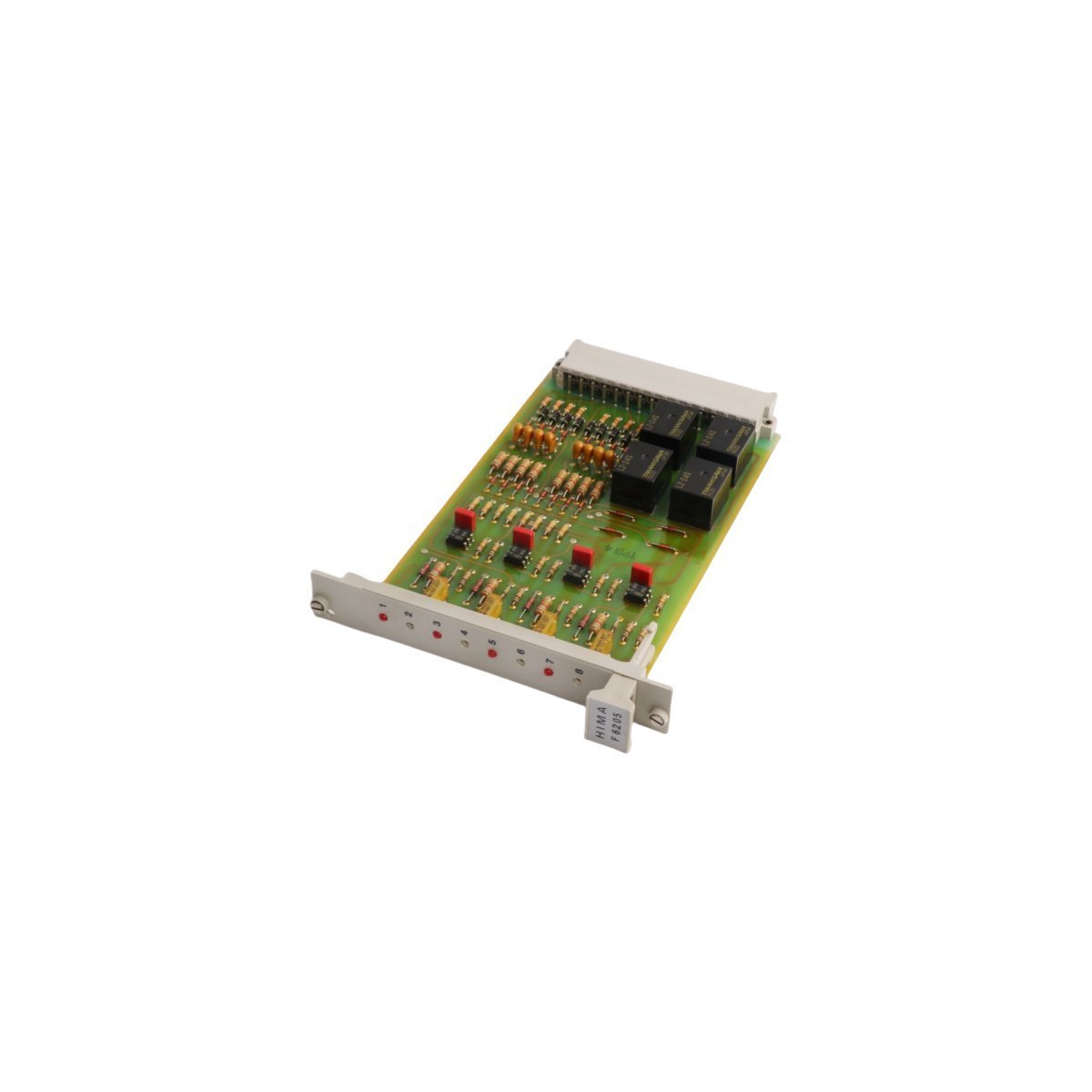

The HIMA F6205 is a high-reliability relay control module developed for use within the H41q and H51q safety-related automation systems. This module acts as a critical interface between the safety logic solver and the field-level actuators, providing galvanically isolated switching for safety-critical circuits. Unlike standard I/O modules, the F6205 is engineered to meet stringent SIL (Safety Integrity Level) requirements, ensuring that outputs transition to a fail-safe state during a system fault or emergency shutdown (ESD) event.

Constructed with industrial-grade components, the module is optimized for process industries such as oil and gas, petrochemicals, and power generation. Its primary role is to drive final control elements, including emergency valves, motor starters, and signaling devices, with a high degree of diagnostic coverage and switching reliability.

Technical Characteristics

• Relay Configuration: Dual-channel switching capability for safety-critical circuits

• Output Channels: Designed for integration into H41q/H51q safety loops

• Switching Capacity: Optimized for 24V DC industrial loads

• Isolation: High-voltage galvanic isolation between internal system logic and field-side circuits

• System Integration: Plugs directly into HIMA H41q/H51q subracks via standard backplane connectors

• Monitoring: Integrated feedback and diagnostic routines to detect relay contact welding or circuit failures

• Temperature Tolerance: Rated for continuous operation in environments ranging from 0°C to +60°C

• Safety Rating: Suitable for use in safety-instrumented systems up to SIL 3

• Mechanical Design: Standard HIMA 4U height format for rack mounting

• Dimentions:2x19x13cm

• Weight: 0.14 kg

Operational Logic and Safety Performance

The F6205 utilizes a specialized safety-relay architecture that ensures "de-energize to trip" functionality is maintained. This means that in the event of a power loss or a detected internal hardware failure, the relays will automatically return to their safe, open position. The module's internal circuitry performs continuous self-tests, comparing the commanded state of the output against the actual position of the relay contacts.

Installation and maintenance are streamlined by the module’s modular design, which allows for replacement within the system rack with minimal impact on surrounding hardware. The F6205 is an essential component for any engineer maintaining a legacy or active HIMA H41q/H51q infrastructure, providing the necessary hardware layer to translate complex safety logic into physical field actions without compromising the integrity of the safety loop.
