Product Overview

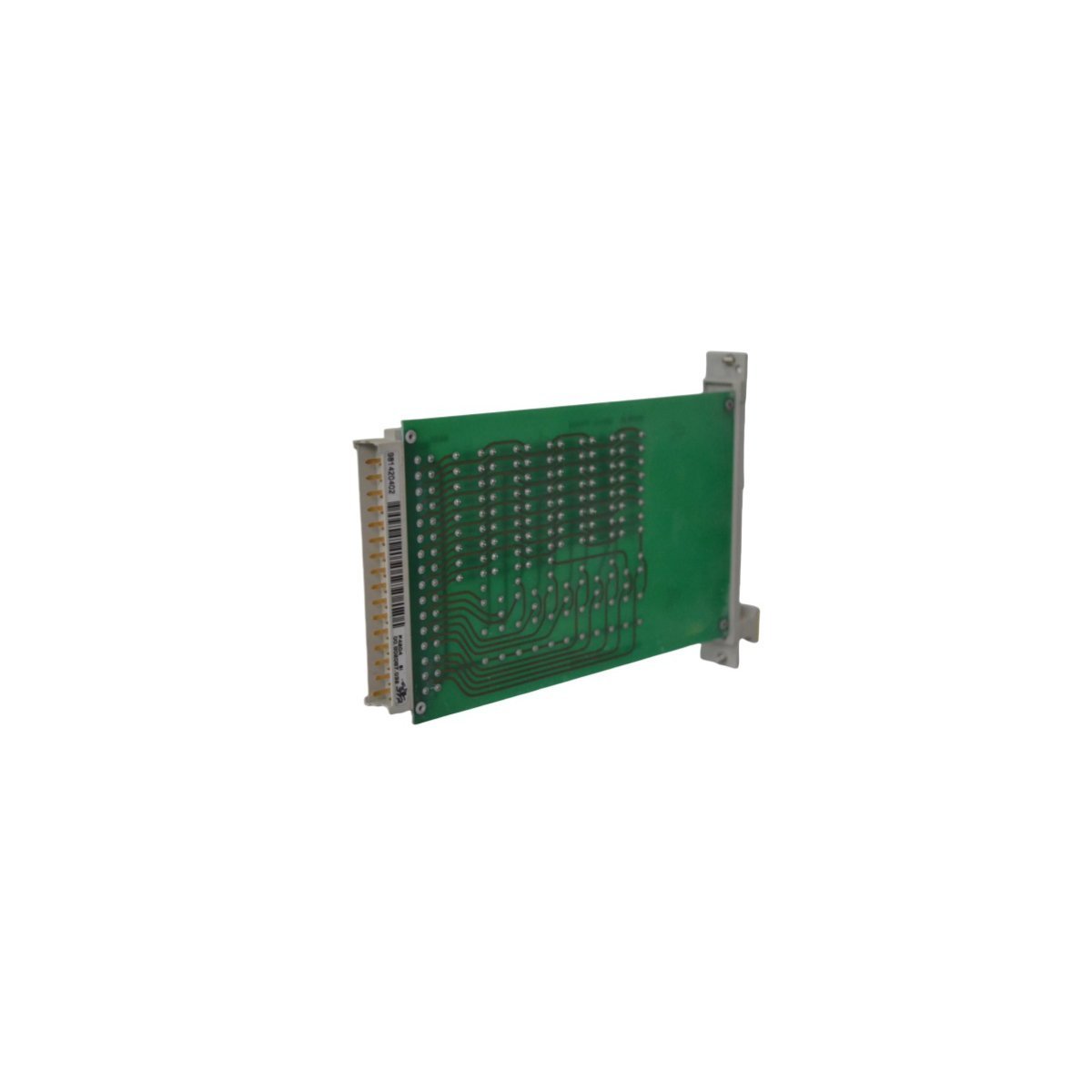

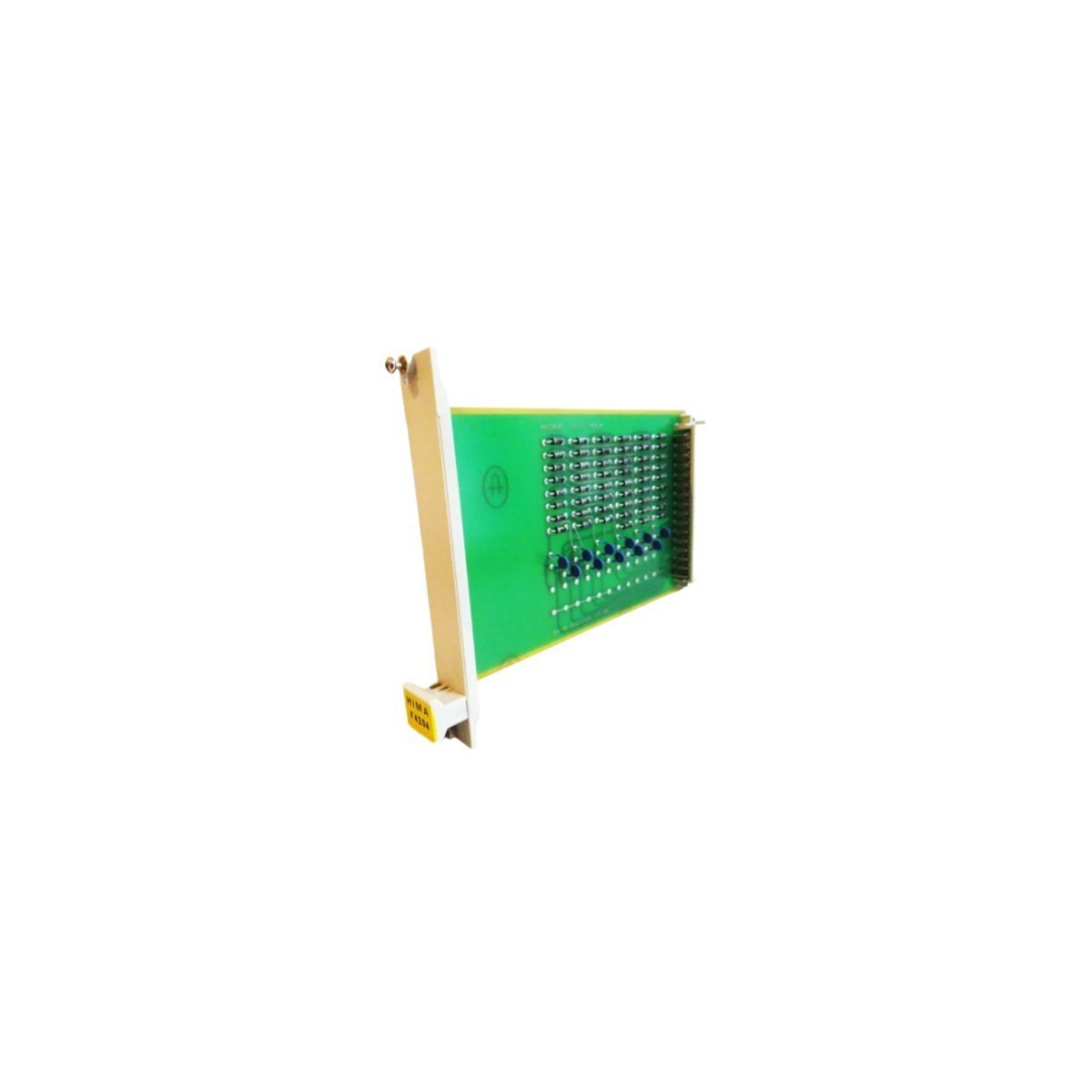

The HIMA F4204 is a high-integrity digital output module specifically engineered for the H41q and H51q safety-related automation systems. This module serves as a critical interface for driving safety-instrumented functions (SIF), allowing the logic solver to control actuators such as solenoid valves, motor starters, and signaling devices with extreme reliability. Unlike standard digital outputs, the F4204 is designed with internal hardware redundancy and comprehensive diagnostic capabilities to ensure that failures are detected before they can compromise plant safety.

By utilizing a "de-energize-to-trip" philosophy, the F4204 ensures that in the event of a system fault or power loss, the outputs transition to a predefined safe state. This makes it an essential component for Emergency Shutdown (ESD) systems and Fire and Gas (F&G) applications in the petrochemical, power generation, and offshore sectors.

Technical Characteristics

• Output Configuration: 4 Safety-related digital output channels (Short-circuit proof)

• Load Capacity: Up to 2A per channel at 24V DC

• System Compatibility: Exclusively for HIMA H41q and H51q safety racks

• Safety Integrity: Suitable for Safety Instrumented Systems up to SIL 3

• Galvanic Isolation: Full isolation between internal bus logic and field-side circuits

• Diagnostic Features: Integrated line monitoring (short-circuit and wire-break detection)

• Thermal Range: Rated for stable operation between -25°C and +70°C

• Form Factor: Standard 4U plug-in card for 19-inch subracks

• Environmental Protection: IP20-rated enclosure for control cabinet mounting

• Dimensions: 3.2 x 21 x 13.3 cm

• Weight: 0.4 kg

Safety Architecture and System Integration

The F4204 advanced safety module utilizes a sophisticated internal switching logic that performs continuous self-tests of the output transistors. This "read-back" capability allows the controller to verify that the physical state of the output matches the commanded logic. If a discrepancy is detected, the module can initiate a channel-specific shutdown or a total module reset depending on the user configuration.

The module is optimized for high-demand loads, offering a 2A switching capacity which is significantly higher than standard 0.5A PLC outputs. This allows for direct control of larger solenoid valves without the need for interposing relays, thereby reducing complexity and potential points of failure within the safety loop. Its rugged German engineering ensures long-term stability in environments prone to vibration and electromagnetic interference, providing a dependable solution for mission-critical industrial infrastructure.
