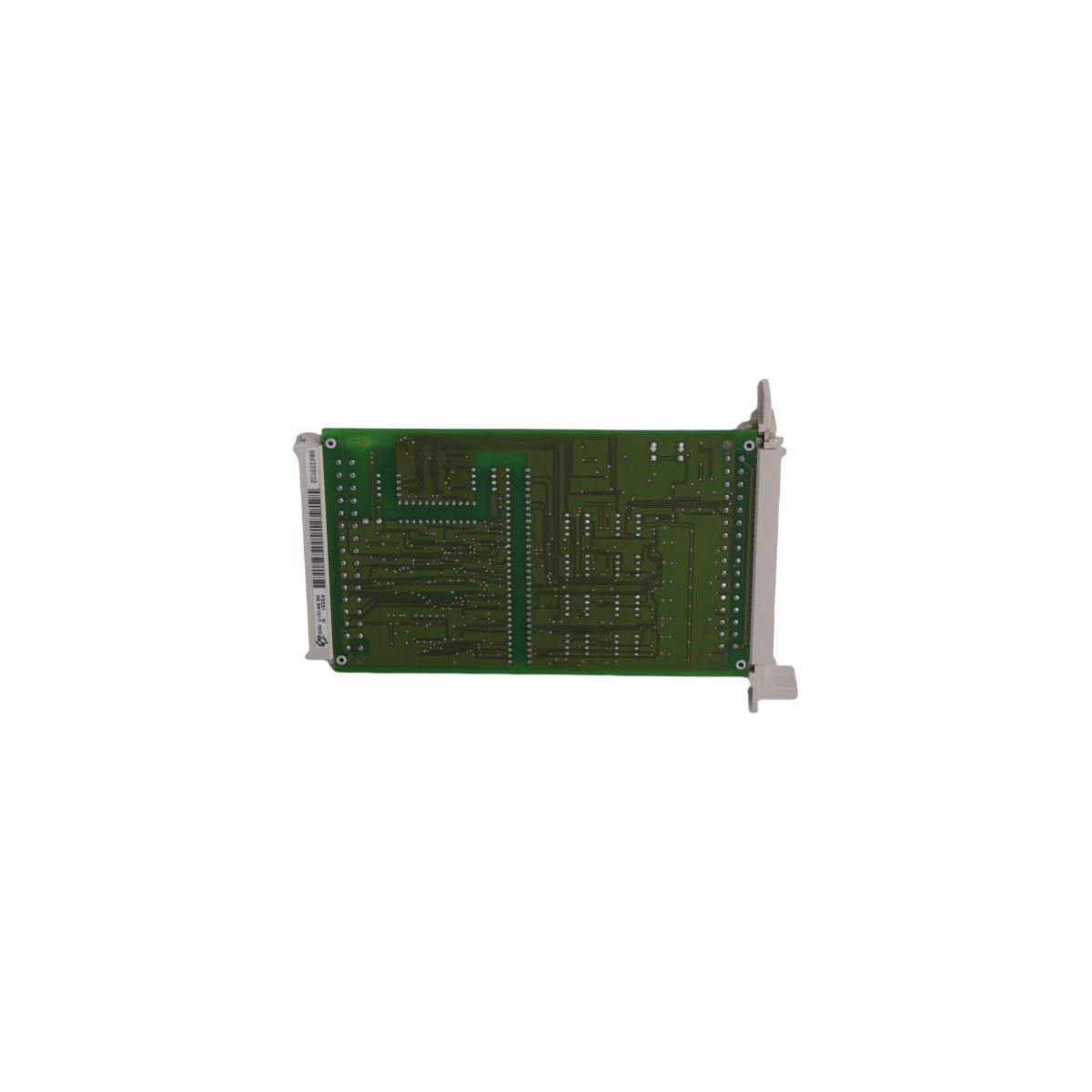

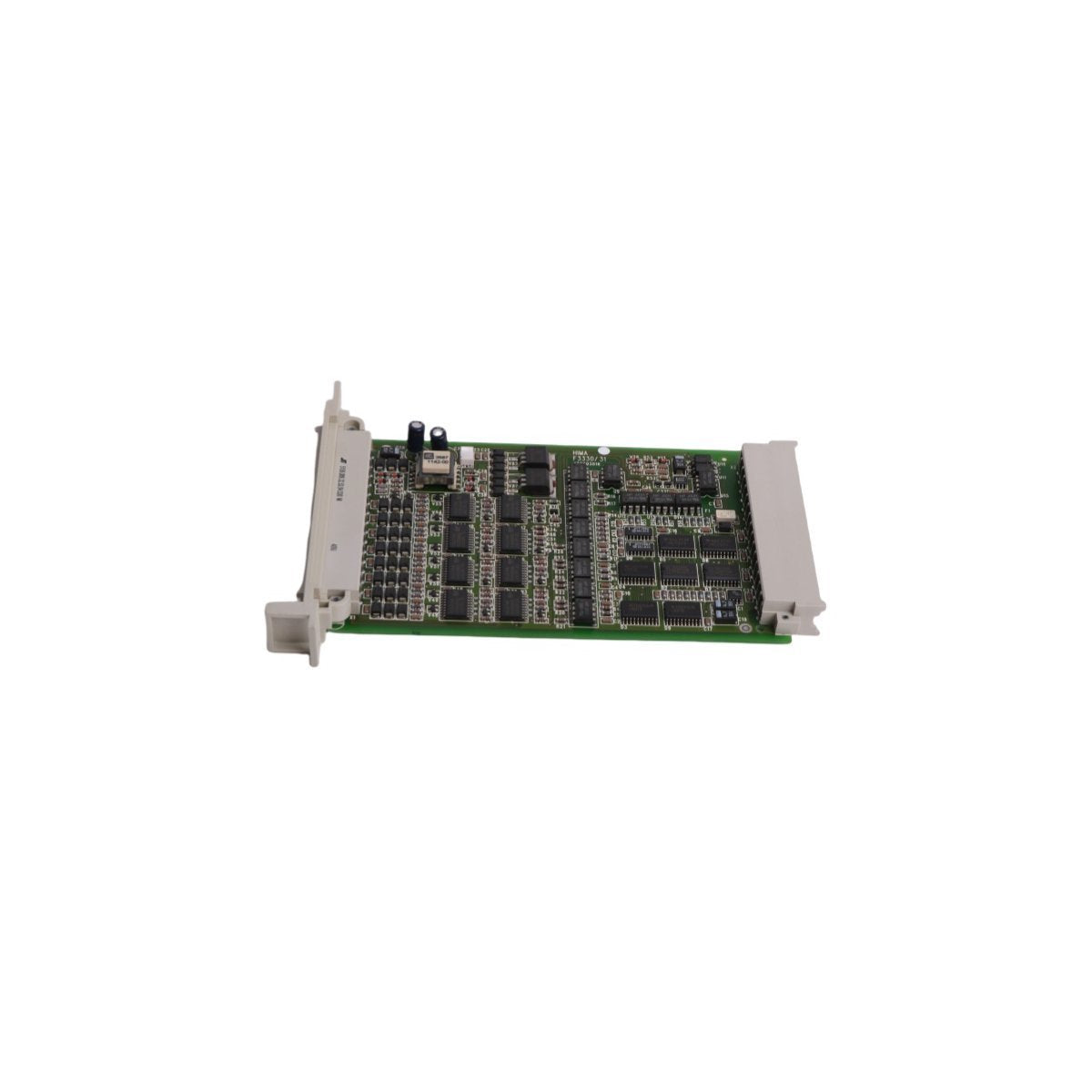

Product Overview

The HIMA F3331 is a specialized 8-channel safety-related digital output module engineered for the SIMATIC-compatible H41q and H51q automation systems. As a critical component of HIMA’s functional safety architecture, the F3331 provides high-integrity switching for actuators, valves, and motor starters in Safety Instrumented Systems (SIS). This module is designed to translate the logic solver's decisions into physical actions while adhering to the most stringent safety standards required for emergency shutdown (ESD) and fire and gas (F&G) applications.

Manufactured in Germany, the F3331 utilizes a fail-safe design philosophy where outputs are supervised to ensure they remain under control even in the presence of internal component degradation. It is a preferred solution for process industries where personnel safety and environmental protection depend on the deterministic performance of the control hardware.

Technical Characteristics

• Channel Count: 8 independent safety-related output channels

• System Family: HIMA H41q and H51q Series

• Rated Voltage: 24V DC

• Output Type: Discrete digital outputs for safety-critical actuators

• Safety Integrity: Designed for loops requiring up to SIL 3 performance

• Isolation: Complete galvanic separation between system internal bus and field circuits

• Monitoring: Comprehensive internal diagnostics for cross-fault and short-circuit detection

• Operating Temperature: 0°C to +60°C (32°F to 140°F)

• Form Factor: Standard HIMA 4U plug-in card for subrack mounting

• Weight: 0.14 kg

• Dimentions:2x19x12.8cm

• Manufacturing Origin: Germany

Diagnostic Coverage and Fault Response

The F3331 Safety Related Output Module is built with sophisticated self-testing routines that operate in the background without interrupting the process. These routines verify the switching capability of the output transistors and monitor for external anomalies such as wire breaks or short-circuits to the 24V supply. In the event of a critical hardware fault, the module executes a "fail-safe" response, de-energizing the outputs to bring the process to a known safe state.

For system maintenance, the module features front-panel status LEDs that provide real-time feedback on channel health and bus communication. This transparency allows for rapid troubleshooting in complex industrial environments. The hardware is optimized for high-density rack installations, allowing for seamless expansion of existing safety networks without requiring significant infrastructure changes. Its robust mechanical construction ensures longevity and stability in environments prone to vibration and electromagnetic interference.
